Product Description

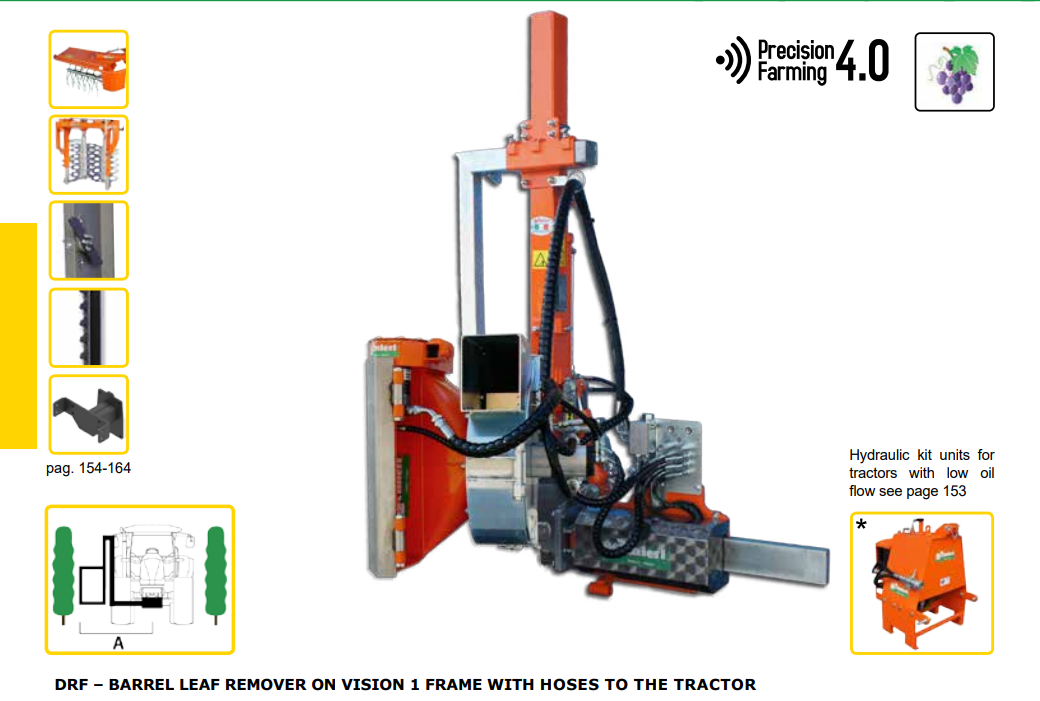

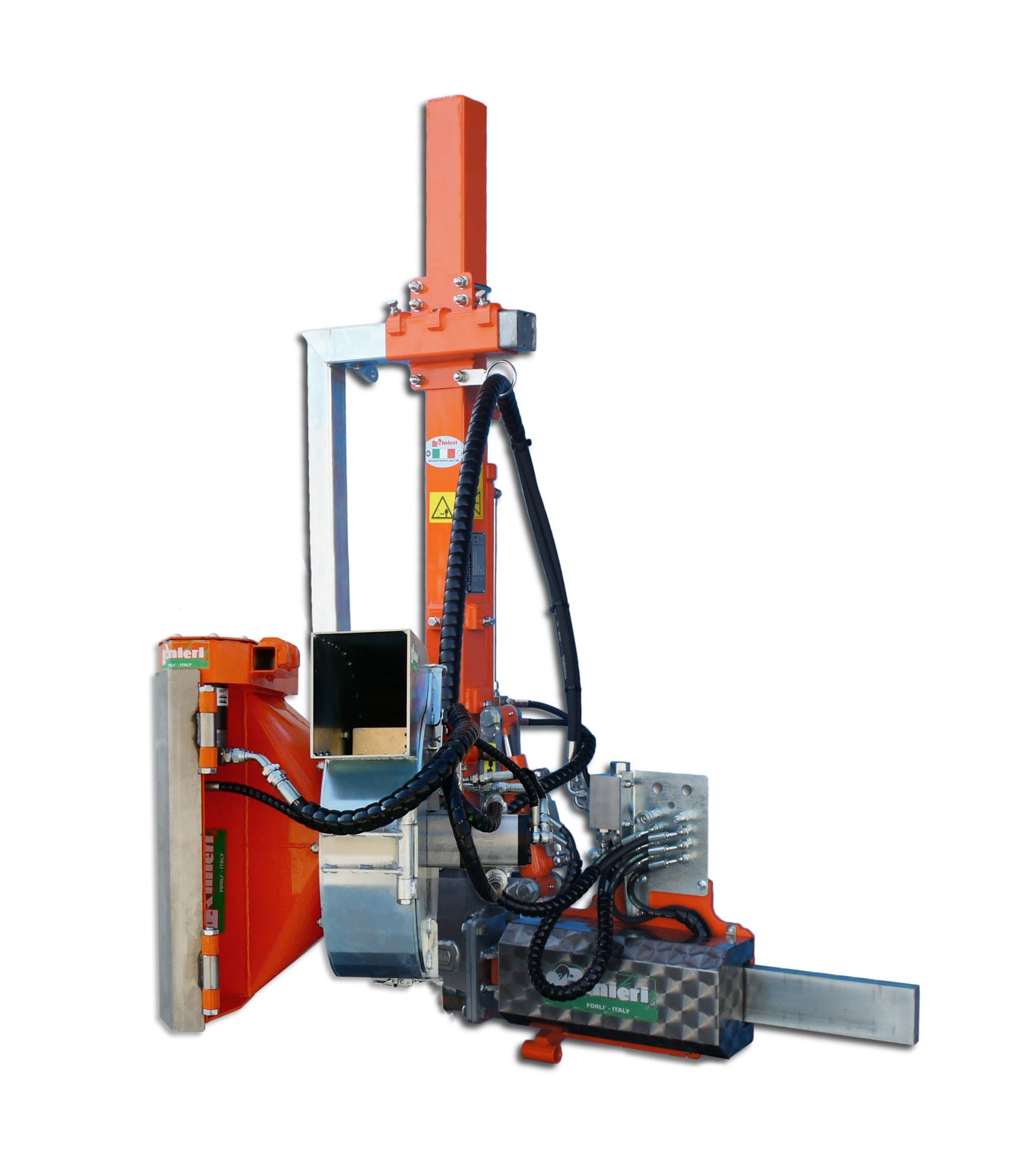

Rinieri DRF Barrel Leaf Remover on Vision 1 Frame With Hoses | 24" - 43" Roller Height for Tractor
DESCRIPTION
The DRF – BARREL LEAF REMOVER is the ideal solution for modern vineyard management, designed to safely and effectively remove leaves from the grape zone, which promotes better grape maturation and aeration while reducing the need for chemical sprays. The machine features two opposite rollers—one with holes and the other made of rubber—ensuring precise and safe leaf removal without harming the grapes. A stainless steel protection shield follows the contour of the vine walls, ensuring thorough and safe leaf removal.
The DRF is powered by a hydraulic motor that drives the fan, ensuring powerful aspiration. This leaf remover can be mounted on the VISION-1 frame or a rotating frame, which allows for defoliation of only the side not exposed to the sun, saving time on the return trip. The VISION-1 FRAME provides excellent control with independent hydraulic tilting, lifting, and side shift features, making it a versatile choice for modern vineyards.
Key Features
- Hydraulic Lifting: 23.6" (60 cm) independent hydraulic lifting for easy adjustments during vineyard operations.
- Vertical Frame Tilting: +/- 15° hydraulic tilting for efficient operation on uneven terrain.
- Side Shift: 11.8" (30 cm) hydraulic and 7.8" (20 cm) manual side shift for precise positioning along the vine rows.
- Speed Control Valve: For adjusting the roller speed to match the specific vineyard needs.
- Safety Systems: Includes maximum pressure valves for motors, a floating device for the head with gas spring, and a hydraulic stand for safe storage.
- Efficient Aspiration: Fan driven by a hydraulic motor ensures efficient leaf removal through powerful aspiration.
Detailed Specification

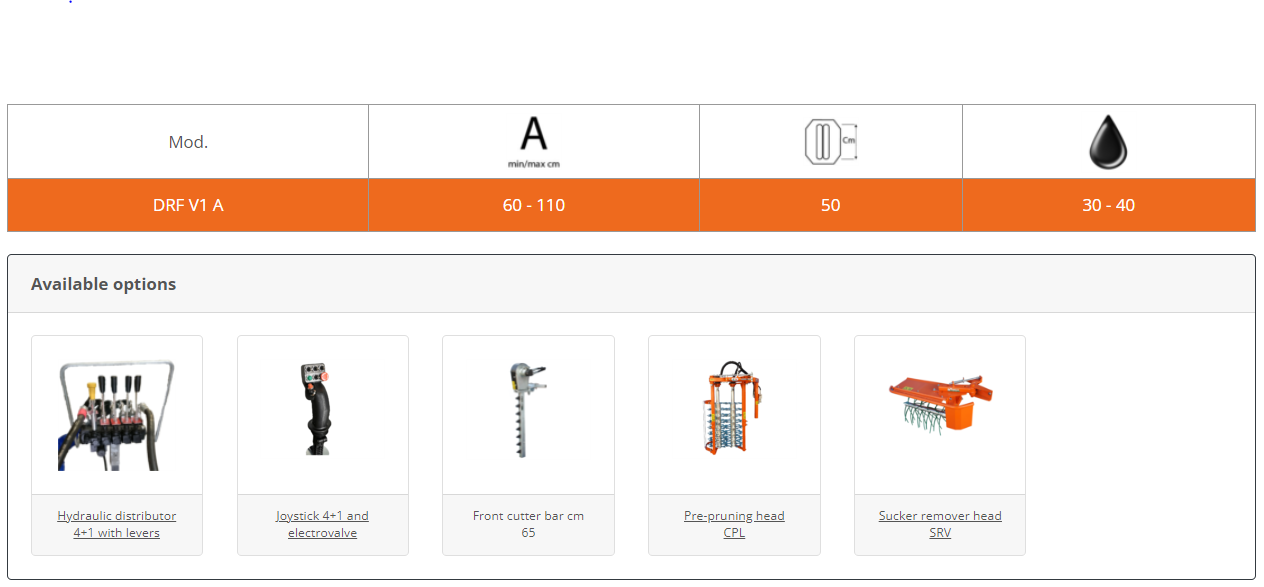

Feature | Specification |
---|---|
Hydraulic Lifting | 23.6" (60 cm) |
Vertical Frame Tilting | +/- 15° |
Side Shift | 11.8" (30 cm) hydraulic, 7.8" (20 cm) manual |

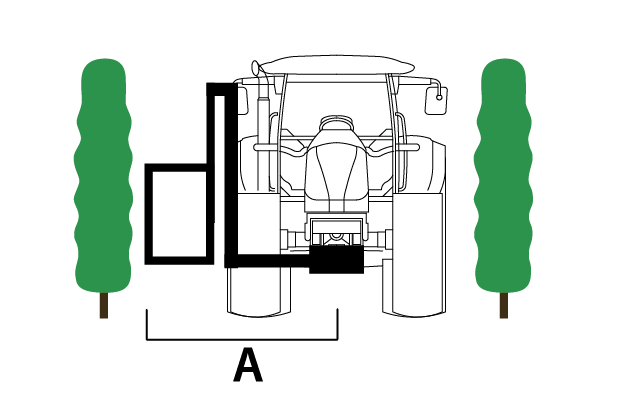

Roller Height | 23.6" - 43.3" (60 - 110 cm) |
Oil Demand | 30-40 liters/min |
Electrical Requirements | 12V socket |
In Package:
- DRF V1 A Model: Equipped with a 23.6" - 43.3" roller height, oil demand of 30-40 liters/min, speed control valve, and stainless steel protection shield.
Available Options:
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 with electrovalve
- Front cutter bar 25.5" (65 cm)
- Pre-pruning head CPL
- Sucker remover head SRV
Manuals & Documents
The Product Manual
Product Configuration Guide
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

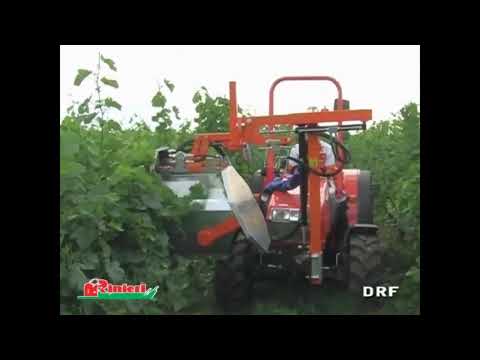

Videos
