Product Description

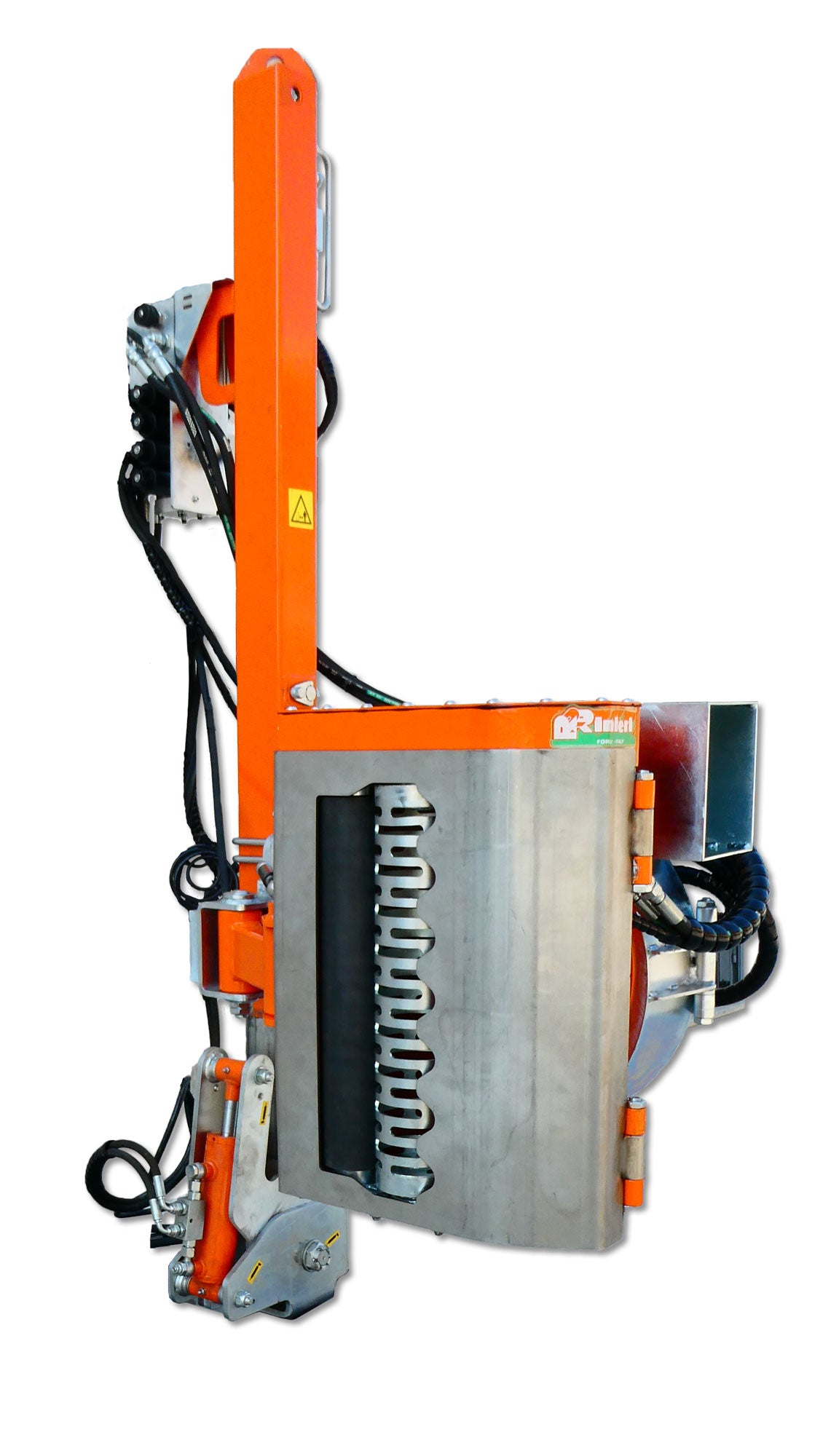

Rinieri DRF Double Barrel Leaf Remover On Rotating Frame Tower 1 | 24" - 35" Roller Height for Tractor

DESCRIPTION

The DRF - DOUBLE BARREL LEAF REMOVER is the perfect solution for modern vineyards, designed to remove leaves from the grape zone, improving maturation and aeration while reducing the need for chemical sprays. The machine uses two opposite rollers—one with holes and the other made of rubber—to safely remove leaves without damaging the grapes. A stainless steel protection shield ensures the rollers follow the vines closely, providing efficient and gentle leaf removal.

Equipped with a hydraulic motor-driven fan for powerful aspiration, the DRF can be mounted on a Tower, Vision, or Turning frame. The rotating frame feature allows defoliation on the side not exposed to the sun, saving time on the return trip. This leaf remover is designed to improve vineyard productivity and grape quality, making it an essential tool for modern vineyard management.

Key Features

• Hydraulic Lifting: 27.5" (70 cm) hydraulic lifting for better control in vineyard operations.
• Vertical Frame Tilting: +/- 20° hydraulic tilting for adaptable leaf removal.
• Side Shift: 19.6" (50 cm) hydraulic and manual side shift for precise positioning.
• Hydraulic Flipping: 180° flipping device for defoliating only one side of the vines.
• Speed Control Valve: For regulating roller speed during operation.
• Safety Systems: Maximum pressure valve for motor protection, floating device for head with gas spring, and a hydraulic stand for easy storage.

Detailed Specification

In Package:

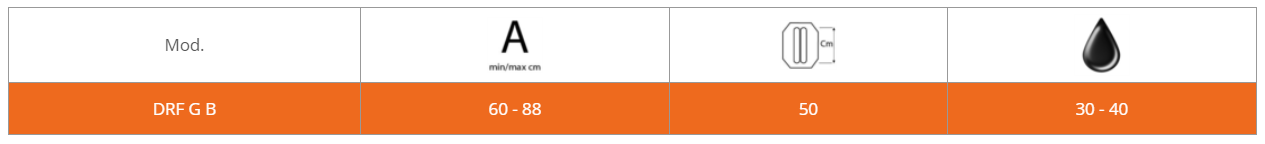

• DRF G B Model: Equipped with a 23.6" - 34.6" roller height, oil demand of 30-40 liters/min, hydraulic flipping device, speed control valve, and stainless steel protection shield.

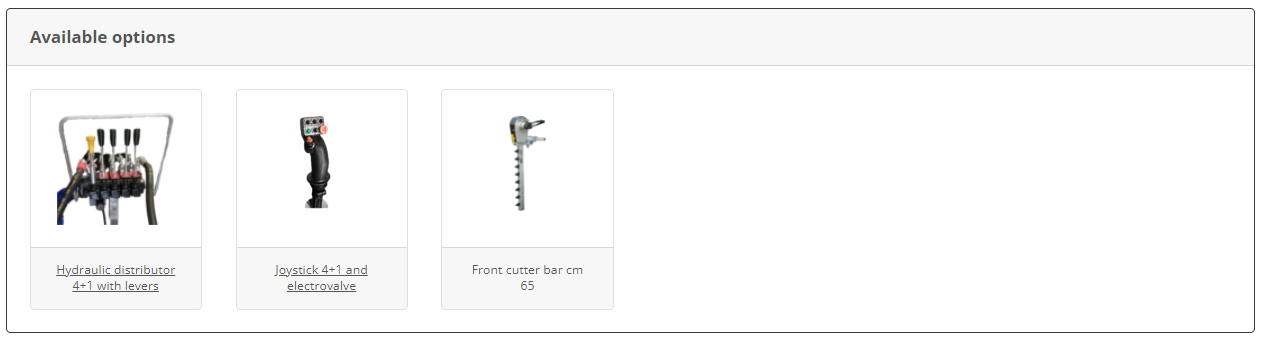

Available Options:

• Hydraulic distributor 4+1 with levers
• Joystick 4+1 with electrovalve
• Front cutter bar 25.5" (65 cm)

Manuals & Documents

The Product Manual

Configure Your Machine

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

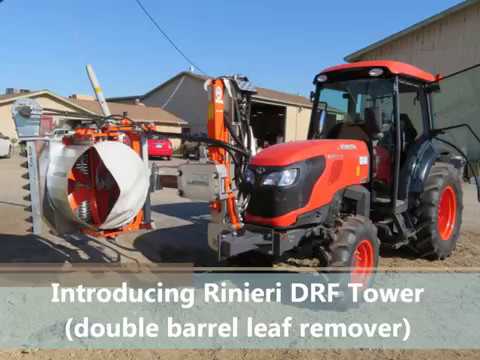

Videos
