Product Description

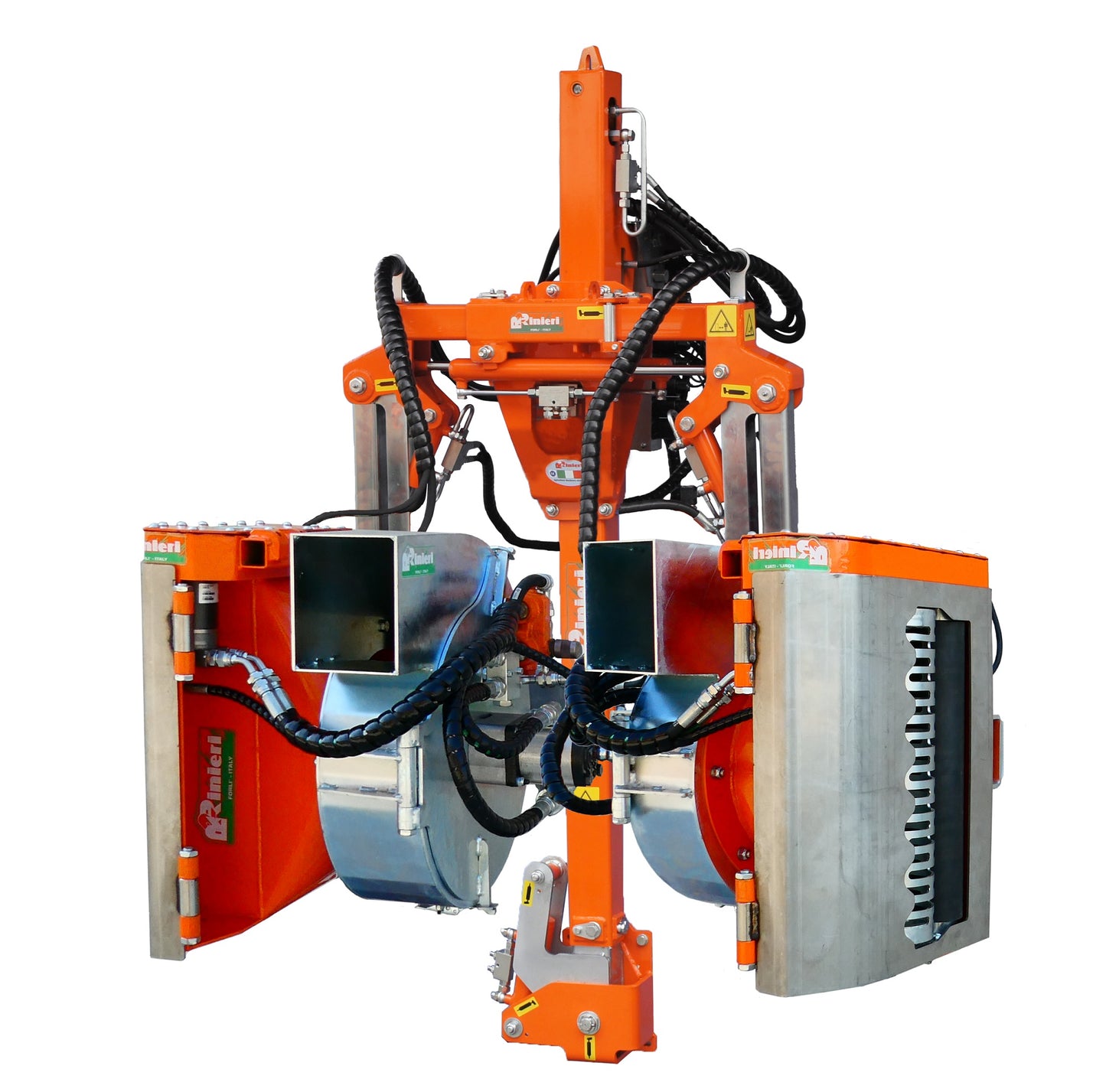

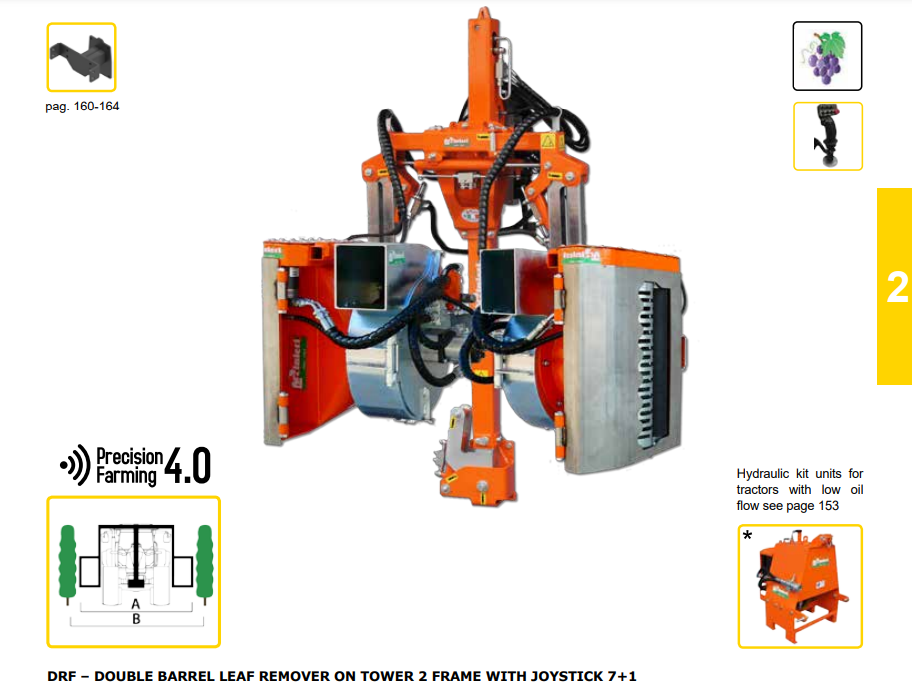

Rinieri DRF Double Barrel Leaf Remover on Tower 2 Frame With Joystick 7+1 | 41"-75" Roller Height for Tractor
DESCRIPTION
The DRF – DOUBLE BARREL LEAF REMOVER is engineered to meet the needs of modern vineyards by efficiently removing leaves from the grape zone, which enhances maturation and aeration while reducing the need for chemical sprays. This machine features two opposite rollers—one with holes and the other made of rubber—ensuring safe leaf removal without damaging the grapes. A stainless steel shield follows the vine wall, ensuring precise and safe trimming.
This model is mounted on the TOWER-2 FRAME, which allows the application of two DRF heads, enabling the machine to defoliate both sides of the same row simultaneously, increasing productivity. The machine can also be equipped with an optional double blade cutter bar, placed in front of the head, to cut branches outside the wires, preventing blockages in the rollers. With electro-hydraulic joystick 7+1 control, the operator has full control of the machine’s operations, making it easier to adapt to different vineyard conditions.
Key Features
- Dual Roller System: Removes leaves from the grape zone safely and efficiently.
- Stainless Steel Protection Shield: Follows the vine wall to protect grapes during operation.
- Hydraulic Lifting & Tilting: Ensures smooth operation and flexibility in vineyard rows.
- Fan-Assisted Aspiration: Provides consistent suction for leaf removal without damage.
- Dual-Sided Defoliation: Two DRF heads can be mounted for defoliation on both sides simultaneously.
T2 Frame Features
- Electro-hydraulic distributor with joystick 7+1
- Hydraulic lifting (27.5")
- Vertical frame hydraulic tilting (+/-20°)
- Hydraulic side shift
- Hydraulic tilting of the working heads (+/-11°)
- Speed control valve for rollers
Safety Features
- Maximum pressure valves for motors
- Floating device for heads with gas springs
- Hydraulic stand for storage
On the Tractor
- N.7 double-acting hydraulic distributors
- N.1 single-acting hydraulic distributor
- N.1 pressure-free return
- 40-45 L/min oil demand
- 12V socket

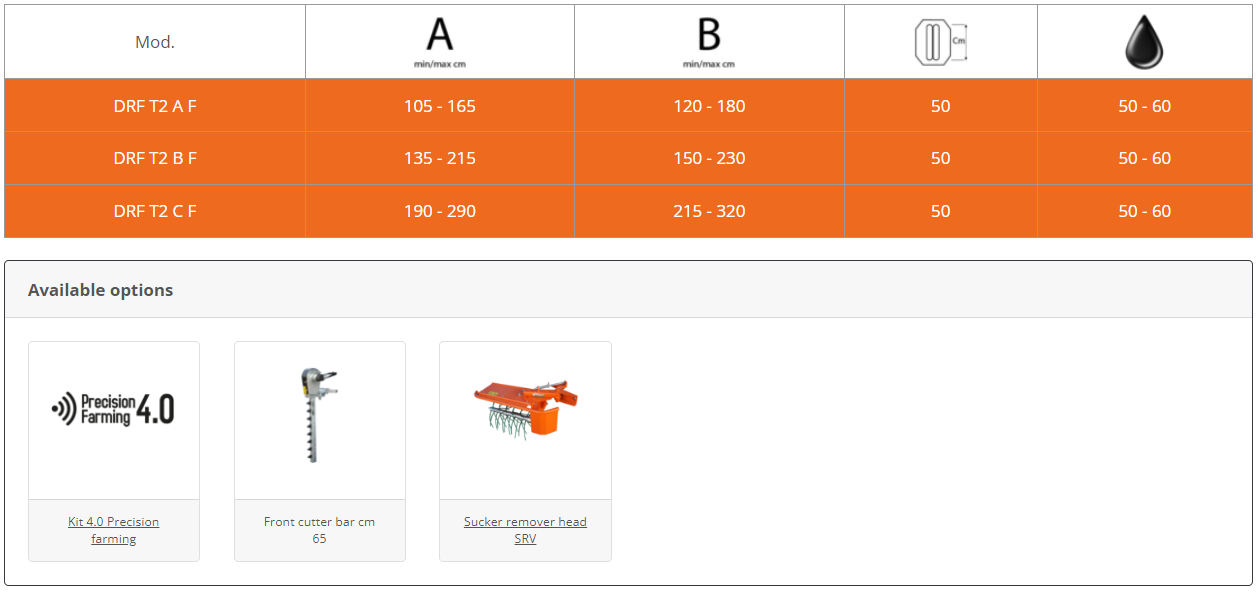

Detailed Specifications

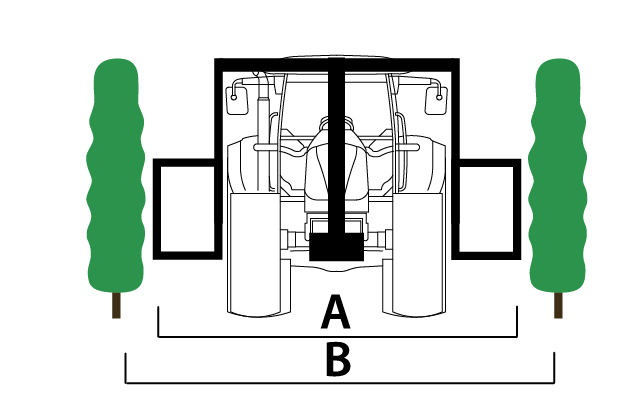

| Model | DRF T2 A F | DRF T2 B F | DRF T2 C F |
|---|---|---|---|
| A (in) | 41 - 65 | 53 - 85 | 75 - 114 |
| B (in) | 47 - 71 | 59 - 91 | 85 - 126 |
| Roller Height (in) | 20 | 20 | 20 |
| Oil Demand (L/min) | 50 - 60 | 50 - 60 | 50 - 60 |
Available Options
- Kit 4.0 Precision Farming
- Front Cutter Bar (25.6")
- Sucker Remover Head (SRV)
Manuals & Documents
The Product Manual
Machine Configuration Guide
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

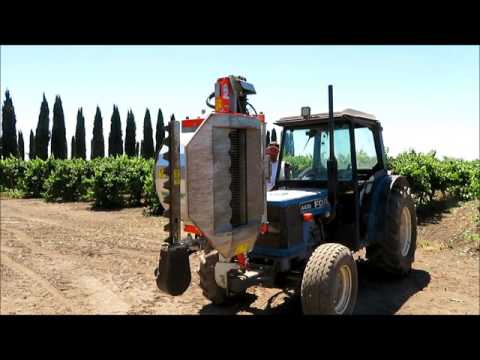

Videos
