Rinieri Hedge Trimmer BRM-X 3-4 Discs | 40"-55" Cutting Width | 40-60 HP for Tractor
Rinieri Hedge Trimmer BRM-X 3-4 Discs | 40"-55" Cutting Width | 40-60 HP for Tractor
Regular price
$9,792.00
Regular price
Sale price
$9,792.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Rinieri Hedge Trimmer BRM-X 3-4 Discs | 100-140 Cutting Width | 40-60 HP for Tractor
Description

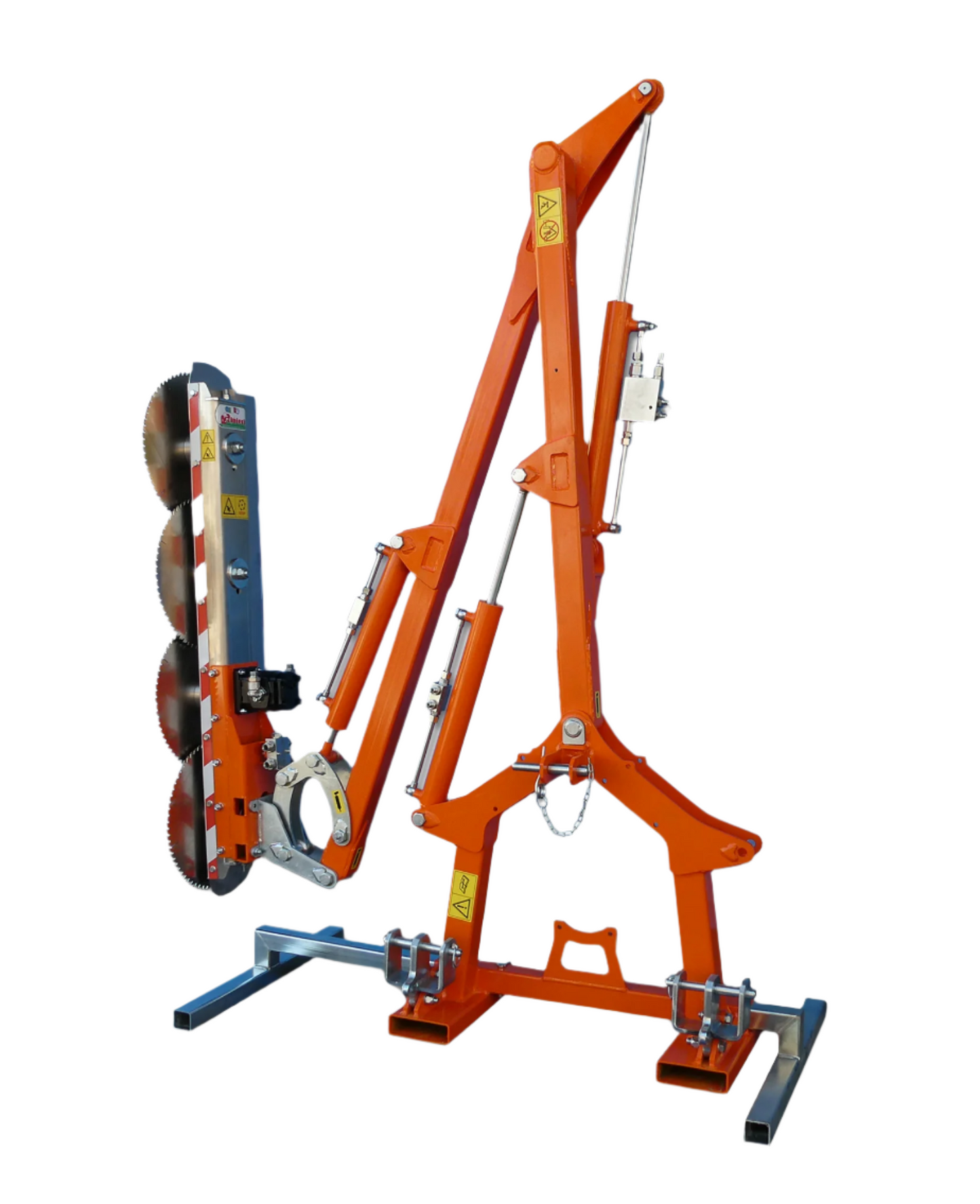

The Rinieri Hedge Trimmer BRM-X is a versatile bush cutter designed for efficient trimming of hedges and bushes. It is available in hydraulic and electro-hydraulic models, with 3 or 4 disc options. The cutter features a reversible frame for cutting on both sides of the tractor and is suitable for tractors with a minimum horsepower of 40 HP.
Features
- High Efficiency: Suitable for trimming branches up to 6 cm in diameter.
- Versatile Operation: Reversible frame allows for cutting on both sides of the tractor.
- Flexible Control Options: Available in hydraulic and electrohydraulic models with proportional joystick.
- Built for Durability: Anti-shock system and robust construction ensure long-lasting performance.
Standard Equipment:
-
- Cutting Bar with Discs (Ø 400mm): Efficient cutting for hedges and bushes.
- Hydraulic Tilting Joint: 225° range for flexible cutting angles.
- Reversible Frame: Allows for cutting on both sides of the tractor.
- 3-Point Hitch (Category 1): With an anti-shock system for stable mounting.
- Tilting System: Provides versatile cutting capabilities.
- Anti-Cavitation Valve: Ensures smooth operation of hydraulic systems.
- Support Stand: For stable storage when not in use.
Tractor Requirements:
-
- 1 double-acting hydraulic distributor.
- Oil Demand: 45 liters/min.
Specifications

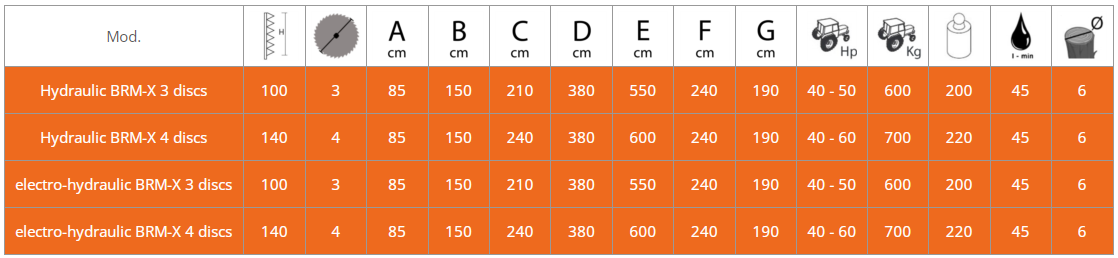

| Specification | Hydraulic BRM-X 3 Discs | Hydraulic BRM-X 4 Discs | Electro-Hydraulic BRM-X 3 Discs | Electro-Hydraulic BRM-X 4 Discs |
|---|---|---|---|---|
| Cutting Bar (in) | 40" | 55" | 40" | 55" |
| Discs (Number) | 3 | 4 | 3 | 4 |

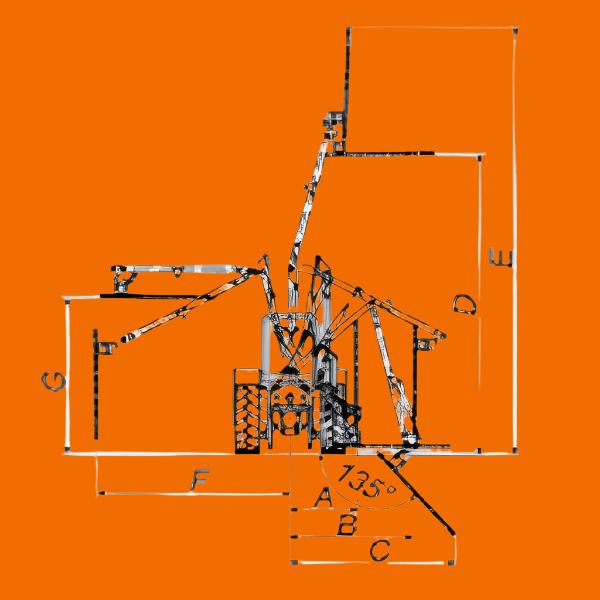

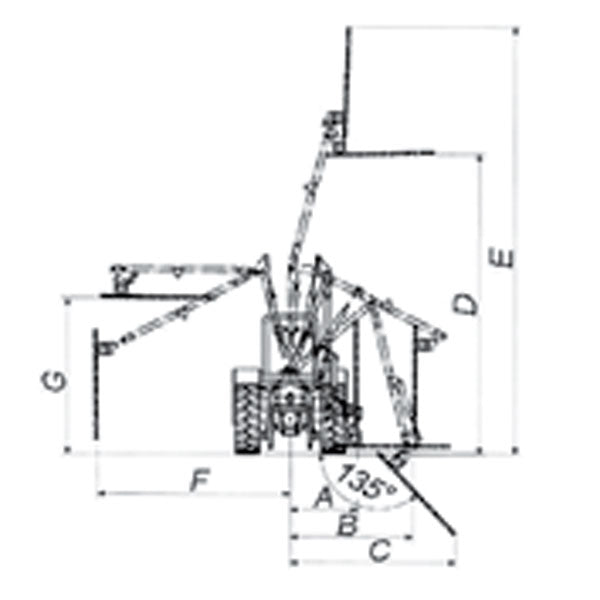

| A (cm) | 85 | 85 | 85 | 85 |
| B (cm) | 150 | 150 | 150 | 150 |
| C (cm) | 210 | 240 | 210 | 240 |
| D (cm) | 380 | 380 | 380 | 380 |
| E (cm) | 550 | 600 | 550 | 600 |
| F (cm) | 240 | 240 | 240 | 240 |
| G (cm) | 190 | 190 | 190 | 190 |
| Required Horsepower | 40 - 50 | 40 - 60 | 40 - 50 | 40 - 60 |
| Min Tractor Weight (kg) | 600 | 700 | 600 | 700 |
| Machine Weight (kg) | 200 | 220 | 200 | 220 |
| Oil Demand (L/min) | 45 | 45 | 45 | 45 |
| Max. Cutting Diameter (cm) | 6 | 6 | 6 | 6 |
What's Included
-
Hedge Trimmer Unit (BRM-X Hydraulic or Electrohydraulic)
- Includes cutting bar with discs (3 or 4 Ø 400mm).
- Reversible frame with 3-point hitch (Cat. 1) and anti-shock system.
- Hydraulic tilting joint for the cutting bar (225° range).
-
Electro-Hydraulic Controls (if applicable):
- Proportional joystick for precise control.
- Support Stand: For easy storage and stability.
-
Hydraulic Connections and Valves:
- Includes all necessary hydraulic distributors and fittings required for installation.
Additional Optional Equipment:
-
- Independent hydraulic kit with gearbox, double pump (45 + 16 lt), oil tank (50 lt), oil cooler, and cardan joint.
- Stabilizer Bars and Support for 3-point attachment.
- Green Pruning Kit with support and 2 mobile knives to be mounted instead of the 40 cm disc.
- Self-Leveling Electronic System for cutting bar.
- Flexible Cables (157").
- Jointed Bar Connection (SLANETRAC).
- Three-Point Hitch Cat. 2 Upgrade.
Enhance your hedge cutting tasks with the Rinieri Hedge Trimmer BRM-X. Contact us today for more information and a quote!
