Product Description
Rinieri In-Row Power Harrow EL | 25"- 39" Working Width | 30-60HP For Tractor
DESCRIPTION

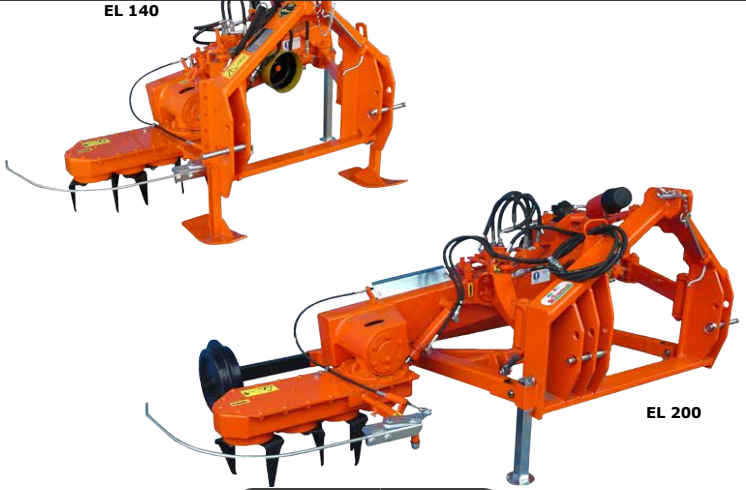

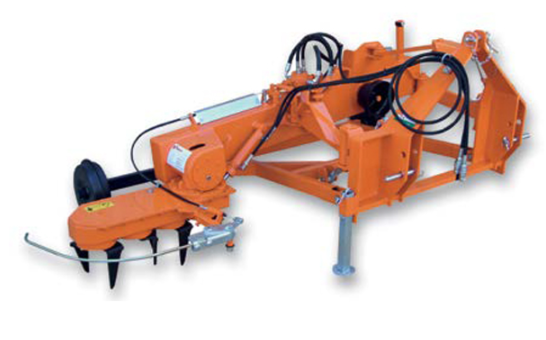

The EL Series In-Row Power Harrow is a specialized tool for vineyards and orchards, offering robust and efficient performance developed over 30 years. It is designed to handle tough conditions, including working on hillsides, with its hydraulic tilting rotor head. The harrow efficiently removes grass from the ground while preventing the formation of a tillage pan. Equipped with adjustable skids or wheels, the EL Power Harrow ensures stable operation, while the cardan joint with a bolt limiter adds to its durability. The machine can work in row widths as small as 20" (50 cm), making it ideal for narrow vineyards and other inter-row applications.
Key Features
- Efficient Grass Removal: The EL series removes grass without compacting the soil, preserving soil health.
- Hydraulic Tilting Rotor Head: Designed for tough and sloping terrains, the hydraulic tilting feature enables the machine to adapt to varying conditions.
- Strong Build: Comes with skids or wheels for added stability and a cardan joint with bolt limiter for controlled power transmission.
- Versatile in Narrow Spaces: Works effectively in vineyards and orchards with narrow row spacing, starting from 20" (50 cm).
- Durable Components: Includes 2 spare blades for extended use and easy maintenance.

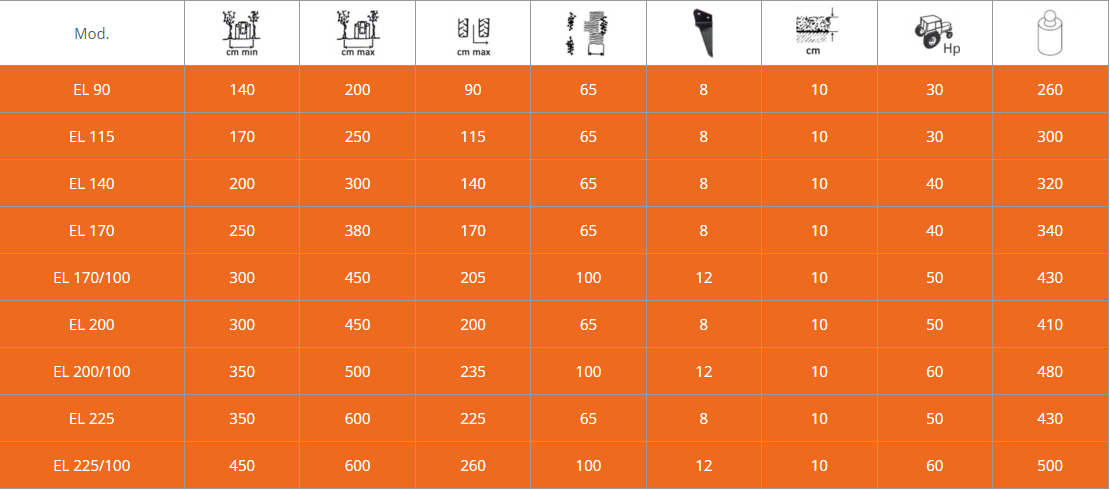

Detailed Specifications
EL 90 and EL 115
| Specification | EL 90 | EL 115 |
|---|---|---|
| Min Row (inches) | 55 | 67 |
| Max Row (inches) | 79 | 98 |
| Displacement (inches) | 35 | 45 |
| Working Width (inches) | 25 | 25 |
| Teeth No. | 8 | 8 |
| Working Depth (inches) | 4 | 4 |
| HP Req. | 30 | 30 |
| Weight (lbs) | 573 | 661 |
EL 140 and EL 170
| Specification | EL 140 | EL 170 |
|---|---|---|
| Min Row (inches) | 79 | 98 |
| Max Row (inches) | 118 | 150 |
| Displacement (inches) | 55 | 67 |
| Working Width (inches) | 25 | 25 |
| Teeth No. | 8 | 8 |
| Working Depth (inches) | 4 | 4 |
| HP Req. | 40 | 40 |
| Weight (lbs) | 705 | 749 |
EL 170/100 and EL 200
| Specification | EL 170/100 | EL 200 |
|---|---|---|
| Min Row (inches) | 118 | 118 |
| Max Row (inches) | 177 | 177 |
| Displacement (inches) | 81 | 79 |
| Working Width (inches) | 39 | 25 |
| Teeth No. | 12 | 8 |
| Working Depth (inches) | 4 | 4 |
| HP Req. | 50 | 50 |
| Weight (lbs) | 948 | 904 |
EL 200/100 and EL 225
| Specification | EL 200/100 | EL 225 |
|---|---|---|
| Min Row (inches) | 138 | 138 |
| Max Row (inches) | 197 | 236 |
| Displacement (inches) | 93 | 89 |
| Working Width (inches) | 39 | 25 |
| Teeth No. | 12 | 8 |
| Working Depth (inches) | 4 | 4 |
| HP Req. | 60 | 50 |
| Weight (lbs) | 1,058 | 948 |
EL 225/100
| Specification | EL 225/100 |
|---|---|
| Min Row (inches) | 177 |
| Max Row (inches) | 236 |
| Displacement (inches) | 102 |
| Working Width (inches) | 39 |
| Teeth No. | 12 |
| Working Depth (inches) | 4 |
| HP Req. | 60 |
| Weigh (lbs) | 1,102 |
In Package
EL 90: Equipped with hydraulic tilting rotor head, cardan joint, 2 spare blades, and skids. Machine weight is 573 lbs, suitable for row widths of 55"-79".
EL 170/100: Includes wider working width (39"), 12 teeth, hydraulic tilting, and wheels. Machine weight is 948 lbs, ideal for rows 118"-177".

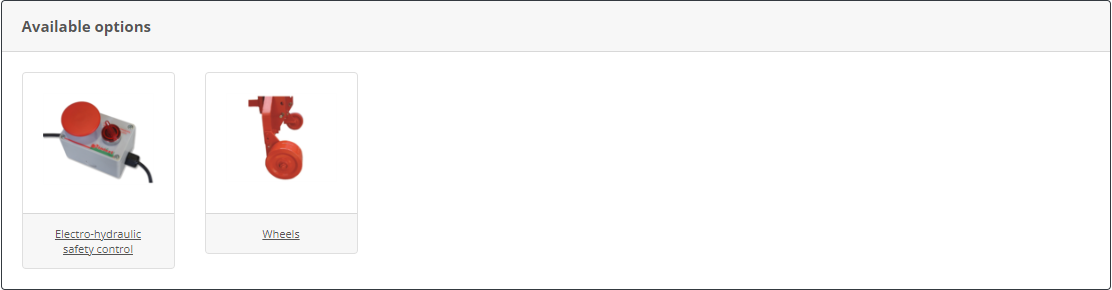

Available Options:
- Hydraulic Safety Control
- Electro-Hydraulic Safety Control
- Skids or Wheels
Manual & Documents
The Product Manual
Machine Confuguration Guide
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

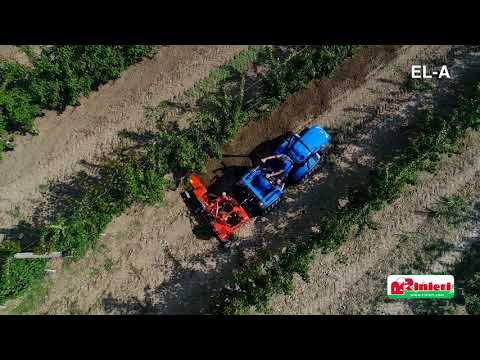

Videos
