Rinieri In-Row Rotary Harrow | ELX Series | Working Width 65" & 100" inches | Horsepower 40 HP | For Tractors

Rinieri In-Row Rotary Harrow | ELX Series | Working Width 65" & 100" inches | Horsepower 40 HP | For Tractors

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Patented "RSA" Off-Set Control: Ensures precise machine positioning, making it highly effective in stony and uneven terrains.
  • Hydraulic Tilting & Side Shift: Features a three-arm hydraulic side shift and electronically controlled tilting for maximum adaptability.
  • Anti-Shock Gas Cylinder: Protects the harrow from impact damage caused by rocky or hard soil conditions.
  • Torque Limiter for Safety: Includes a ratchet-style PTO shaft torque limiter to prevent mechanical overloads and ensure secure operation.
  • Electro-Hydraulic Safety: Offers an emergency push-button override system for safe and efficient operation under challenging conditions.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Rinieri In-Row Rotary Harrow | ELX Series | Working Width 65" & 100" inches | Horsepower 40 HP | For Tractors

DESCRIPTION

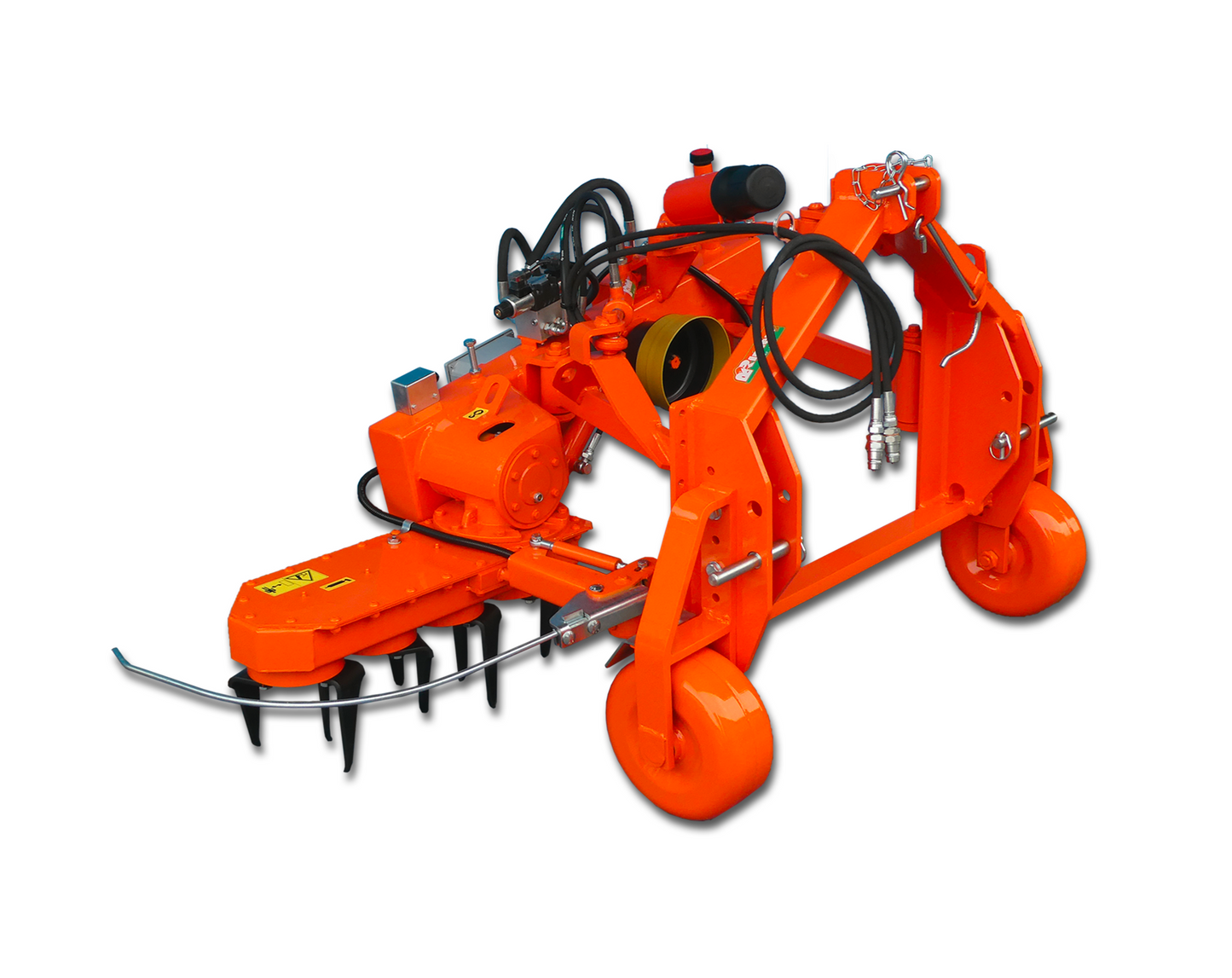

The ELX In-Row Rotary Harrow is designed for durability and reliability in tough, stony soil conditions. Featuring a robust three-arm side shift and an anti-shock gas cylinder for dampening, this machine is built for demanding applications. It comes complete with an innovative "RSA" off-set control device and a ratchet-style torque limiter for secure operation.

The ELX is equipped with an electronically controlled hydraulic tilting system and an electro-hydraulic safety control, ensuring that the machine can be easily and safely operated even in challenging conditions. The harrow’s adjustable working head makes it ideal for both vineyard and orchard operations.

Key Features

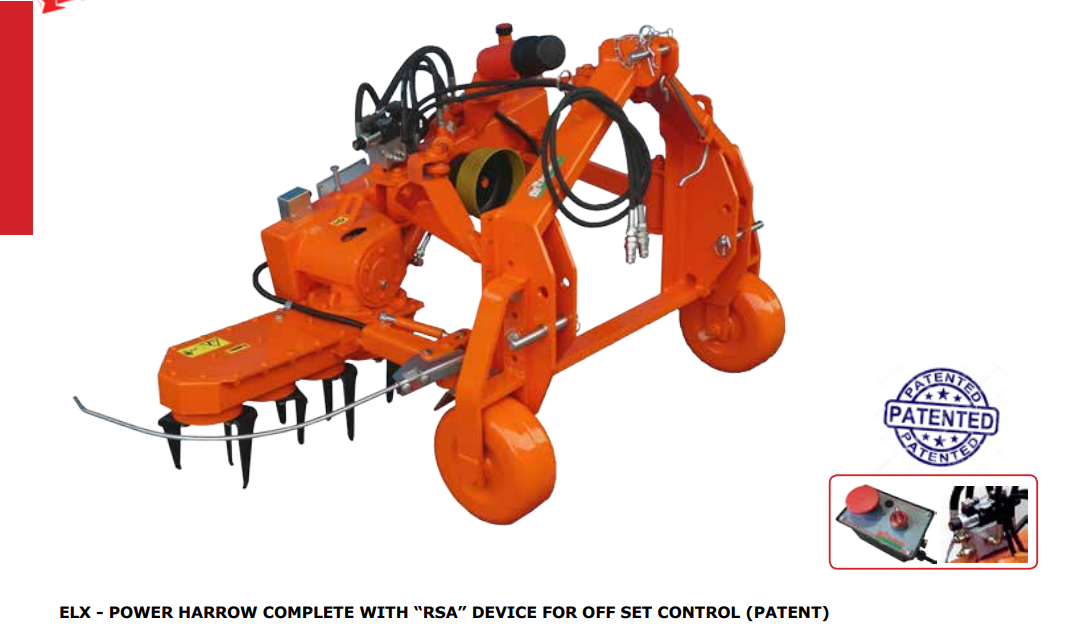

  • Patented "RSA" Off-Set Control: Allows for precise positioning of the machine, enhancing efficiency in tough, stony soils.
  • Hydraulic Tilting and Side Shift: The three-arm hydraulic side shift combined with hydraulic tilting provides excellent control and adaptability for varied row conditions.
  • Anti-Shock Gas Cylinder: This feature absorbs impacts from rocky terrain, protecting the machine from damage.
  • Torque Limiter for Secure Operation: The special PTO shaft with a ratchet-style torque limiter ensures safe use and prevents mechanical overload.
  • Electro-Hydraulic Safety Control: Equipped with an emergency push button to override the system, ensuring operator safety in case of sudden issues.
  • Durable Design: Built for heavy-duty operations, it maintains performance in both stony and hard soil environments.

Detailed Specifications

Frame

  • 3-point hitch CAT.1-2
  • Hydraulic adjustable tilting
  • Wheels for stable operation

Safety

  • Anti-shock device
  • Electro-hydraulic safety control with push-button override

On the Tractor

  • Electronic device control for precision
  • Cardan joint with clutch

ELX 90 and ELX 115

Attribute ELX 90 ELX 115
Min Row (inches) 55 67
Max Row (inches) 79 91
Displacement (inches) 35 45
Working Width (inches) 65 65
Teeth No. 8 8
Working Depth (inches) 10 10
Required HP 40 60
Machine Weight (lbs) 705 815

ELX 140 and ELX 170

Attribute ELX 140 ELX 170
Min Row (inches) 79 98
Max Row (inches) 118 150
Displacement (inches) 55 67
Working Width (inches) 65 65
Teeth No. 8 8
Working Depth (inches) 10 10
Required HP 60 60
Machine Weight (lbs) 860 880

ELX 170/100 and ELX 200

Attribute ELX 170/100 ELX 200
Min Row (inches) 118 118
Max Row (inches) 177 177
Displacement (inches) 81 79
Working Width (inches) 100 65
Teeth No. 12 8
Working Depth (inches) 10 10
Required HP 70 70
Machine Weight (lbs) 1,015 970

ELX 200/100 and ELX 225

Attribute ELX 200/100 ELX 225
Min Row (inches) 138 138
Max Row (inches) 197 236
Displacement (inches) 92 88
Working Width (inches) 100 65
Teeth No. 12 8
Working Depth (inches) 10 10
Required HP 80 80
Machine Weight (lbs) 1,124 1,015

ELX 225/100

Attribute ELX 225/100
Min Row (inches) 177
Max Row (inches) 236
Displacement (inches) 102
Working Width (inches) 100
Teeth No. 12
Working Depth (inches) 10
Required HP 80
Machine Weight (lbs) 1,168
