Product Description

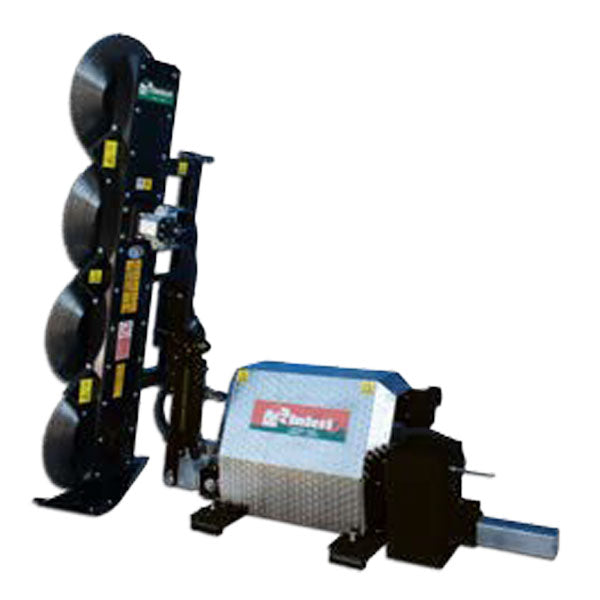

Rinieri Lopper Bush Cutter Machine BRP-X165 - BRP-X220 | 65"-87" Cutting Width for Front Loader
DESCRIPTION

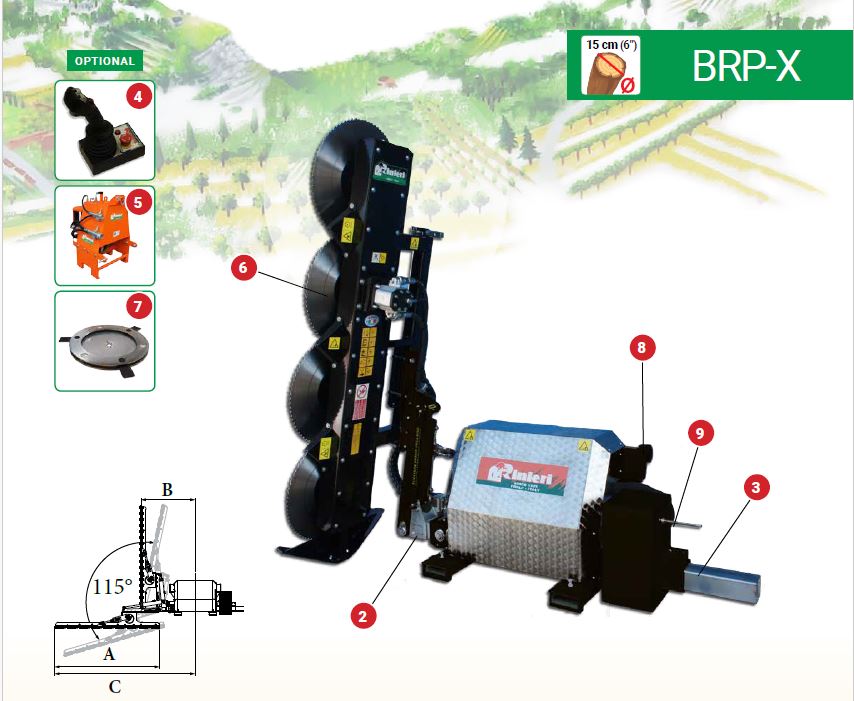

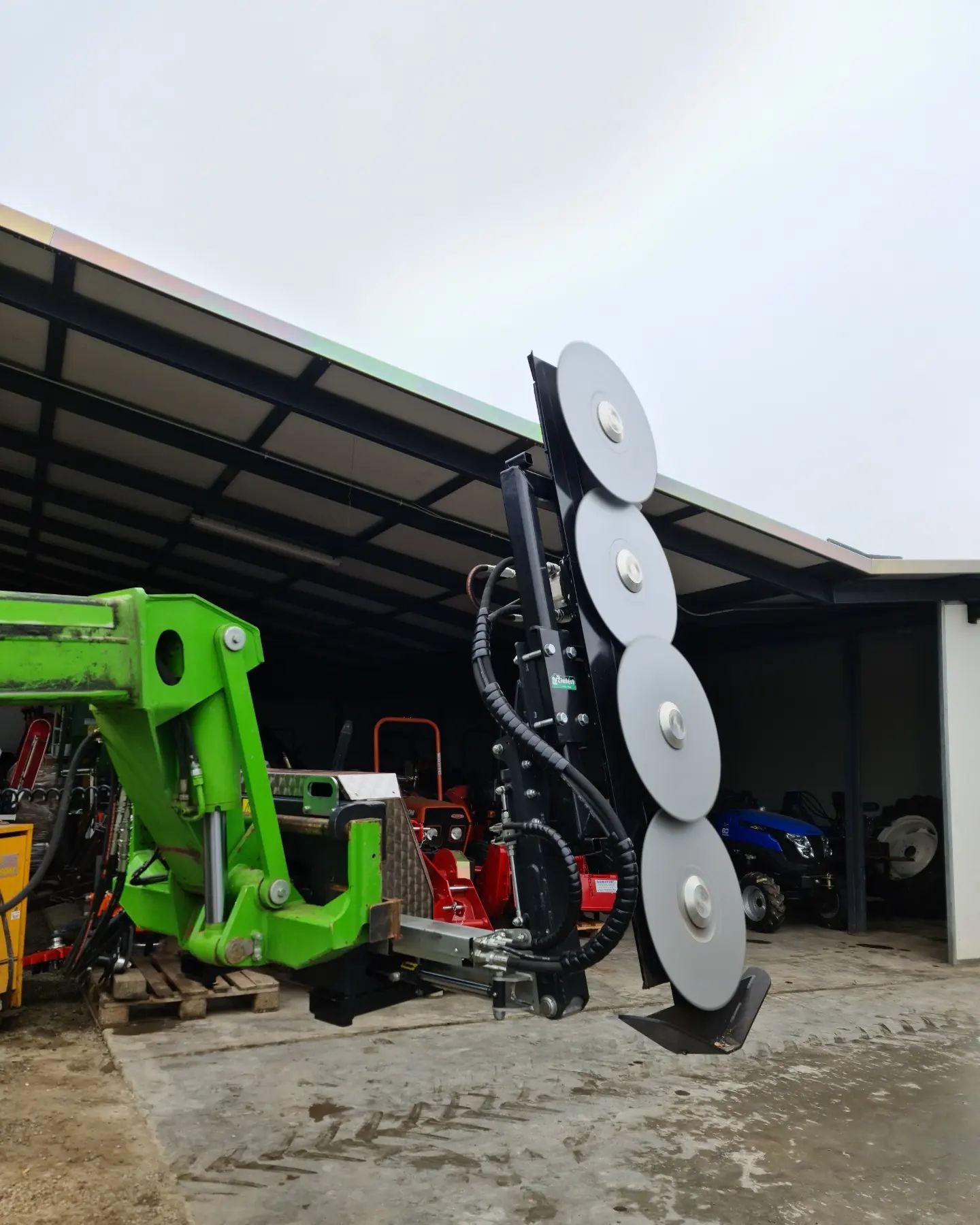

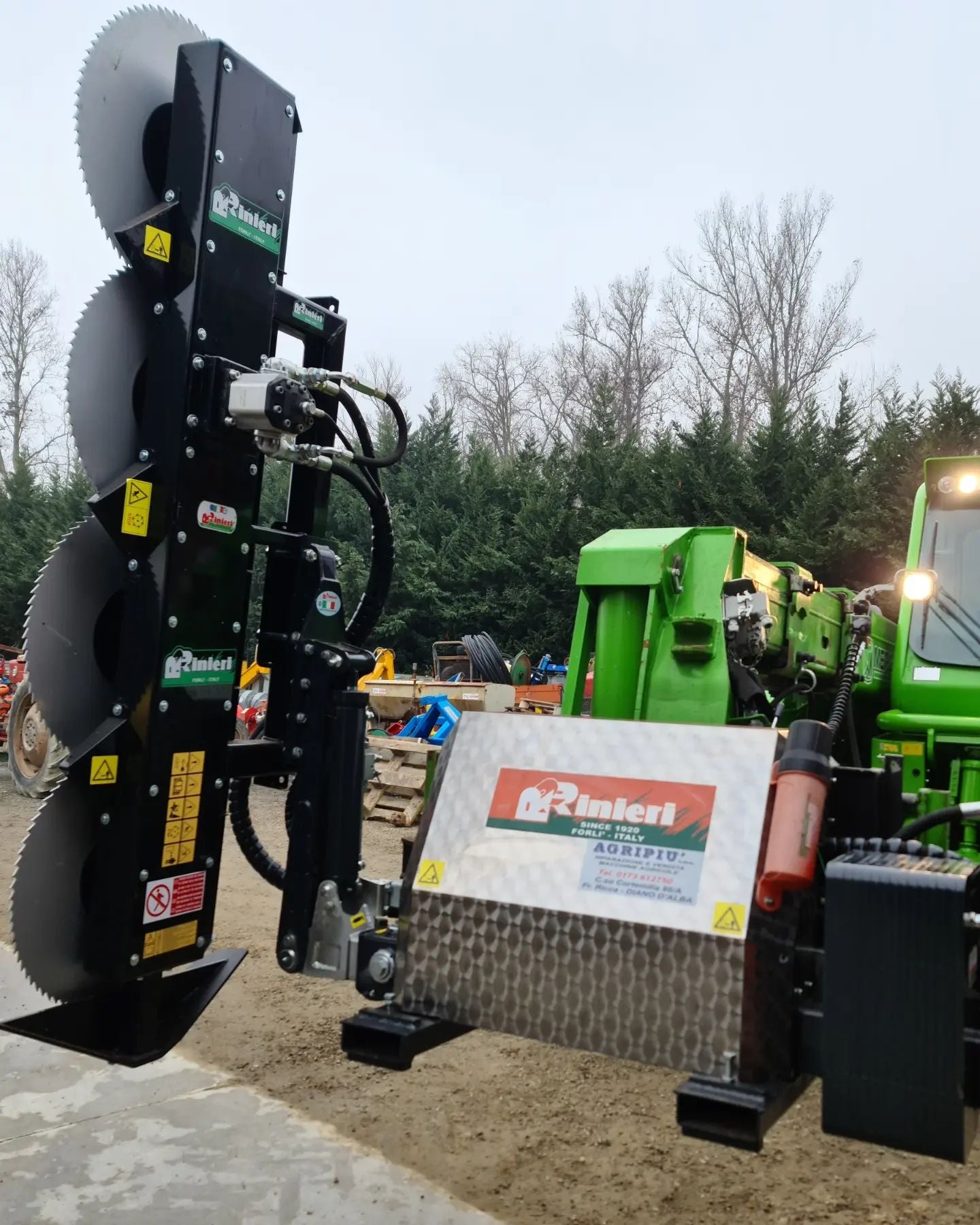

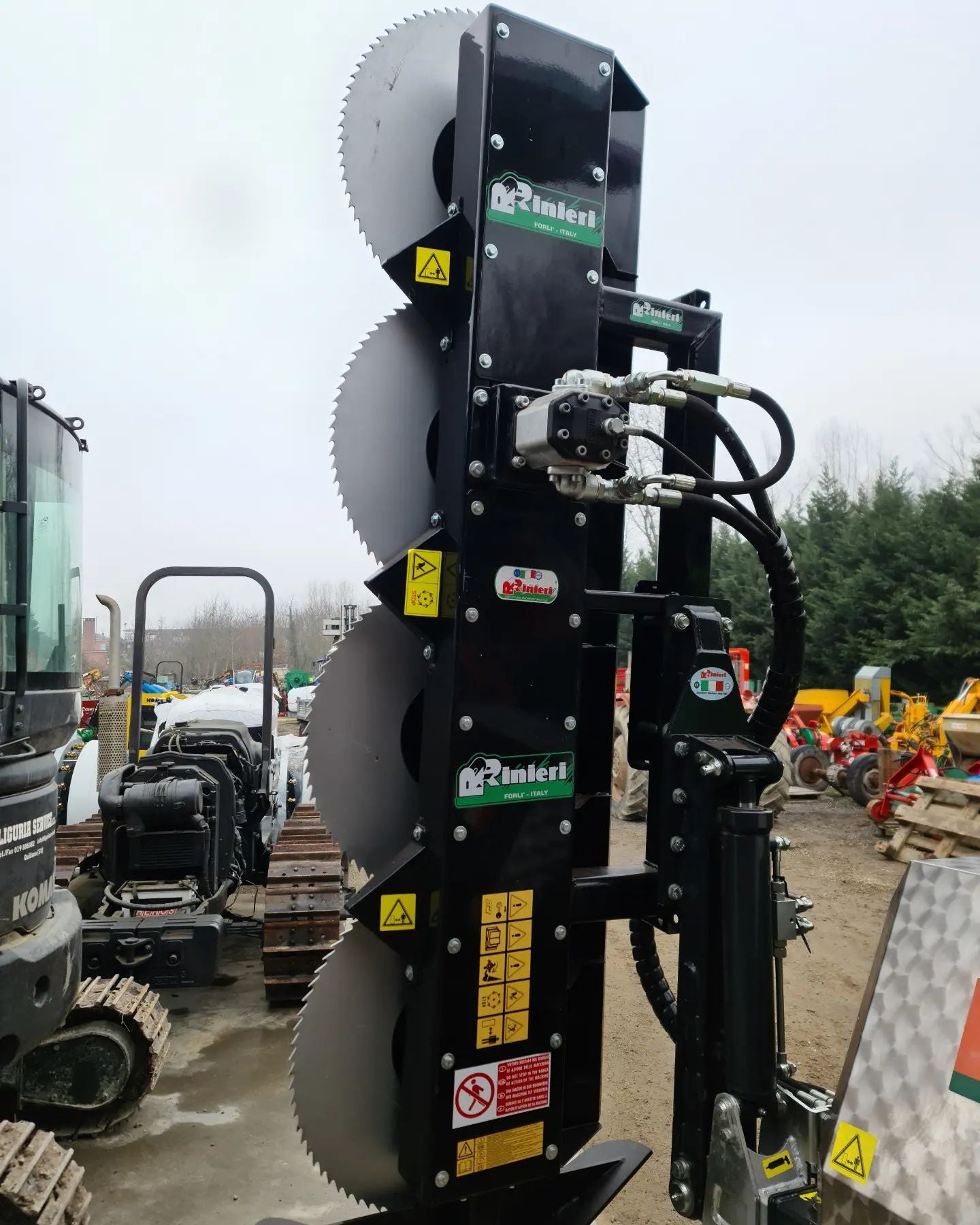

The Rinieri BRP-X Lopper is designed for front loaders and telescopic arms, equipped with a "Euro 1" coupling plate for compatibility. This versatile bush cutter comes in two models: the BRP-X 165 with three 600 mm discs and the BRP-X 220 with four Ø 600 mm discs. Both models excel at cutting branches up to 15 cm, offering robust performance and flexibility with hydraulic side displacement and bar tilting for precise cutting.
Key Features
- High Capacity Cutting: Equipped with 600 mm discs, the BRP-X models handle branches up to 15 cm effortlessly.
- Hydraulic Movements: Features side shift and bar tilting for superior control and maneuverability.
- Durable Build: Designed with a robust frame and "Euro 1" coupling plate for compatibility with front loaders and telescopic arms.
- Efficient Operation: Requires an 80 Liters/min hydraulic flow for the motor and 20 Liters/min for movements, ensuring powerful and smooth operation.
Standard Equipment:
- Cutting bar with 600 mm discs
- Hydraulic side shift for effective positioning
- Joint with hydraulic tilting up to 115°
- Support stand for stability and storage
Tractor Requirements:
- N.1 single-acting hydraulic distributor
- N.1 free pressure return
- N.2 double-acting hydraulic distributors
- 80 Liters/min continuous hydraulic flow for the motor
- 20 Liters/min for hydraulic movements
Detailed Specifications

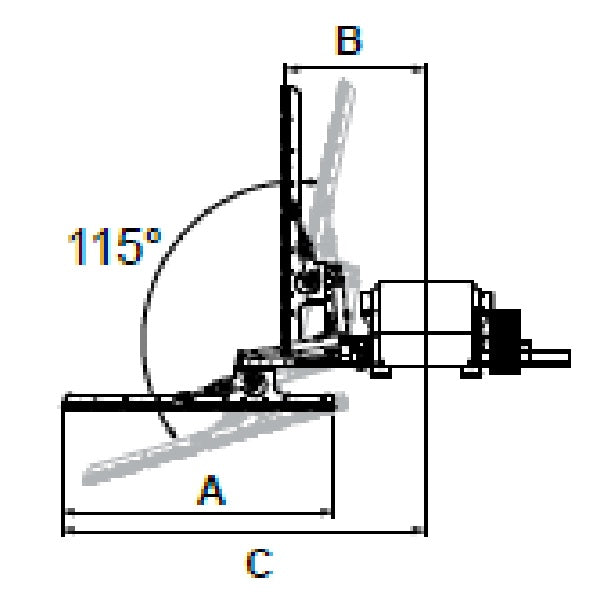

Hydraulic BRM-X 3 Discs and Hydraulic BRM-X 4 Discs
| Specification |
Hydraulic BRM-X 3 Discs |
Hydraulic BRM-X 4 Discs |
|---|---|---|
| Cutting Bar (in) | 65" | 87" |
| Discs (Number) | 3 | 4 |
| A (in) | 33.5" | 33.5" |
| B (in) | 59.1" | 59.1" |
| C (in) | 82.7" | 82.7" |
| D (in) | 149.6" | 149.6" |
| E (in) | 216.5" | 216.5" |
| F (in) | 94.5" | 94.5" |
| G (in) | 74.8" | 74.8" |
| Required Horsepower | 40 - 50 | 40 - 60 |
| Min Tractor Weight (lb) | 1322.8 | 1322.8 |
| Machine Weight (lb) | 440.9 | 440.9 |
| Oil Demand (L/min) | 45 | 45 |
| Max. Cutting Diameter (cm) | 6 | 6 |
Electro-Hydraulic BRM-X 3 Discs and Electro-Hydraulic BRM-X 4 Discs
| Specification |
Electro-Hydraulic BRM-X 3 Discs |
Electro-Hydraulic BRM-X 4 Discs |
|---|---|---|
| Cutting Bar (in) | 65" | 87" |
| Discs (Number) | 3 | 4 |
| A (in) | 33.5" | 33.5" |
| B (in) | 59.1" | 59.1" |
| C (in) | 82.7" | 82.7" |
| D (in) | 149.6" | 149.6" |
| E (in) | 216.5" | 216.5" |
| F (in) | 94.5" | 94.5" |
| G (in) | 74.8" | 74.8" |
| Required Horsepower | 40 - 50 | 40 - 60 |
| Min Tractor Weight (lb) | 1322.8 | 1322.8 |
| Machine Weight (lb) | 440.9 | 440.9 |
| Oil Demand (L/min) | 45 | 45 |
| Max. Cutting Diameter (cm) | 6 | 6 |
In Package
- Bush Cutter Machine (Model as selected)
- Cutting bar with 24" discs
- Hydraulic side shift
- Joint with hydraulic tilting 115°
- Support stand
Manuals & Documents
The Product Manual
