Product Description

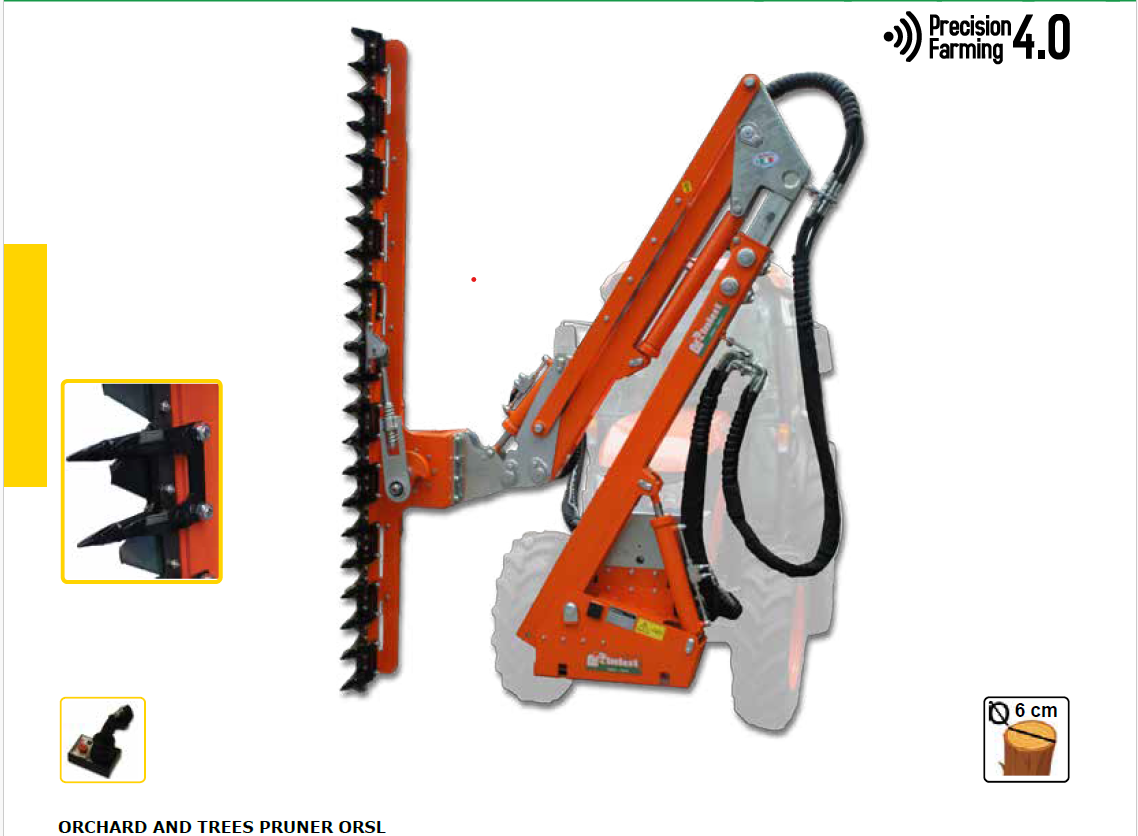

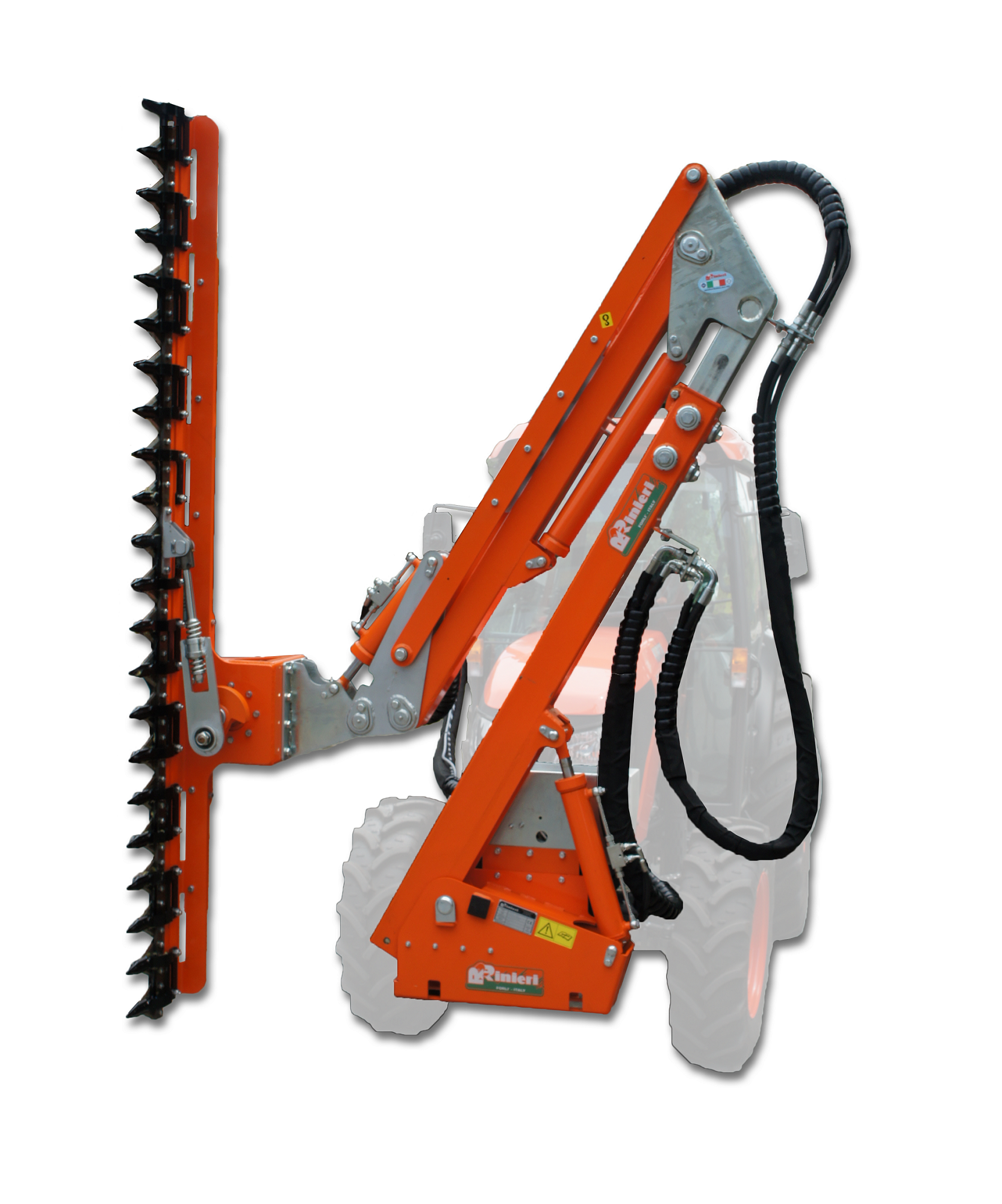

Rinieri Orchard Pruner ORSL 250-280-300 | 98"-118" Cutting Width for Tractor
DESCRIPTION

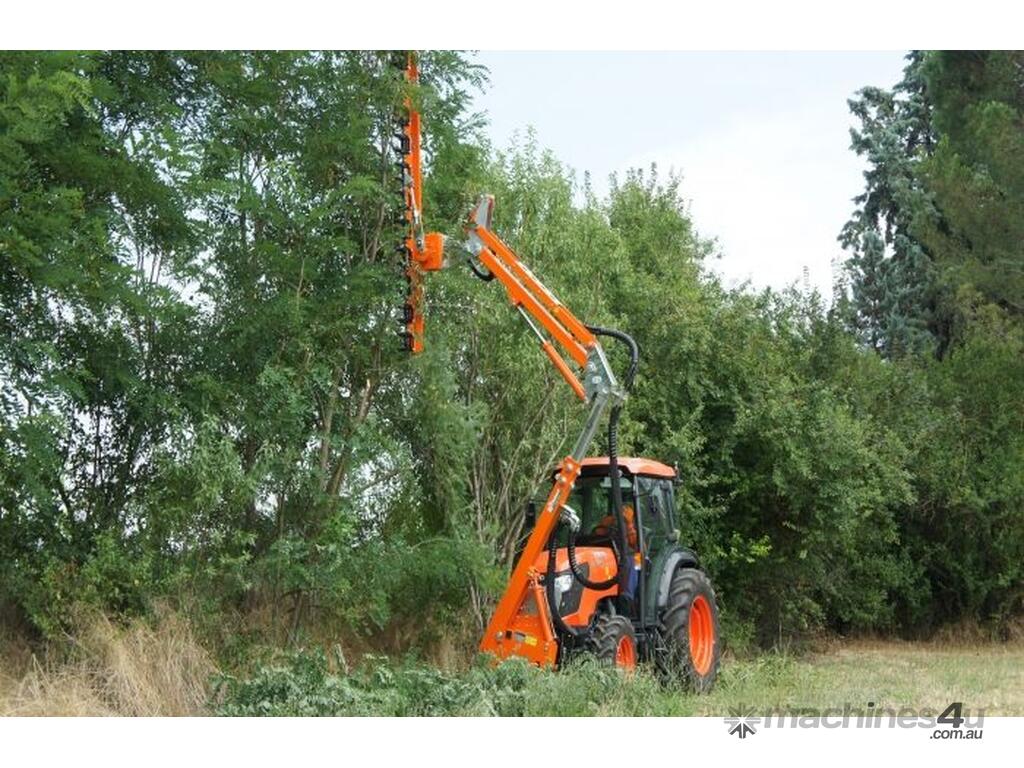

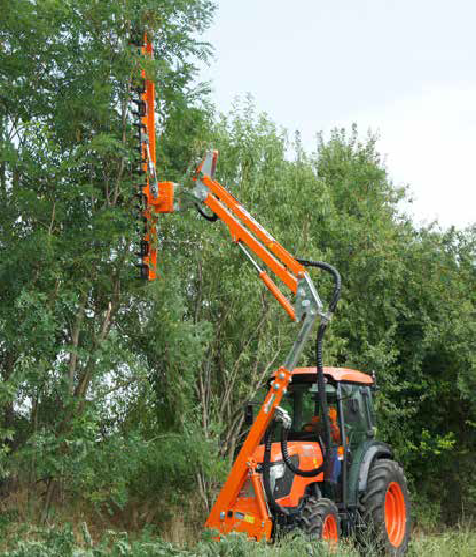

The Orchard Pruner ORSL is expertly designed for traditional orchards, including “V” type cultivations such as olives, peaches, and plums. This pruner is equipped with heavy-duty “Rinieri” teeth and blade cutting bars, capable of handling branches up to 6 cm in diameter. Its innovative frame with parallelogram side shift ensures the cutting angle remains consistent, even during other movements. Controlled by a proportional joystick, the ORSL provides efficiency and precision in every cut.

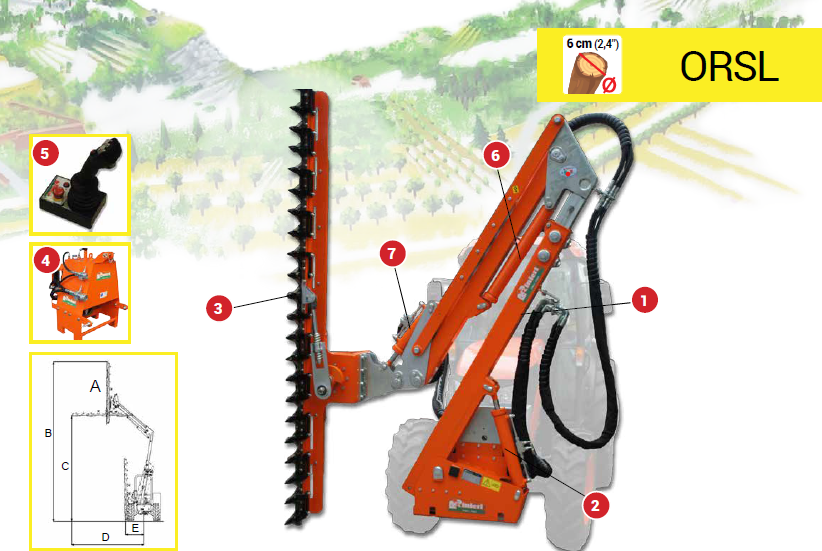

Key Features
- Heavy-Duty Pruning: Equipped with the renowned "Rinieri" teeth and blades to cut branches up to 2.4 inches in diameter.
- Consistent Cutting Angle: Parallelogram side shift ensures the cutting angle remains unchanged, even when other movements are performed.
- Precise Control: Operated through a proportional joystick distributor for easy and accurate control.
- Durable Frame: Built for traditional orchards and field maintenance, with hydraulic lifting and tilting functions.
- Versatile Application: Ideal for traditional “V” type orchards and roadside maintenance.
Detaild Specifications
| Component | Details |
|---|---|
| Proportional Distributor | 4+1 |
| Hydraulic Lifting | 57.1 inches |
| Hydraulic Tilting Column | Yes |
| Parallelogram System | On second arm |
| Hydraulic Tilting of Cutting Bar | Yes |
| Manual Adjustment of Cutting Bar Position | Yes |
| Cutting Bars | Blade and teeth cutting bars by "Rinieri" |
| Safety | Anti-cavitation valve for motors, Hydraulic stand for storage |
| Hydraulic Kit | 80 Lit/min pump, 90L oil tank, gearbox, oil cooler, cardan joint |
| Socket | 12V |

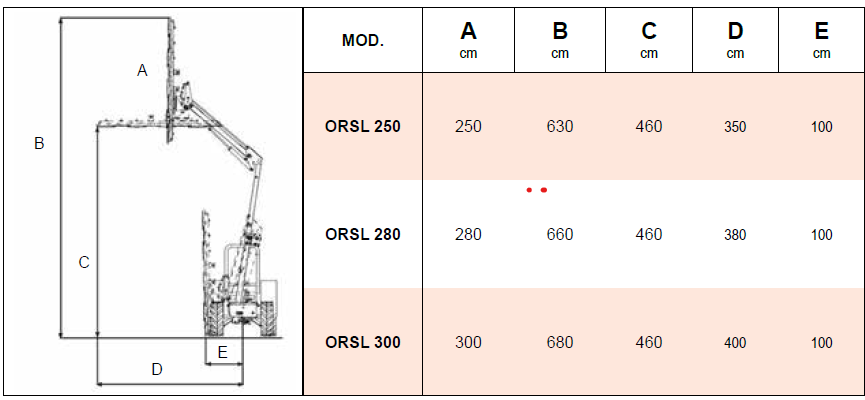

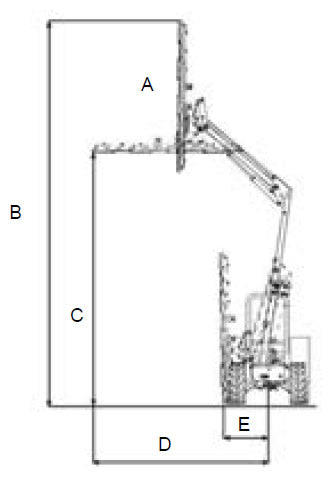

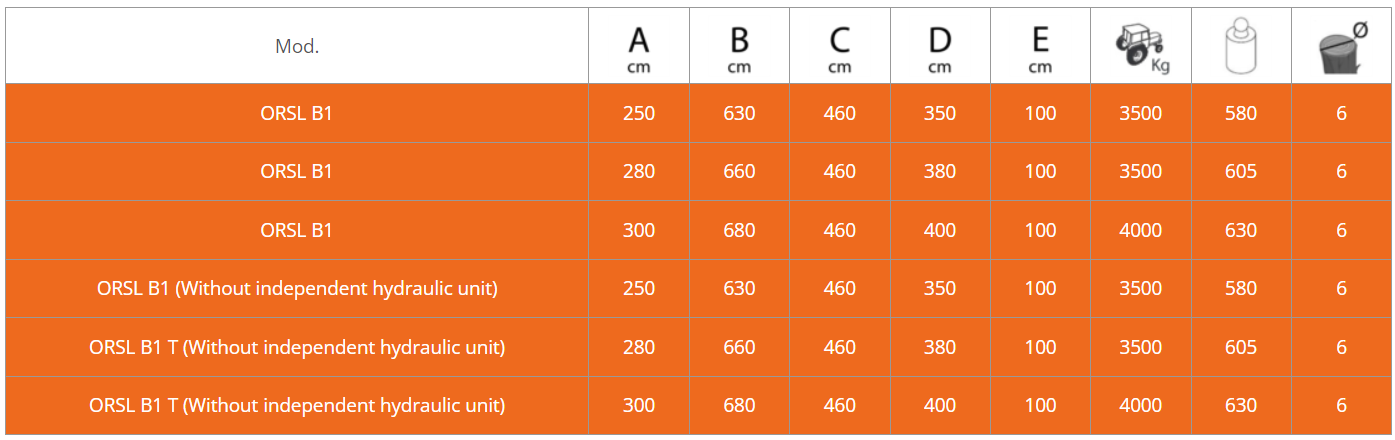

Model & Performance Chart
| Model | Dimensions (inches) | Weight & Power |
|---|---|---|
| ORSL B1 | A: 98.4, B: 24.8, C: 18.1, D: 13.8, E: 3.9 | Min Tractor Weight: 7716 lbs, Machine Weight: 1279 lbs, Cutting Power: 6 kW |
| ORSL B1 | A: 110.2, B: 26.0, C: 18.1, D: 15.0, E: 3.9 | Min Tractor Weight: 7716 lbs, Machine Weight: 1334 lbs, Cutting Power: 6 kW |
| ORSL B1 | A: 118.1, B: 26.8, C: 18.1, D: 15.7, E: 3.9 | Min Tractor Weight: 8818 lbs, Machine Weight: 1389 lbs, Cutting Power: 6 kW |
| ORSL B1 (Without Hydraulic Unit) | A: 98.4, B: 24.8, C: 18.1, D: 13.8, E: 3.9 | Min Tractor Weight: 7716 lbs, Machine Weight: 1279 lbs, Cutting Power: 6 kW |
| ORSL B1 T (Without Hydraulic Unit) | A: 110.2, B: 26.0, C: 18.1, D: 15.0, E: 3.9 | Min Tractor Weight: 7716 lbs, Machine Weight: 1334 lbs, Cutting Power: 6 kW |
| ORSL B1 T (Without Hydraulic Unit) | A: 118.1, B: 26.8, C: 18.1, D: 15.7, E: 3.9 | Min Tractor Weight: 8818 lbs, Machine Weight: 1389 lbs, Cutting Power: 6 kW |
In Package
- Orchard Pruner ORSL
- Hydraulic lifting and tilting components
- Heavy-duty blade and teeth cutting bars by "Rinieri"
- Proportional joystick distributor (4+1)
- Anti-cavitation valve for motor protection
- Hydraulic stand for safe storage
- Independent hydraulic kit (80 Lit/min pump, 90L oil tank, gearbox, oil cooler, cardan joint)
- User Manual & Setup Guide
Note:

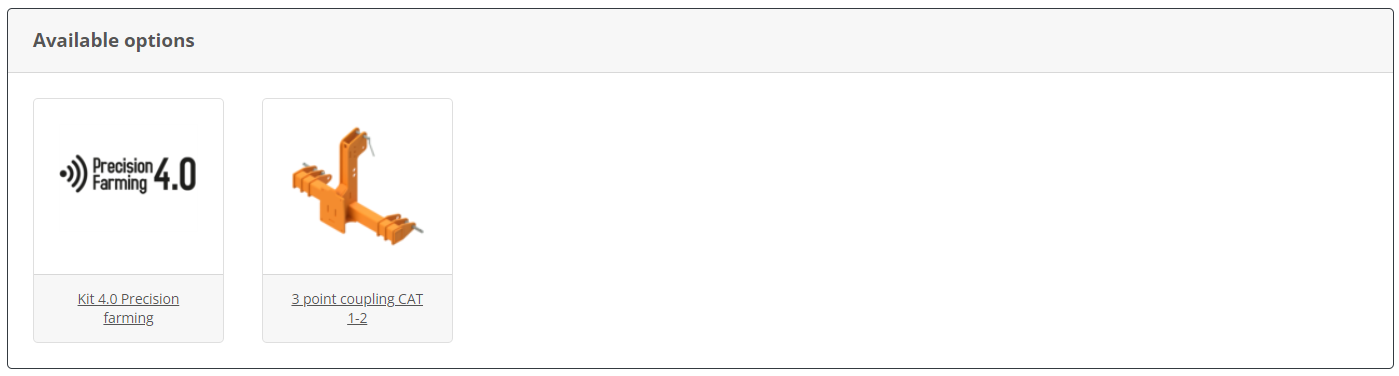

Price does not include the coupling frame for the tractor
