Product Description
Rinieri Orchard Pruner w/ Discs | ORSX Series | Working Width 69" To 89" inches | Horsepower 70-100 HP | For Tractors
DESCRIPTION

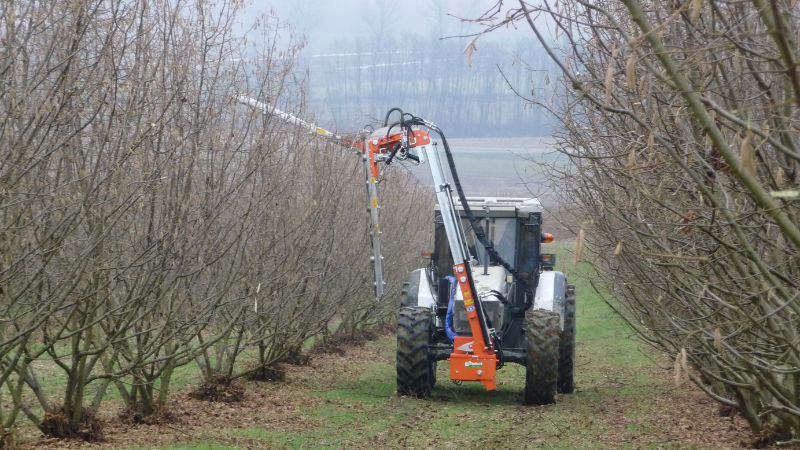

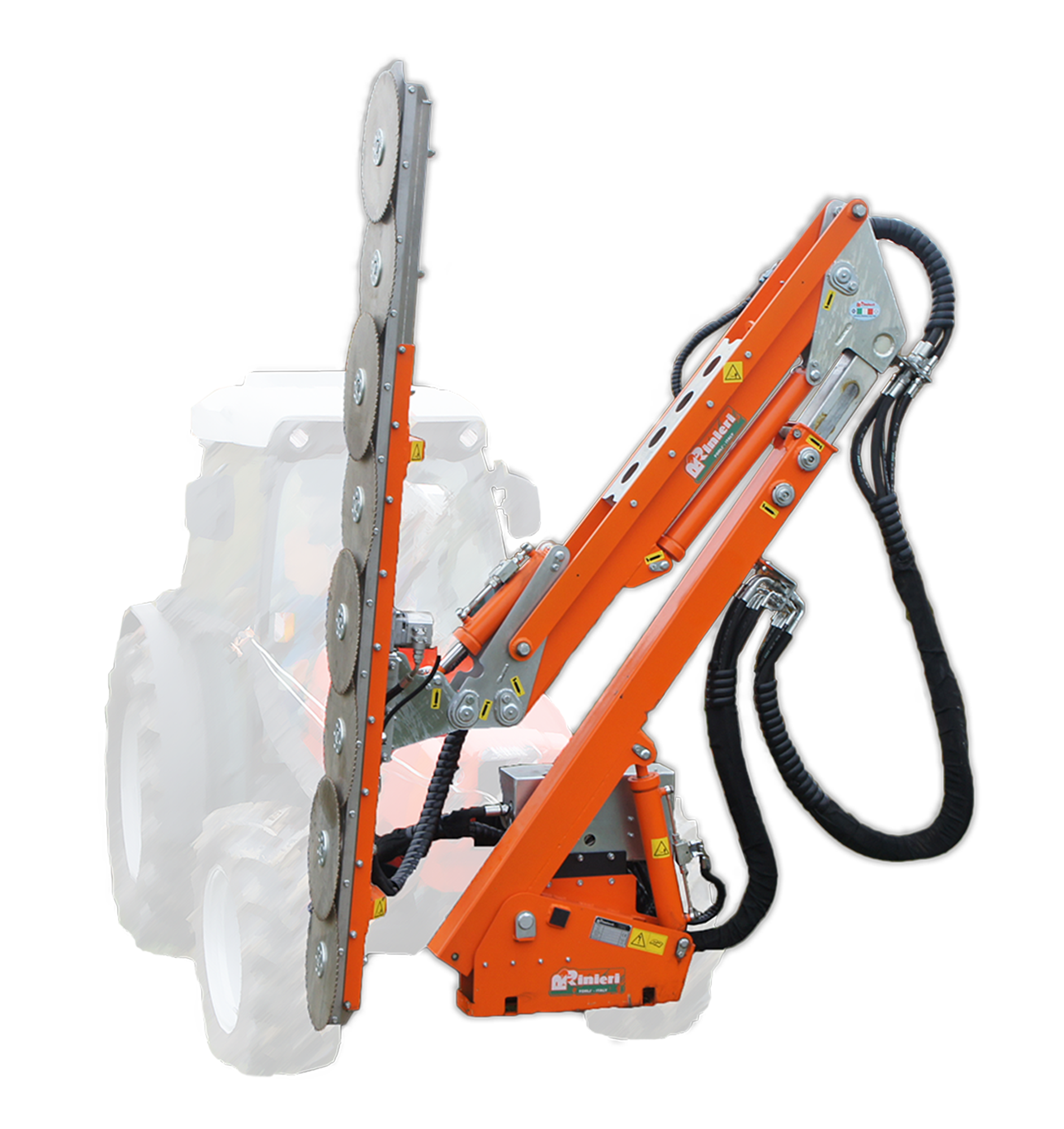

Mechanical disc pruner, model ORSX, for tree orchards with a parallelogram-shifting frame suitable for traditional orchards with heights up to 6 meters. The cutting bar is equipped with 60 cm saw discs that can cut up to 15 cm branches. The frame with parallelogram side shift permits of setting the angle of cut one time, and it does not change even if the other movements are used. A proportional joystick controls the machine. This machine can be used in traditional orchard “V” type like olives, peaches, plum and along the roads or field.
Key Features
- Proportional Distributor (4+1): Offers precise control over the hydraulic movements, allowing seamless adjustments for optimal performance during pruning tasks.
- Hydraulic Lifting (145 cm): Adjustable height ensures flexibility to accommodate various pruning needs and orchard layouts.
- Hydraulic Tilting Column: Enhances adaptability by allowing adjustments to the cutting angles, making it easier to prune trees with varying branch structures.
- Parallelogram System: Maintains a consistent cutting angle even as other movements are made, ensuring accurate and efficient operation.
- Manual Adjustment: Provides the operator with the ability to fine-tune the cutting bar position for customized and precise cuts.

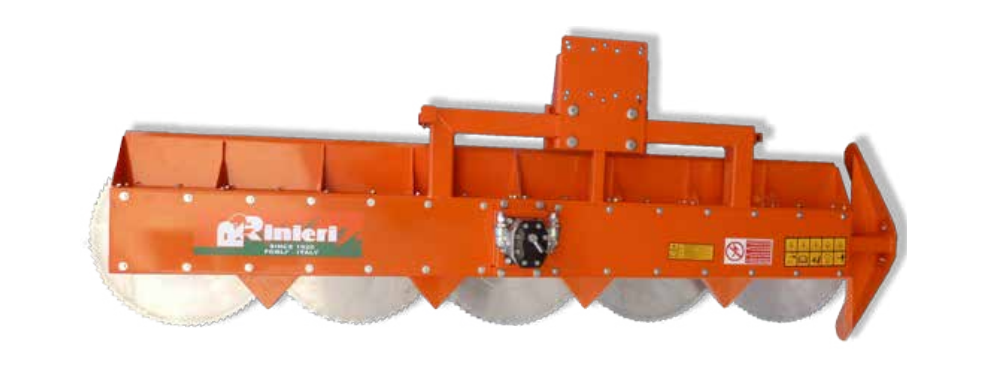

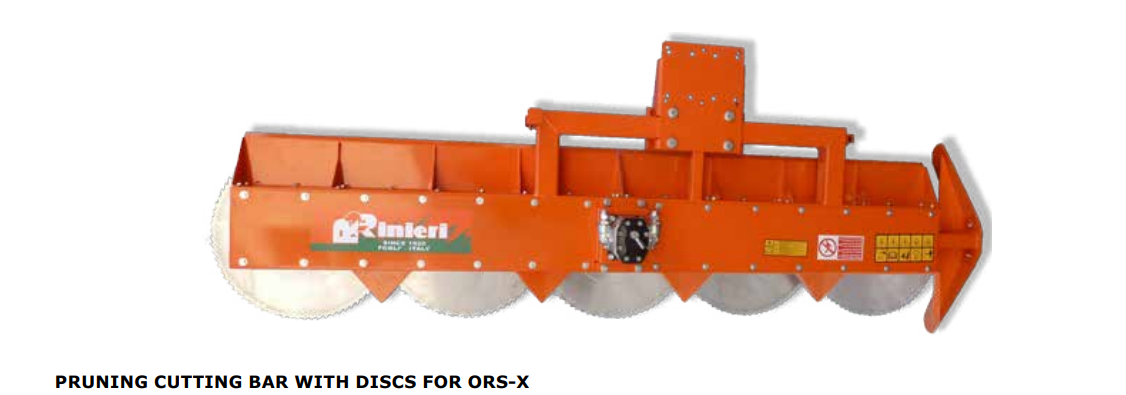

- Disc Bars Ø 600 mm: Equipped with durable saw discs capable of efficiently cutting branches up to 15 cm in diameter.
- Anti-Cavitation Valve: Protects hydraulic motors from pressure spikes, ensuring smooth and safe operation while extending motor life.
- Hydraulic Storage Stand: Simplifies storage and enhances safety by securely stabilizing the machine when not in use.
- 80 Lit/min Pump: Delivers powerful hydraulic performance for high-efficiency pruning, especially in demanding environments.
- 90L Oil Tank with Oil Cooler: Prevents overheating and ensures the system operates reliably even during extended use.
- Gearbox and Cardan Joint: Ensures smooth operation and long-lasting durability, even under heavy loads and continuous use.
- Socket 12V: Supports additional electrical functions, providing convenience and compatibility with auxiliary equipment.
Detailed Specification
| Feature | ORSX 5 | ORSX 6 |
|---|---|---|
| N° | 5 | 6 |
| Disc Diameter (Ø) | 60 cm (15") | 60 cm (15") |
| Width | 250 cm (98") | 300 cm (118") |
| Length | 630 cm (248") | 680 cm (268") |
| Height | 460 cm (181") | 460 cm (181") |
| Depth | 350 cm (138") | 400 cm (157") |
| Frame Diameter | 100 cm (39") | 100 cm (39") |
| Capacity | 4000 kg (8818 lbs) | 4000 kg (8818 lbs) |
| Weight | 625 kg (1375 lbs) | 665 kg (1445 lbs) |
| Horsepower (HP) | 70-100 HP | 70-100 HP |
