Product Description
Rinieri Orchard Pruning Machine CRB-X 1 for Skirting | 3-4 Discs | 16" Disc Diameter for Tractor
DESCRIPTION

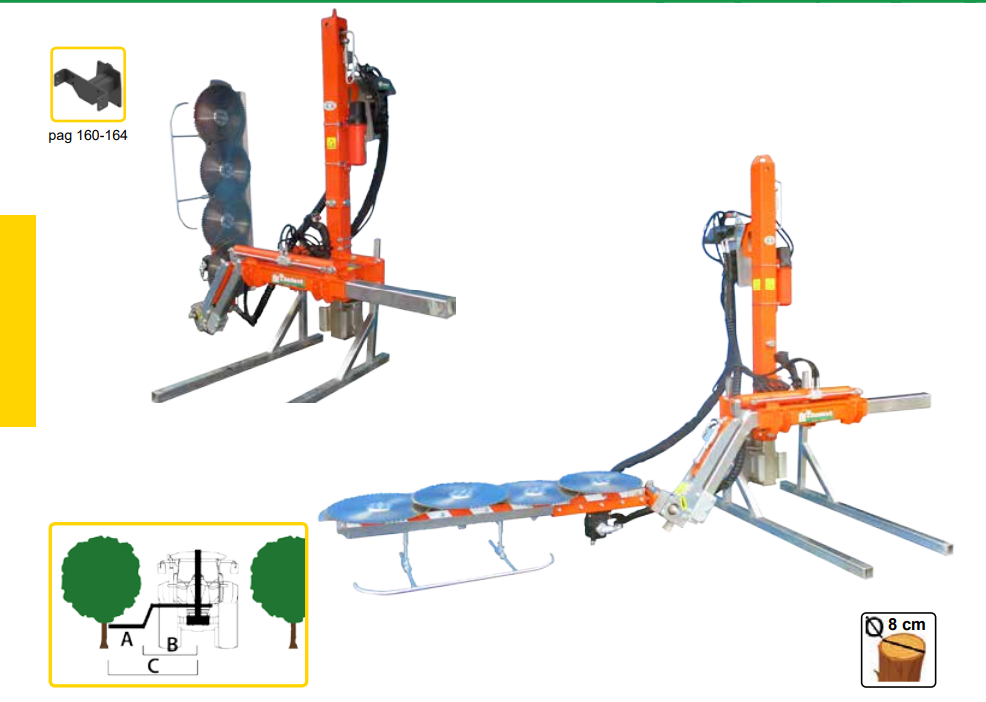

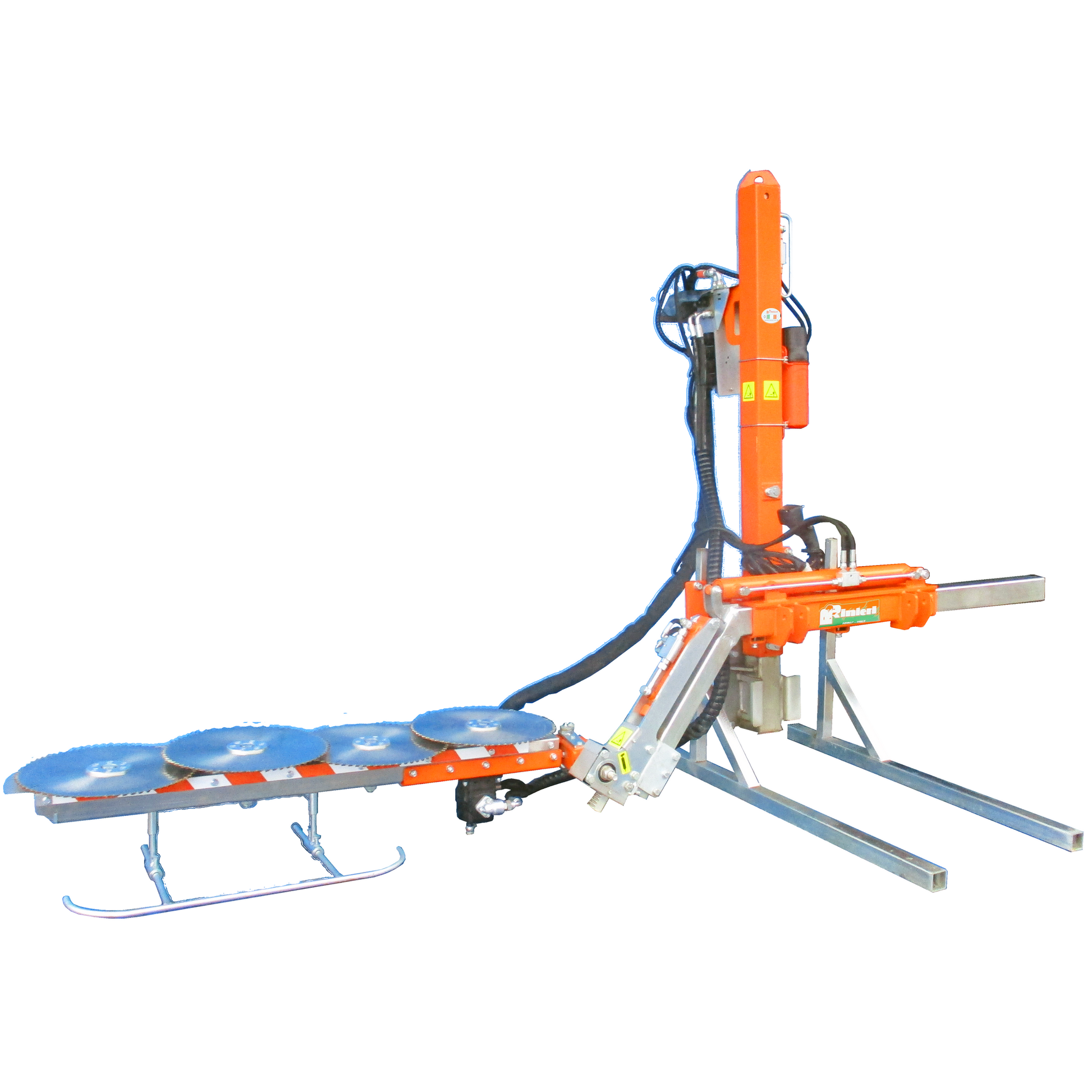

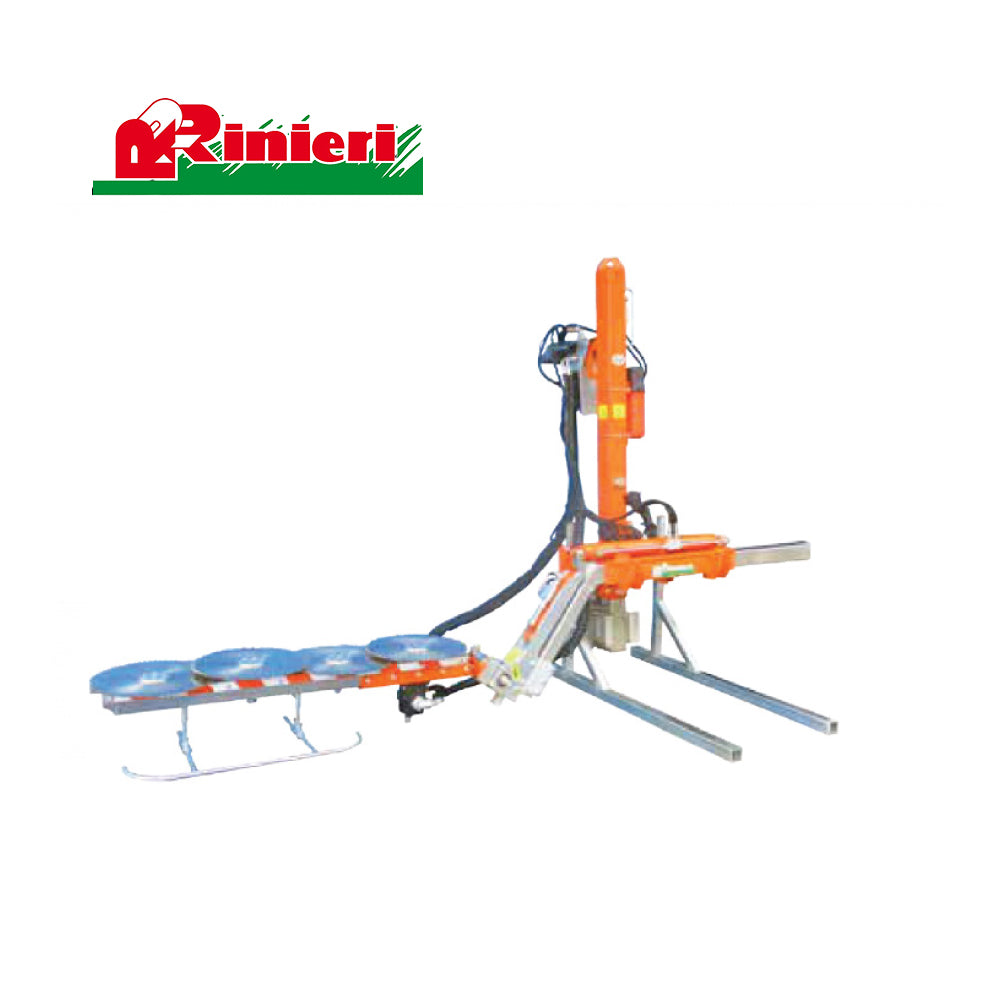

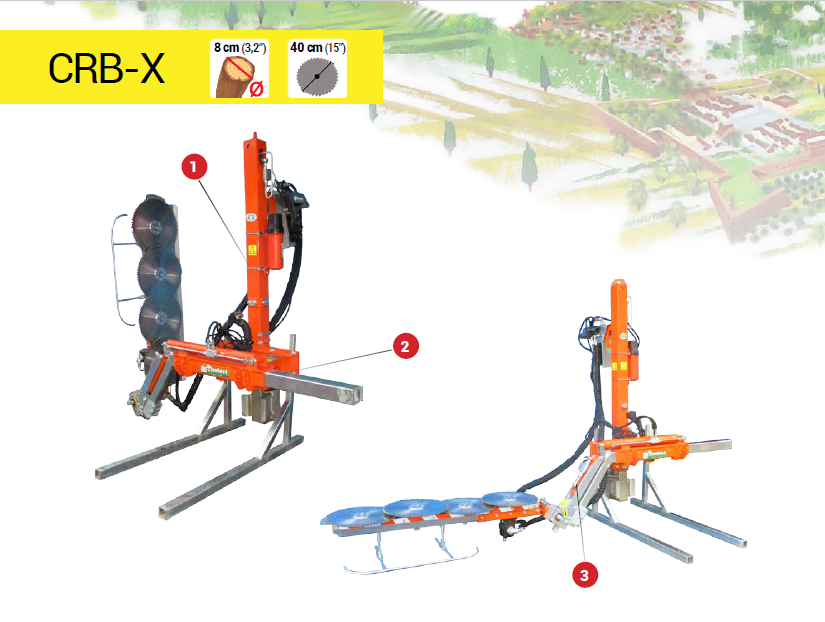

The CRB-X 1 Orchard Pruning Machine, designed for skirting and under-canopy pruning, combines precision and efficiency to keep your orchard in top condition. With a low-profile design and robust features, this disc pruner is ideal for handling the unique demands of orchard maintenance.
Key Features
- Low Profile Design: Perfect for under-canopy pruning with easy maneuverability.
- Hydraulic Adjustments: Includes hydraulic lifting, side shift, and tilting cutting bar for optimal performance and flexibility.
- High-Performance Cutting Bar: Equipped with discs to handle various pruning tasks efficiently.
- Safety First: Features flow divider with maximum pressure valve and safety joint with spring for the cutting bar.
- Storage and Convenience: Stands provided for safe storage.
Detailed Specifications
| Component | Details |
|---|---|
| Hydraulic Lifting | 27.6 inches |
| Hydraulic Side Shift | 23.6 inches |
| Cutting Bar with Discs | 15.7 inches |
| Cutting Bar Tilting | Adjustable for precision |
| Flow Divider | With maximum pressure valve for motors |
| Safety Joint | Spring-loaded for cutting bar safety |
| Tractor Requirements | 3 double-acting hydraulic distributors, 1 single-acting hydraulic distributor, 1 pressure-free return, 40-45 liters/min flow |

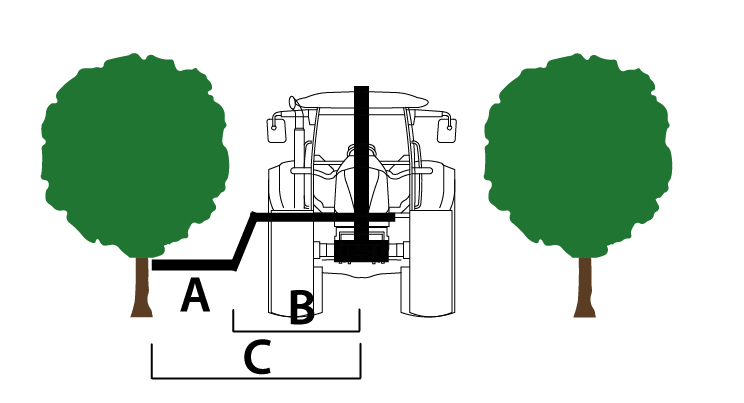

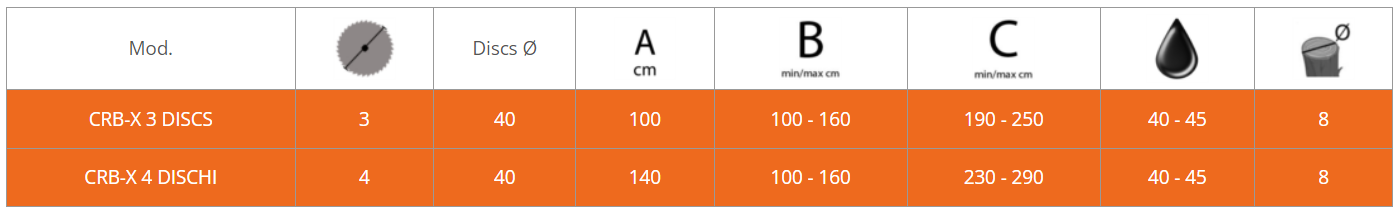

Model & Performance Chart
| Specs | CRB-X (3 Discs) | CRB-X (4 Discs) |
|---|---|---|
| Number of Discs | 3 | 4 |
| Disc Diameter | 15.7" | 15.7" |
| Dimensions A (inches) | 39.4" | 55.1" |
| Dimensions B (inches) | 39.4 - 62.9" | 39.4 - 62.9" |
| Dimensions C (inches) | 74.8 - 98.4" | 90.6 - 114.2" |
| Oil Demand (Liters/min) | 10.6 - 11.9 | 10.6 - 11.9 |
| Cutting Power (kW) | 8 | 8 |
In Package
- CRB-X 1 Orchard Pruning Machine
- Hydraulic lifting, side shift, and tilting cutting bar
- Flow divider with maximum pressure valve
- Safety joint with spring for cutting bar
- Stands for storage
- User Manual & Setup Guide
