Product Description

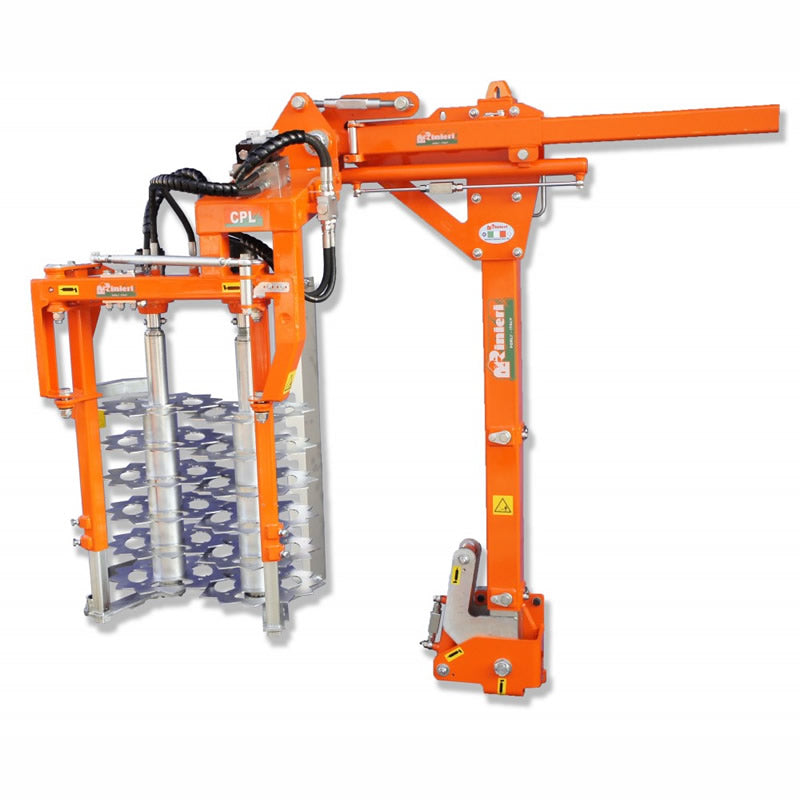

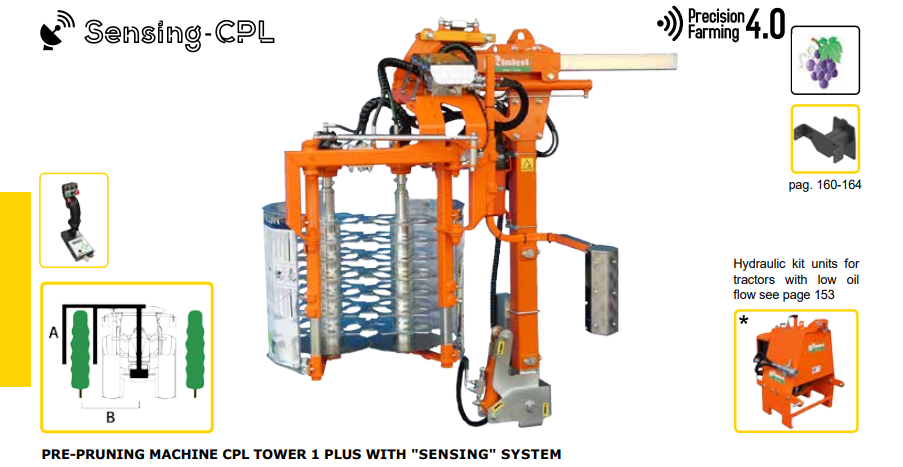

Rinieri Pre Pruning Machine CPL Tower 1 Plus Sensing | 33" Cutting Width for Tractor

DESCRIPTION

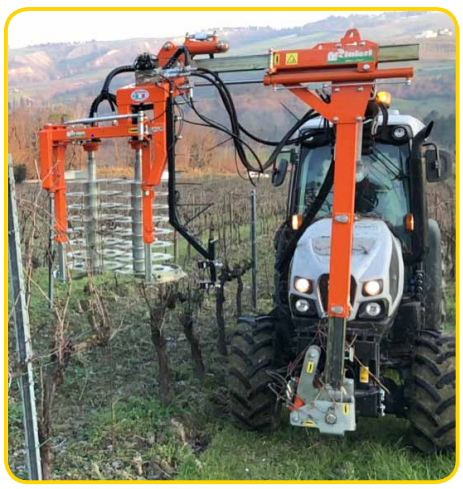

The PRE-PRUNING MACHINE CPL TOWER-1 PLUS SENSING is designed to provide efficient and safe pre-pruning in vineyards. The machine features a sensing system that automatically detects poles (wood, concrete, or steel) and opens the cutting head to avoid contact, ensuring precise pruning without damaging the vineyard's infrastructure. This system allows the operator to focus more on controlling the machine while the sensor manages pole detection and head opening.

The CPL heads are available in multiple configurations with 4+4, 6+6, 8+8, and 10+10 cutting discs, allowing for customization based on the vineyard’s needs. The machine can be mounted on the TOWER-1 PLUS frame and other trimming and deleafing machines, offering versatility in vineyard operations. The electro-hydraulic controls ensure easy operation with push-button functionality for head adjustments, making the process more efficient and user-friendly.

Key Features

• Hydraulic Lifting: 27.5" (70 cm) hydraulic lifting for better height control.
• Vertical Frame Tilting: +/- 20° hydraulic tilting for flexible vineyard operations.
• Side Shift: 23.6" (60 cm) hydraulic side shift for precise positioning.
• Manual Tilting: +/- 15° manual tilting of the working head.

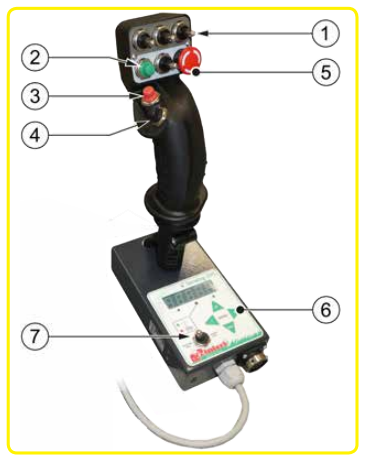

• Electro-Hydraulic Opening: Push button for quick head opening and locking.
• Sensing System: Automatically detects poles and opens the head to avoid contact, ensuring safe operation.
• Maximum Speed: 3.5 km/h with automatic pole recognition.
• Pole Recognition: Effective for wooden, concrete, and steel poles, with a minimum pole recognition section of 4 cm.
• Safety Features: Includes maximum pressure valves for motors and opening, as well as an emergency stop button.

Deatiled Specifications

In Package:

• CPL T1 A 4+4 Sensing Model: 4+4 discs, cutting width 33.4" (85 cm), 25-35 liters/min oil demand.
• CPL T1 A 6+6 Sensing Model: 6+6 discs, cutting width 33.4" (85 cm), oil demand of 25-35 liters/min.
• CPL T1 A 8+8 Sensing Model: 8+8 discs, cutting width 33.4" (85 cm), oil demand of 25-35 liters/min.
• CPL T1 A 10+10 Sensing Model: 10+10 discs, cutting width 33.4" (85 cm), oil demand of 25-35 liters/min.
• CPL T1 A 6+6 G Sensing Model (Compact): 6+6 discs, compact model, cutting width 33.4" (85 cm).
• CPL T1 A 8+8 G Sensing Model (Compact): 8+8 discs, compact model, cutting width 33.4" (85 cm).
• CPL T1 A 10+10 G Sensing Model (Compact): 10+10 discs, compact model, cutting width 33.4" (85 cm).

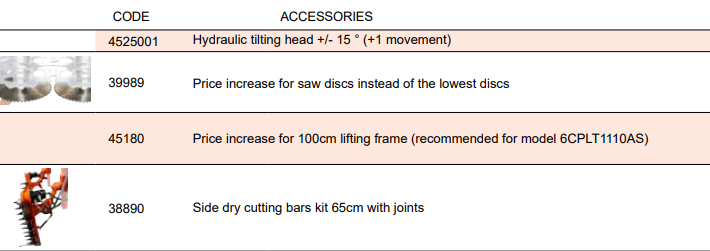

Available Options:

•  100 cm lifting frame (recommended for model CPL T1 A 10+10)
• Side dry cutting bars kit (65 cm)
• Tunnel sucker remover SRV

Manual & Description

Machine Configuration Guide

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!
