Product Description
Rinieri Prepruning Vineyard CPL Tower 1 Plus | 12"-35" Working Width for Tractor
DESCRIPTION

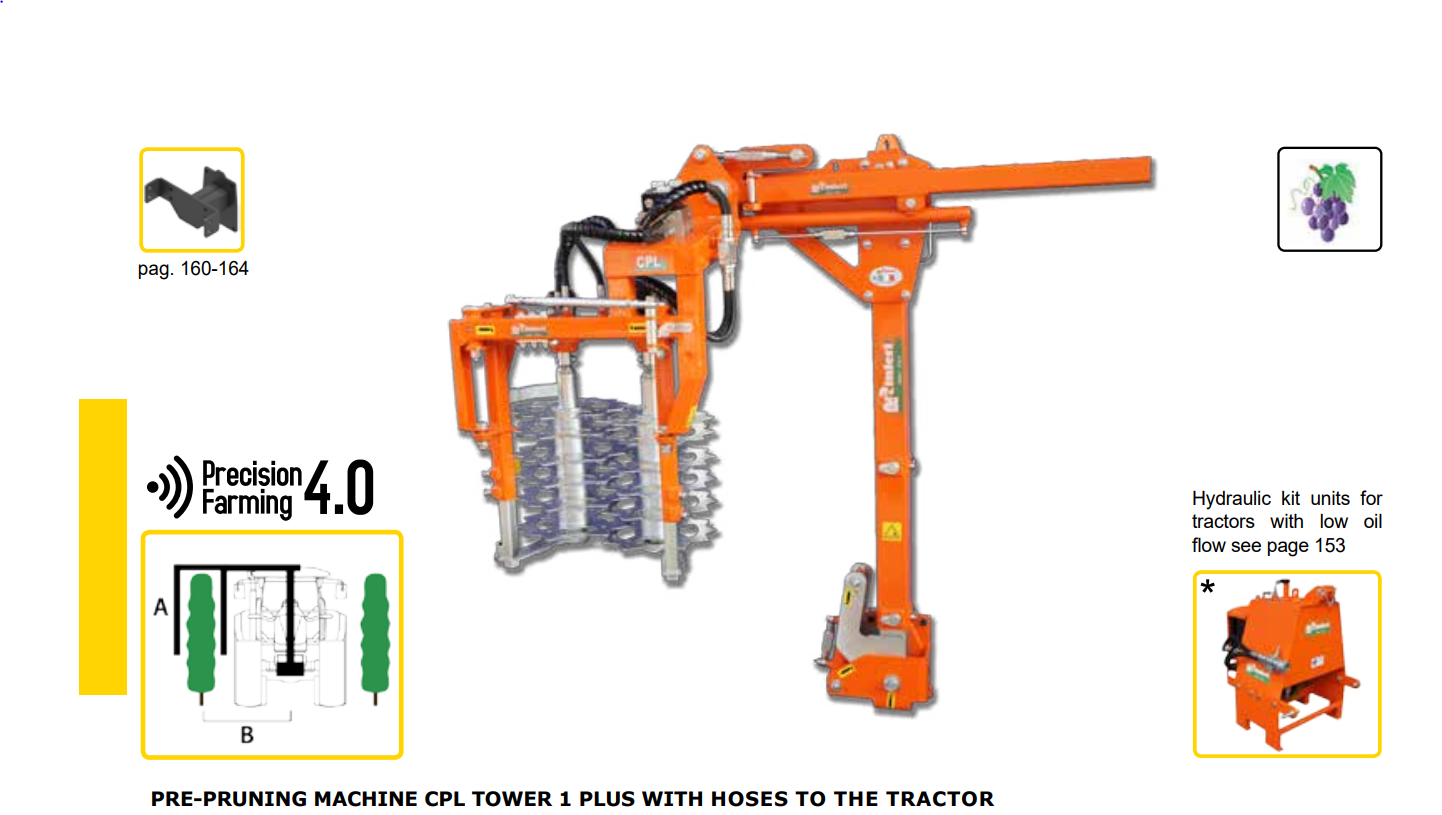

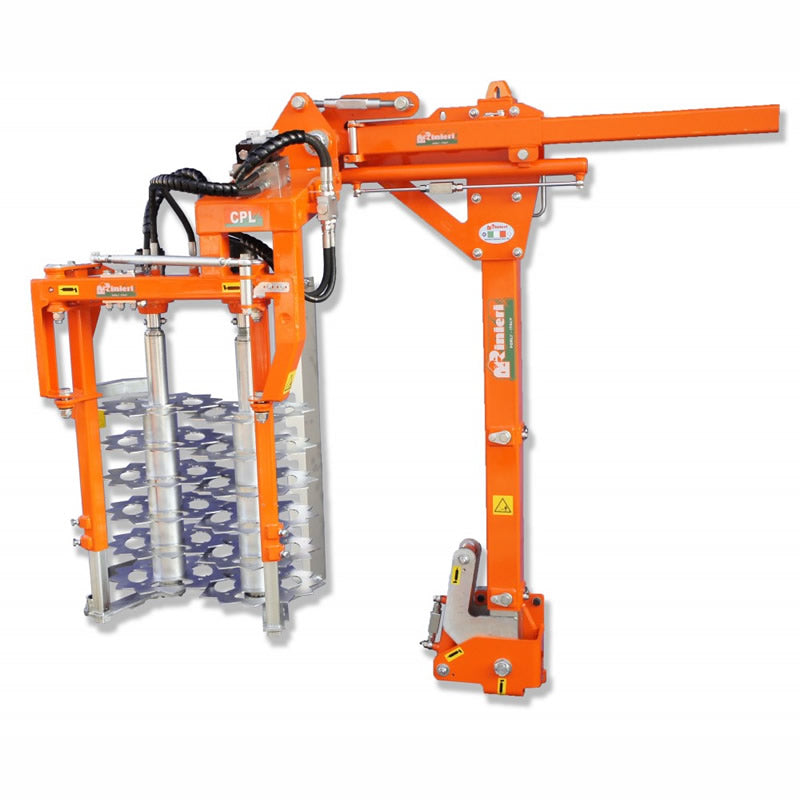

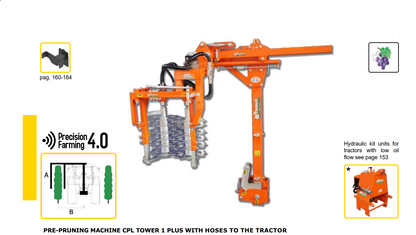

The PREPRUNING VINEYARD CPL TOWER-1 PLUS is designed to offer a safe and efficient solution for vineyard pre-pruning. The machine uses disc cutters, available in 4+4, 6+6, 8+8, and 10+10 configurations, to cut and remove branches from the wires without causing damage. Operators have full control over pole avoidance to ensure safe operation.
The CPL TOWER-1 PLUS frame features hydraulic lifting, tilting, and side-shift capabilities, making it adaptable to various vineyard conditions. The electro-hydraulic system allows the operator to quickly open and lock the working head with the push of a button. This pre-pruning machine is compatible with other trimming and deleafing machines, offering great versatility for vineyard management.
Key Features
- Multiple Disc Configurations: Available with 4+4, 6+6, 8+8, and 10+10 cutting discs for versatile vineyard pruning.
- Electro-Hydraulic Pole Avoidance: Safely bypasses poles during operation with a push-button control.
- Hydraulic Lifting & Tilting: Ensures precision and flexibility when pruning.
- Quick Connection PLUS: For easy setup and adjustments during operation.
- Compatible with Trimming and Deleafing Machines: Expandable functionality for additional vineyard maintenance tasks.
Detailed Specifications
T1 Plus Frame Features
| Feature | Specification |
|---|---|
| Hydraulic Distributor | 4+1 |
| Hydraulic Lifting | 27.5" |
| Hydraulic Tilting | +/-20° vertical frame, +/-15° working head |
| Hydraulic Side Shift | 23.6" |
| Electro-Hydraulic Opening | Push-button control for locking and opening during operation |
Safety Features
| Feature | Specification |
|---|---|
| Maximum Pressure Valve | For motors |
| Maximum Pressure Valve | For opening |
| Hydraulic Stand | For secure storage |
On the Tractor
| Feature | Specification |
|---|---|
| Hydraulic Distributor | N.1 double-acting hydraulic distributor |
| Pressure-Free Return | N.1 pressure-free return |
| Oil Demand | 25-35 L/min |

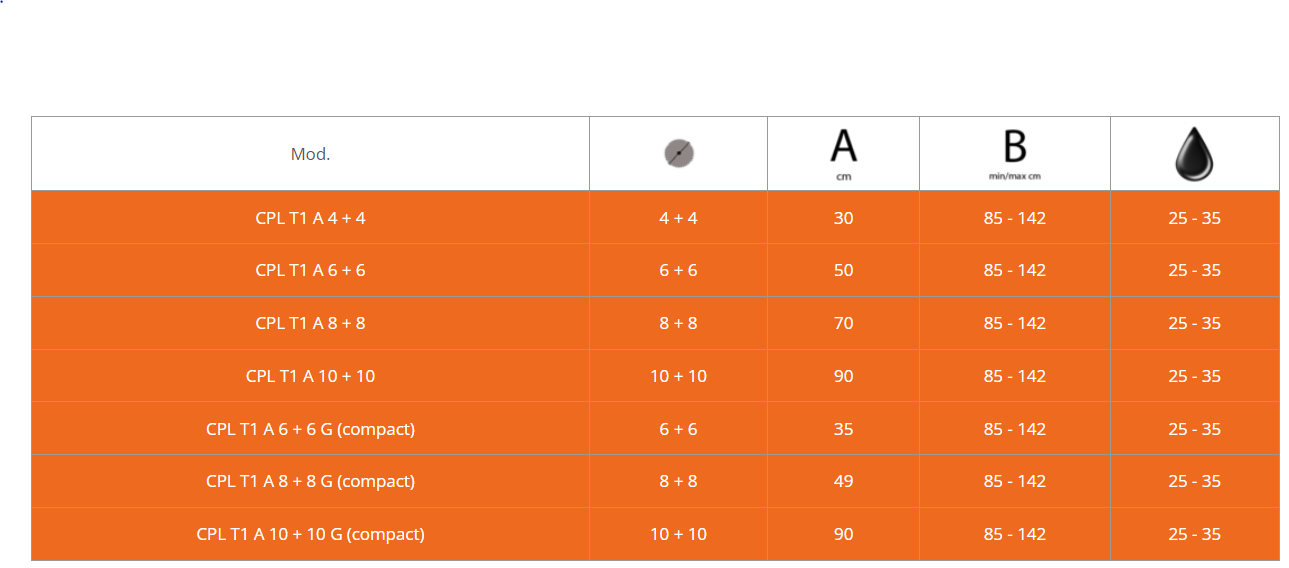

CPL T1 A 4 + 4 and CPL T1 A 6 + 6
| Specification |
CPL T1 A 4 + 4 |
CPL T1 A 6 + 6 |
|---|---|---|
| Number of Discs | 4 + 4 | 6 + 6 |

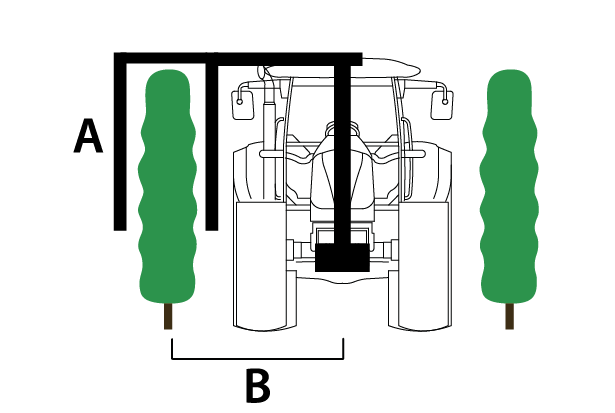

| A (in) | 11.8" | 19.6" |
| B (in) | 33" - 56" | 33" - 56" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CPL T1 A 8 + 8 and CPL T1 A 10 + 10
| Specification |
CPL T1 A 8 + 8 |
CPL T1 A 10 + 10 |
|---|---|---|
| Number of Discs | 8 + 8 | 10 + 10 |
| A (in) | 27.5" | 35.4" |
| B (in) | 33" - 56" | 33" - 56" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CPL T1 A 6 + 6 G and CPL T1 A 8 + 8 G
| Specification |
CPL T1 A 6 + 6 G |
CPL T1 A 8 + 8 G |
|---|---|---|
| Number of Discs | 6 + 6 (compact) | 8 + 8 (compact) |
| A (in) | 13.7" | 19.2" |
| B (in) | 33" - 56" | 33" - 56" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CPL T1 A 10 + 10 G
| Specification | CPL T1 A 10 + 10 G |
|---|---|
| Number of Discs | 10 + 10 (compact) |
| A (in) | 35.4" |
| B (in) | 33" - 56" |
| Oil Demand (L/min) | 25 - 35 |
In Package:
- CPL T1 A 4 + 4 Model: 4 + 4 discs, 11.8" (30 cm) width, oil demand of 25-35 liters/min.
- CPL T1 A 6 + 6 Model: 6 + 6 discs, 19.6" (50 cm) width, oil demand of 25-35 liters/min.
- CPL T1 A 8 + 8 Model: 8 + 8 discs, 27.5" (70 cm) width, oil demand of 25-35 liters/min.
- CPL T1 A 10 + 10 Model: 10 + 10 discs, 35.4" (90 cm) width, oil demand of 25-35 liters/min.
- CPL T1 A 6 + 6 G (compact) Model: 6 + 6 discs, compact model, cutting width 13.7" (35 cm), oil demand of 25-35 liters/min.
- CPL T1 A 8 + 8 G (compact) Model: 8 + 8 discs, compact model, cutting width 19.2" (49 cm), oil demand of 25-35 liters/min.
- CPL T1 A 10 + 10 G (compact) Model: 10 + 10 discs, compact model, cutting width 35.4" (90 cm), oil demand of 25-35 liters/min.

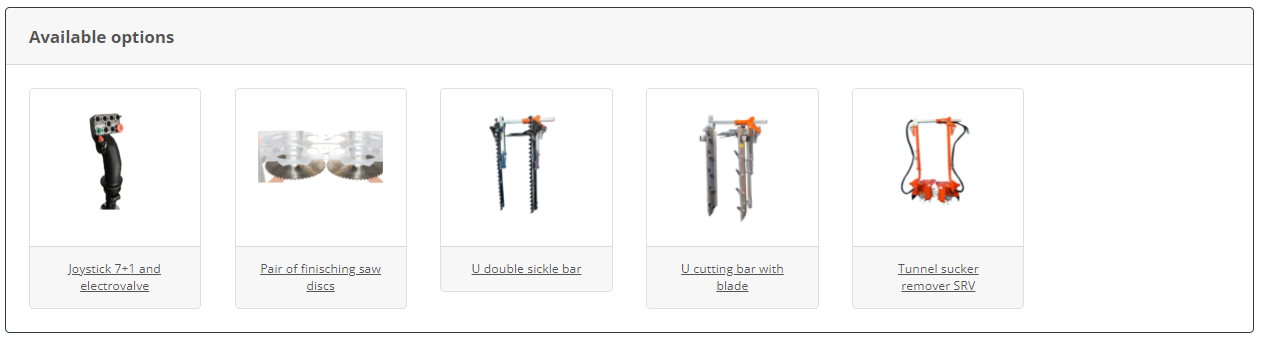

Available Options:
- Joystick 7+1 and electrovalve
- Pair of finishing saw discs
- U double sickle bar
- U cutting bar with blade
- Tunnel sucker remover SRV
Manual & Documents
The Product Manual
Machine Configuration Guide
