RINIERI

Rinieri Pruning Machine with Discs CRF-X Series | 16" Disc Diameter | 79-140" Cutting Width for Tractor

Rinieri Pruning Machine with Discs CRF-X Series | 16" Disc Diameter | 79-140" Cutting Width for Tractor

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • High-Density Pruning: Suitable for trees up to 13 feet high and branches up to 3.1 inches in diameter.
  • Advanced Saw Discs: Equipped with Ø 15.7-inch saw discs for efficient cutting.
  • Adaptable Design: Features optional top bars, bottom bars, and hydraulic adjustments to accommodate different orchard setups.
  • Hail Net Adaptation: Hydraulic tilting and rear rotation available for top bars to avoid obstacles.
  • "Window" Cutting Kit: Enhances sunlight penetration and increases productivity inside the tree canopy.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Rinieri Pruning Machine with Discs CRF-X Series | 16" Disc Diameter | 79-140" Cutting Width for Tractor

DESCRIPIOTN

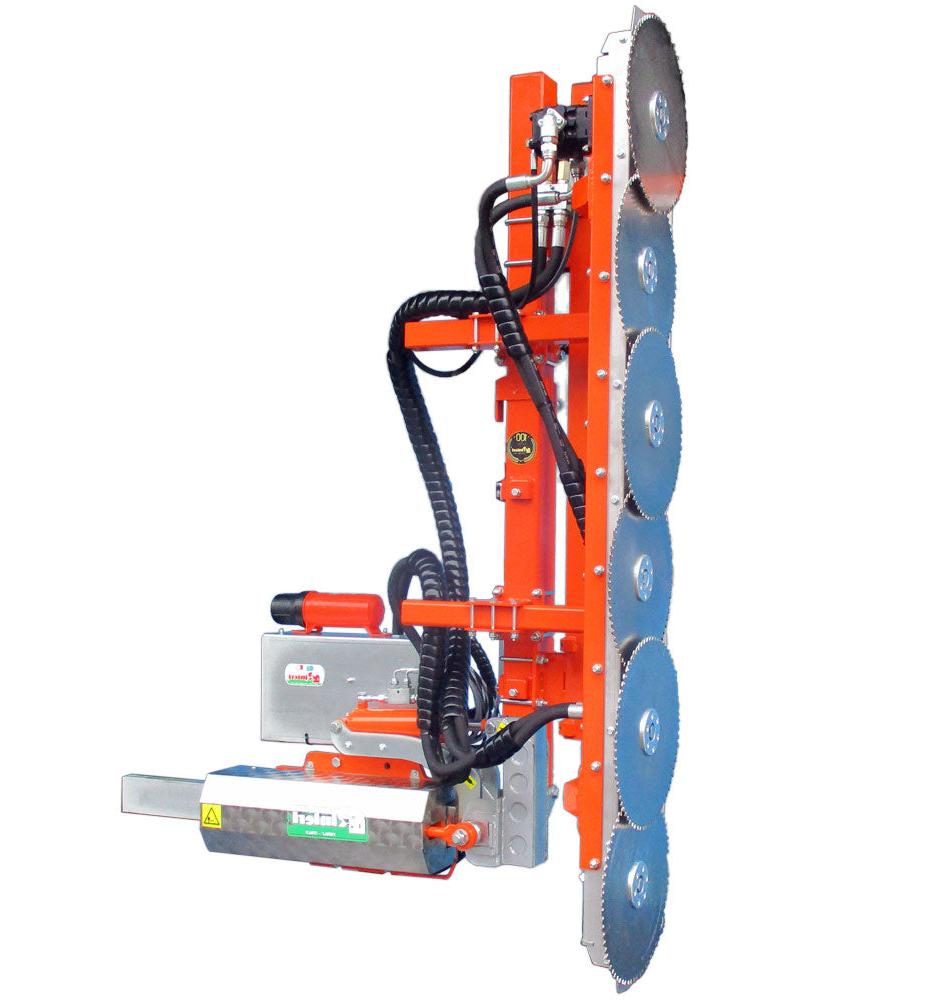

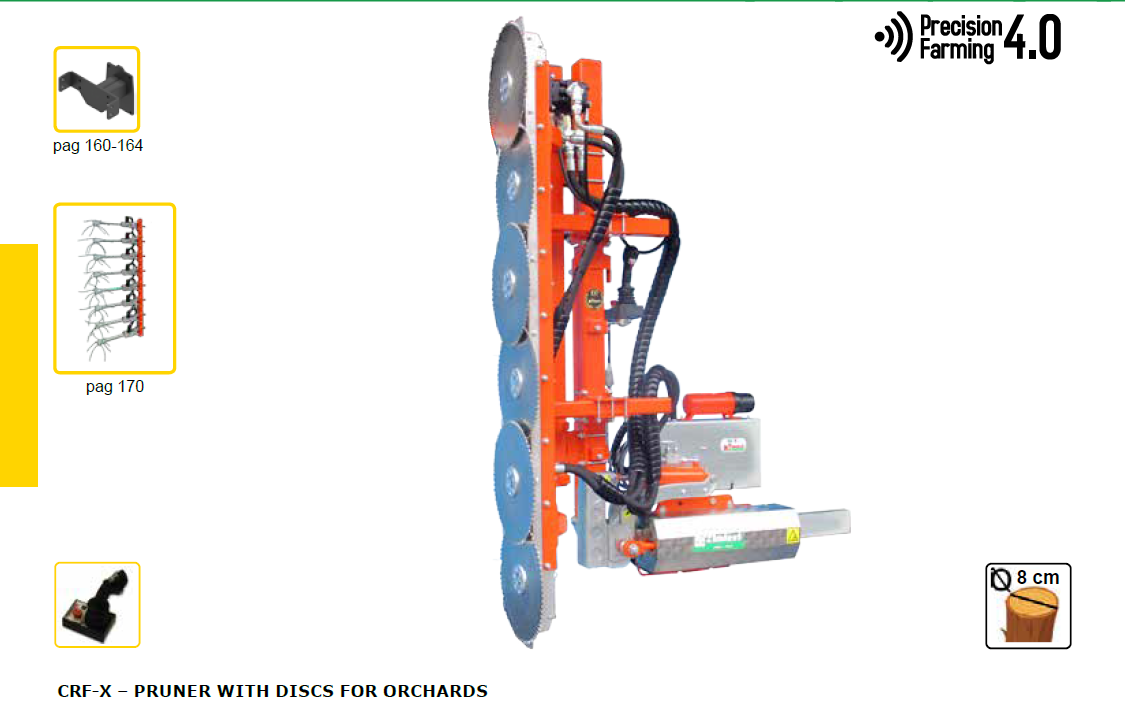

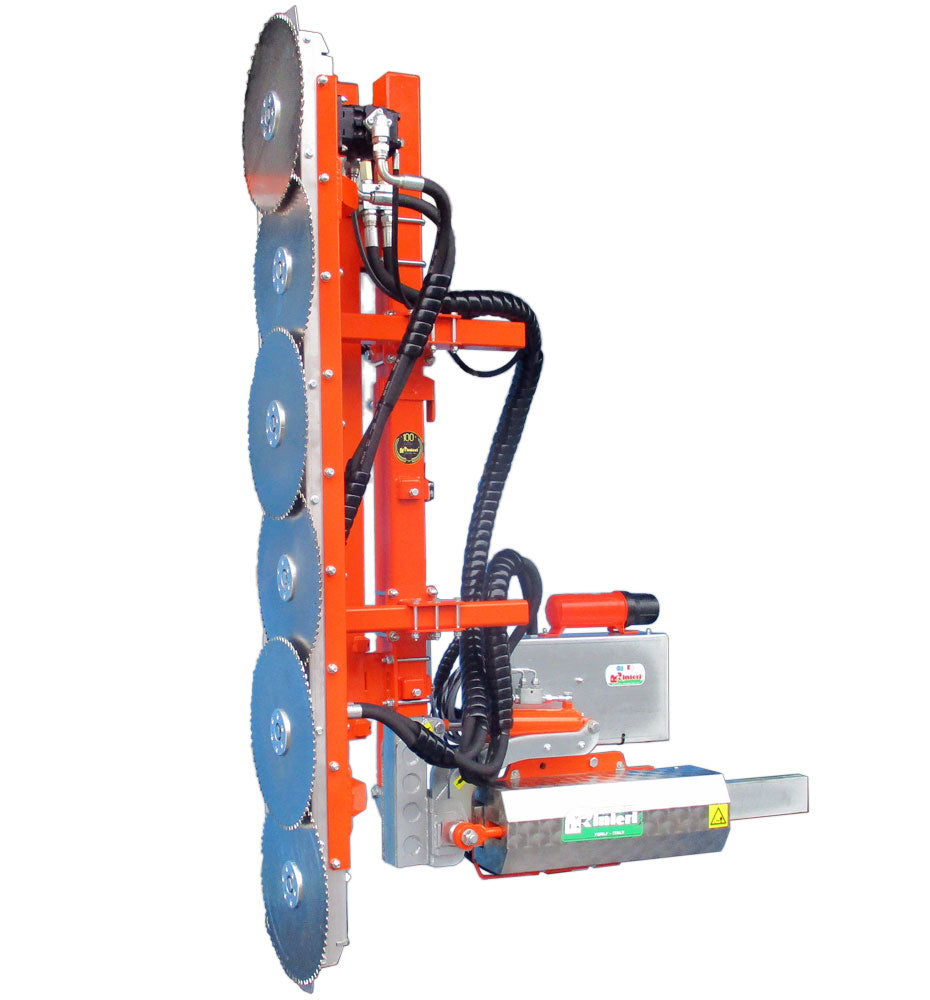

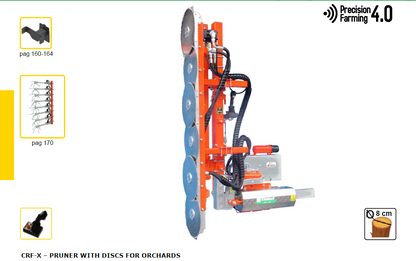

The CRF-X Pruning Machine is the latest innovation in orchard pruning, designed for high-density spindle orchards. Suitable for various fruit varieties such as apples, apricots, cherries, and olives up to 13 feet high, this pruner features advanced saw disc bars with a diameter of 15.7 inches, capable of handling branches up to 3.1 inches thick.

The CRF-X is highly adaptable, with optional accessories including top and bottom bars, hydraulic tilting, and rear rotation for navigating obstacles like poles in orchards with hail nets. Additionally, a "window" cutting kit is available to enhance sunlight penetration within the canopy, boosting productivity and significantly reducing manual labor.

Key Features

  • High-Density Pruning: Suitable for trees up to 13 feet high and branches up to 3.1 inches in diameter.
  • Advanced Saw Discs: Equipped with Ø 15.7-inch saw discs for efficient cutting.
  • Adaptable Design: Features optional top bars, bottom bars, and hydraulic adjustments to accommodate different orchard setups.
  • Hail Net Adaptation: Hydraulic tilting and rear rotation available for top bars to avoid obstacles.
  • "Window" Cutting Kit: Enhances sunlight penetration and increases productivity inside the tree canopy.

FRAME:

  • Proportional electro-hydraulic distributor with joystick 4+1
  • Hydraulic lifting 90cm
  • Column hydraulic tilting +/-15%
  • Hydraulic side shift 50cm and manual 25cm
  • Vertical bar with Ø 400mm discs

SAFETY

  • Max pressure valve for motors
  • Hydraulic stand for storage

HYDRAULIC KIT

  • Hydraulic kit with 80 Lit/min pump, gearbox, 90L oil tank, oil cooler and cardan joint
  • Socket 12V

Detailed Specifications

Component Details
Hydraulic Lifting 35.4 inches
Hydraulic Tilting Column +/- 5.9 inches
Hydraulic Side Shift 19.7 inches (hydraulic) and 9.8 inches (manual)
Vertical Bar with Discs Ø 15.7 inches
Proportional Electro-Hydraulic Distributor Joystick 4+1 or 6+1 options
Hydraulic Kit 80 Lit/min pump, gearbox, 90L oil tank, oil cooler, and cardan joint
Socket 12V

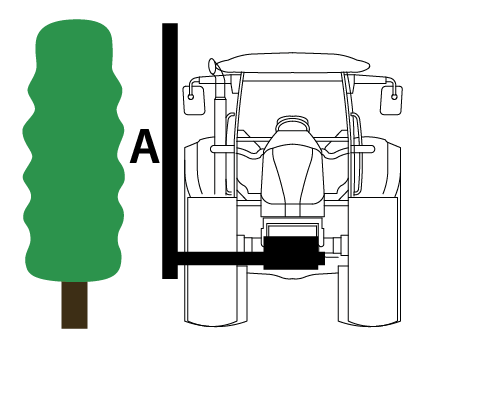

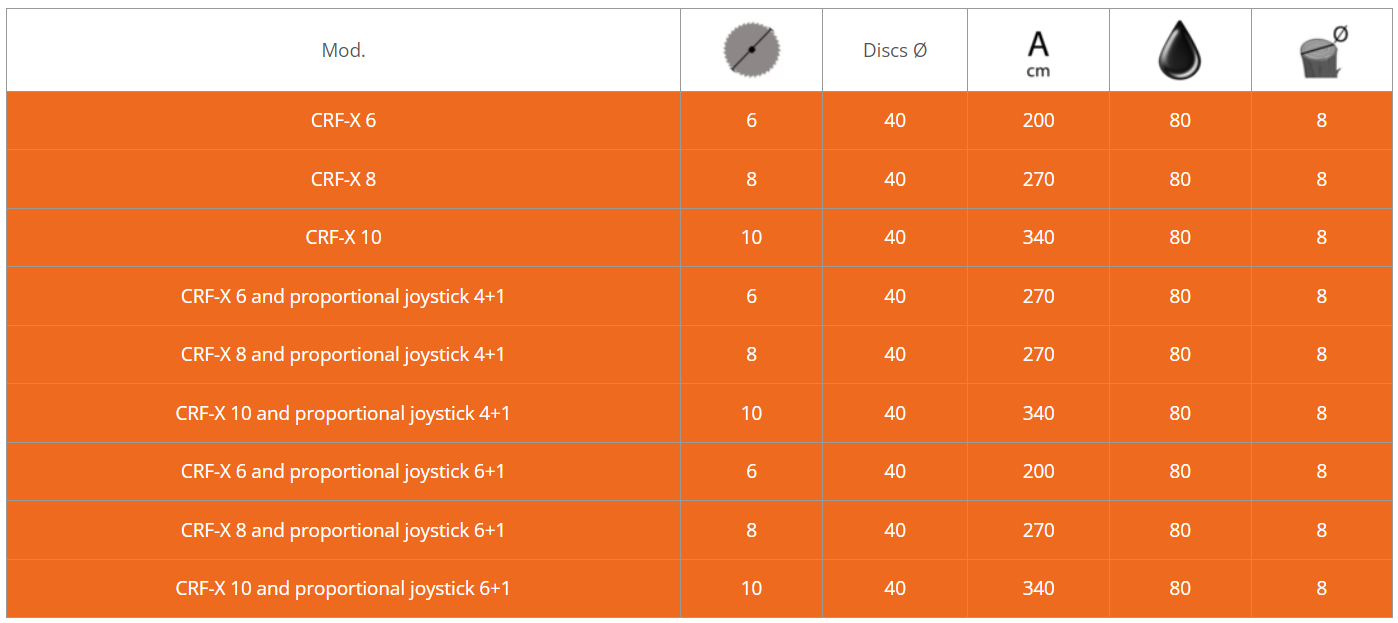

Model & Performance Chart

Model Disc Dimensions (inches) Cutting Power (kW)
CRF-X 6 No. of Discs: 6
Disc Dia.: 15.7
Dim. A: 78.7
Oil Demand: 80 L/min		 8
CRF-X 8 No. of Discs: 8
Disc Dia.: 15.7
Dim. A: 106.3
Oil Demand: 80 L/min		 8
CRF-X 10 No. of Discs: 10
Disc Dia.: 15.7
Dim. A: 133.9
Oil Demand: 80 L/min		 8
CRF-X 6 + Joystick 4+1 No. of Discs: 6
Disc Dia.: 15.7
Dim. A: 106.3
Oil Demand: 80 L/min		 8
CRF-X 8 + Joystick 4+1 No. of Discs: 8
Disc Dia.: 15.7
Dim. A: 106.3
Oil Demand: 80 L/min		 8
CRF-X 10 + Joystick 4+1 No. of Discs: 10
Disc Dia.: 15.7
Dim. A: 133.9
Oil Demand: 80 L/min		 8
CRF-X 6 + Joystick 6+1 No. of Discs: 6
Disc Dia.: 15.7
Dim. A: 78.7
Oil Demand: 80 L/min		 8
CRF-X 8 + Joystick 6+1 No. of Discs: 8
Disc Dia.: 15.7
Dim. A: 106.3
Oil Demand: 80 L/min		 8
CRF-X 10 + Joystick 6+1 No. of Discs: 10
Disc Dia.: 15.7
Dim. A: 133.9
Oil Demand: 80 L/min		 8

In Package

  • CRF-X Pruning Machine
  • Hydraulic lift, tilting column, and side shift
  • Vertical bar with Ø 15.7-inch saw discs
  • Hydraulic kit (80 Lit/min pump, gearbox, 90L oil tank, oil cooler, cardan joint)
  • Max pressure valve for motor protection
  • Hydraulic stand for safe storage
  • User Manual & Setup Guide

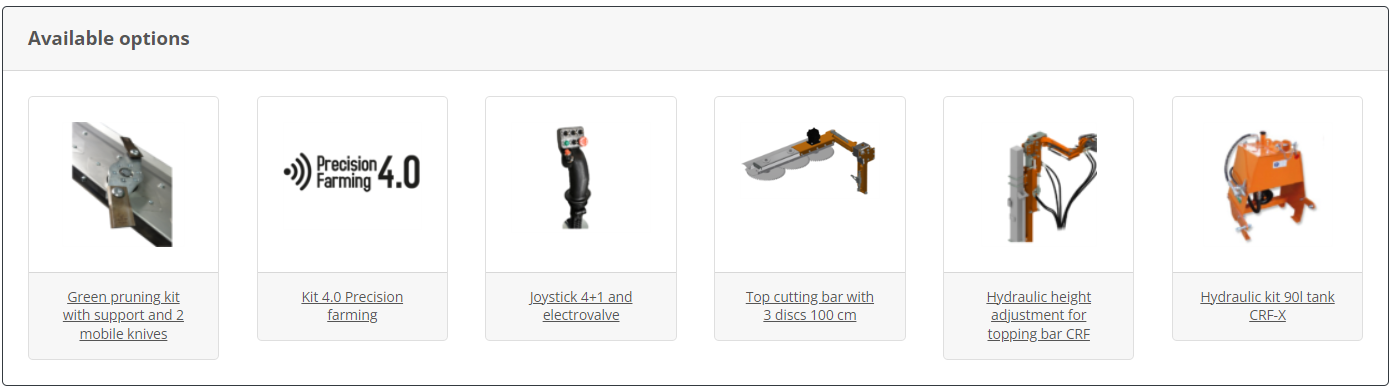

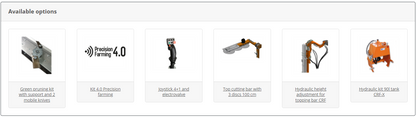

Additional Accessories for CRF-X:

  • Adapter For Mounting CRF-X On Coupling Frames For Pruning Machines
  • 3-Point Coupling CAT 2 For Tractors With Front Lift
  • Green Pruning Kit With Support And 2 Mobile Knives For Ø 15.7" Disc Replacement

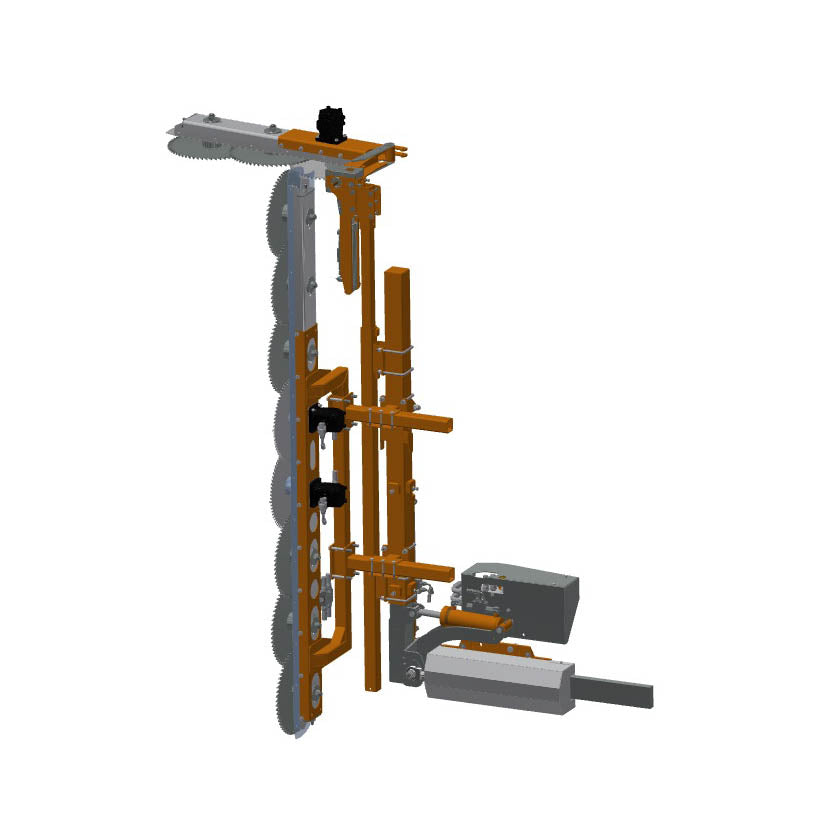

  • Top Cutting Bar With 3 Discs 39.4", Hydraulic Tilting 90° And Spring-Shockproof With Backward Rotation (1 Hydraulic Movement)
  • Top Cutting Bar With 3 Discs Manual Tilting 90° And Hydraulic Backward Rotation With Safety Max Pressure Valve (1 Hydraulic Movement)
  • Top Cutting Bar With 3 Discs Hydraulic Tilting 90° And Hydraulic Backward Rotation With Safety Max Pressure Valve (2 Hydraulic Movements)
  • Hydraulic Height Adjustment For Topping Bar 19.7" (1 Hydraulic Movement Hoses To The Tractor)
  • Vertical Bar CRF 78.7"
  • Vertical Bar CRF 98.4"
  • Vertical Bar CRF 110.2"
  • Vertical Bar CRF 118.1"
  • Vertical Bar CRF 133.9"
  • Hydraulic Kit With 80 L/min Pump - Gearbox - 23.6L Oil Tank - Oil Cooler - And Cardan Joint
  • Valve Kit For Adding CRF Vertical Cutting Bars On CRF-X
  • Valve Kit For Adding CRF Vertical And Top Cutting Bars On CRF-X

Elevate your orchard maintenance with the CRF-X Pruning Machine. Designed for high-density orchards and featuring advanced saw discs, this machine offers exceptional performance and adaptability. Enhance your pruning efficiency and reduce manual labor—order the CRF-X today and optimize your orchard's productivity!
