Rinieri Boom Reach Mower BRF-160/250/300/350 | 50"-80" Working Width | 15-35HP for Tractor
Description

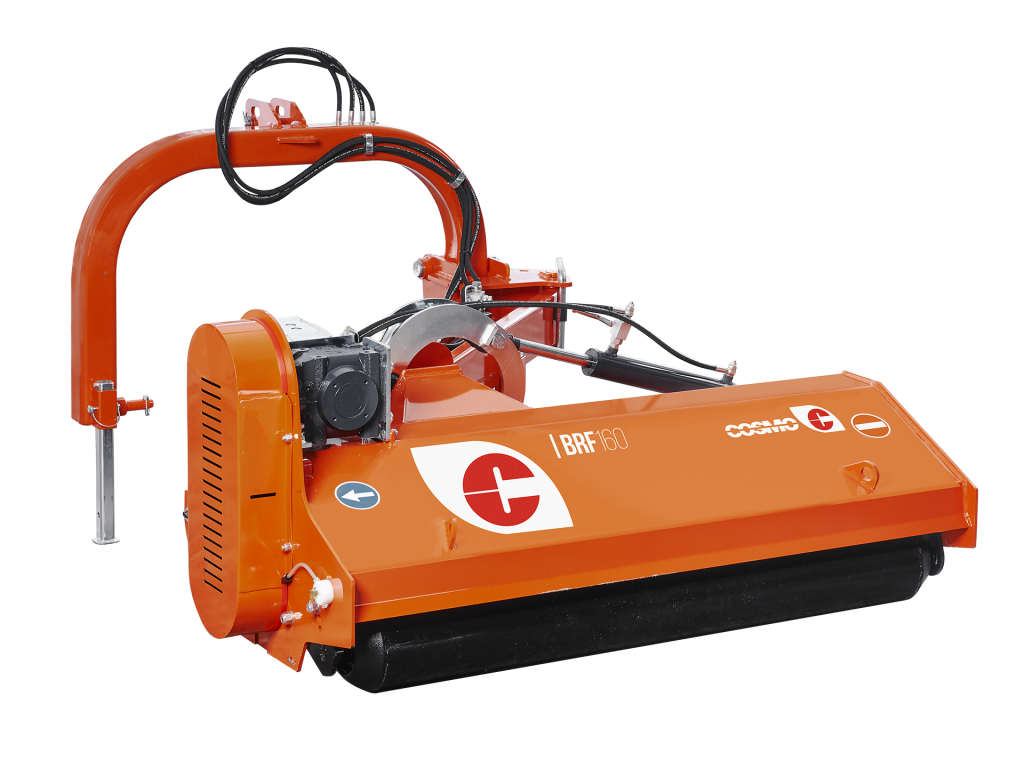

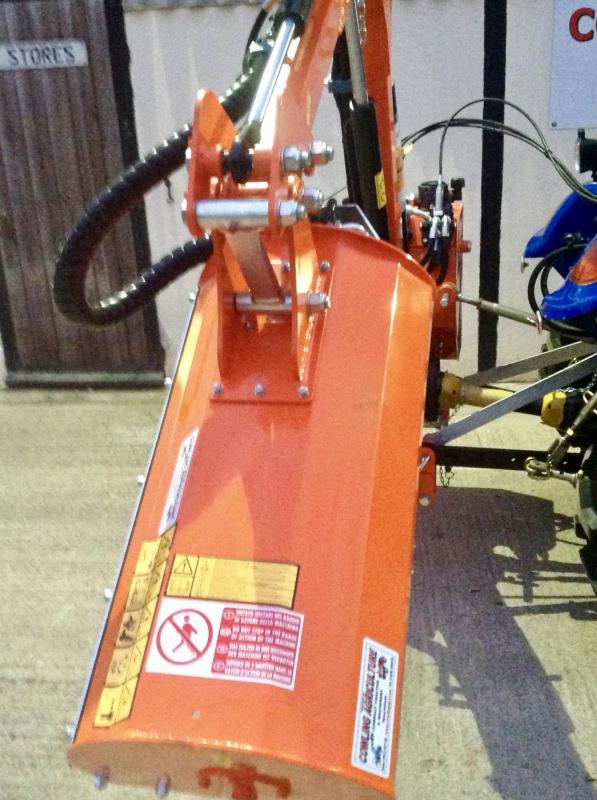

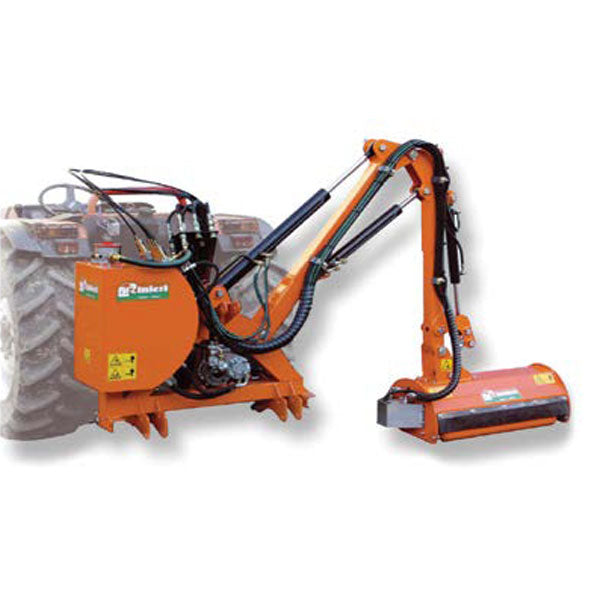

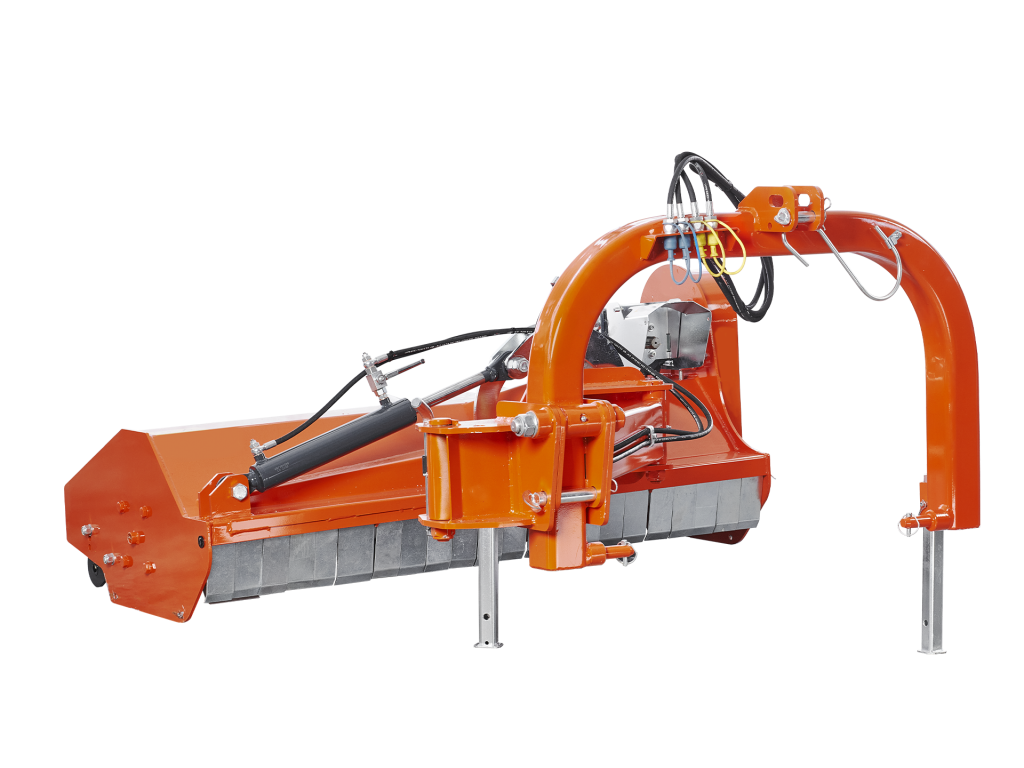

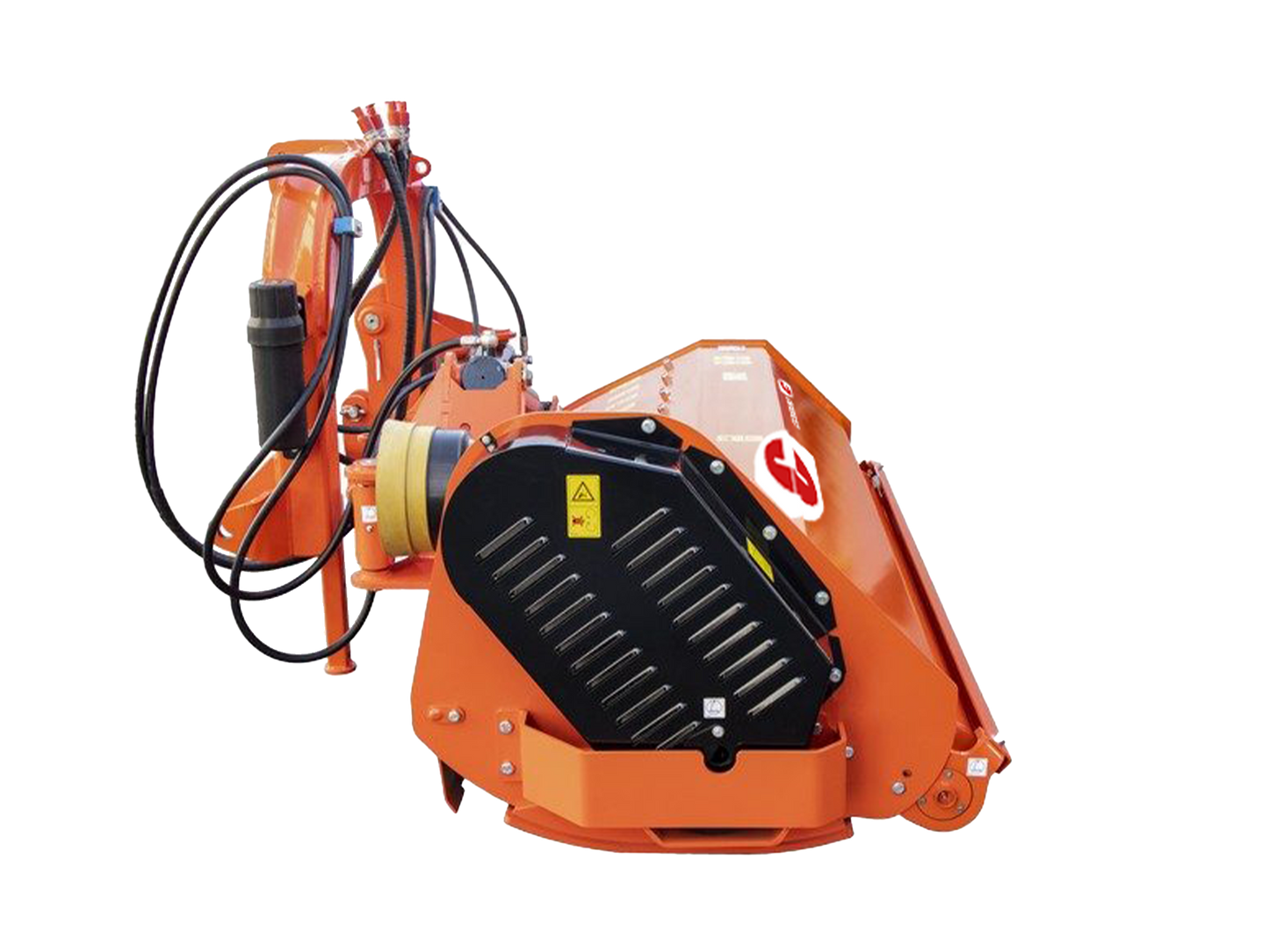

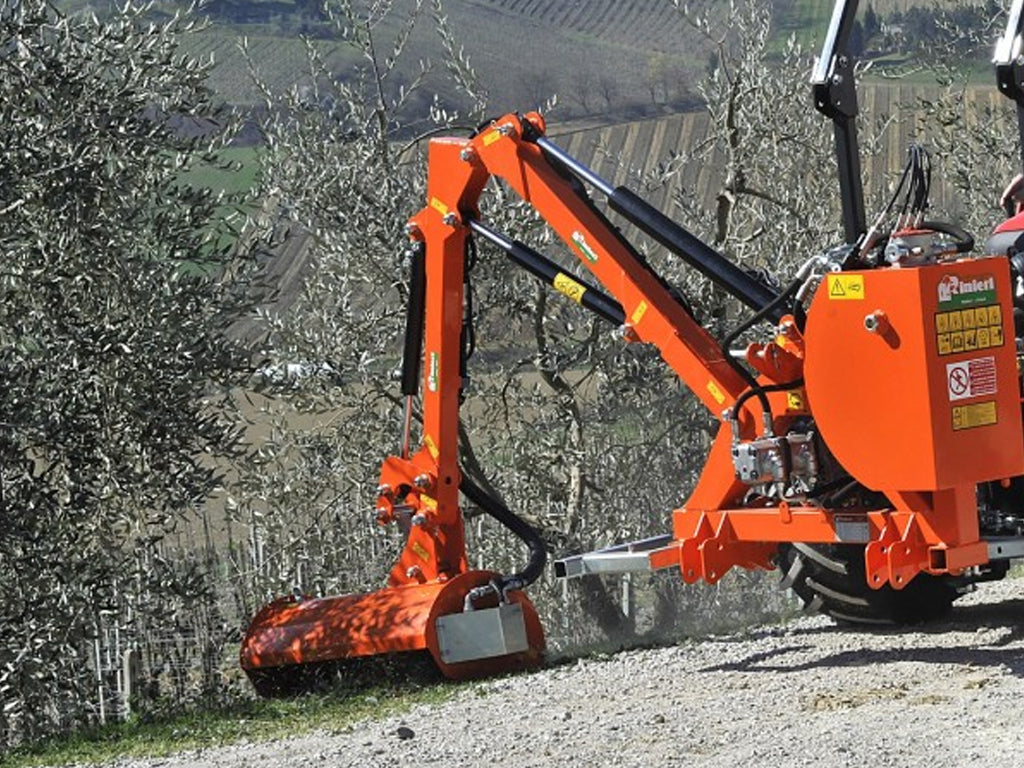

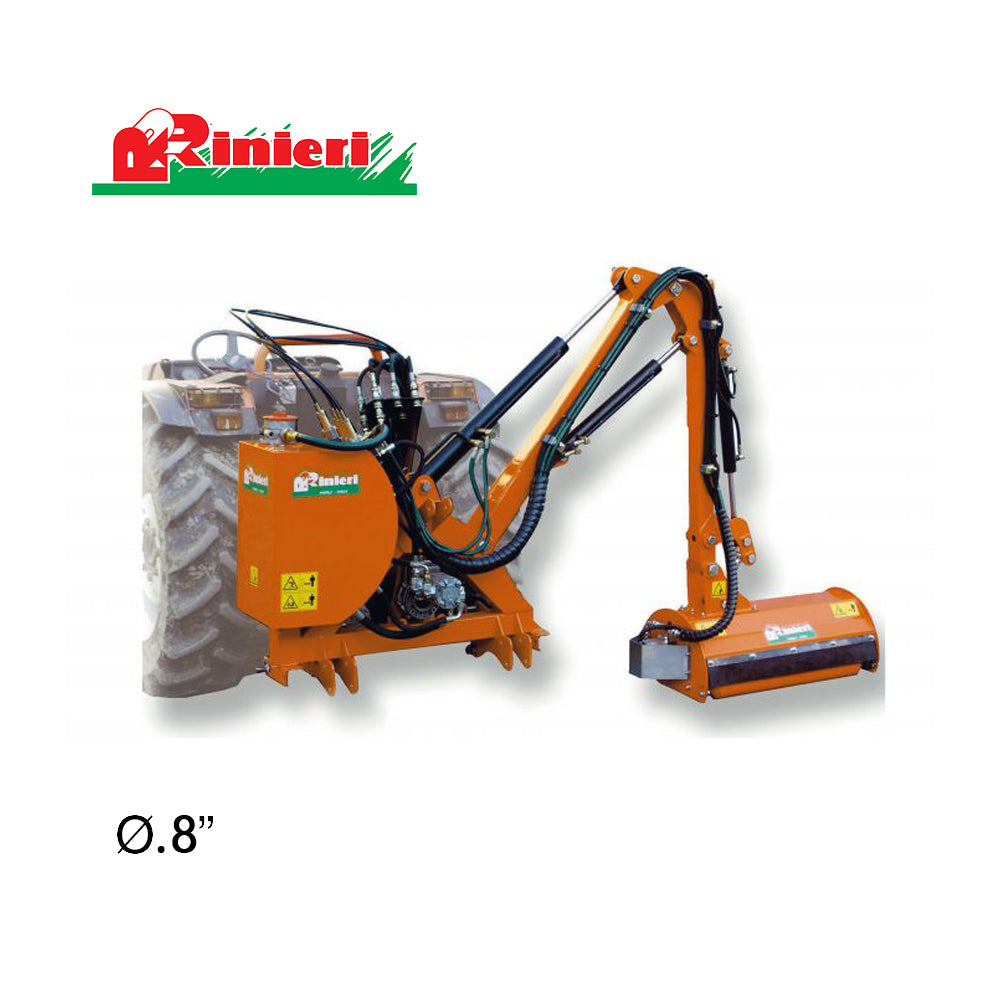

The Rinieri BRF Reach Mower is designed for small businesses and hobbyists with low-power tractors (20-50 HP). It is ideal for maintaining areas such as drains, street edges, embankments, ditches, canals, and parks. The mower efficiently cuts grass and prunes small branches up to 2 cm in diameter. The BRF Reach Mower is available in four models, providing a reach from 1.6 to 3.5 meters, making it versatile for various applications. Each model is equipped with a double hitch for tractors with front linkage or reversible tractors.
Features
- High Efficiency: Suitable for trimming grass and small branches up to 2 cm in diameter.
- Versatile Operation: Designed for use in a variety of terrains like drains, street edges, embankments, and more.
- Flexible Control Options: Available in hydraulic and electro-hydraulic models with proportional joystick.
- Built for Durability: Anti-shock system and robust construction ensure long-lasting performance.
Standard Equipment:

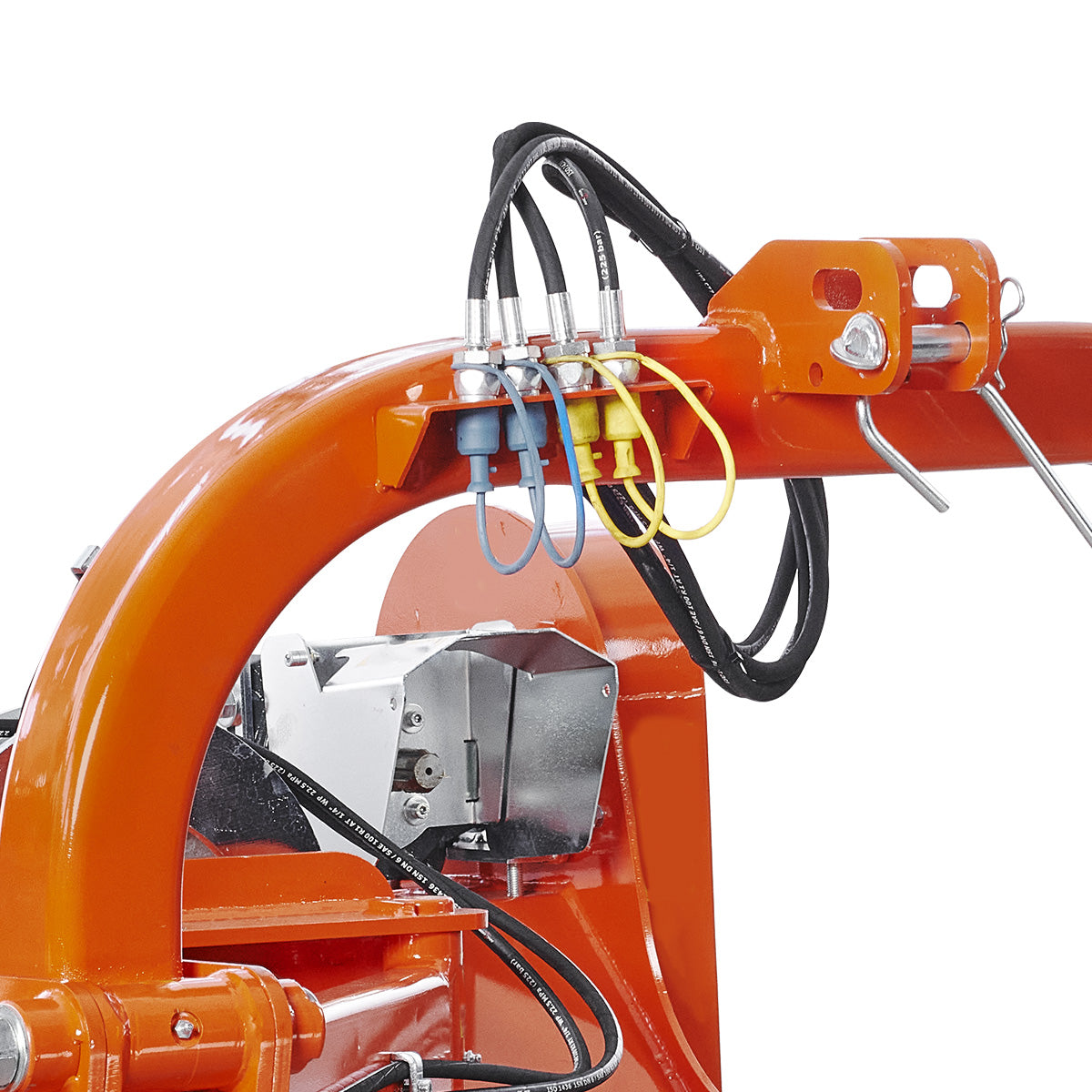

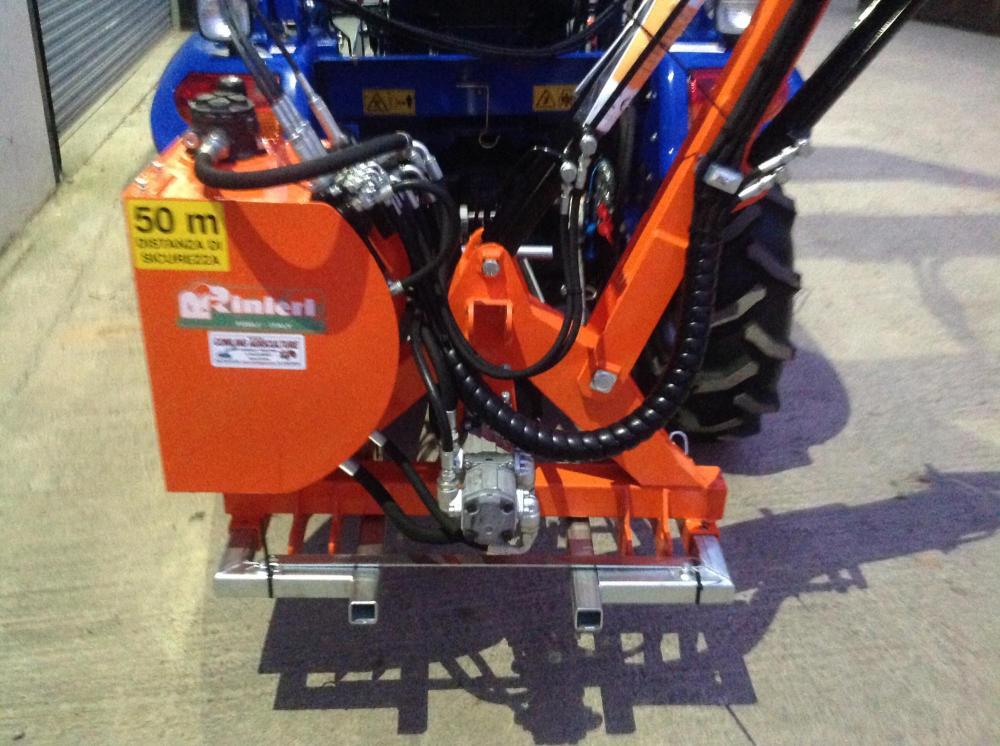

- Hydraulic Kit with Aluminum Pumps GR.2 (40 + 13 liters, HP19): Provides efficient hydraulic power.
- Distributor with Cables and Remote Control: Allows for easy control of the mower.
- Reversible Rotor Rotation: Ensures flexibility for different mowing needs.
- Floating Device on the Head: Maintains consistent mowing height on uneven terrain.
- 3-Point Hitch (Category 1): With an anti-shock device for stable mounting.
- Cardan Joint: Provides smooth operation and stability during mowing.
Tractor Requirements:
- 1 single-acting hydraulic distributor.
- Oil Demand: 30 to 55 liters depending on the model.

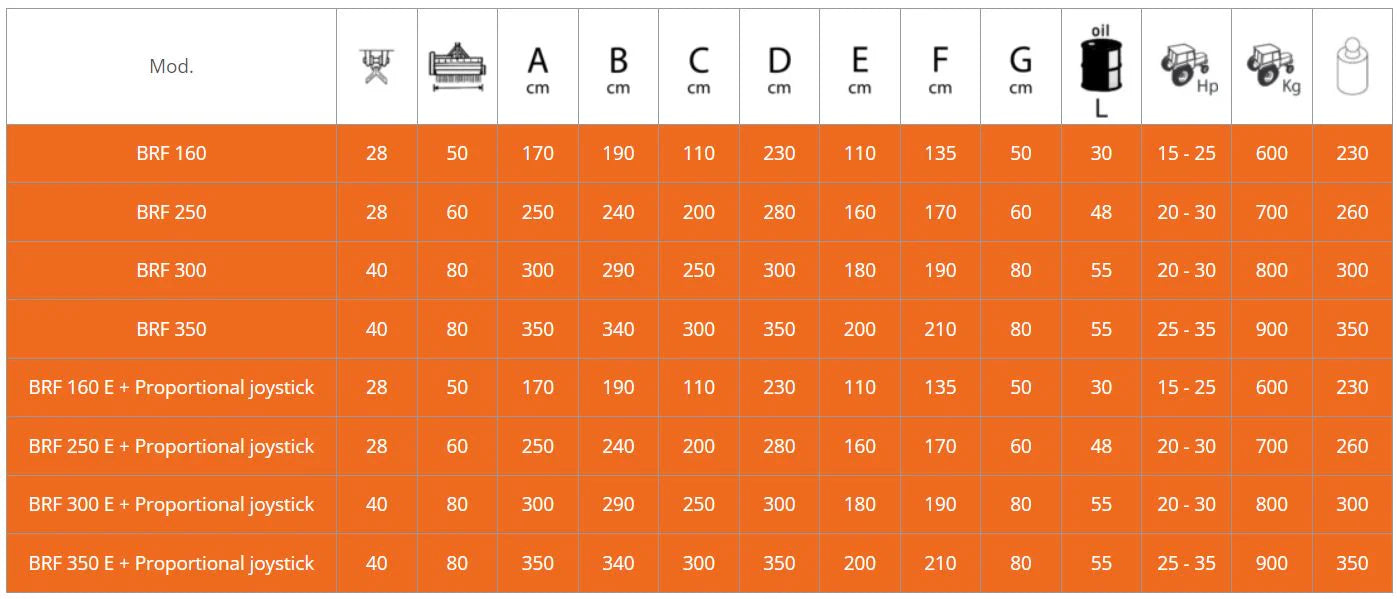

Specification
| Specs |
BRF 160 |
BRF 250 |
BRF 300 |
BRF 350 |
BRF 160 E |
BRF 250 E |
BRF 300 E |
BRF 350 E |
|---|---|---|---|---|---|---|---|---|
| Knives | 28 | 28 | 40 | 40 | 28 | 28 | 40 | 40 |
|
Working Width |
50" | 60" | 80" | 80" | 50 | 60" | 80" | 80" |

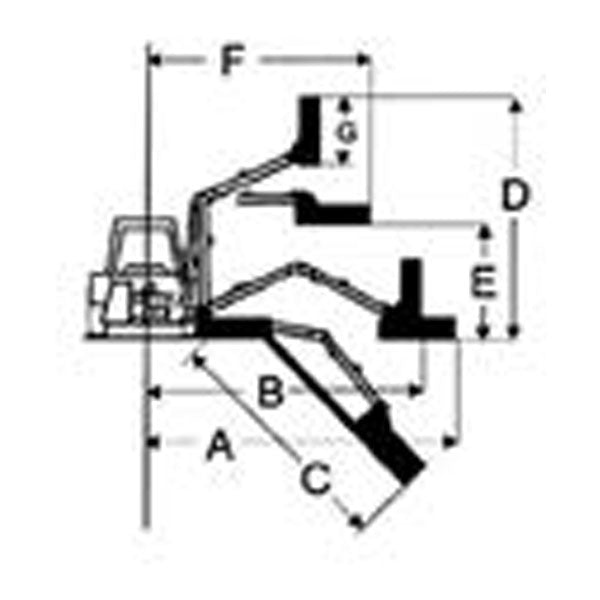

| A | 67" | 98" | 118" | 138" | 67" | 98" | 118" | 138" |
| B | 75" | 94" | 114" | 134" | 75" | 94" | 114" | 134" |
| C | 43" | 79" | 98" | 118" | 43" | 79" | 98" | 118" |
| D | 91" | 110" | 118" | 138" | 91" | 110" | 118" | 138" |
| E | 43" | 63" | 71" | 79" | 43" | 63" | 71" | 79" |
| F | 53" | 67" | 75" | 83" | 53" | 67" | 75" | 83" |
| G | 20" | 24" | 32" | 32" | 20" | 24" | 32" | 32" |
|
Oil Capacity |
30L | 48L | 55L | 55L | 30L | 48L | 55L | 55L |
|
Required HP |
15 - 25 HP | 20 - 30 HP | 20 - 30 HP | 25 - 35 HP | 15 - 25 HP | 20 - 30 HP | 20 - 30 HP | 25 - 35 HP |
| Minimum Tractor Weight | 600 kg | 700 kg | 800 kg | 900 kg | 600 kg | 700 kg | 800 kg | 900 kg |
| Machine Weight | 230 kg | 260 kg | 300 kg | 350 kg | 230 kg | 260 kg | 300 kg | 350 kg |
What's Included
-
Reach Mower Unit (BRF Hydraulic or Electro-Hydraulic)
- Includes hydraulic kit with aluminum pumps (40 + 13 liters, HP19).
- Equipped with a distributor with cables and remote control.
- Reversible rotor rotation and floating device on the head.
- 3-point hitch (Category 1) with anti-shock device.
- Cardan joint for stability.
-
Electro-Hydraulic Controls (if applicable):
- Proportional joystick for precise control.
- Support Stand: For easy storage and stability.
-
Hydraulic Connections and Valves:
- Includes all necessary hydraulic distributors and fittings required for installation.
-
Additional Optional Equipment:
- Double Hitch for Tractors: Compatible with front linkage or reversible tractors.
Upgrade your mowing capabilities with the Rinieri BRF Reach Mower. Contact us today for more information and a quote!
