Product Description

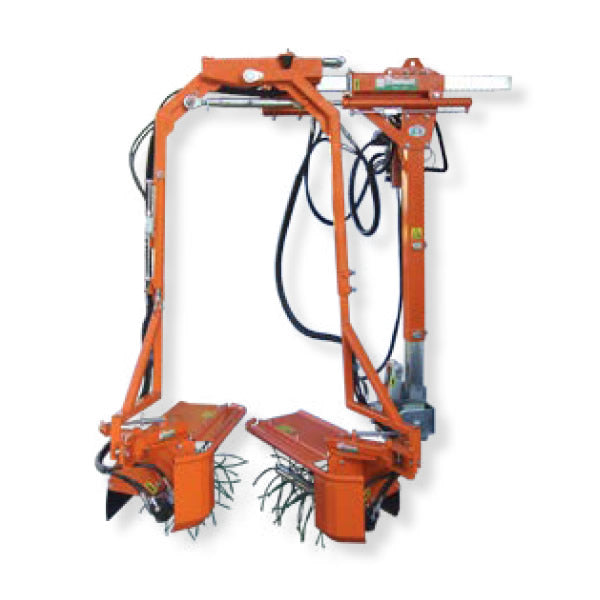

Rinieri SRV Sucker Remover on Tower 1 Plus Frame | 22" - 45" Working Width for Tractor
DESCRIPTION

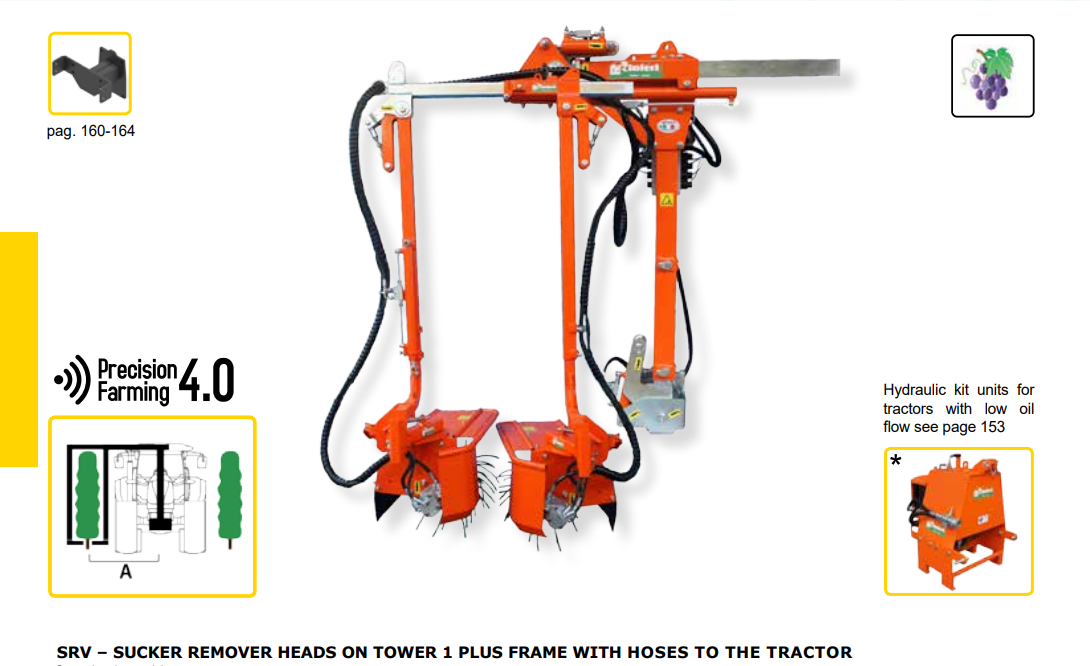

The SRV – SUCKER REMOVER is designed for efficient removal of side shoots and grass in vineyards, offering a comprehensive solution for vineyard maintenance. Mounted on the TOWER-1 PLUS FRAME, this machine features a front-mounted push configuration, which is more user-friendly than pull versions. The double SRV heads ensure thorough removal of shoots while simultaneously cutting grass around the vines.
The TOWER-1 PLUS FRAME offers precise control with hydraulic lifting, tilting, and side-shift functions, allowing the operator to easily adjust the machine to suit various vineyard conditions. Manual height adjustment for the inner head and hydraulic height adjustment for the outer head provide additional flexibility. Equipped with a quick connection PLUS system, the machine is easy to set up and use.
Key Features
- Hydraulic Lifting: 27.5" (70 cm) hydraulic lifting for easy adjustment to vineyard row heights.
- Vertical Frame Tilting: +/- 20° hydraulic tilting for better reach and coverage.
- Side Shift: 23.6" (60 cm) hydraulic side shift for precise positioning.
- Manual Tilting: +/- 15° manual tilting of the working head for optimal control.
- Height Adjustment: Manual adjustment for the inner head and hydraulic adjustment for the outer head.
- Safety Features: Includes maximum pressure valves for motor protection and a hydraulic stand for safe storage.
Detailed Specifications
| Specification | Value |
|---|---|
| Hydraulic Lifting | 27.5" (70 cm) |
| Vertical Frame Tilting | +/- 20° hydraulic |
| Side Shift | 23.6" (60 cm) hydraulic |
| Manual Tilting of Head | +/- 15° |
| Oil Demand | 20-30 liters/min |
In Package:

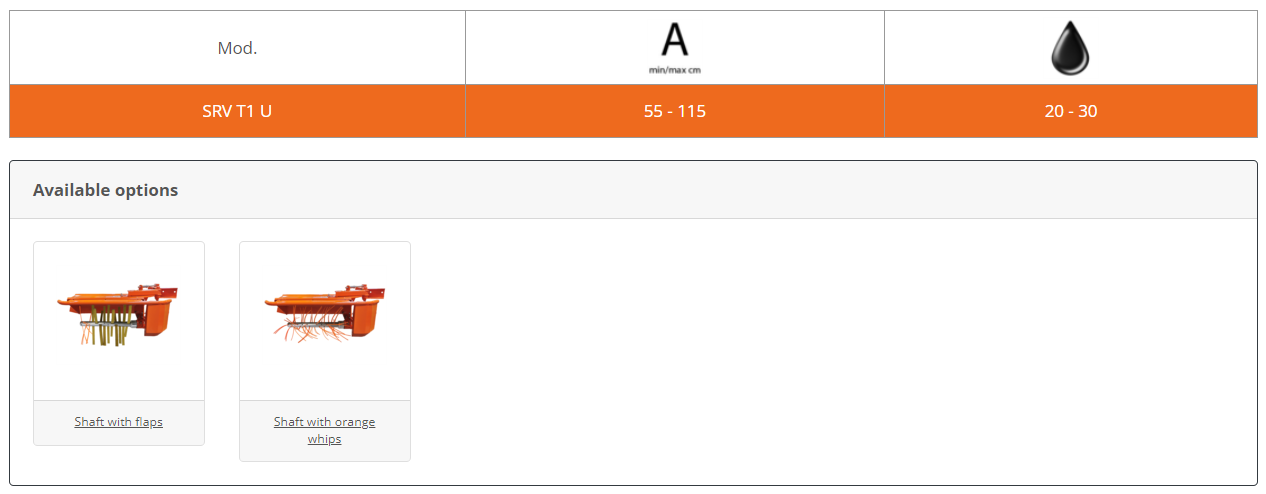

- SRV T1 U Model: Oil demand of 20-30 liters/min, working width of 21.6" - 45.2" (55 - 115 cm).
Available Options:
- Shaft with flaps
- Shaft with orange whips
