Product Description
Rinieri Tool Holder Bio-Dynamic (with Finger Weeder) | Row Width 63" - 118" inches | Horsepower 50-80 HP | For Tractors
DESCRIPTION

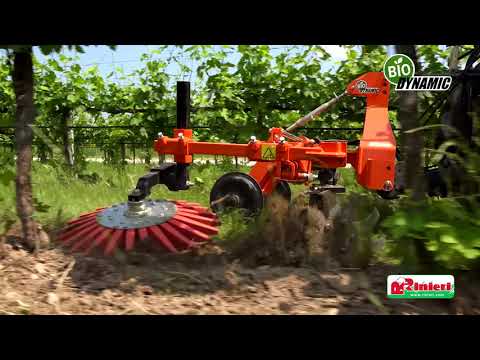

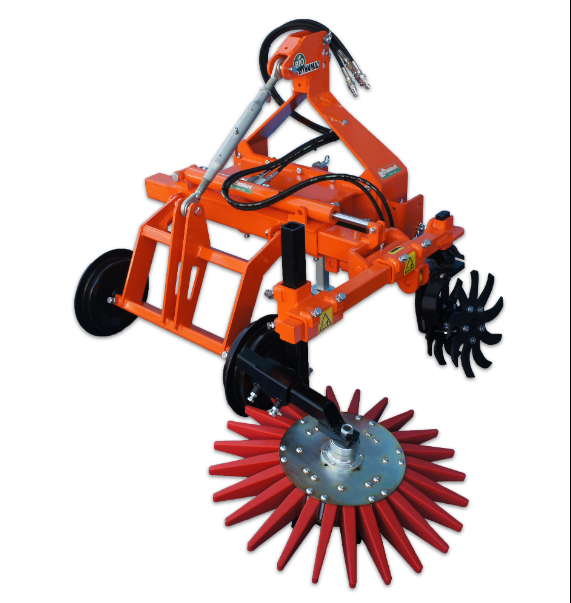

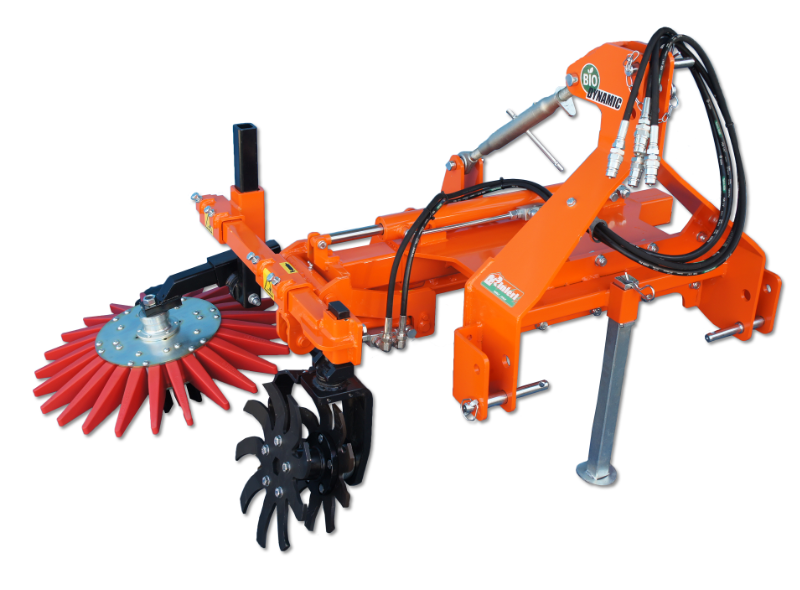

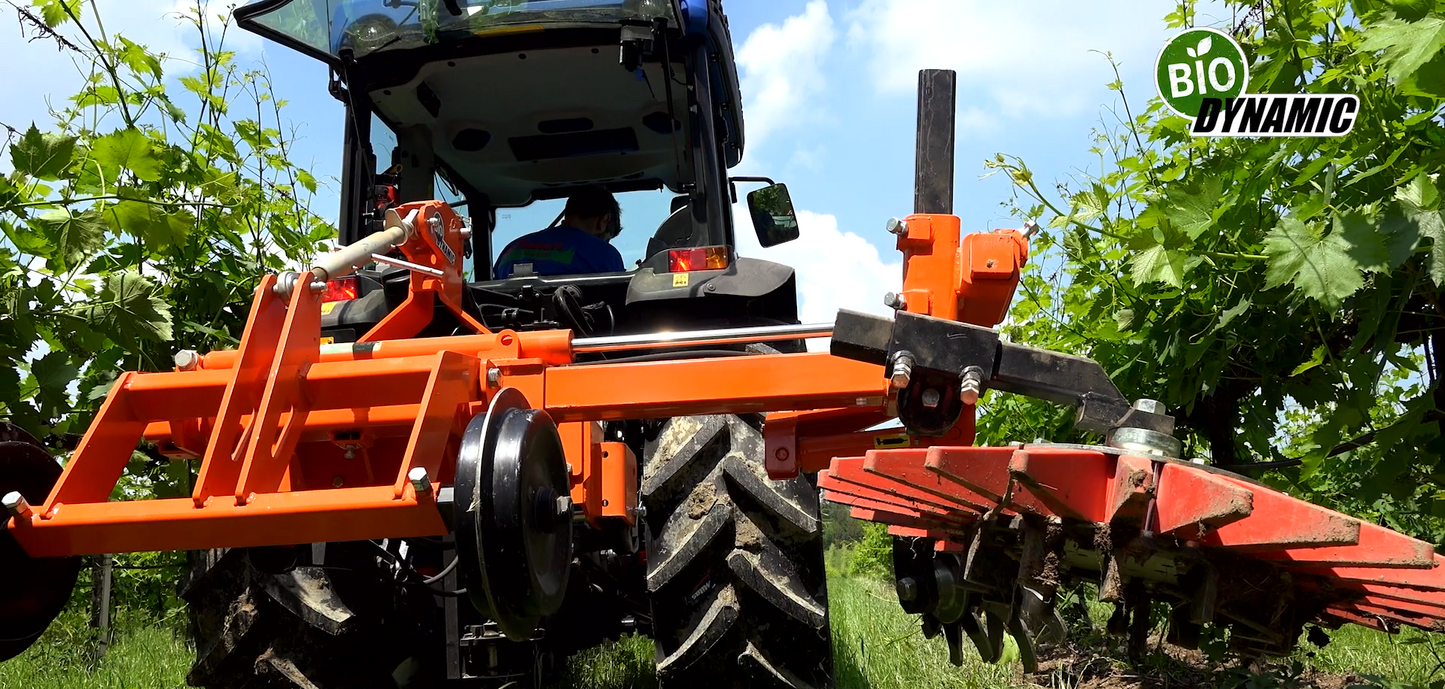

The Tool Holder Bio-Dynamic with Finger Weeder is designed for fast and efficient mechanical inter-row weeding in vineyards and orchards. Operating at speeds up to 15 km/h without the need for hydraulics, it provides an effective solution for managing soil and eliminating weeds near plants. Equipped with the Bio-Disc and Bio-Star, this tool carrier ensures precise soil tilling and weeding. The Bio-Star, a patented rubber star, is available in multiple sizes and colors (Red, Yellow, and Orange) for different row widths. The frame comes in two options: narrow or wide, and can be mounted on the front or rear of the tractor, suitable for small vineyards 160 cm (63") to large orchards 450 cm (177").
Key Features
- No Hydraulics Required: Simple, fast inter-row weeding at speeds up to 15 km/h.

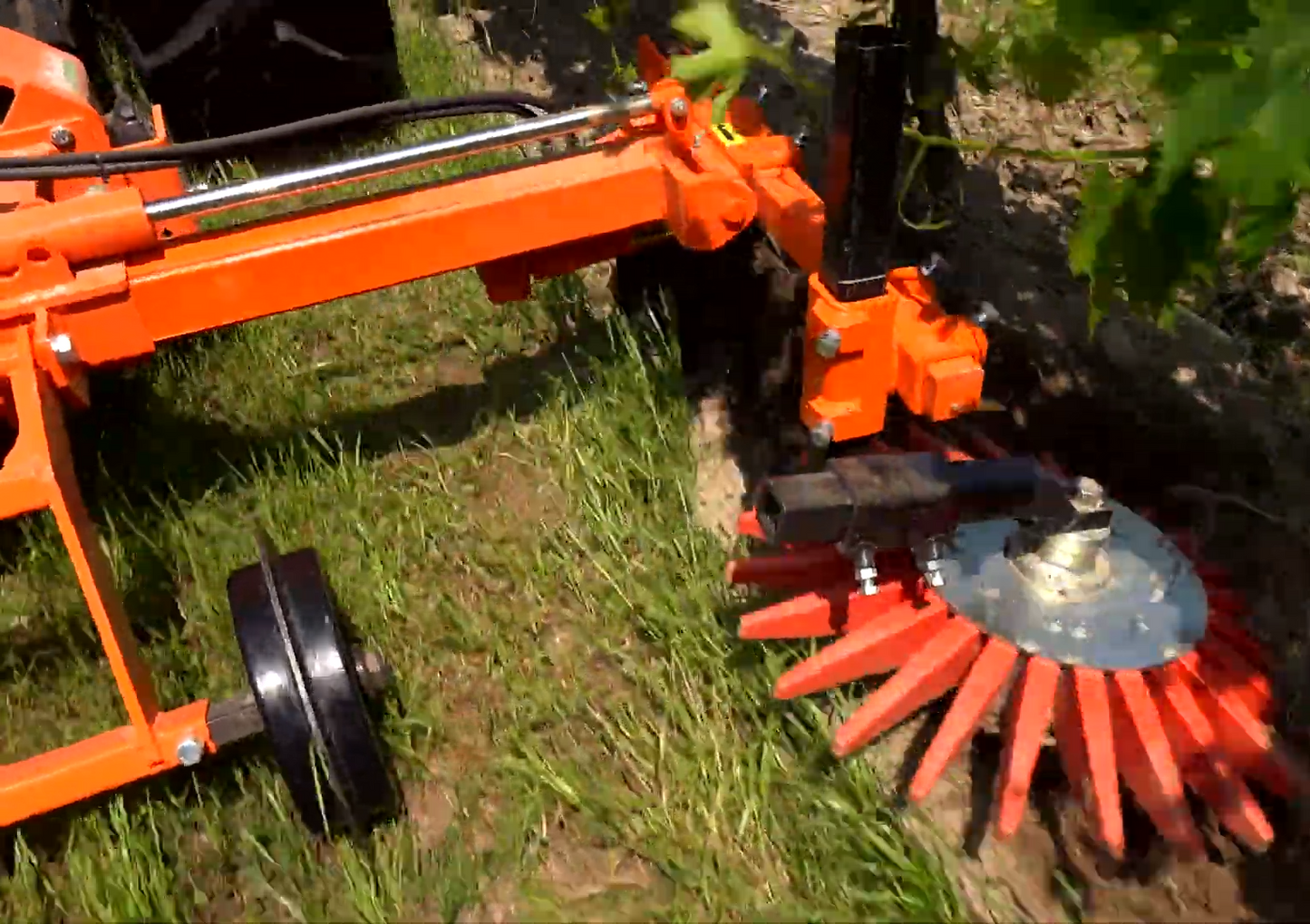

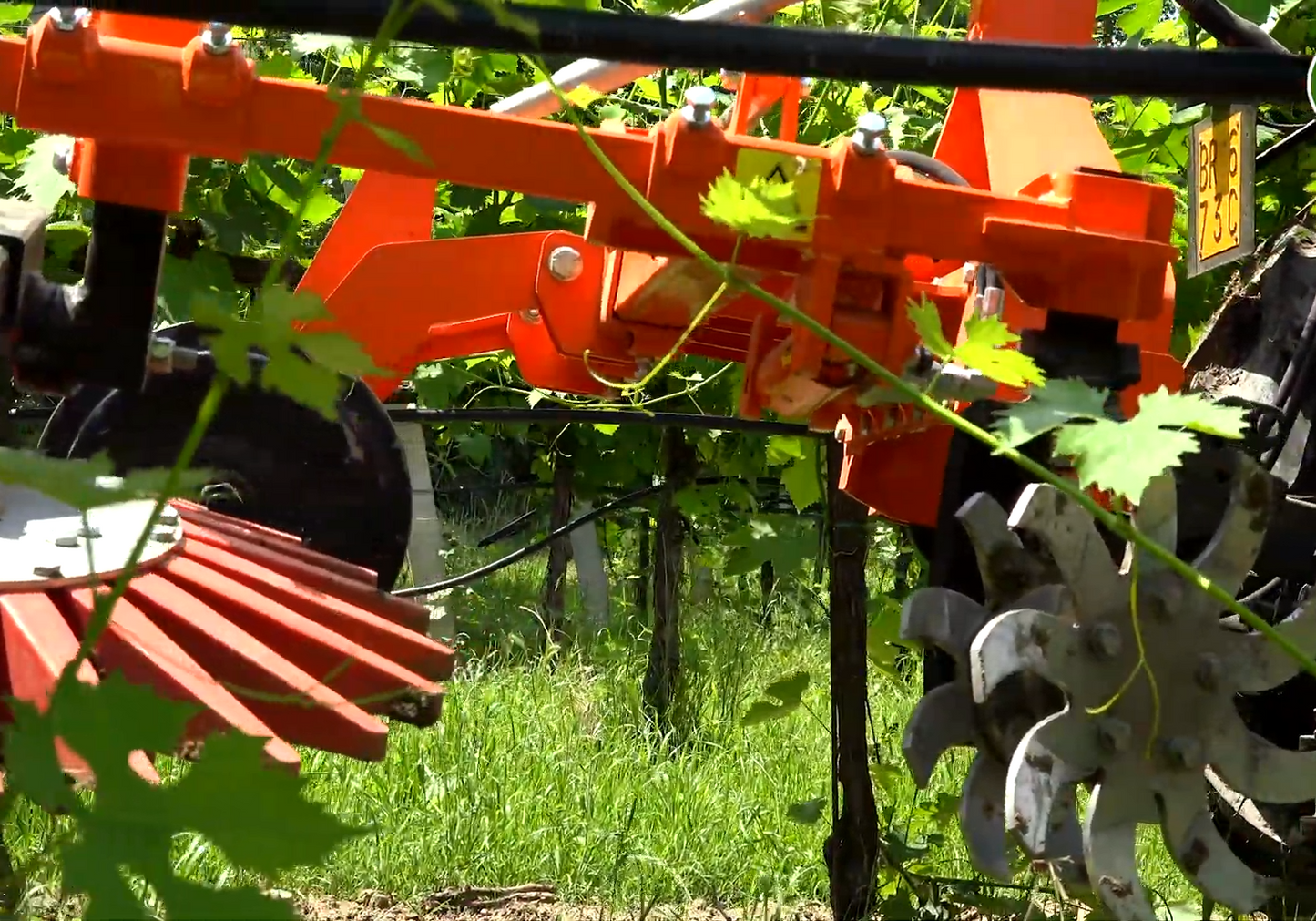

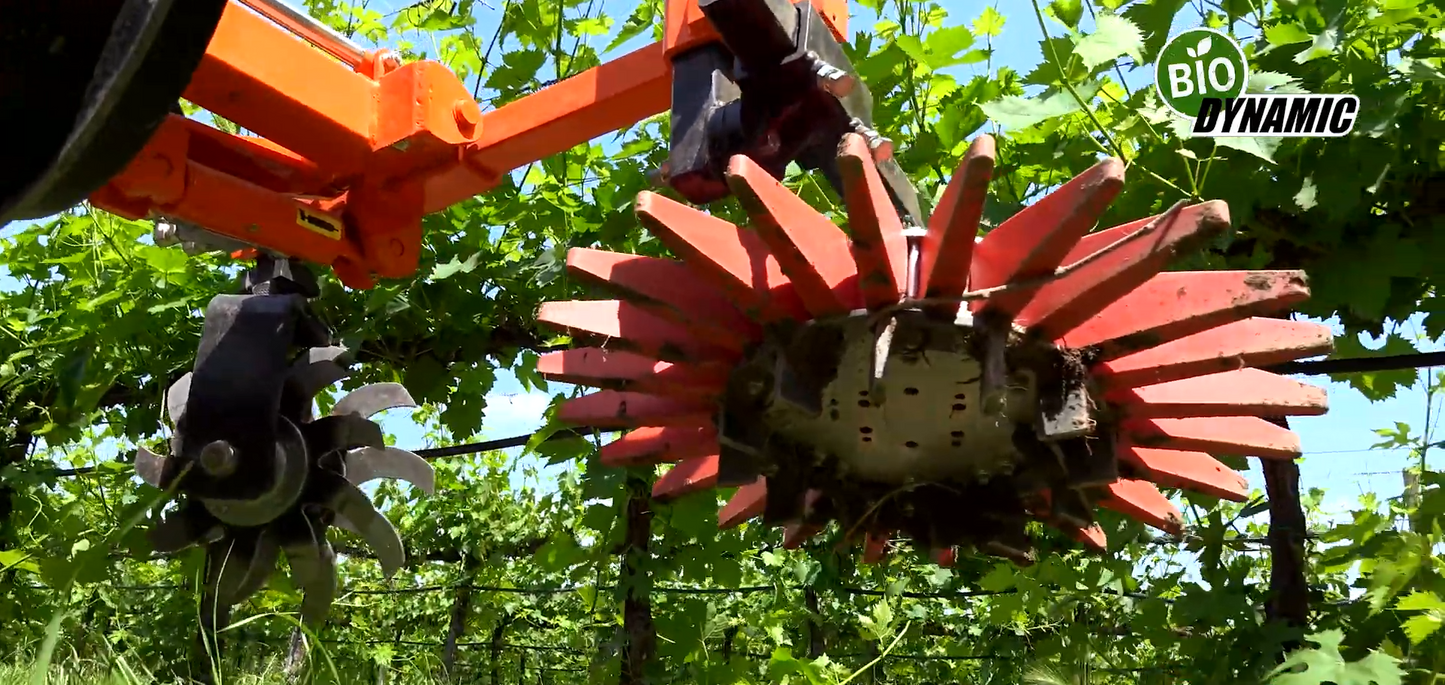

- Bio-Disc & Bio-Star Tools: Equipped with 2-4 discs and Bio-Star (Ø 54-95 cm) for efficient weeding and soil management.
- Versatile Frame Options: Available in narrow or wide frames, reversible, front or rear mount.
- Adjustable Gauge Wheels: Offers flexibility for various terrains and row sizes.
- 3-Point Hitch (CAT 1-2): Easy mounting on most tractors.
Detailed Specifications
| Model | Min Row (inches) | Max Row (inches) | Displacement (inches) | Discs (n°) | Bio-Star Size (inches) | Machine Weight (lbs) | Required Horsepower (HP) |
|---|---|---|---|---|---|---|---|
| Bio-Dynamic Narrow 100 Rear (Red 54) | 62.99 | 118.11 | 27.56 - 49.21 | 2 | 21.26 | 573.20 | 50-70 |
| Bio-Dynamic Narrow 100 Rear (Yellow 70) | 66.93 | 118.11 | 27.56 - 49.21 | 2 | 27.56 | 595.25 | 50-70 |
| Bio-Dynamic Narrow 100 Rear (Red 70) | 66.93 | 118.11 | 27.56 - 49.21 | 2 | 27.56 | 617.29 | 50-70 |
| Bio-Dynamic Wide 150 Rear (Yellow 70) | 110.24 | 177.17 | 47.24 - 82.68 | 3 | 27.56 | 683.43 | 60-80 |
| Bio-Dynamic Wide 150 Rear (Red 70) | 110.24 | 177.17 | 47.24 - 82.68 | 3 | 27.56 | 705.47 | 60-80 |
| Bio-Dynamic Wide 150 Rear (Orange 95) | 110.24 | 177.17 | 47.24 - 82.68 | 3 | 37.40 | 749.57 | 60-80 |
| Bio-Dynamic Narrow 100 Front (Red 54) | 62.99 | 118.11 | 27.56 - 49.21 | 2 | 21.26 | 573.20 | 50-70 |
| Bio-Dynamic Narrow 100 Front (Yellow 70) | 66.93 | 118.11 | 27.56 - 49.21 | 2 | 27.56 | 595.25 | 50-70 |
| Bio-Dynamic Narrow 100 Front (Red 70) | 66.93 | 118.11 | 27.56 - 49.21 | 2 | 27.56 | 617.29 | 50-70 |
| Bio-Dynamic Wide 150 Front (Yellow 70) | 110.24 | 177.17 | 47.24 - 82.68 | 3 | 27.56 | 683.43 | 60-80 |
| Bio-Dynamic Wide 150 Front (Red 70) | 110.24 | 177.17 | 47.24 - 82.68 | 3 | 27.56 | 705.47 | 60-80 |
| Bio-Dynamic Wide 150 Front (Orange 95) | 110.24 | 177.17 | 47.24 - 82.68 | 3 | 37.40 | 771.62 | 60-80 |
