Product Description

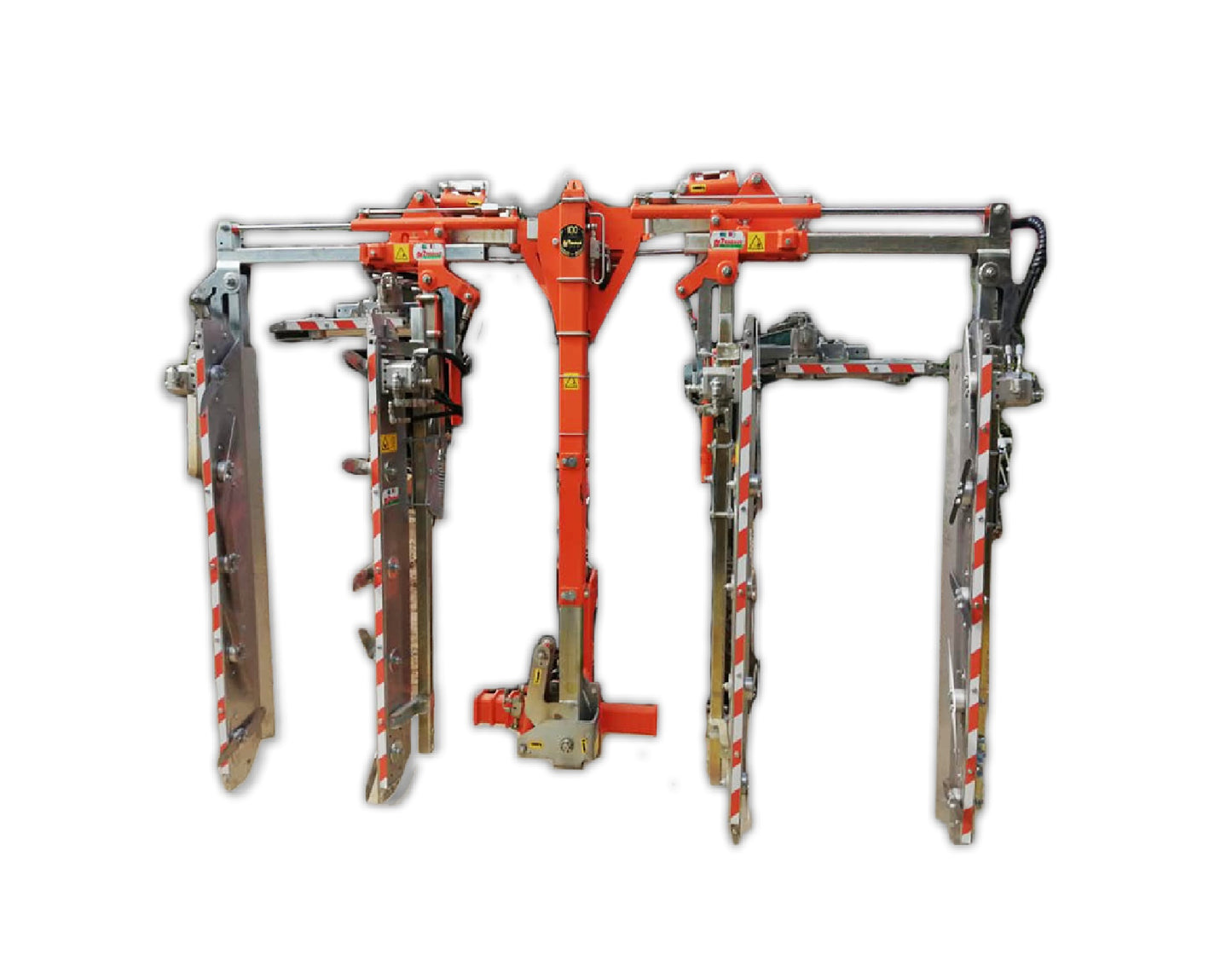

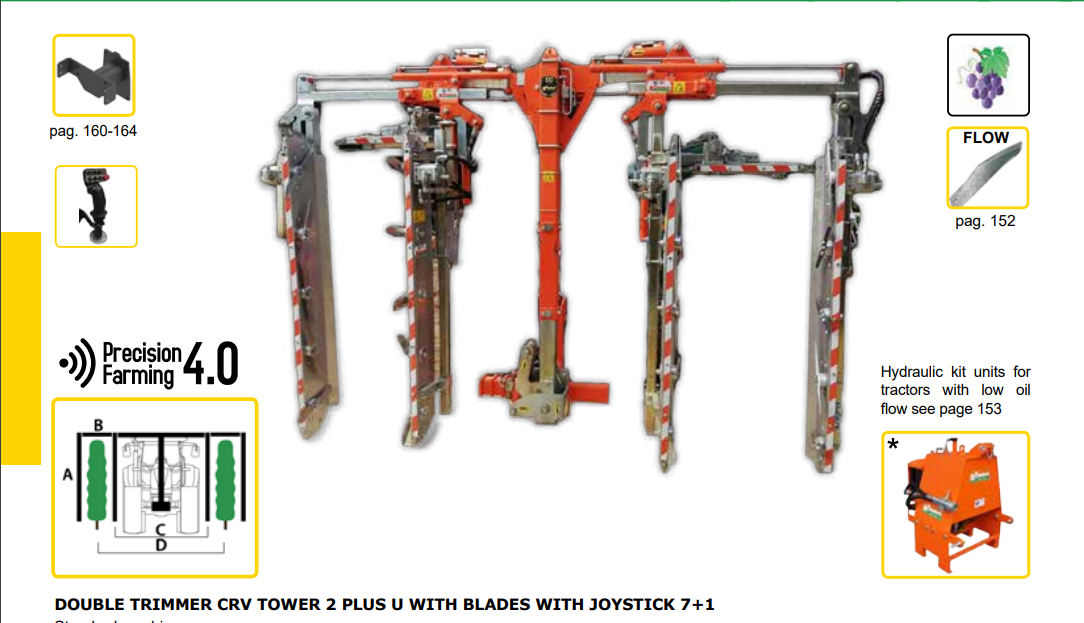

Rinieri Trimmer CRV Tower-2 Plus U With Blades With Joystick 7+1 | Tower Series | 41"-83" Cutting Width for Tractor
DESCRIPTION
The TRIMMER CRV TOWER-2 PLUS U features a new double TOWER frame designed for enhanced robustness and versatility. It is an ideal tool for large-scale agricultural operations or farm contractors working with large plants. This model offers compatibility with various attachments, including leaf remover heads, sucker removers, and pre-pruners, making it adaptable to different trimming tasks.
Equipped with hydraulic systems for lifting, tilting, and side shifting, the TOWER-2 PLUS U offers excellent flexibility in use. The U cutting bars can be adjusted hydraulically or manually for optimal precision, and the machine’s durable frame ensures long-lasting performance in demanding conditions.
This trimmer is designed to work at high capacities with an oil demand of 30-40 liters/min, making it suitable for heavy-duty farm equipment. With multiple blade configurations and safety features, it offers a high-performance solution for efficient and accurate trimming.
Key Features
- Double Frame Construction: Strong, durable frame ideal for large-scale operations.
- Hydraulic Lift: 27.5" hydraulic lifting for precise trimming control.
- Adjustable Cutting Bars: Hydraulic and manual tilting, with hydraulic height adjustment for flexibility in cutting angles.
- Safety Systems: Spring-loaded safety joints for both vertical and horizontal bars, maximum pressure valves, and a safety mechanism for road transport.
- Tractor Requirements: Requires 7 double-acting hydraulic distributors, 1 single-acting distributor, and a pressure-free return, along with a 12V socket.
- Tractor Compatibility: Oil demand of 30-40 liters/min to handle heavy-duty tasks.
Detailed Specification
- Hydraulic Lifting: 27.5"
- Vertical Frame Tilting: +/- 20° hydraulic
- Height Adjustment of Horizontal Bar: 13.7" hydraulic
- Hydraulic U Opening: Adjustable cutting bars for precision
- Manual U Tilting: +/- 12° for fine-tuning cutting angles
- Oil Demand: 30-40 liters/min

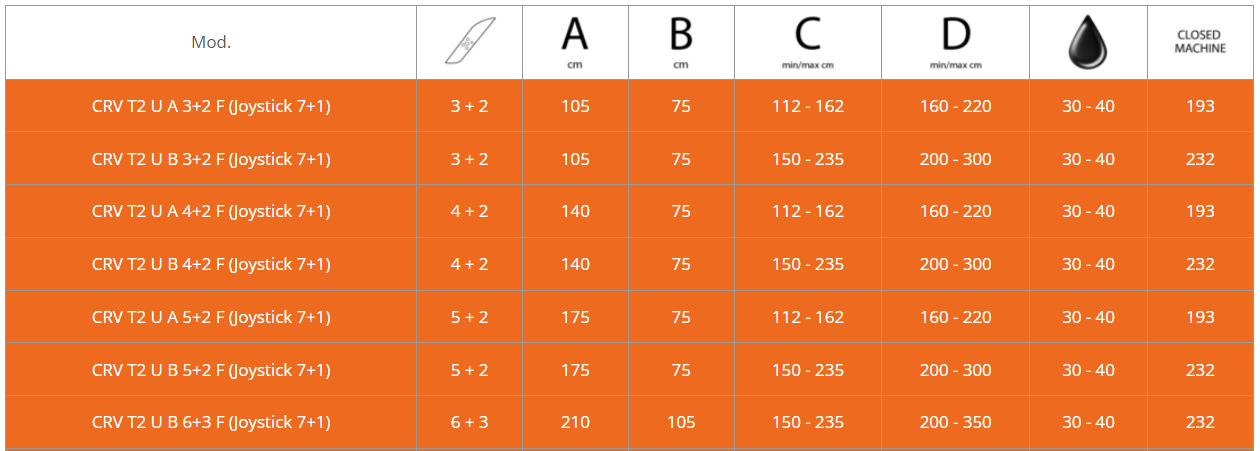

CRV T2 U A 3+2 F (Joystick 7+1) and CRV T2 U B 3+2 F (Joystick 7+1)

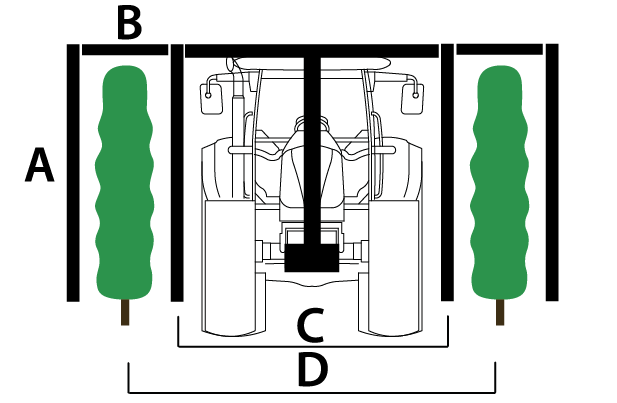

| Specification | CRV T2 U A 3+2 F (Joystick 7+1) | CRV T2 U B 3+2 F (Joystick 7+1) |
|---|---|---|
| Model | 3+2 | 3+2 |
| A | 105 | 105 |
| B (cm) | 75 | 75 |
| C (Min - Max cm) | 112 - 162 | 150 - 235 |
| D (Min - Max cm) | 160 - 220 | 200 - 300 |
| Oil Demand (L/min) | 30 - 40 | 30 - 40 |
| Closed Machine (cm) | 193 | 232 |
CRV T2 U A 4+2 F and CRV T2 U B 4+2 F
| Specification | CRV T2 U A 4+2 F | CRV T2 U B 4+2 F |
|---|---|---|
| Model | 4+2 | 4+2 |
| A (inches) | 140 | 140 |
| B (cm) | 75 | 75 |
| C Min - Max (inches) | 112 - 162 | 150 - 235 |
| D Min - Max (inches) | 160 - 220 | 200 - 300 |
| Oil Demand (L/min) | 30 - 40 | 30 - 40 |
| Closed Machine (inches) | 193 | 232 |
CRV T2 U A 5+2 F and CRV T2 U B 5+2 F
| Specification | CRV T2 U A 5+2 F | CRV T2 U B 5+2 F |
|---|---|---|
| Model | 5+2 | 5+2 |
| A (inches) | 175 | 175 |
| B (cm) | 75 | 75 |
| C Min - Max (inches) | 112 - 162 | 150 - 235 |
| D Min - Max (inches) | 160 - 220 | 200 - 300 |
| Oil Demand (L/min) | 30 - 40 | 30 - 40 |
| Closed Machine (inches) | 193 | 232 |
CRV T2 U B 6+3 F
| Specification | CRV T2 U B 6+3 F |
|---|---|
| Model | 6+3 |
| A (inches) | 210 |
| B (cm) | 105 |
| C Min - Max (inches) | 150 - 235 |
| D Min - Max (inches) | 200 - 350 |
| Oil Demand (L/min) | 30 - 40 |
| Closed Machine (inches) | 232 |
In Package:
- CRV T2 U A 3+2 F (Joystick 7+1): 3 + 2 blades, 41" width, 29.5" cutting area, horizontal adjustment of 44" - 63.7".
- CRV T2 U B 3+2 F (Joystick 7+1): 3 + 2 blades, 141" width, with a cutting range of 59" - 92.5".
- CRV T2 U A 4+2 F (Joystick 7+1): 4 + 2 blades, 55.1" cutting range.
- CRV T2 U B 4+2 F (Joystick 7+1): 4 + 2 blades, 55.1" width, with a cutting range of 59" - 92.5".
- CRV T2 U A 5+2 F (Joystick 7+1): 5 + 2 blades, cutting width of 68.8", horizontal range 44" - 63.7".
- CRV T2 U B 5+2 F (Joystick 7+1): 5 + 2 blades, 68.8" width, cutting range of 59" - 92.5".
- CRV T2 U B 6+3 F (Joystick 7+1): 6 + 3 blades, 82.6" cutting width, horizontal range of 59" - 92.5".

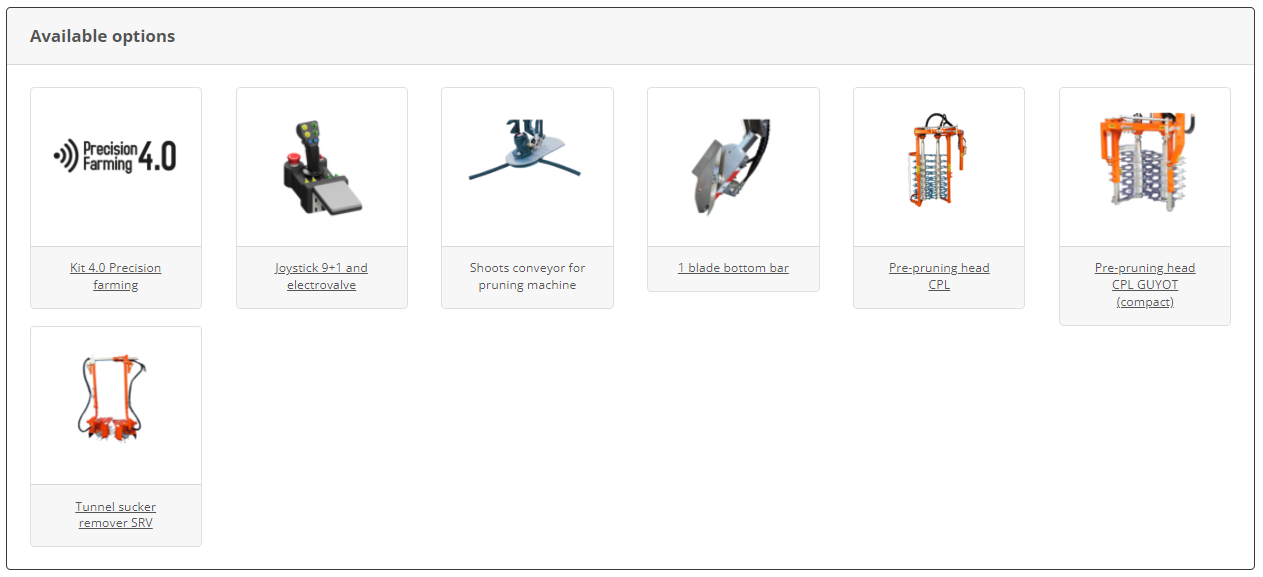

Available Options:
- Precision Farming Kit 4.0
- Joystick 9+1 with electrovalve
- Shoots conveyor for pruning machines
- Pre-pruning head options (CPL, CPL GUYOT)
- Tunnel sucker remover SRV
- 1 blade bottom bar for increased cutting efficiency
