Product Description

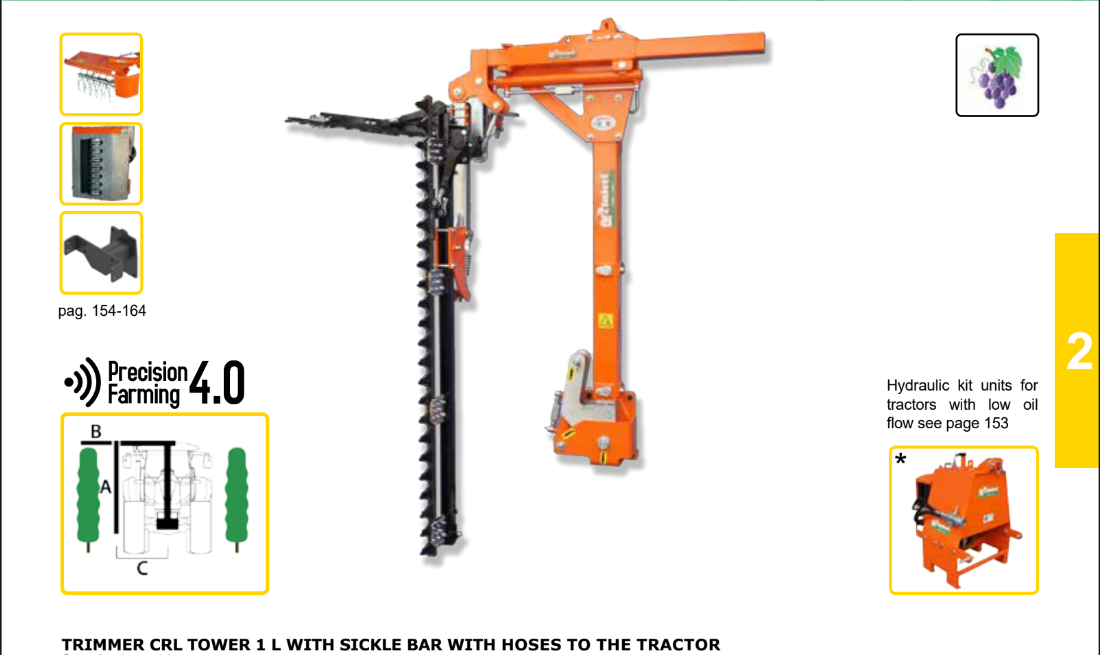

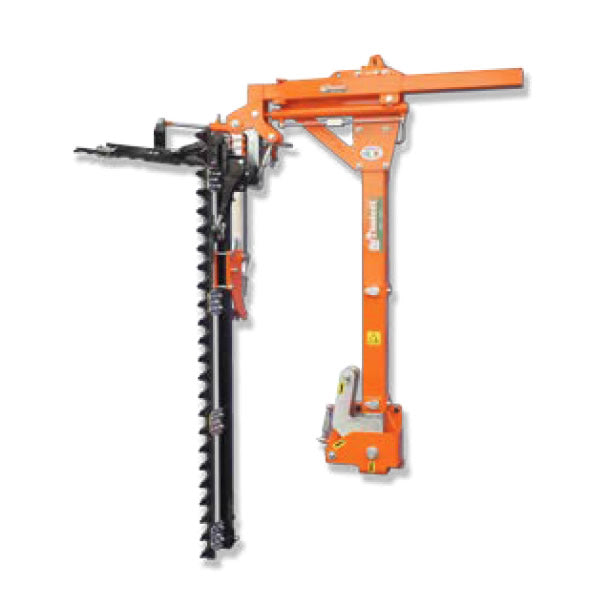

Rinieri Trimmer CRL Tower 1 L With Sickle Bar | 59"-83" Cutting Width for Tractor
DESCRIPTION
The Rinieri Trimmer CRL Tower 1 L with Sickle Bar is a versatile and powerful machine designed for precise trimming and pruning tasks. With cutting widths ranging from 59" to 83", this trimmer is ideal for various tractor applications. It offers hydraulic lifting and tilt capabilities, along with multiple cutting bar models to provide flexibility and accuracy in the field. Its manual adjustment features make transportation and storage easier, while the safety systems ensure reliability and ease of use.
Key Features
- Hydraulic Lifting: Achieves a 27.5" (70 cm) vertical lift for flexible pruning heights.
- Tilt & Side Shift: Vertical frame tilts +/- 20° and horizontal bar tilts 90° hydraulically for precise angle adjustments.
- Manual Adjustments: Height adjustment up to 13.8" (35 cm) and vertical bar tilt +/- 11° for easy transport and storage.
- Double Blade Cutting Bars: Provides a clean, accurate cut with multiple cutting bar models (I, L, C, U) available.
- Safety Systems: Spring-loaded safety for the vertical and topping bars, plus maximum pressure valves to protect motors.
- Hydraulic Control Options: Choose from multiple joystick and electrovalve options for tailored control.
Detailed Specifications
| Specification | Details |
|---|---|
| Hydraulic Lifting | 27.5" (70 cm) |
| Vertical Frame Tilt | +/- 20° |
| Horizontal Bar Tilt | 90° (Hydraulic) |
| Manual Adjustment Height | 13.8" (35 cm) |
| Vertical Bar Manual Tilt | +/- 11° |
| Hydraulic Requirement | 15-20 L/min |
| Oil Demand (CRL T1 B 150+80) | 59" x 32" |
| Oil Demand (CRL T1 B 180+80) | 71" x 32" |
| Oil Demand (CRL T1 B 210+80) | 83" x 32" |
| Hydraulic Distributors Required | 4 double-acting distributors, 1 pressure-free return |
| Pressure Free Return | Yes |

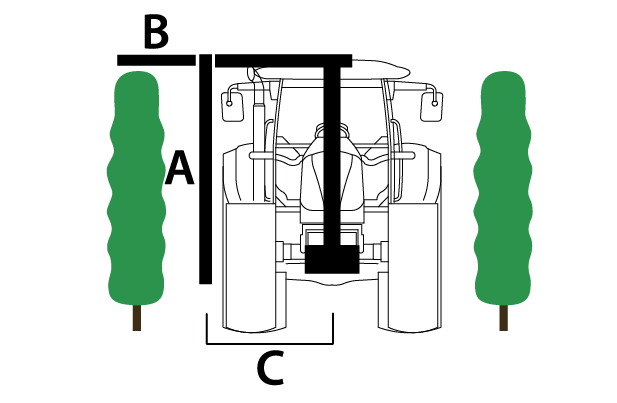

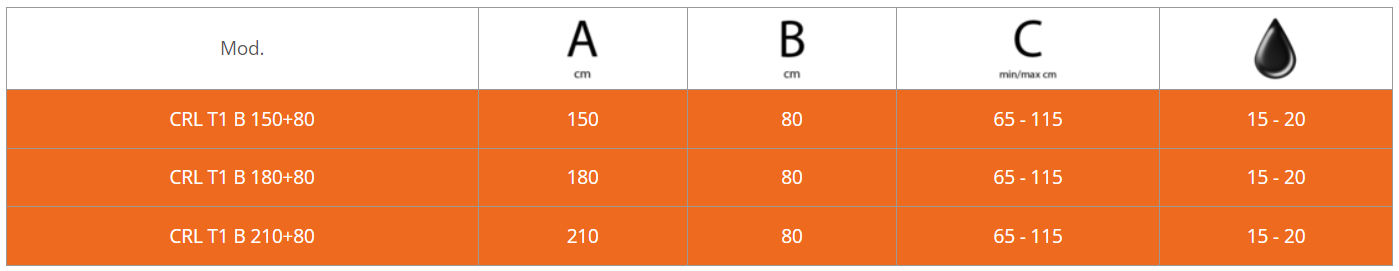

CRL T1 B 150+80
| Feature | Specification |
|---|---|
| A (Width) | 150 cm |
| B (Height) | 80 cm |
| C (Cutting Range) | 65-115 cm |
| Hydraulic Requirement | 15-20 L/min |
| Feature | Specification |
|---|---|
| A (Width) | 180 cm |
| B (Height) | 80 cm |
| C (Cutting Range) | 65-115 cm |
| Hydraulic Requirement | 15-20 L/min |
| Feature | Specification |
|---|---|
| A (Width) | 210 cm |
| B (Height) | 80 cm |
| C (Cutting Range) | 65-115 cm |
| Hydraulic Requirement | 15-20 L/min |
In Package
- CRL TOWER-1 L Pruning Machine with Sickle Bar
- Double blade cutting bar (Model I, L, C, or U)
- Hydraulic stand for storage
- Spring safety controls for vertical and topping bars
- Hydraulic and manual adjustment systems

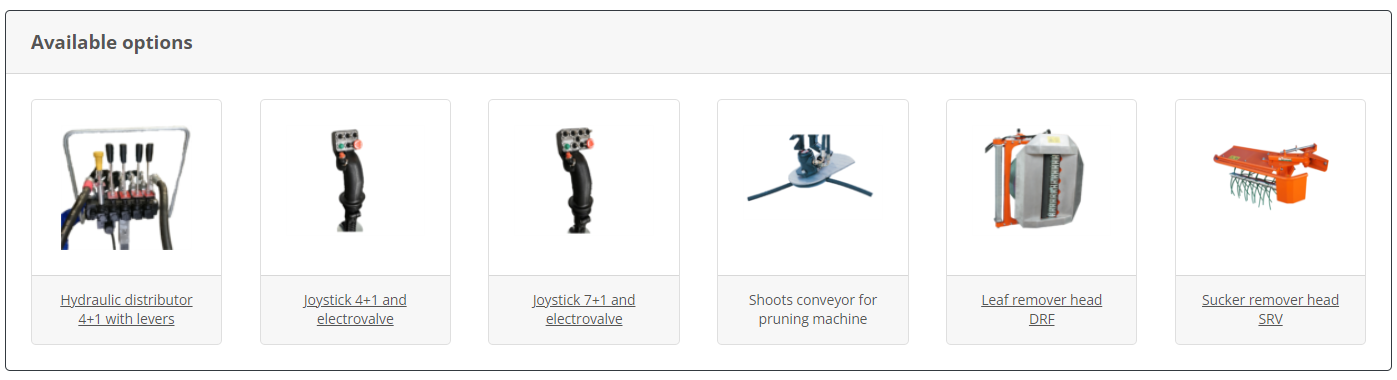

Available Options
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 or 7+1 with electrovalve
- Shoots conveyor for pruning machine
- Leaf remover head (DRF)
- Sucker remover head (SRV)
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
