Product Description

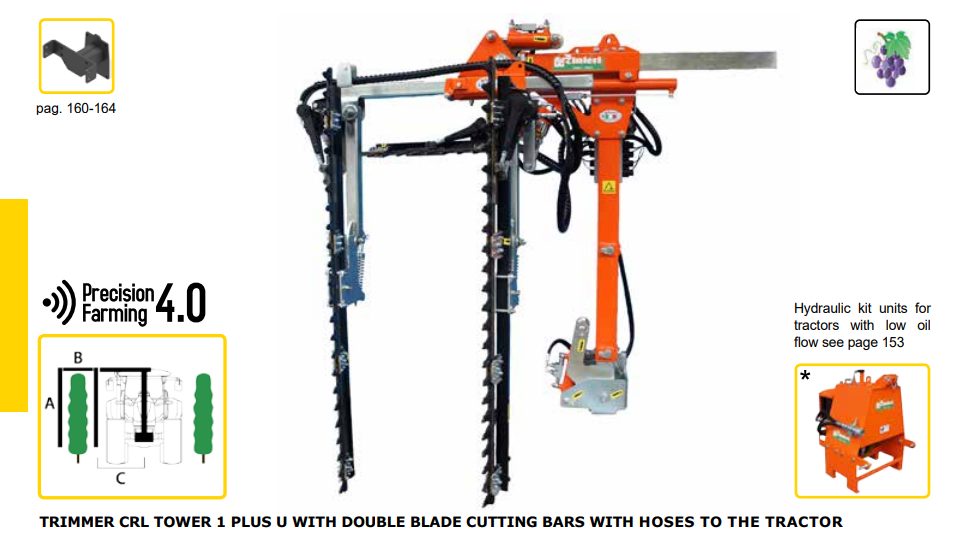

Rinieri Trimmer CRL Tower 1 Plus U With Double Blade Cutting Bars With Hoses | 59"-83" Cutting Width for Tractor
DESCRIPTION

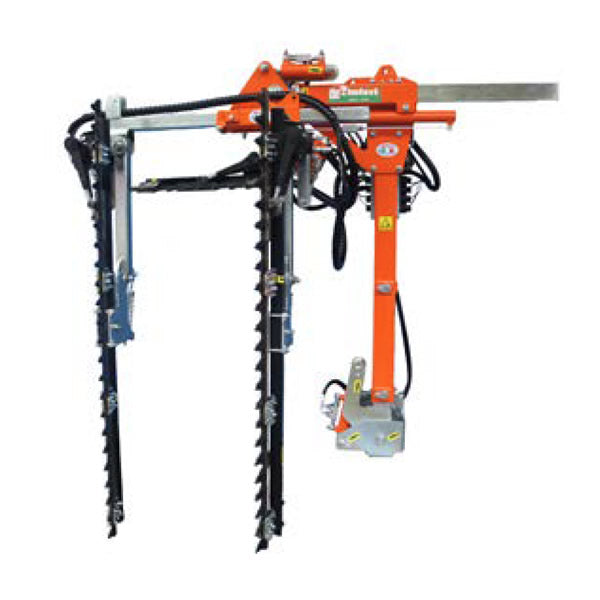

The TRIMMER CRL TOWER-1 PLUS U REVERSE with Double Blade Cutting Bars is a state-of-the-art trimming machine featuring an innovative single TOWER frame. Designed for maximum versatility, this trimmer supports a wide variety of cutting bar sizes and shapes. The multi-purpose frame can also accommodate additional units like sucker removers, leaf removers, and pre-pruners, making it a highly adaptable tool for professional agricultural operations.
Key Features
- Hydraulic Lifting: Vertical lift of 27.5" (70 cm) for precise height adjustments.
- Vertical Frame Tilt: Hydraulic tilting of +/- 20° for enhanced flexibility in trimming operations.
- Side Shift: Hydraulic side shift of 23.6" (60 cm) for improved positioning.
- Manual Adjustment: Horizontal bar height can be adjusted manually by 13.8" (35 cm).
- Manual U Cutting Bar Tilt: Manual tilt adjustment of +/- 15° for the "U" cutting bar.
- Manual Opening of the U Cutting Bar: Manually adjustable U bar for efficient trimming performance.
- Quick Connection PLUS: Fast and secure connection to tractors.
- Safety Features: Equipped with spring-loaded safety controls for vertical bars and topping bar, along with a maximum pressure valve for motor protection.
- Hydraulic Stand for Storage: Ensures safe storage when not in use.
Detailed Specifications
| Specification | Details |
|---|---|
| Hydraulic Lifting | 27.5" (70 cm) |
| Vertical Frame Tilt | +/- 20° |
| Hydraulic Side Shift | 23.6" (60 cm) |
| Manual U Bar Tilt | +/- 15° |
| Manual Horizontal Bar Height Adjustment | 13.8" (35 cm) |
| Manual Opening of U Cutting Bar | 27.6" (70 cm) |
| Hydraulic Requirement | 20-30 L/min |
Models

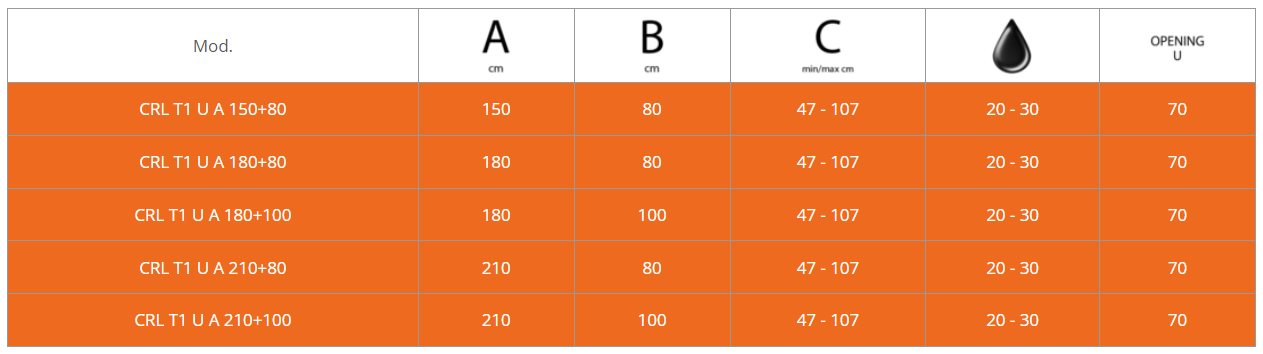

CRL T1 U A 150+80 and CRL T1 U A 180+80

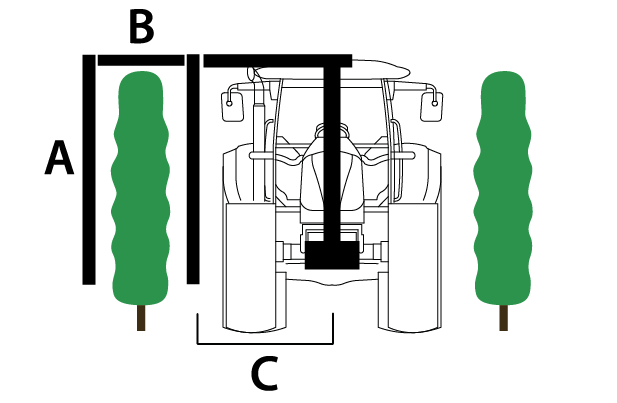

| Specification | CRL T1 U A 150+80 | CRL T1 U A 180+80 |
|---|---|---|
| A (inches) | 59.06" | 70.87" |
| B (inches) | 31.5" | 31.5" |
| C Min - Max (inches) | 18.5" - 42.1" | 18.5" - 42.1" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| Opening U (inches) | 27.6" | 27.6" |
CRL T1 U A 180+100 and CRL T1 U A 210+80
| Specification | CRL T1 U A 180+100 | CRL T1 U A 210+80 |
|---|---|---|
| A (inches) | 70.87" | 82.68" |
| B (inches) | 39.37" | 31.5" |
| C Min - Max (inches) | 18.5" - 42.1" | 18.5" - 42.1" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| Opening U (inches) | 27.6" | 27.6" |
CRL T1 U A 210+100
| Specification | CRL T1 U A 210+100 |
|---|---|
| A (inches) | 82.68" |
| B (inches) | 39.37" |
| C Min - Max (inches) | 18.5" - 42.1" |
| Oil Demand (L/min) | 20 - 30 |
| Opening U (inches) | 27.6" |
In Package
- TRIMMER CRL TOWER-1 PLUS U REVERSE with Double Blade Cutting Bars
- Manual and hydraulic controls for all frame adjustments
- Spring-loaded safety systems for vertical and topping bars
- Hydraulic stand for easy storage

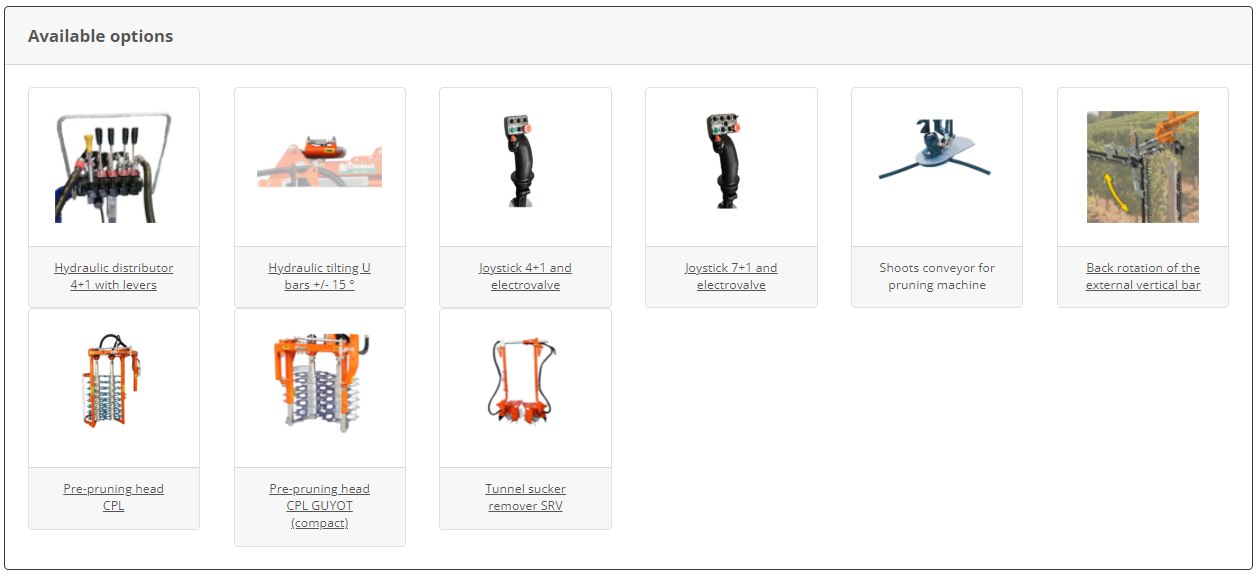

Available Options:
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 and electrovalve
- Joystick 7+1 and electrovalve
- Shoots conveyor for pruning machine
- Back rotation of the external vertical bar
- Pre-pruning head CPL or CPL GUYOT (compact)
- Tunnel sucker remover SRV
