Rinieri Trimmer CRL Vision-1 I with Double Sickle Bar | 59"-83" Cutting Width | 24" Height for Tractor
Rinieri Trimmer CRL Vision-1 I with Double Sickle Bar | 59"-83" Cutting Width | 24" Height for Tractor
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description

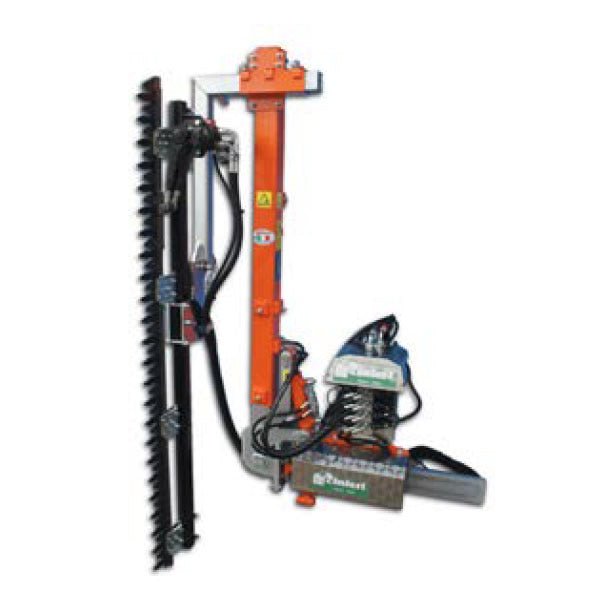

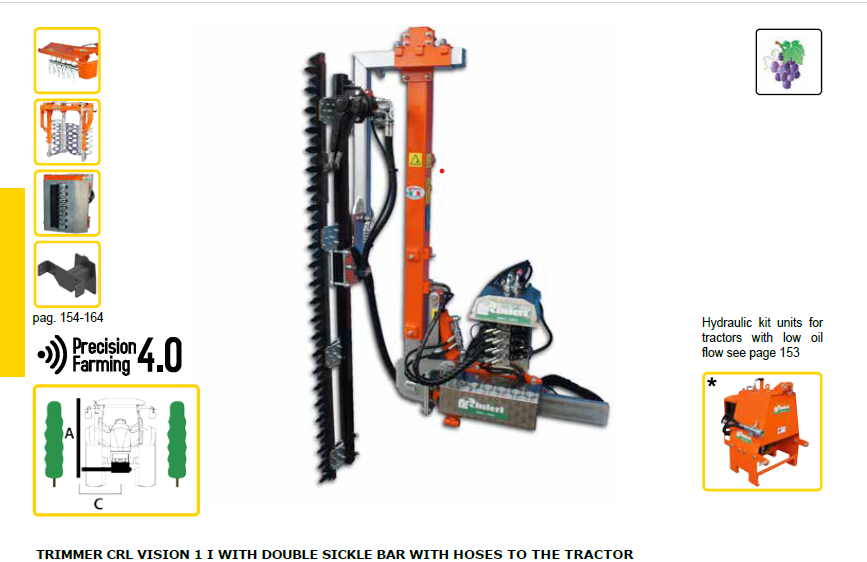

Rinieri Trimmer CRL Vision-1 I with Double Sickle Bar | 59"-83" Cutting Width | 24" Height for Tractor
DESCRIPTION
The Trimmer CRL Vision-1 I is specifically engineered for precision vineyard pruning. Its sturdy, adjustable hydraulic frame and dual sickle bars ensure efficient, clean cuts, ideal for vineyards on varied terrains. This trimmer offers superior maneuverability with both hydraulic and manual adjustments, making it a versatile tool for professional vineyard maintenance.
Key Features
- Frame: Vision-1 equipped with hydraulic lifting (23.6 inches) and adjustable vertical tilt for precision.
- Safety: Built with a maximum pressure valve for motor protection and a spring safety mechanism on the vertical bar to prevent damage.
- Storage: Includes a hydraulic stand for easy and secure storage when not in use.
- Additional Options: Comes with various options including hydraulic distributor levers, joystick control, shoots conveyor, top sickle bar, sucker remover head, and leaf remover head for tailored functionality.
Detailed Specifications
| Component | Details |
|---|---|
| Hydraulic Lifting | 23.6 inches (60 cm) |
| Hydraulic Tilting (Vertical Bar) | +/-15° |
| Side Shift | 11.8 inches hydraulic, 7.9 inches manual |
| Oil Demand | 15-20 L/min |
| On the Tractor Requirements | 1 double-acting hydraulic distributor, 1 pressure-free return |

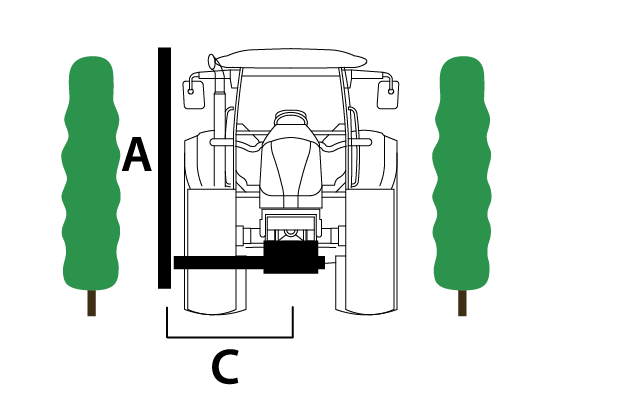

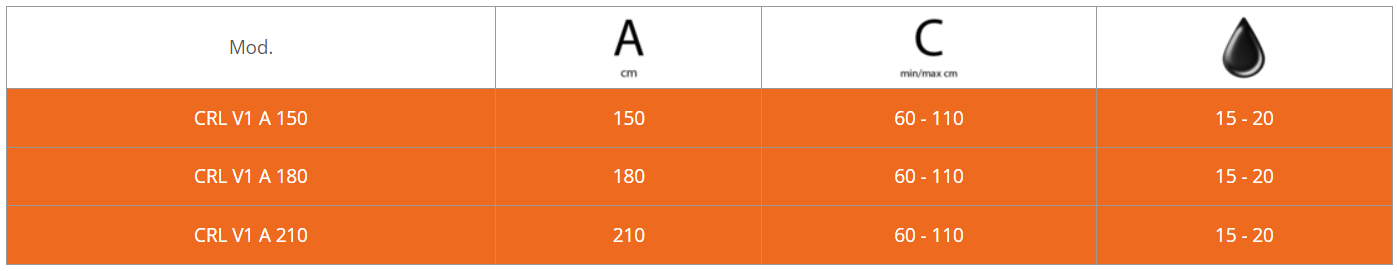

Model Chart:
| Specification | CRL V1 A 150 | CRL V1 A 180 | CRL V1 A 210 |
|---|---|---|---|
| A (inches) | 59.1 | 70.9 | 82.7 |
| C (inches) | 23.6 - 43.3 | 23.6 - 43.3 | 23.6 - 43.3 |
| Oil Demand (L/min) | 15 - 20 L/min | 15 - 20 L/min | 15 - 20 L/min |
In Package
- Trimmer CRL Vision-1 I with double sickle bar
- Hydraulic stand for convenient storage

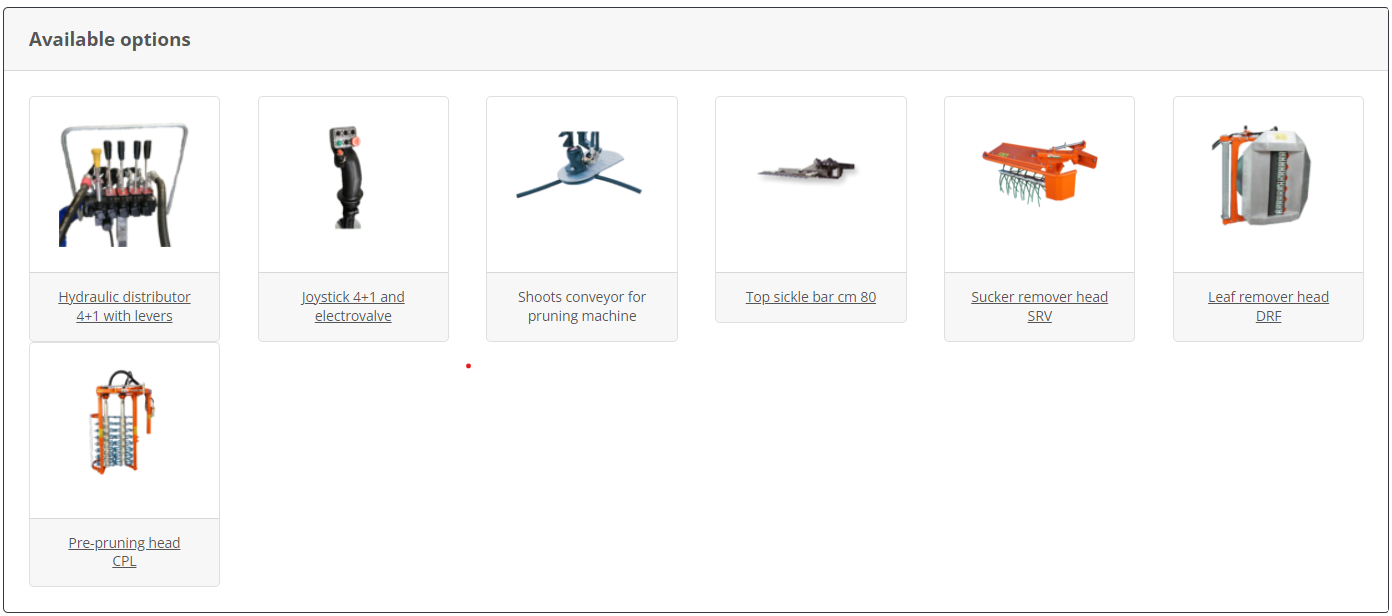

Available Options:
- Hydraulic distributor 4+1 with levers
- Joystick control (4+1) with electro valve
- Shoots conveyor for pruning
- Top sickle bar: 31.5 inches
- Sucker remover head (SRV)
- Leaf remover head (DRF)
- Pre-pruning head (CPL)
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
