Product Description

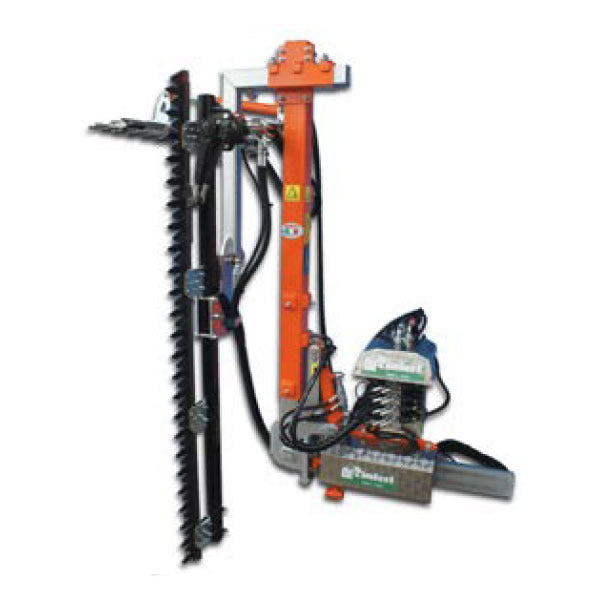

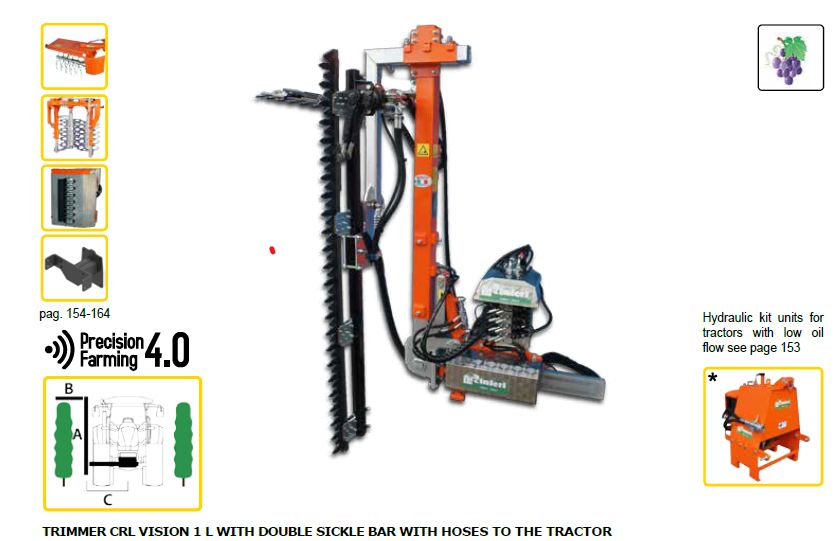

Rinieri Trimmer CRL Vision-1 L with Double Sickle Bar | 59"-83" Cutting Width for Tractor
DESCRIPTION
The CRL Vision-1 L Trimmer is designed for efficient summer pruning with a robust frame and versatile hydraulic movements. Ideal for precise cutting, this trimmer is well-suited for both simple and double models, front-mounted for easy operation.
CRL pruning machine are ideal to perform a summer pruning. Their multipurpose frame, with all hydraulic movements, has a spring-dumper to cushion violent strokes, simple or double model, front mount. We have different models of cutting: I, L, C, U.
Key Features
- Frame: Vision-1 frame with hydraulic lifting (23.6 inches) and adjustable tilting for optimal precision.
- Safety: Equipped with a maximum pressure valve for motors and spring safety features to protect the vertical bar and topping bar.
- Storage: Includes a hydraulic stand for convenient storage and easy handling.
Detailed Specifications
| Component | Details |
|---|---|
| Hydraulic Lifting | 23.6 inches (60 cm) |
| Hydraulic Tilting (Vertical Frame) | +/-15° |
| Hydraulic Side Shift | 11.8 inches (30 cm), Manual 7.9 inches (20 cm) |
| Hydraulic Tilting (Horizontal Bar) | 90° |
| Manual Adjustment (Horizontal Bar Height) | 13.8 inches (35 cm) |
| Oil Demand | 15 - 20 L/min |
| On the Tractor Requirements | 4 double-acting hydraulic distributors, 1 double-acting hydraulic distributor, 1 pressure-free return |

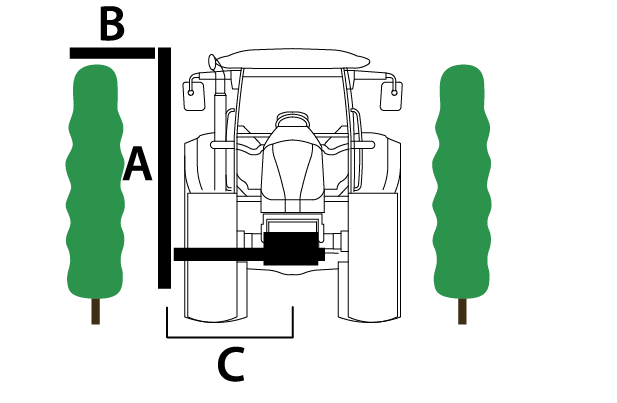

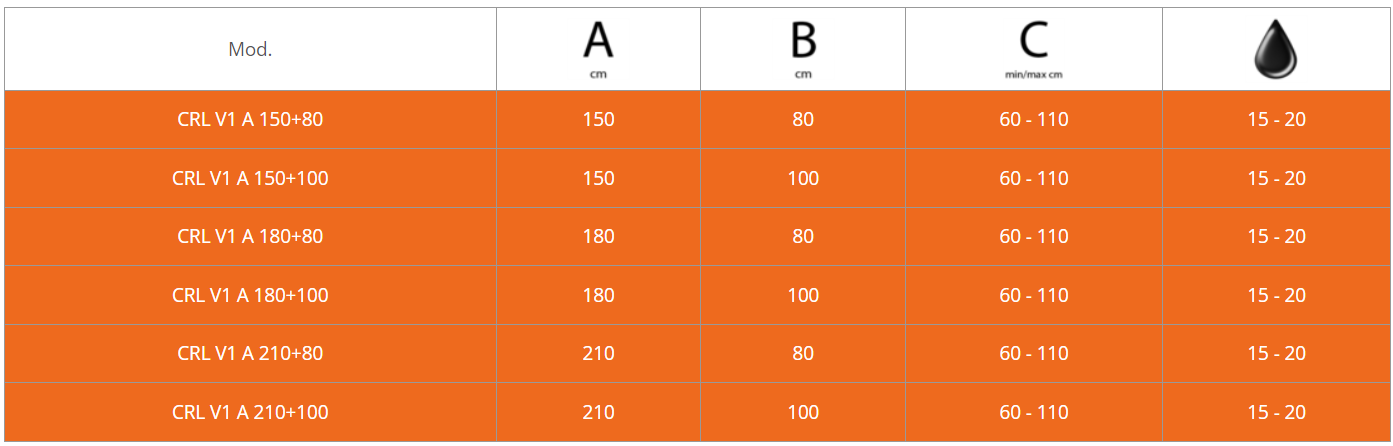

Model Charts
CRL V1 A 150+80 and CRL V1 A 150+100
| Specification | CRL V1 A 150+80 | CRL V1 A 150+100 |
|---|---|---|
| A (inches) | 59.1 | 59.1 |
| B (inches) | 31.5 | 39.4 |
| C (inches) | 23.6 - 43.3 | 23.6 - 43.3 |
| Oil Demand (L/min) | 15 - 20 L/min | 15 - 20 L/min |
CRL V1 A 180+80 and CRL V1 A 180+100
| Specification | CRL V1 A 180+80 | CRL V1 A 180+100 |
|---|---|---|
| A (inches) | 70.9 | 70.9 |
| B (inches) | 31.5 | 39.4 |
| C (inches) | 23.6 - 43.3 | 23.6 - 43.3 |
| Oil Demand (L/min) | 15 - 20 L/min | 15 - 20 L/min |
CRL V1 A 210+80 and CRL V1 A 210+80
| Specification | Model 1: CRL V1 A 210+80 | Model 2: CRL V1 A 210+100 |
|---|---|---|
| A (inches) | 82.7 | 82.7 |
| B (inches) | 31.5 | 39.4 |
| C (inches) | 23.6 - 43.3 | 23.6 - 43.3 |
| Oil Demand (L/min) | 15 - 20 L/min | 15 - 20 L/min |
In Package
- Trimmer CRL Vision-1 L with double sickle bar
- Hydraulic stand for storage

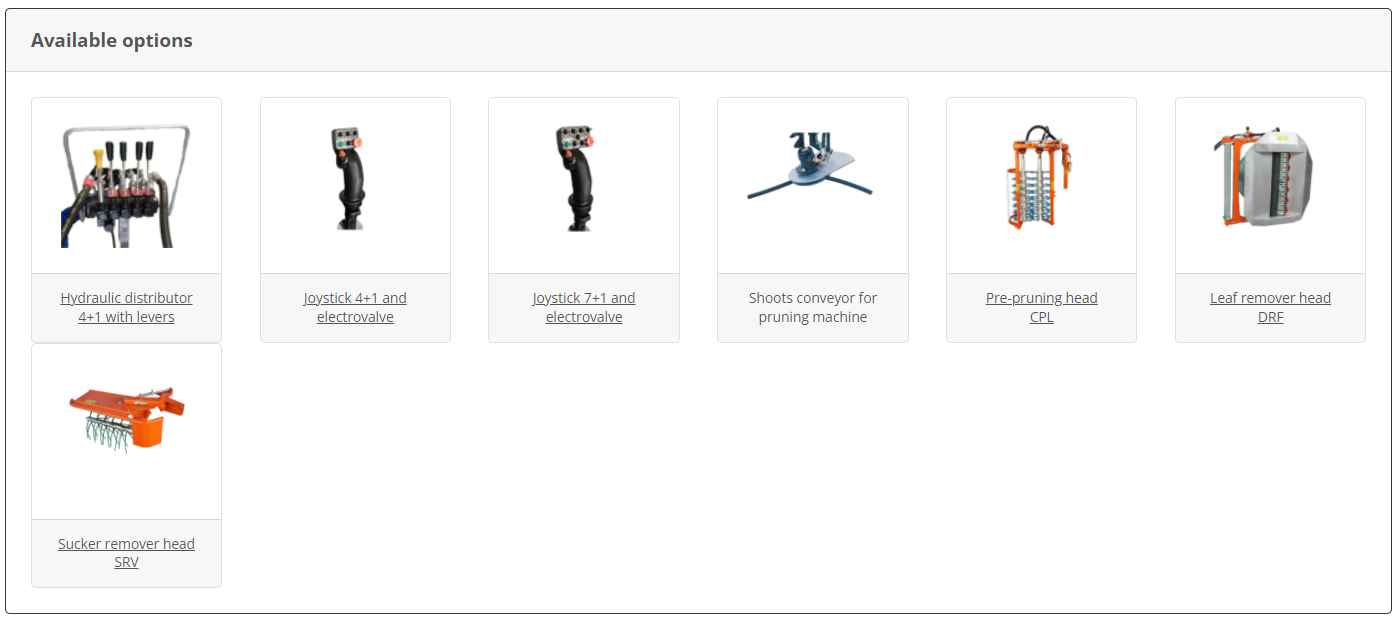

Availabe Options
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 with electrovalve
- Joystick 7+1 with electrovalve
- Shoots conveyor for pruning machine
- Pre-pruning head CPL
- Leaf remover head DRF
- Sucker remover head SRV
Note:
All models are equipped as standard with 1.5m-long hydraulic hoses from the coupling plate. For longer hoses a price increase of $1800 per meter per hose will be added.
