Product Description

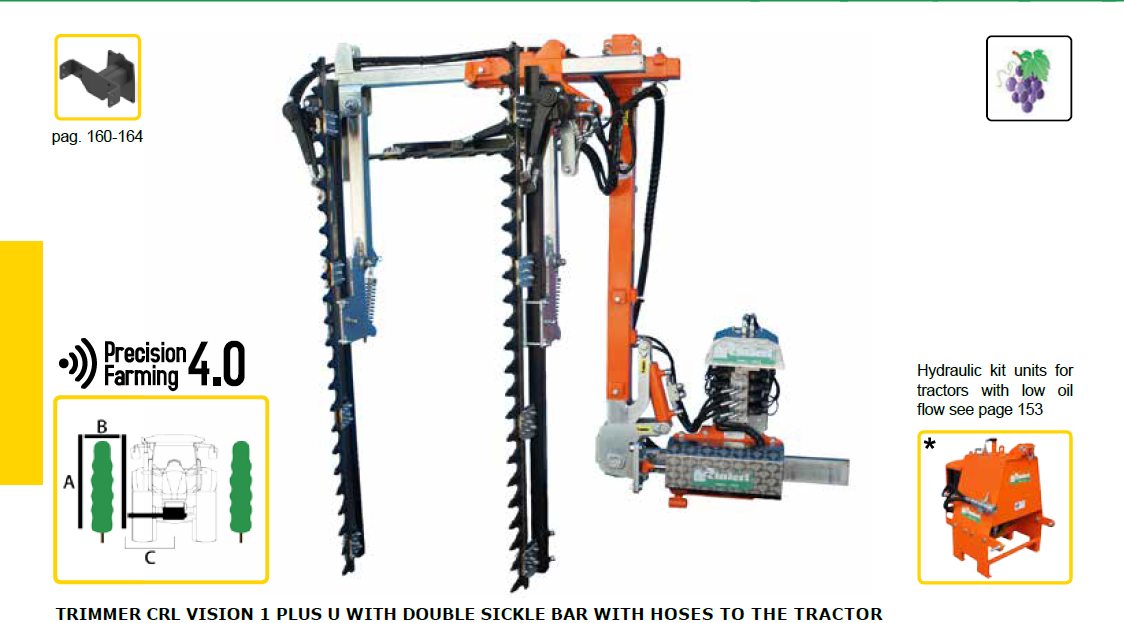

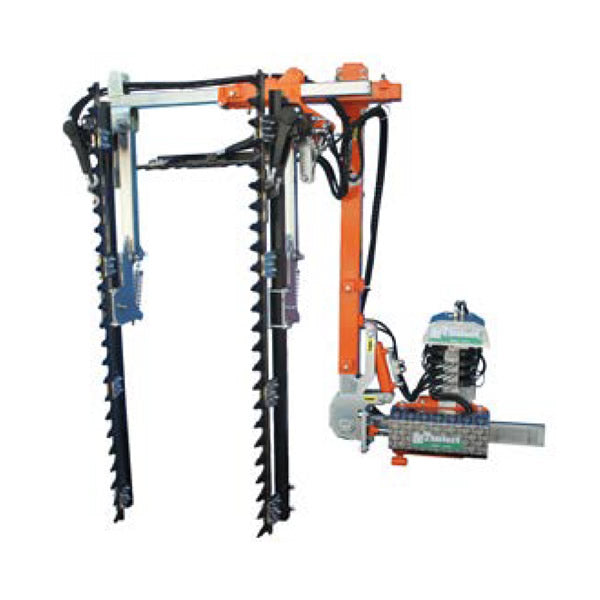

Rinieri Trimmer CRL Vision 1 Plus U with “SCH” Heavy Duty Cutting Bar | 59"-71" Cutting Width for Tractor
DESCRIPTION
The Trimmer CRL Vision 1 Plus U is designed for efficient summer pruning, featuring a multipurpose frame with hydraulic movements and a spring-dumper to absorb impacts. This versatile machine can be mounted on the front and is available in various cutting styles: I, L, C, and U. Equipped with the reliable “SCH” heavy-duty cutting bar, it handles rigorous pruning tasks with ease.
Key Features
- Efficient Summer Pruning: Perfect for shaping and managing orchard growth during the summer.
- Multipurpose Frame: Features a spring-dumper for impact absorption, protecting the equipment during use.
- Hydraulic Adjustments: Lifting, tilting, and side-shift movements are all hydraulically controlled for precise pruning.
- Manual Adjustments: Includes manual height adjustment and tilting of cutting bars, allowing for customization.
- Heavy-Duty “SCH” Cutting Bar: Designed to handle tough branches and ensure smooth cuts.
- Spring Safety Mechanism: Safety features for both vertical and topping bars to protect the machine during transport and use.
Detailed Specifications
| Component | Details |
|---|---|
| Frame | V1 Plus, multipurpose |
| Hydraulic Lifting | 23.6 inches |
| Hydraulic Tilting Vertical Frame | +/- 15° |
| Hydraulic Side Shift | 11.8 inches (manual: 7.9 inches) |
| Manual Height Adjustment (Horizontal Bar) | 13.8 inches |
| Manual Tilting Vertical Cutting Bars | +/- 11° |
| Manual Opening of U Cutting Bar | Yes |
| Quick Connection | PLUS |
| Safety Features | Spring safety for vertical bars, topping bar, max pressure valve for motors |
| Hydraulic Stand for Storage | Included |
| On the Tractor Requirements | 3 double-acting hydraulic distributors, 1 single-acting hydraulic distributor, 1 pressure-free return, 20-30 Liters/min oil demand |

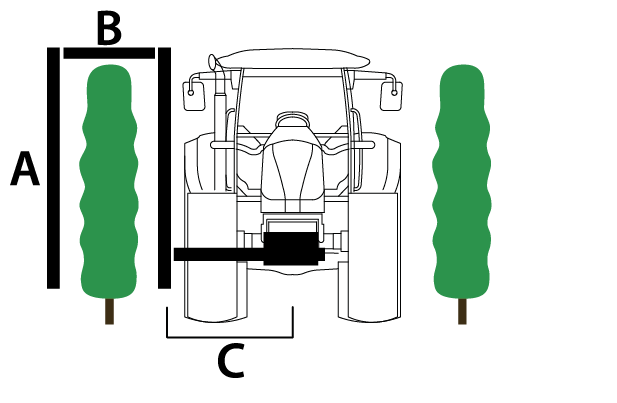

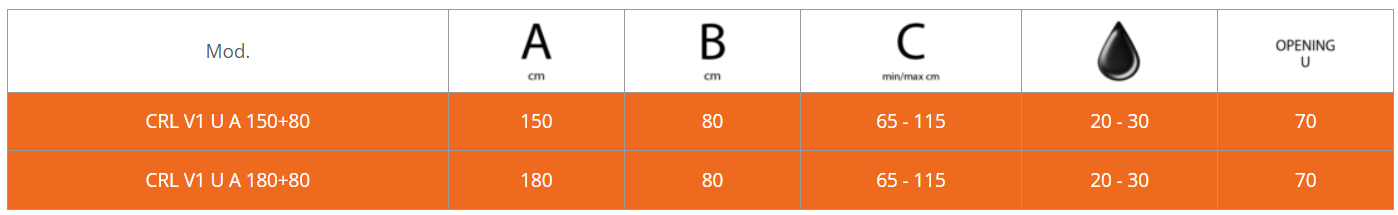

Model & Performance Chart
| Specification | CRL V1 U A 150+80 | CRL V1 U A 180+80 |
|---|---|---|
| A (inches) | 59.1 | 70.9 |
| B (inches) | 31.5 | 31.5 |
| C (inches) | 25.6 - 45.3 | 25.6 - 45.3 |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| U Bar Opening (inches) | 27.6 | 27.6 |
In Package
- Trimmer CRL Vision 1 Plus U
- “SCH” heavy-duty cutting bar
- Hydraulic lifting and tilting components
- Manual height and tilt adjustment mechanisms
- Quick connection PLUS system
- Spring safety for vertical and topping bars
- Hydraulic stand for storage
- User Manual & Setup Guide
Manual & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

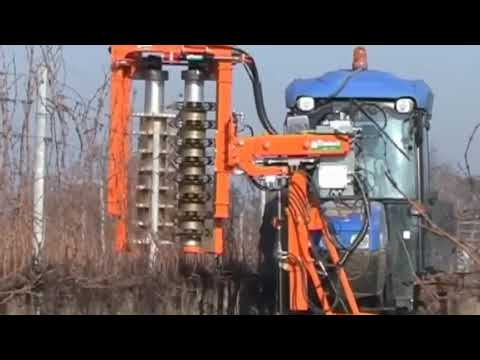

Videos
