Product Description

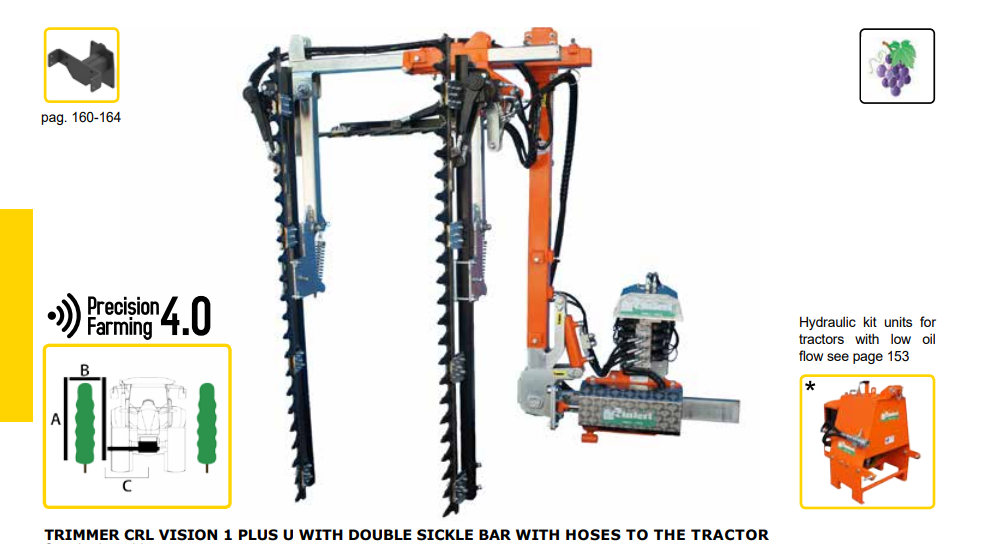

Rinieri Trimmer CRL Vision-1 Plus U With Double Sickle Bar | 59"-83 Cutting Width for Tractor
DESCRIPTION

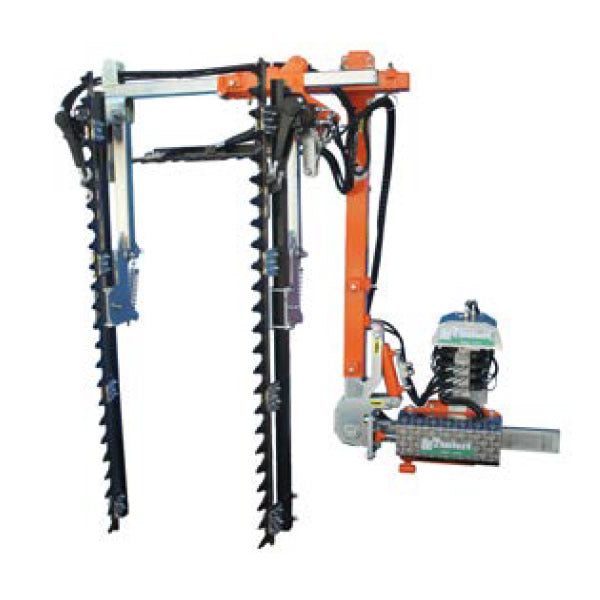

The TRIMMER CRL VISION-1 PLUS U with Double Sickle Bar is an efficient, all-hydraulic pruning machine, designed for summer pruning operations. Its versatile frame supports multiple cutting bar models, including double sickle bars for enhanced cutting performance. The VISION-1 PLUS U features hydraulic movements for precise control, and the spring-dumper mechanism cushions against violent strokes, making it a highly durable option for professional pruning in vineyards and orchards. The machine can be mounted on the front, providing an optimal view for the operator.
Key Features
- Hydraulic Lifting: Vertical lift of 23.6" (60 cm) for convenient height adjustments.
- Vertical Frame Tilt: Hydraulic tilt of +/- 15° for precise pruning on uneven terrains.
- Side Shift: Hydraulic side shift of 11.8" (30 cm) and manual side shift of 7.87" (20 cm) for flexible positioning.
- Manual Height Adjustment: Horizontal bar height can be manually adjusted up to 13.8" (35 cm).
- Manual U Cutting Bar Opening: Allows the "U" cutting bar to be manually opened for efficient cutting of branches.
- Quick Connection PLUS: Fast and easy connection to the tractor.
- Safety Features: Spring-loaded safety for vertical and topping bars, with transport closure, and a maximum pressure valve for motor protection.
- Hydraulic Stand for Storage: Simplifies storage when the trimmer is not in use.
Detailed Specifications
| Specification | Details |
|---|---|
| Hydraulic Lifting | 23.6" (60 cm) |
| Vertical Frame Tilt | +/- 15° |
| Hydraulic Side Shift | 11.8" (30 cm) |
| Manual Side Shift | 7.87" (20 cm) |
|
Manual Adjustment Height (Horizontal Bar) |
13.8" (35 cm) |
| Manual Vertical Bar Tilt | +/- 11° |
| Manual Opening of U Cutting Bar | Varies (see below) |
| Hydraulic Requirement | 20-30 L/min |
Models:
CRL V1 U A 150+80 and CRL V1 U A 180+80

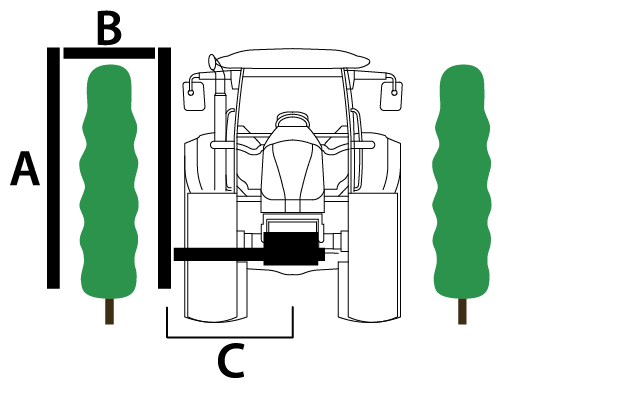

| Specification | CRL V1 U A 150+80 | CRL V1 U A 180+80 |
|---|---|---|
| Model | CRL V1 U A 150+80 | CRL V1 U A 180+80 |
| A (inches) | 59.06" | 70.87" |
| B (inches) | 31.5" | 31.5" |
| C Min - Max (inches) | 25.6" - 45.3" | 25.6" - 45.3" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| Opening U (inches) | 27.6" | 27.6" |
CRL V1 U A 180+100 and CRL V1 U A 210+80
| Specification | CRL V1 U A 180+100 | CRL V1 U A 210+80 |
|---|---|---|
| Model | CRL V1 U A 180+100 | CRL V1 U A 210+80 |
| A (inches) | 70.87" | 82.68" |
| B (inches) | 39.37" | 31.5" |
| C Min - Max (inches) | 25.6" - 45.3" | 25.6" - 45.3" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| Opening U (inches) | 39.37" | 27.6" |
CRL V1 U A 210+100
| Specification | CRL V1 U A 210+100 |
|---|---|
| Model | CRL V1 U A 210+100 |
| A (inches) | 82.68" |
| B (inches) | 39.37" |
| C Min - Max (inches) | 25.6" - 45.3" |
| Oil Demand (L/min) | 20 - 30 |
| Opening U (inches) | 39.37" |
In Package
- TRIMMER CRL VISION-1 PLUS U with Double Sickle Bar
- Manual and hydraulic controls for all frame adjustments
- Spring-loaded safety controls for vertical and topping bars
- Hydraulic stand for storage

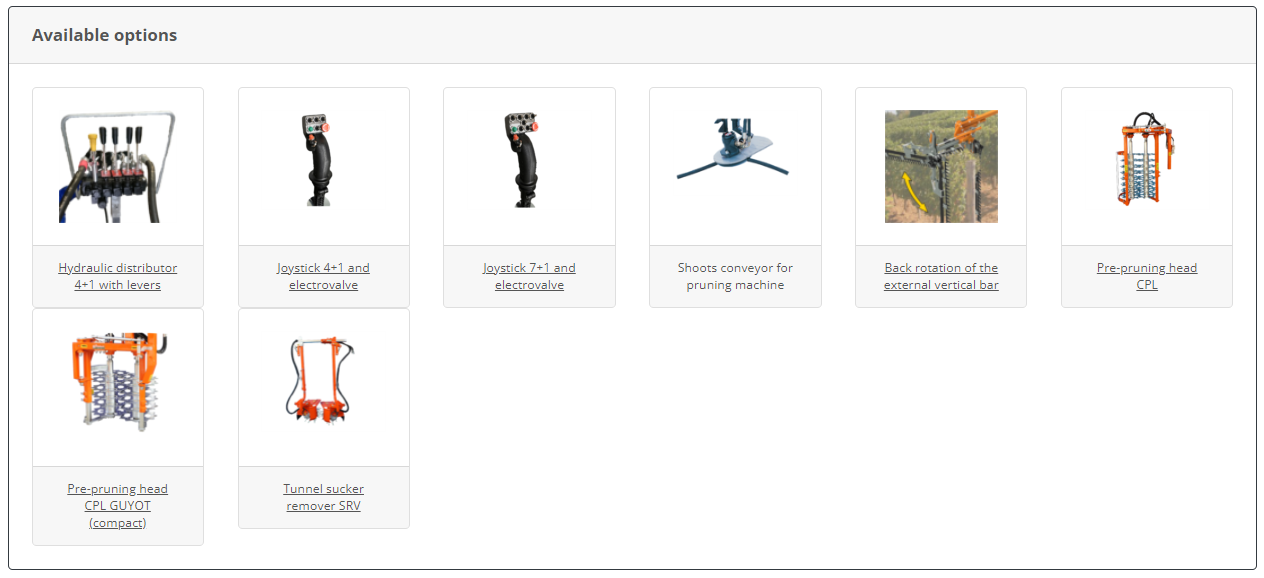

Available Options
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 and electrovalve
- Joystick 7+1 and electrovalve
- Shoots conveyor for pruning machine
- Back rotation of the external vertical bar
- Pre-pruning head CPL or CPL GUYOT (compact)
- Tunnel sucker remover SRV
Note: The machine is equipped with 3 hydraulic movements so it is possible to add 1 single hydraulic movement without replacing the hydraulic distributor or joystick 4+1. If 2 additional hydraulic movements are required, joystick 7+1 is necessary.
Note: All models are equipped as standard with 1.5m-long hydraulic hoses from the coupling plate. For longer hoses a price increase of 1,800. per meter per hose will be added.
