Rinieri Trimmer CRV Tower 1 Plus U with Blades | Tower Series | 41"-83" Cutting Width for Tractor

Rinieri Trimmer CRV Tower 1 Plus U with Blades | Tower Series | 41"-83" Cutting Width for Tractor

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • High-Speed Trimming: Capable of trimming at speeds up to 15 km/h, providing efficient operation for large-scale agricultural tasks.
  • Hydraulic Lifting: 27" hydraulic lift for easy and precise height adjustments, ensuring controlled trimming in various field conditions.
  • Vertical Frame Tilting: Offers ±20° hydraulic tilting, allowing adaptability to diverse terrain and optimal positioning during use.
  • Hydraulic Side Shift: 24" hydraulic side shift for precise positioning and improved trimming accuracy.
  • Manual U-Shaped Tilting & Height Adjustment: ±15° manual tilting of the U-shaped bar and 14" manual height adjustment of the horizontal bar provide flexibility for fine-tuning cutting angles and heights.
  • Durable Stainless Steel Cutting Bars: The stainless steel bars ensure long-lasting performance with fast, clean, and efficient cuts.
  • Safety Features: Spring-loaded safety mechanisms protect the vertical bars and topping bar during transport, while the hydraulic stand makes for easy storage.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

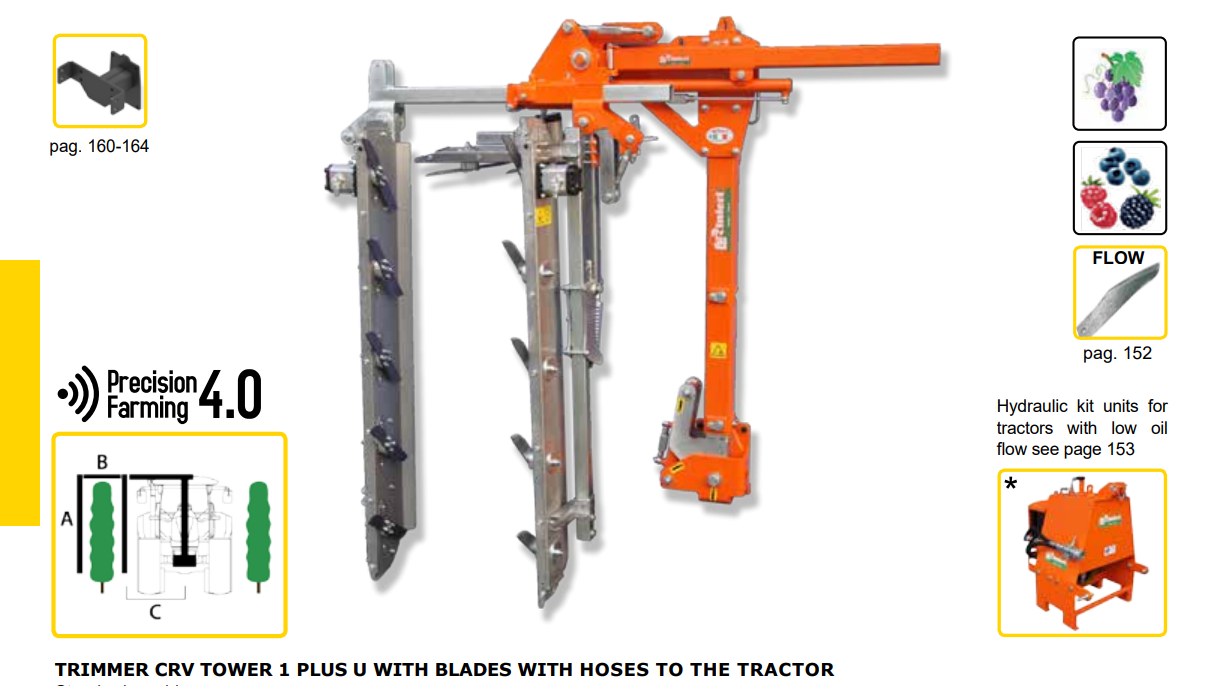

Rinieri Trimmer CRV Tower 1 Plus U with Blades | Tower Series | 41"-83" Cutting Width for Tractor

DESCRIPTION

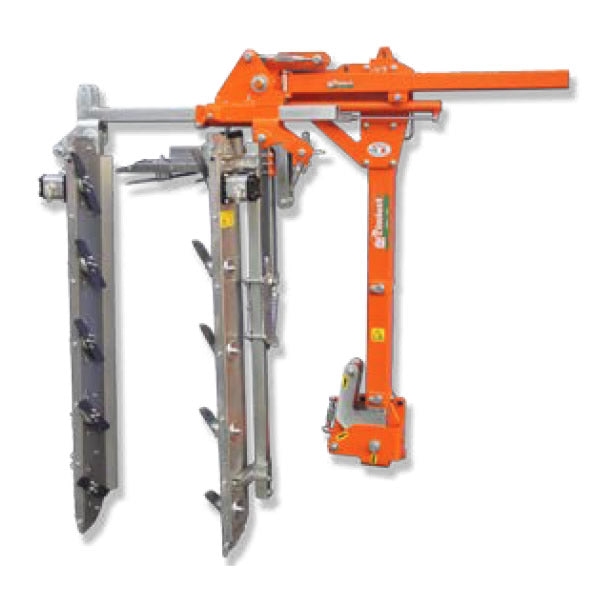

The Trimmer CRV Tower-1 Plus U with Blades is engineered for high-speed precision trimming, reaching speeds of up to 15 km/h. The T1 Plus Frame provides a durable central structure with hydraulic lifting, tilting, and side shift for easy adjustments, making it adaptable for various field conditions. The U-shaped trimmer is equipped with rotating stainless steel knives, ensuring clean and fast cuts. This model also features manual adjustments for fine-tuning the cutting height and U-shaped opening, giving operators full control over the trimming process. The spring safety mechanisms protect the vertical bars and topping bar during transport, while the hydraulic stand provides easy storage when not in use.

Key Features

  • Hydraulic Lifting (27"): Provides efficient and controlled trimming.
  • Vertical Frame Tilting (±20°): Ensures adaptability in various field conditions.
  • Hydraulic Side Shift (24"): Allows for easy positioning and control.
  • Manual U-Shaped Tilting (±15°): Ensures precision when trimming close to plants.
  • Manual Bar Height Adjustment (14"): Adjusts horizontal bar height for different trimming requirements.
  • Stainless Steel Cutting Bars: Lightweight and durable for fast, clean cuts.

Detailed Specification

Frame (T1 Plus)

  • Hydraulic lifting (27")
  • Vertical frame hydraulic tilting (±20°)
  • Hydraulic side shift (24")
  • Manual U tilting (±15°)
  • Manual bar height adjustment (14")
  • Manual U-opening (24")
  • Quick connection PLUS

Safety

  • Maximum pressure valve for motors
  • Spring safety for vertical bars and topping bar
  • Hydraulic stand for storage

On the Tractor

  • N.3 double-acting hydraulic distributors
  • N.1 single-acting hydraulic distributor
  • N.1 pressure-free return
  • Oil demand: 25-35 Liters/min

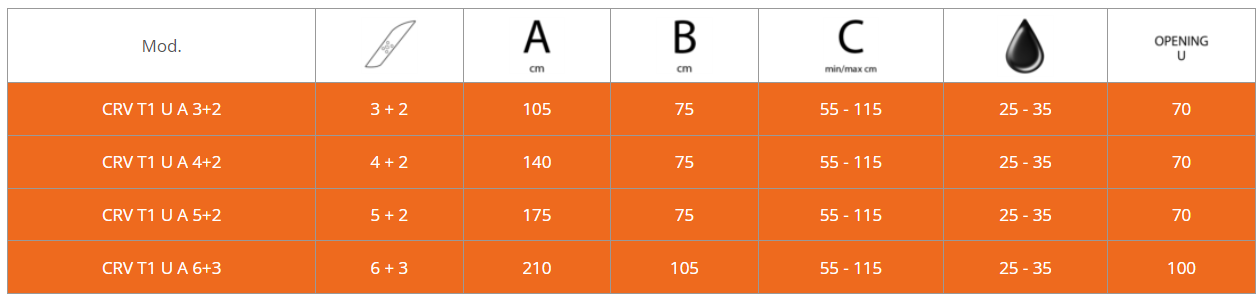

Model Specifications

CRV T1 U A 3+2 and CRV T1 U A 4+2

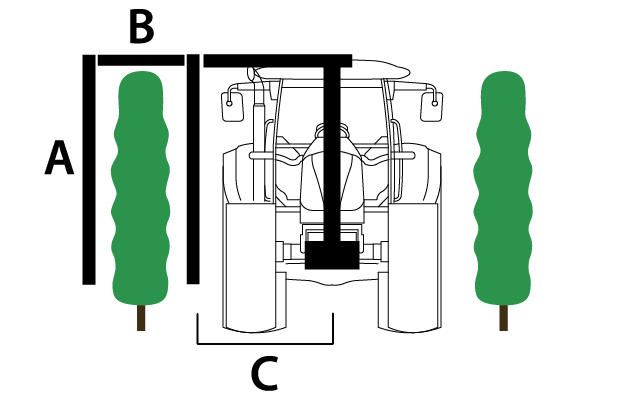

Specification CRV T1 U A 3+2 CRV T1 U A 4+2
No. of Blades 3 + 2 4 + 2
A (inches) 41 55
B (inches) 30 30
C (inches) 22" - 45" 22" - 45"
Oil Demand (L/min) 25 - 35 25 - 35
Opening U (inches) 28 28



CRV T1 U A 5+2 and CRV T1 U A 6+3

Specification CRV T1 U A 5+2 CRV T1 U A 6+3
No. of Blades 5 + 2 6 + 3
A (inches) 69 83
B (inches) 30 41
C (inches) 22" - 45" 22" - 45"
Oil Demand (L/min) 25 - 35 25 - 35
Opening U (inches) 28 39
