Product Description

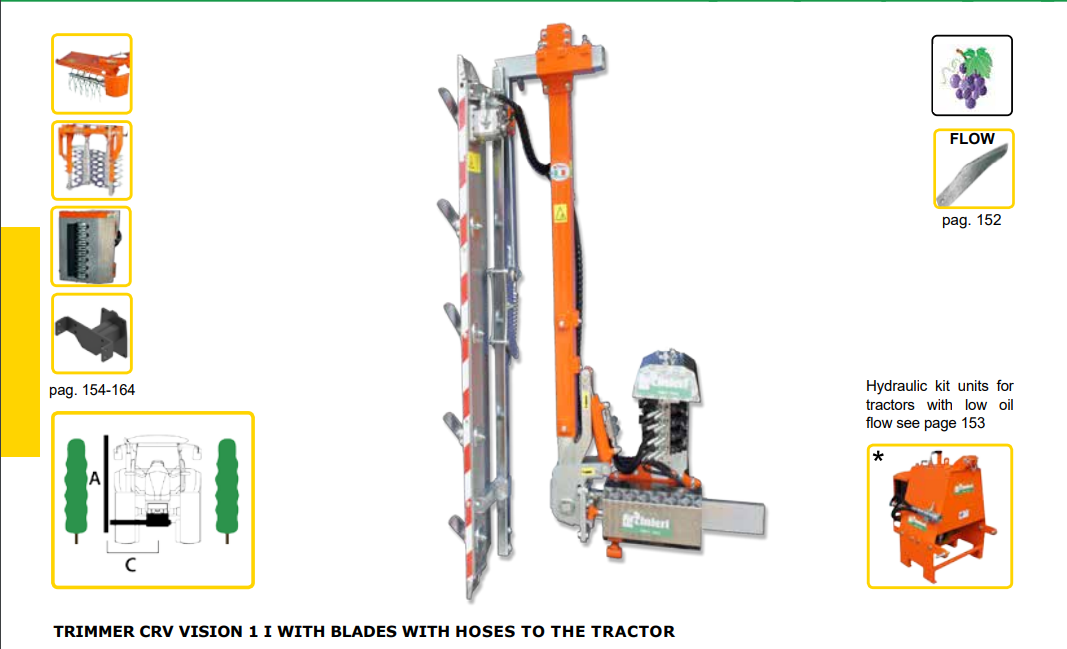

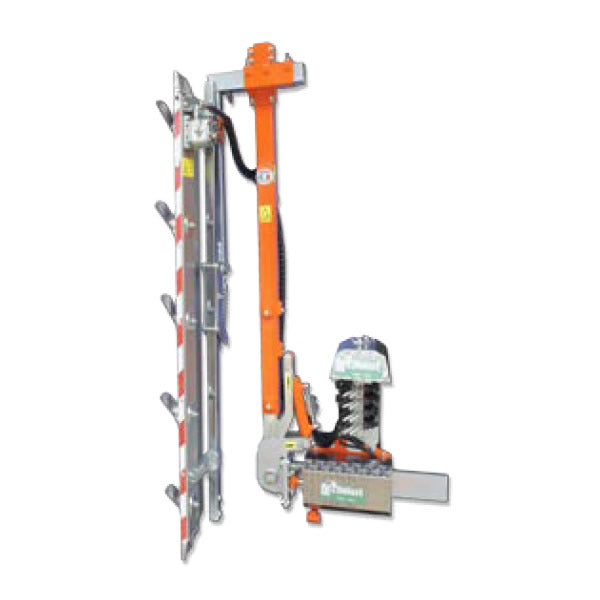

Rinieri Trimmer CRV Vision 1 I With Blades | 41"-69" Cutting Width for Tractor
DESCRIPTION
The TRIMMER CRV VISION-1 I with Blades is a powerful pruning machine designed for precision and efficiency in agricultural applications. The V1 frame provides hydraulic lifting, tilting, and side shift capabilities, ensuring accurate control and performance. Built with a durable frame and enhanced safety features, this trimmer is ideal for maintaining orchards, vineyards, and other large-scale agricultural operations.
Key Features
- Hydraulic Lifting: Provides vertical lift of 23.6" (60 cm) for flexible height adjustments.
- Hydraulic Tilting Frame: Vertical frame tilts +/- 15° for precision trimming on uneven terrains.
- Side Shift: Hydraulic side shift of 11.8" (30 cm) with manual side shift of 7.87" (20 cm) for versatile positioning.
- Safety Features: Equipped with spring-loaded safety for vertical bars and a maximum pressure valve for motor protection.
- Hydraulic Stand for Storage: Ensures safe and easy storage when not in use.
Detailed Specifications
| Specification | Details |
|---|---|
| Hydraulic Lifting | 23.6" (60 cm) |
| Vertical Frame Tilt | +/- 15° |
| Hydraulic Side Shift | 11.8" (30 cm) |
| Manual Side Shift | 7.87" (20 cm) |
| Hydraulic Requirement | 20-30 L/min |

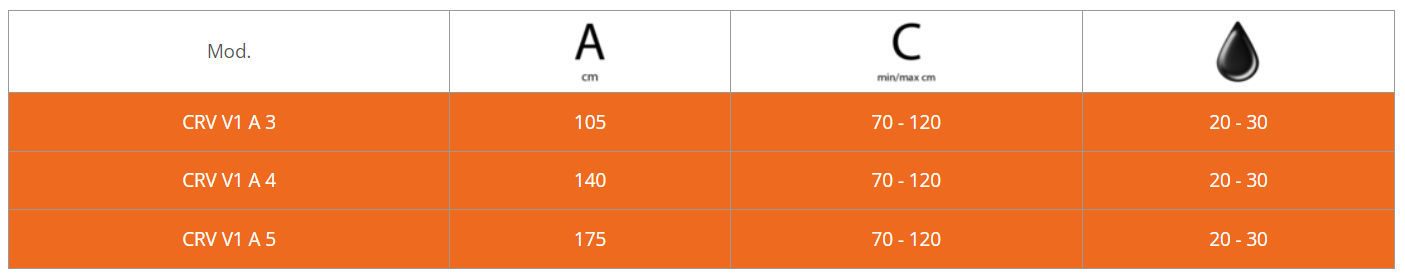

Models:

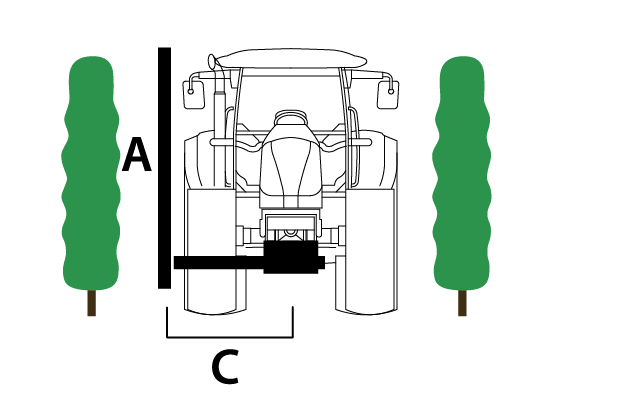

| Specification | CRV V1 A 3 | CRV V1 A 4 | CRV V1 A 5 |
|---|---|---|---|
| A (inches) | 41.34" | 55.12" | 68.90" |
| C Min - Max (inches) | 27.56" - 47.24" | 27.56" - 47.24" | 27.56" - 47.24" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 | 20 - 30 |
In Package
- TRIMMER CRV VISION-1 I with Blades
- Hydraulic and manual controls for all frame adjustments
- Spring-loaded safety systems for vertical bars
- Hydraulic stand for storage

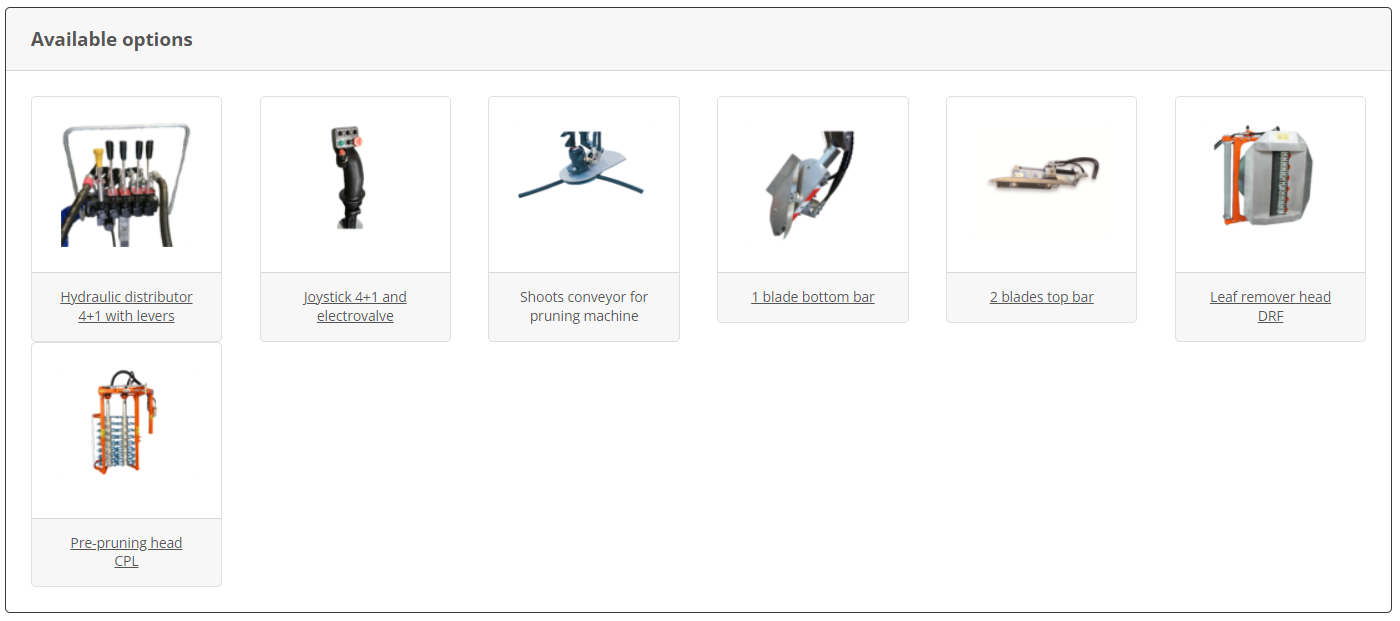

Available Options:
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 and electrovalve
- Shoots conveyor for pruning machine
- 1 blade bottom bar
- 2 blades top bar
- Leaf remover head DRF
- Pre-pruning head CPL
