Product Description

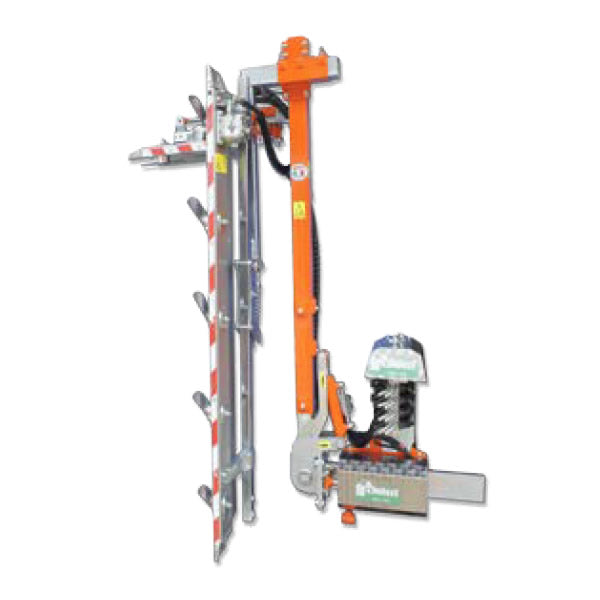

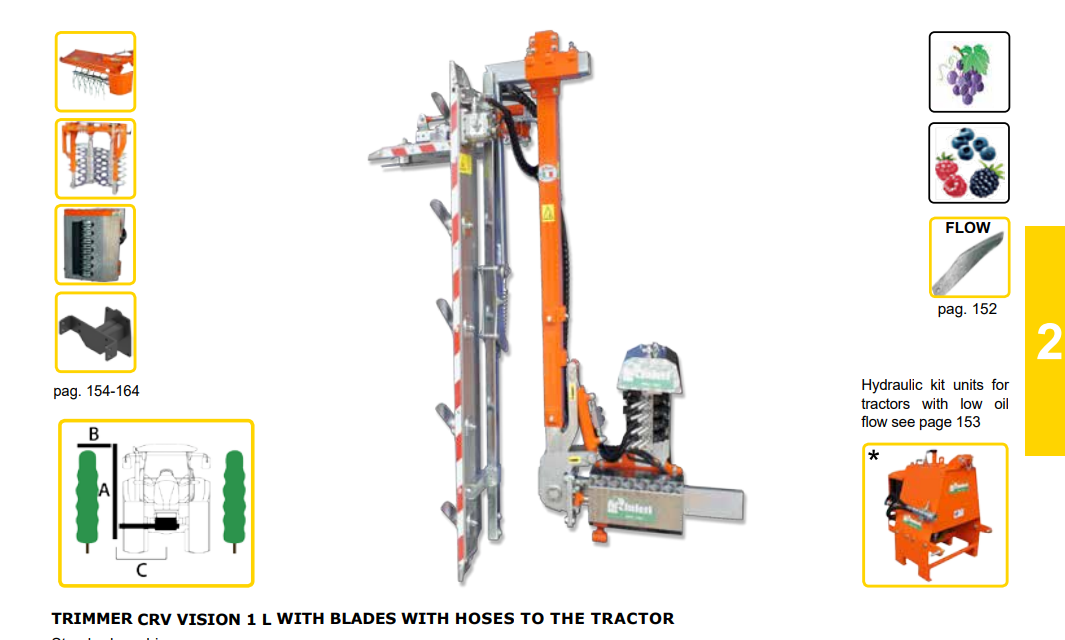

Rinieri Trimmer CRV Vision 1 L With Blades | 41"-83" Cutting Width for Tractor
DESCRIPTION
The TRIMMER CRV VISION-1 L with Blades is designed specifically for vineyards, offering superior front visibility and precision cutting. The VISION-1 L model features an advanced hydraulic system, making it suitable for use on hilly terrain. Its durable frame and side displacement system, mounted on bearings, ensure longevity and smooth operation. With multiple cutting bar configurations (I, L, U, C), this trimmer provides versatile solutions for various vineyard pruning needs.
Key Features
- Hydraulic Lifting: Provides a vertical lift of 23.6" (60 cm) for easy height adjustments.
- Hydraulic Tilting Vertical Frame: Vertical frame tilt of +/- 15° for cutting precision on uneven surfaces.
- Side Shift: Hydraulic side shift of 11.8" (30 cm) with manual side shift of 7.87" (20 cm).
- Hydraulic Horizontal Bar Tilt: Horizontal bar tilts 90° for optimal trimming control.
- Manual Horizontal Bar Height Adjustment: Manual adjustment up to 13.8" (35 cm).
- Safety Features: Equipped with spring safety for vertical bars, safety joints for topping bars, and maximum pressure valves for motor protection.
- Hydraulic Stand for Storage: Ensures easy and safe storage.
Detailed Specifications
Specification |
Details |
|---|---|
| Hydraulic Lifting | 23.6" (60 cm) |
| Vertical Frame Tilt | +/- 15° |
| Hydraulic Side Shift | 11.8" (30 cm) |
| Manual Side Shift | 7.87" (20 cm) |
| Hydraulic Horizontal Bar Tilt | 90° |
| Manual Horizontal Bar Height Adjustment | 13.8" (35 cm) |
| Hydraulic Requirement | 20-30 L/min |

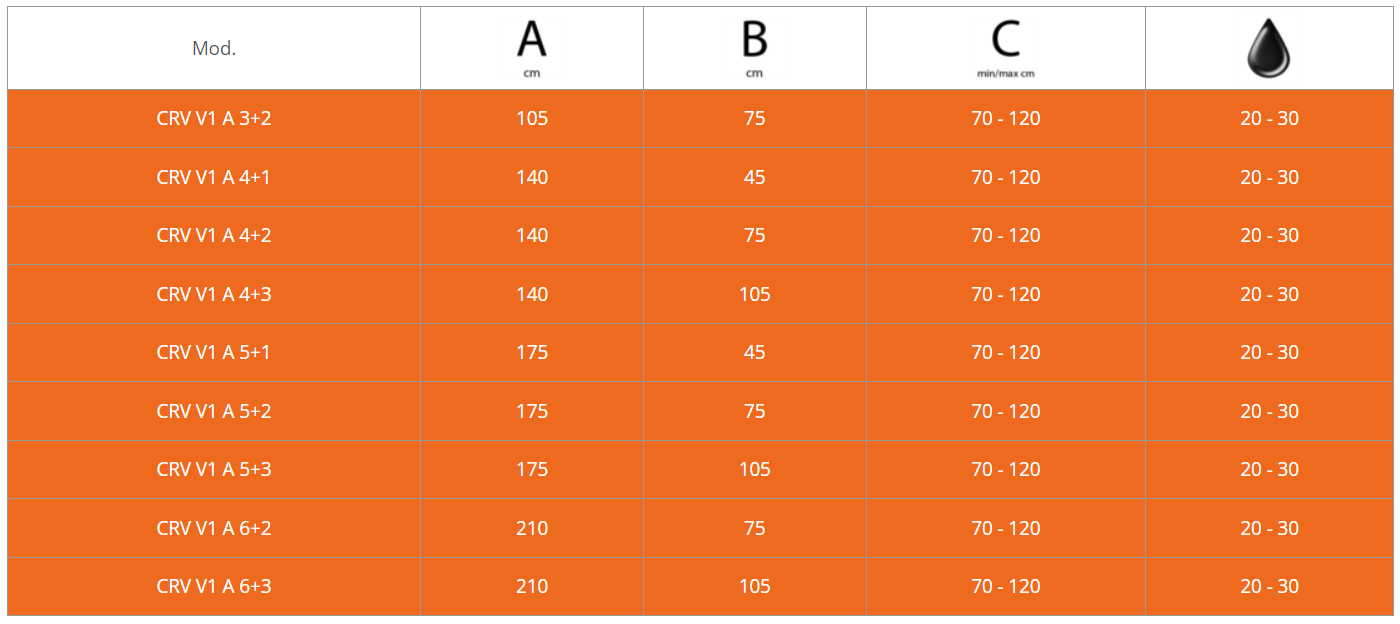

Models:
CRV V1 A 3+2 and CRV V1 A 4+1

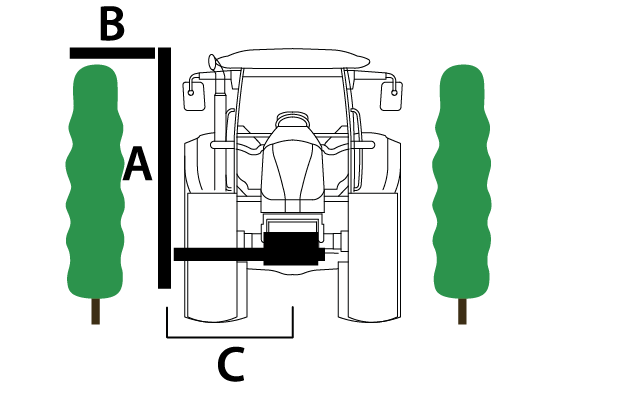

| Specification | CRV V1 A 3+2 | CRV V1 A 4+1 |
|---|---|---|
| A (inches) | 41.34" | 55.12" |
| B (inches) | 29.53" | 17.72" |
| C Min - Max (inches) | 27.56" - 47.24" | 27.56" - 47.24" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV V1 A 4+2 and CRV V1 A 4+3
| Specification | CRV V1 A 4+2 | CRV V1 A 4+3 |
|---|---|---|
| A (inches) | 55.12" | 55.12" |
| B (inches) | 29.53" | 41.34" |
| C Min - Max (inches) | 27.56" - 47.24" | 27.56" - 47.24" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV V1 A 5+1 and CRV V1 A 5+2
| Specification | CRV V1 A 5+1 | CRV V1 A 5+2 |
|---|---|---|
| A (inches) | 68.90" | 68.90" |
| B (inches) | 17.72" | 29.53" |
| C Min - Max (inches) | 27.56" - 47.24" | 27.56" - 47.24" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV V1 A 5+3 and CRV V1 A 6+2
| Specification | CRV V1 A 5+3 | CRV V1 A 6+2 |
|---|---|---|
| A (inches) | 68.90" | 82.68" |
| B (inches) | 41.34" | 29.53" |
| C Min - Max (inches) | 27.56" - 47.24" | 27.56" - 47.24" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV V1 A 6+3
| Specification | CRV V1 A 6+3 |
|---|---|
| A (inches) | 82.68" |
| B (inches) | 41.34" |
| C Min - Max (inches) | 27.56" - 47.24" |
| Oil Demand (L/min) | 20 - 30 |
In Package
- TRIMMER CRV VISION-1 L with Blades
- Hydraulic and manual controls for all frame adjustments
- Spring-loaded safety systems for vertical and topping bars
- Hydraulic stand for storage

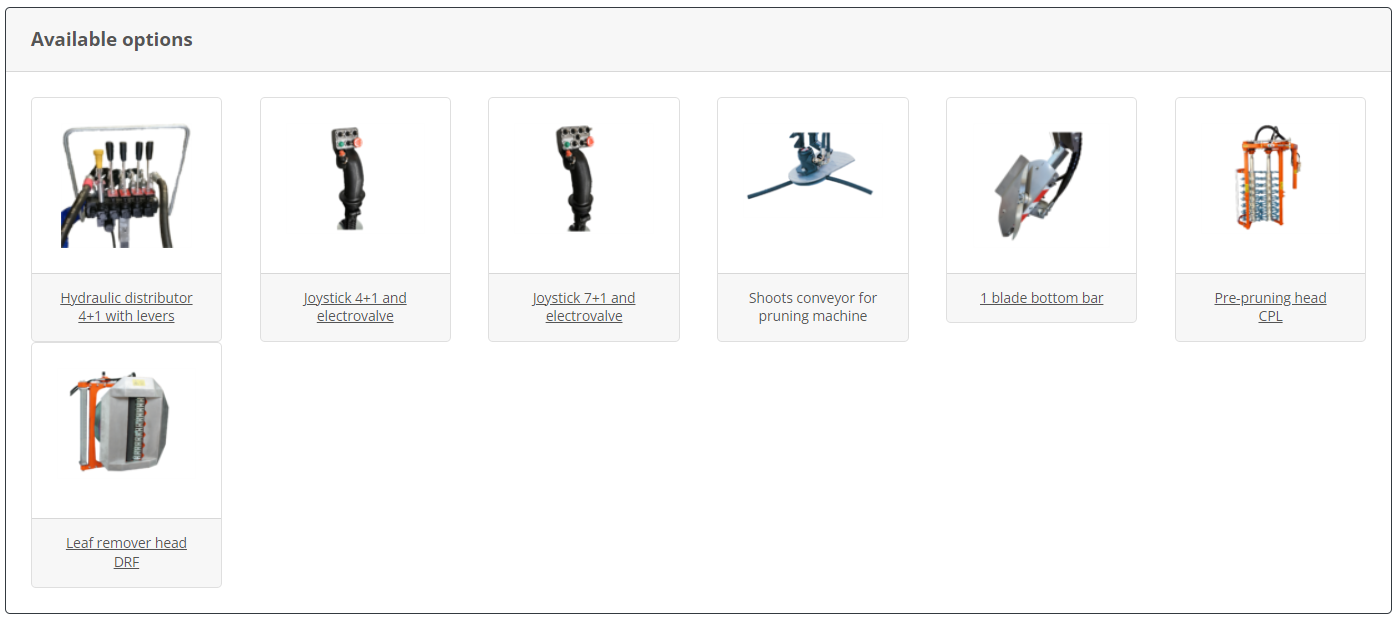

Available Options:
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 and electrovalve
- Joystick 7+1 and electrovalve
- Shoots conveyor for pruning machine
- 1 blade bottom bar
- Pre-pruning head CPL
- Leaf remover head DR
