Product Description
Rinieri Trimmer CRV Vision 1 Plus U With Blades | 41"-83" Cutting Width for Tractor
DESCRIPTION

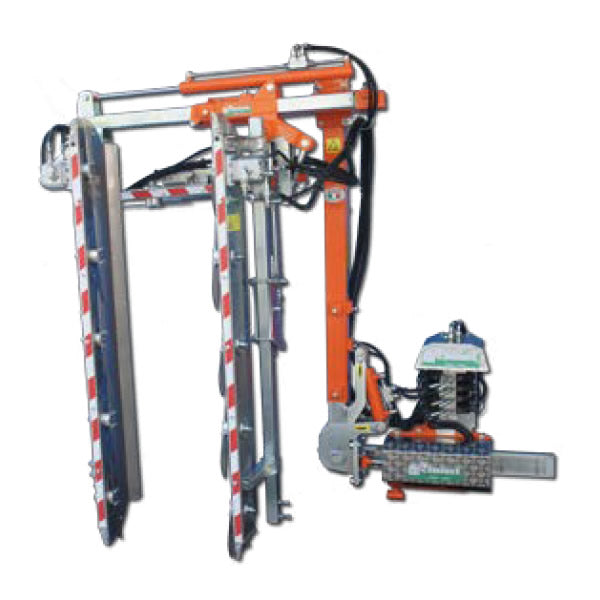

The TRIMMER CRV VISION-1 PLUS U with Blades is specifically designed for vineyards, offering excellent front visibility and high-performance vertical bar inclination, making it ideal for pruning in hilly terrain. The Vision-1 PLUS model comes equipped with a hydraulic distributor or joystick for on/off control, and its side displacement is mounted on durable bearings for long-term reliability. This versatile trimmer supports multiple cutting bar models, including I, L, U, and C, ensuring that it can adapt to various pruning needs.
Key Features
- Hydraulic Lifting: Vertical lift of 23.6" (60 cm) for optimal height adjustment.
- Hydraulic Tilting Frame: Vertical frame tilts +/- 20° for precision pruning on slopes.
- Side Shift: Hydraulic side shift of 11.8" (30 cm) and manual side shift of 7.87" (20 cm) for flexible positioning.
- Manual Height Adjustment: Horizontal bar height is manually adjustable to 13.8" (35 cm).
- Manual Opening of U Cutting Bar: U cutting bar opens manually for efficient trimming.
- Manual Vertical Bar Tilt: Vertical cutting bars tilt +/- 11° manually.
- Quick Connection PLUS: Simplifies hook-up to tractors and other equipment.
- Safety Features: Equipped with spring-loaded safety for vertical and topping bars, as well as a maximum pressure valve for motor protection.
- Hydraulic Stand for Storage: Ensures safe and easy storage of the machine when not in use.
Detailed Specifications
Specification |
Details |
|---|---|
| Hydraulic Lifting | 23.6" (60 cm) |
| Vertical Frame Tilt | +/- 20° |
| Hydraulic Side Shift | 11.8" (30 cm) |
| Manual Side Shift | 7.87" (20 cm) |
| Manual Horizontal Bar Height Adjustment | 13.8" (35 cm) |
| Manual Vertical Bar Tilt | +/- 11° |
| Hydraulic Requirement | 25-35 L/min |
Models
CRV V1 U A 3+2 and CRV V1 U A 4+2

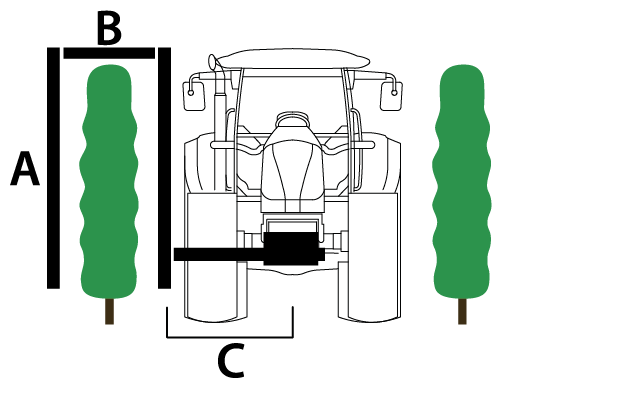

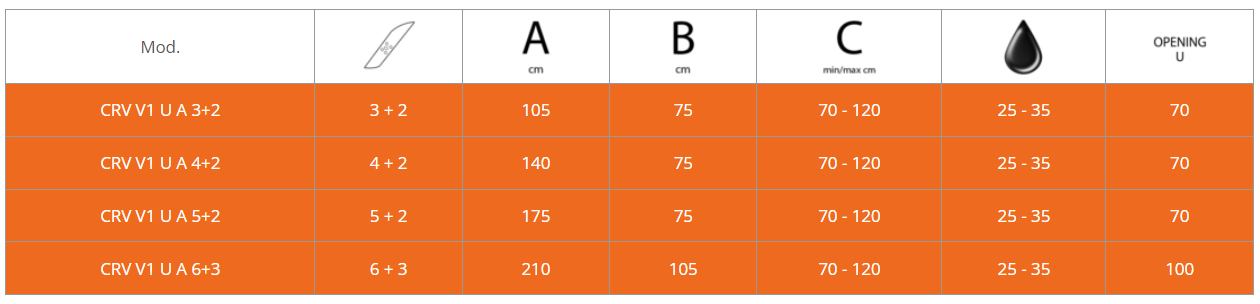

| Specification | CRV V1 U A 3+2 | CRV V1 U A 4+2 |
|---|---|---|
| Model | CRV V1 U A 3+2 | CRV V1 U A 4+2 |
| Number of Blades | 3 + 2 | 4 + 2 |
| A (inches) | 41.34" | 55.12" |
| B (inches) | 29.53" | 29.53" |
| C Min - Max (inches) | 27.56" - 47.24" | 27.56" - 47.24" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
| Opening U (inches) | 27.56" | 27.56" |
CRV V1 U A 5+2 and CRV V1 U A 6+3
| Specification | CRV V1 U A 5+2 | CRV V1 U A 6+3 |
|---|---|---|
| Model | CRV V1 U A 5+2 | CRV V1 U A 6+3 |
| Number of Blades | 5 + 2 | 6 + 3 |
| A (inches) | 68.90" | 82.68" |
| B (inches) | 29.53" | 41.34" |
| C Min - Max (inches) | 27.56" - 47.24" | 27.56" - 47.24" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
| Opening U (inches) | 27.56" | 39.37" |
In Package
- TRIMMER CRV VISION-1 PLUS U with Blades
- Manual and hydraulic controls for all frame adjustments
- Spring-loaded safety systems for vertical and topping bars
- Hydraulic stand for safe storage

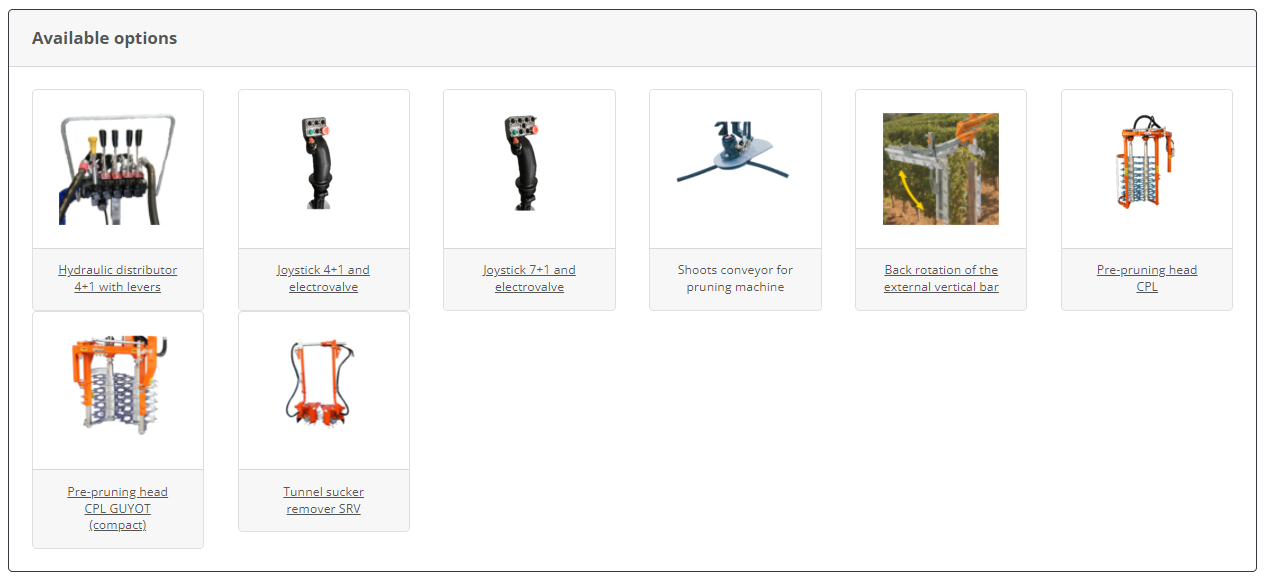

Available Options
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 and electrovalve
- Joystick 7+1 and electrovalve
- Shoots conveyor for pruning machine
- Back rotation of the external vertical bar
- Pre-pruning head CPL
- Pre-pruning head CPL GUYOT (compact)
- Tunnel sucker remover SRV
