Product Description

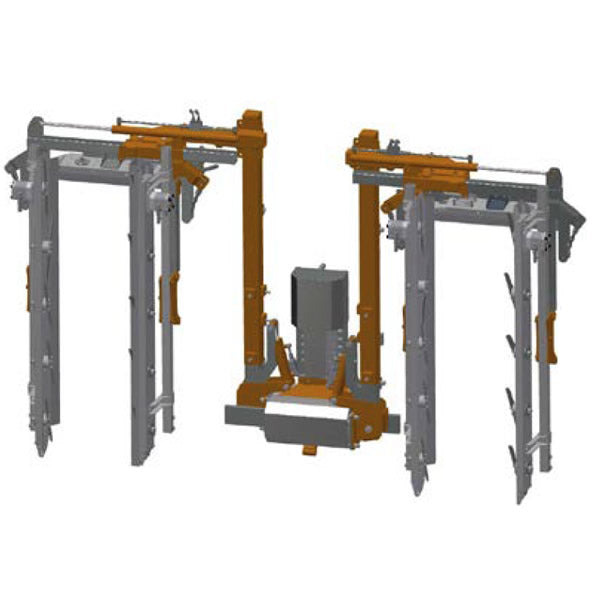

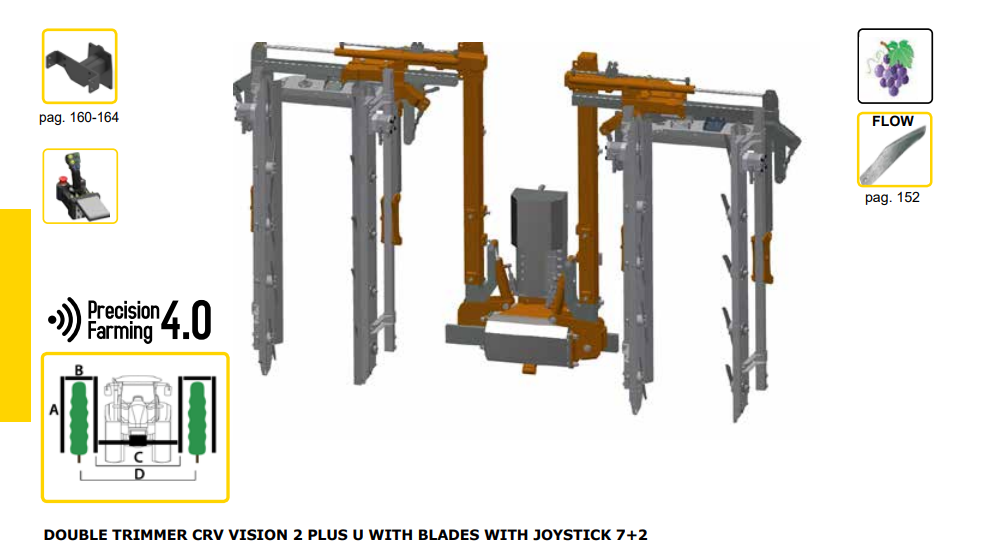

Rinieri Trimmer CRV Vision 2 Plus U With Blades With Joystick 7+2 | Vision 2 Plus Series | 41"-83" Cutting Width for Tractor
DESCRIPTION
The TRIMMER CRV VISION-2 PLUS U is designed with superior front visibility and enhanced vertical bar inclination, making it the ideal tool for trimming on sloped or hilly terrains. This model is equipped with hydraulically adjustable vertical bars that allow it to adapt to various plant heights and terrains, providing maximum efficiency for operations in challenging environments.
The VISION-2 PLUS U frame includes both hydraulic and manual controls for height adjustments and side shifts, ensuring the trimmer can be customized to meet specific needs. This model also offers independent motor controls and solid side displacement on bearings, ensuring durability and precision in operation.
With the ability to choose between a hydraulic distributor or joystick control, the VISION-2 PLUS U provides operators with the flexibility and performance they need for efficient and effective pruning.
Key Features
- Hydraulic Lift: 23.6" (60 cm) independent hydraulic lifting for better control.
- Vertical Frame Tilting: +/- 20° hydraulic tilting for adaptable cutting angles on sloped terrain.
- Side Shift: 9.8" (25 cm) hydraulic and 7.8" (20 cm) manual side shift for precise positioning.
- Height Adjustment: 13.7" (35 cm) manual horizontal bar height adjustment.
- Vertical Bar Tilting: Manual tilting of vertical cutting bars by +/- 11°.
- Safety Systems: Spring safety for vertical and horizontal bars, with road transport closure.
- Independent Motor Controls: Ensures precision in trimming operations.
Detailed Specification
- Hydraulic Lifting: 23.6" (60 cm)
- Vertical Frame Tilting: +/- 20° hydraulic
- Side Shift: 9.8" (25 cm) hydraulic, 7.8" (20 cm) manual
- Height Adjustment of Horizontal Bar: 13.7" (35 cm) manual
- Vertical Bar Tilting: +/- 11° manual
- Oil Demand: 70-80 liters/min
- Electrical Requirements: 12V socket

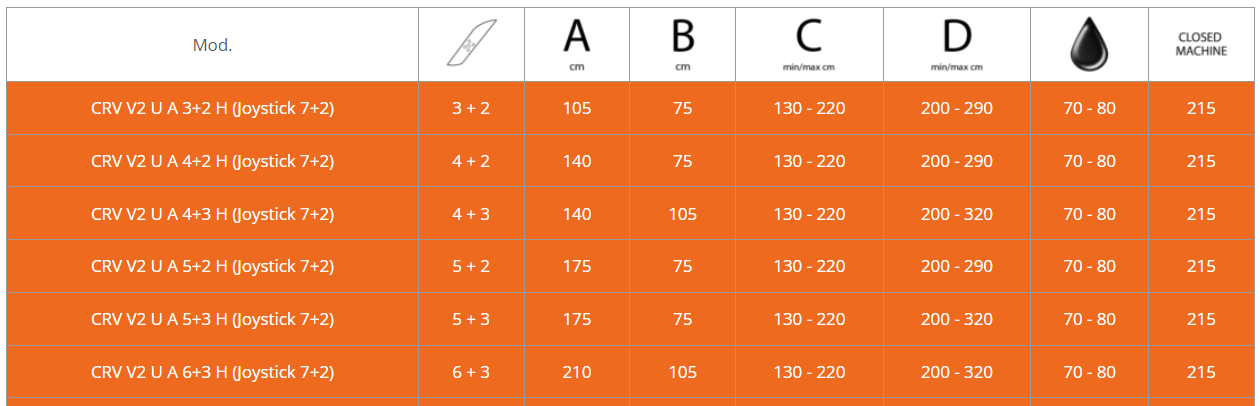

CRV V2 U A 3+2 H (Joystick 7+2) and CRV V2 U A 4+2 H (Joystick 7+2)
| Specification |
CRV V2 U A 3+2 H (Joystick 7+2) |
CRV V2 U A 4+2 H (Joystick 7+2) |
|---|---|---|

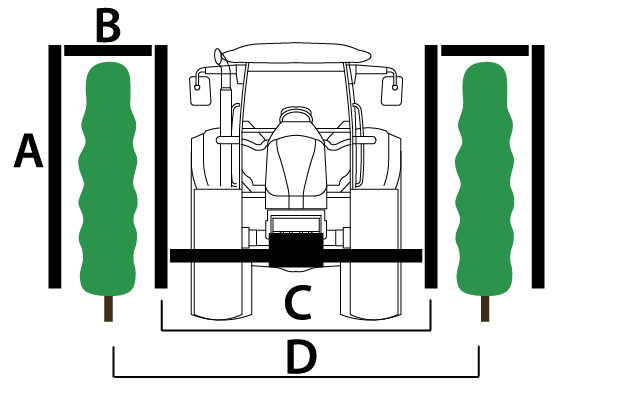

| Model | CRV V2 U A 3+2 H | CRV V2 U A 4+2 H |
| A (cm) | 105 | 140 |
| B (cm) | 75 | 75 |
| C Min - Max (cm) | 130 - 220 | 130 - 220 |
| D Min - Max (cm) | 200 - 290 | 200 - 290 |
| Oil Demand (L/min) | 70 - 80 | 70 - 80 |
| Closed Machine (cm) | 215 | 215 |
CRV V2 U A 4+3 H(Joystick 7+2) and CRV V2 U A 5+2 H(Joystick 7+2)
| Specification | CRV V2 U A 4+3 H(Joystick 7+2) | CRV V2 U A 5+2 H(Joystick 7+2) |
|---|---|---|
| Model | CRV V2 U A 4+3 H | CRV V2 U A 5+2 H |
| A (cm) | 140 | 175 |
| B (cm) | 105 | 75 |
| C Min - Max (cm) | 130 - 220 | 130 - 220 |
| D Min - Max (cm) | 200 - 320 | 200 - 290 |
| Oil Demand (L/min) | 70 - 80 | 70 - 80 |
| Closed Machine (cm) | 215 | 215 |
CRV V2 U A 5+3 H(Joystick 7+2) and CRV V2 U A 6+3 H(Joystick 7+2)
| Specification |
CRV V2 U A 5+3 H(Joystick 7+2) |
CRV V2 U A 6+3 H(Joystick 7+2) |
|---|---|---|
| Model | CRV V2 U A 5+3 H | CRV V2 U A 6+3 H |
| A (cm) | 175 | 210 |
| B (cm) | 75 | 105 |
| C Min - Max (cm) | 130 - 220 | 130 - 220 |
| D Min - Max (cm) | 200 - 320 | 200 - 320 |
| Oil Demand (L/min) | 70 - 80 | 70 - 80 |
| Closed Machine (cm) | 215 | 215 |
In Package:
- CRV V2 U A 3+2 H (Joystick 7+2): 3 + 2 blades, 41.3" width, 29.5" cutting area, with a horizontal adjustment of 51" - 86.6".
- CRV V2 U A 4+2 H (Joystick 7+2): 4 + 2 blades, 55.1" cutting range.
- CRV V2 U A 4+3 H (Joystick 7+2): 4 + 3 blades, 55.1" x 41.3", with a horizontal range of 51" - 86.6".
- CRV V2 U A 5+2 H (Joystick 7+2): 5 + 2 blades, cutting width of 68.8", horizontal adjustment of 51" - 86.6".
- CRV V2 U A 5+3 H (Joystick 7+2): 5 + 3 blades, cutting range of 68.8" x 41.3", horizontal range of 51" - 86.6".
- CRV V2 U A 6+3 H (Joystick 7+2): 6 + 3 blades, cutting width of 82.6", horizontal range 51" - 86.6".

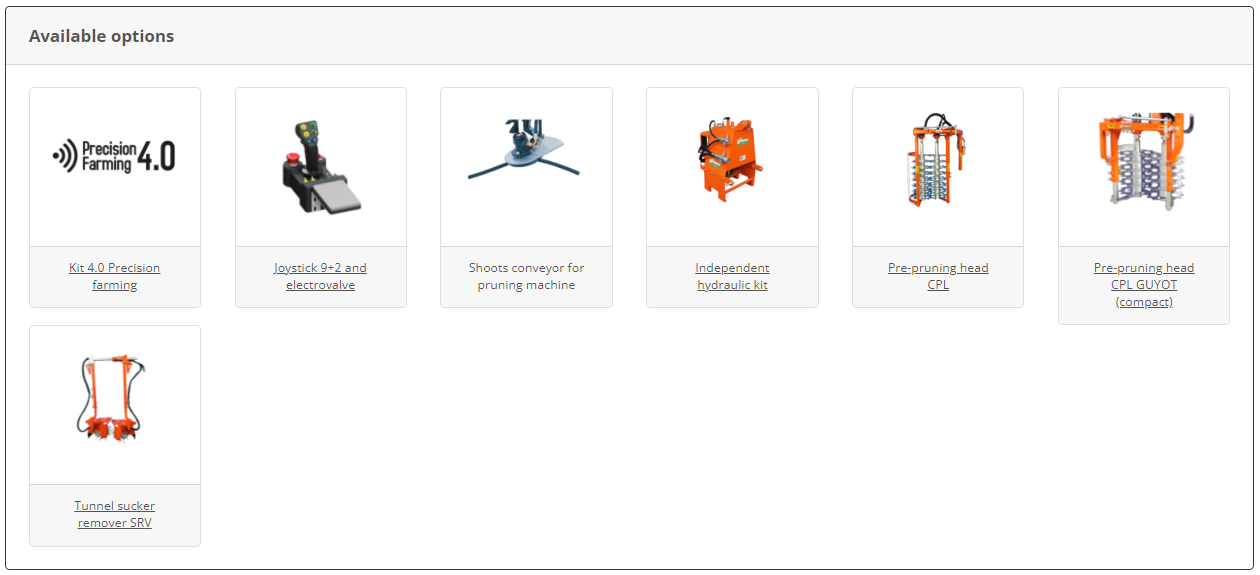

Available Options:
- Precision Farming Kit 4.0
- Joystick 9+2 with electrovalve
- Shoots conveyor for pruning machines
- Independent hydraulic kit
- Pre-pruning head options (CPL, CPL GUYOT)
- Tunnel sucker remover SRV
