RINIERI

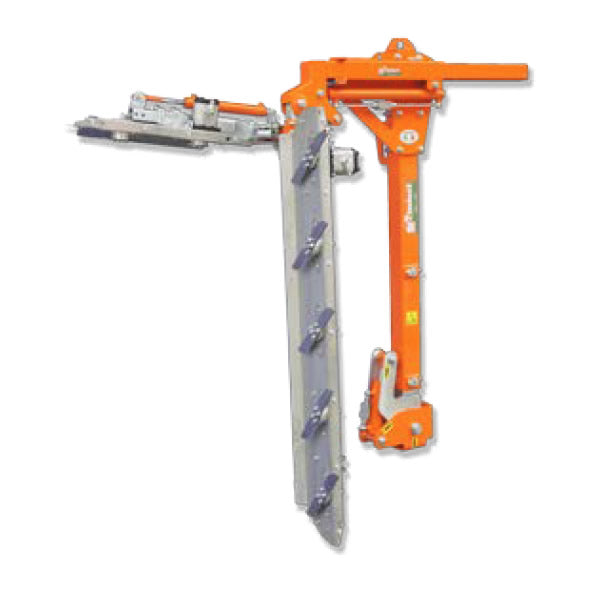

Rinieri Trimmer CRV Tower 1 L With Blades/Hoses | 41"-83" Cutting Width for Tractor

Rinieri Trimmer CRV Tower 1 L With Blades/Hoses | 41"-83" Cutting Width for Tractor

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Hydraulic Lifting: Vertical lift of 27.5" (70 cm) provides precise height adjustments for optimal trimming performance.
  • Vertical Frame Tilt: ±20° hydraulic vertical tilting ensures accurate trimming on uneven ground or varying plant heights.
  • Hydraulic Side Shift: Adjustable side shift enhances maneuverability, allowing operators to position the trimmer with precision.
  • Hydraulic Horizontal Bar Tilt: 90° hydraulic tilt of the horizontal bar allows for flexible cutting angles, perfect for different trimming scenarios.
  • Manual Horizontal Bar Height Adjustment: Adjustable up to 13.8" (35 cm) for customized trimming heights.
  • Manual Vertical Bar Tilt: ±11° manual vertical bar tilt offers added control when fine-tuning cuts.
  • Safety Features: Spring-loaded safety systems for the vertical and topping bars, as well as a maximum pressure valve for motor protection, ensure safe operation.
  • Hydraulic Stand for Storage: Easy-to-use hydraulic stand provides safe and convenient storage when not in use.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

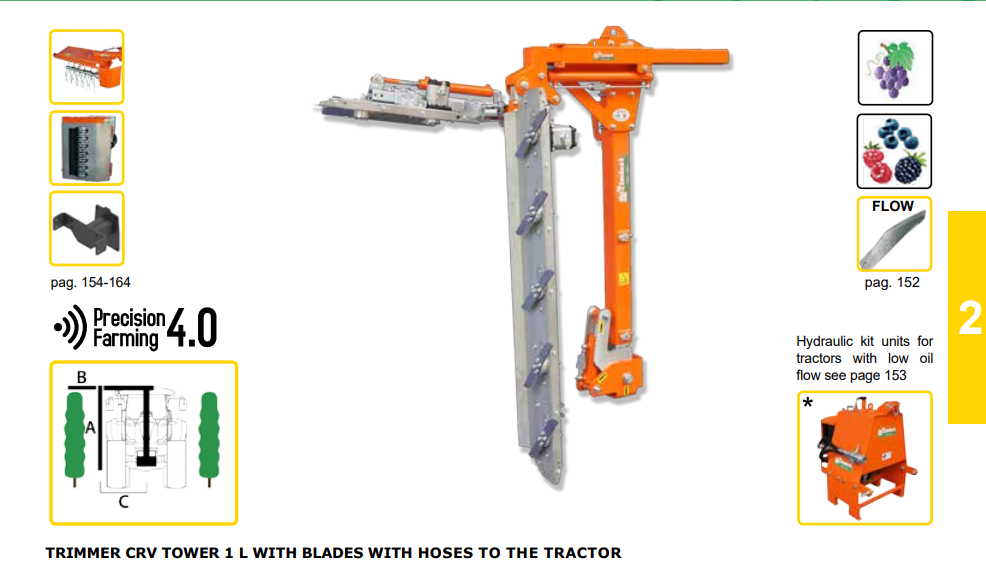

Rinieri Trimmer CRV Tower 1 L With Blades/Hoses | 41"-83" Cutting Width for Tractor

DESCRIPTION

The TRIMMER CRV TOWER-1 L with Blades is engineered for precise, efficient pruning with its robust double-blade cutting bars. Designed for flexibility, the TOWER-1 frame features hydraulic lifting, tilting, and side shift, making it adaptable to various terrains and cutting needs. Its modular design allows for modifications after purchase, while the cutting bars are safeguarded by spring-loaded safety mechanisms for transport and operation. This trimmer supports multiple cutting bar models, including I, L, C, and U, offering versatile options for different agricultural applications.

Key Features

  • Hydraulic Lifting: Vertical lift of 27.5" (70 cm) for optimal height adjustments.
  • Vertical Frame Tilt: Hydraulic vertical tilting of +/- 20° for accurate trimming.
  • Hydraulic Side Shift: Adjustable side shift for enhanced maneuverability.
  • Hydraulic Horizontal Bar Tilt: Horizontal bar tilts 90° for flexible cutting angles.
  • Manual Horizontal Bar Height Adjustment: Adjustable up to 13.8" (35 cm) for precision trimming.
  • Manual Vertical Bar Tilt: Vertical bar tilts +/- 11° manually for added control.
  • Safety Features: Includes spring-loaded safety mechanisms for vertical bars, safety joints for topping bars, and maximum pressure valve for motor protection.
  • Hydraulic Stand for Storage: Safe and convenient storage when not in use.

Detailed Specifications

Specification

Details

Hydraulic Lifting 27.5" (70 cm)
Vertical Frame Tilt +/- 20°
Hydraulic Side Shift Yes
Hydraulic Horizontal Bar Tilt 90°
Manual Horizontal Bar Height Adjustment 13.8" (35 cm)
Manual Vertical Bar Tilt +/- 11°
Hydraulic Requirement 20-30 L/min

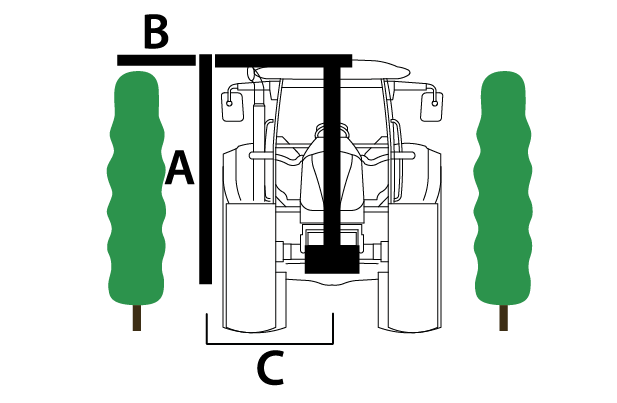

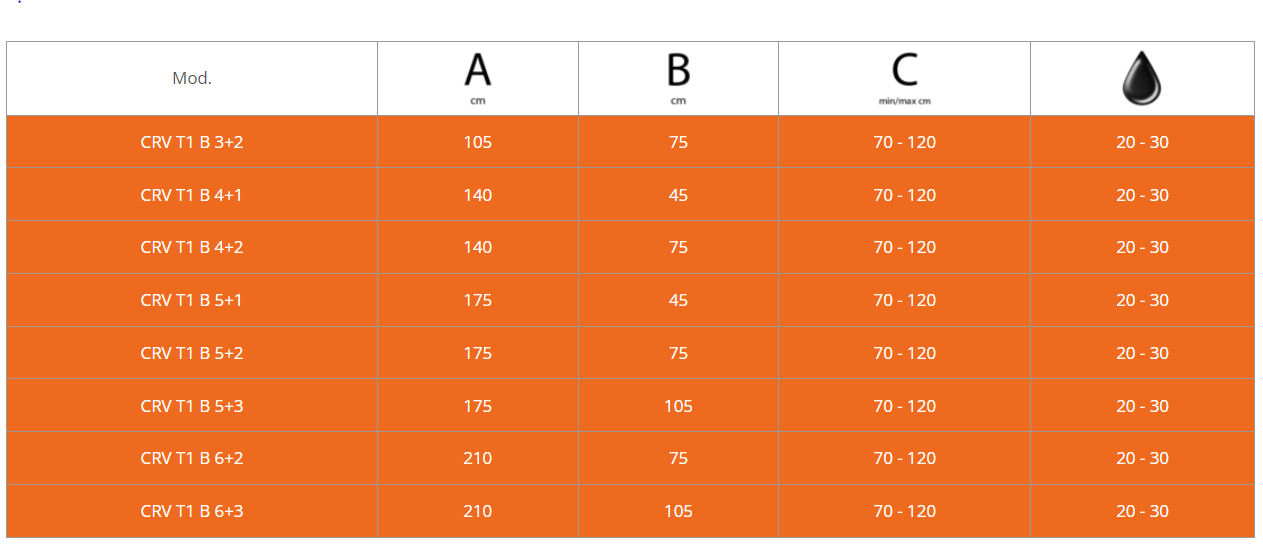

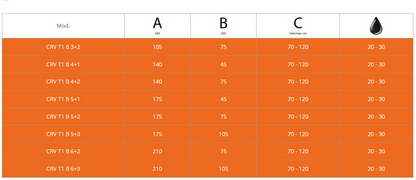

Models

CRV T1 B 3+2 and CRV T1 B 4+1

Specification CRV T1 B 3+2 CRV T1 B 4+1
A (inches) 41.34" 55.12"
B (inches) 29.53" 17.72"
C Min - Max (inches) 27.56" - 47.24" 27.56" - 47.24"
Oil Demand (L/min) 20 - 30 20 - 30



CRV T1 B 4+2 and CRV T1 B 5+1

Specification CRV T1 B 4+2 CRV T1 B 5+1
A (inches) 55.12" 68.90"
B (inches) 29.53" 17.72"
C Min - Max (inches) 27.56" - 47.24" 27.56" - 47.24"
Oil Demand (L/min) 20 - 30 20 - 30



CRV T1 B 5+2 and CRV T1 B 5+3

Specification CRV T1 B 5+2 CRV T1 B 5+3
A (inches) 68.90" 68.90"
B (inches) 29.53" 41.34"
C Min - Max (inches) 27.56" - 47.24" 27.56" - 47.24"
Oil Demand (L/min) 20 - 30 20 - 30



CRV T1 B 6+2 and CRV T1 B 6+3

Specification CRV T1 B 6+2 CRV T1 B 6+3
A (inches) 82.68" 82.68"
B (inches) 29.53" 41.34"
C Min - Max (inches) 27.56" - 47.24" 27.56" - 47.24"
Oil Demand (L/min) 20 - 30 20 - 30




In Package

  • TRIMMER CRV TOWER-1 L with Blades
  • Manual and hydraulic controls for all frame adjustments
  • Spring-loaded safety systems for vertical and topping bars
  • Hydraulic stand for safe storage

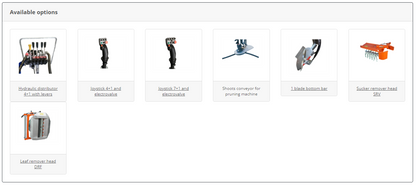

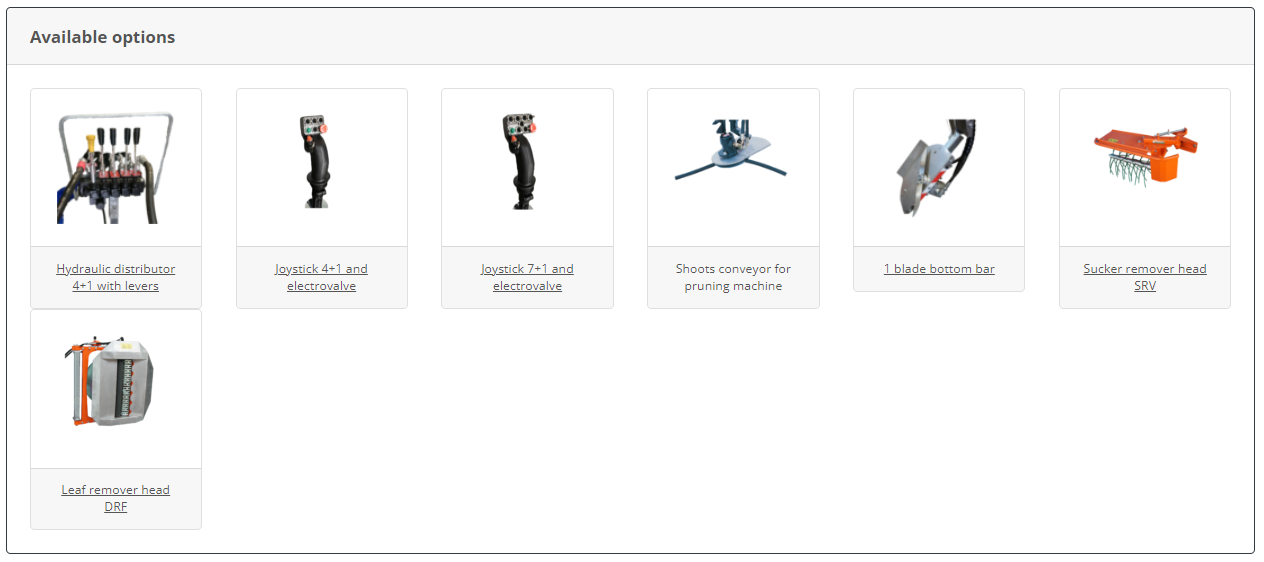

Available Options

  • Hydraulic distributor 4+1 with levers
  • Joystick 4+1 and electrovalve
  • Joystick 7+1 and electrovalve
  • Shoots conveyor for pruning machine
  • 1 blade bottom bar
  • Sucker remover head SRV
  • Leaf remover head DRF

Manuals & Documents

The Product Manual

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

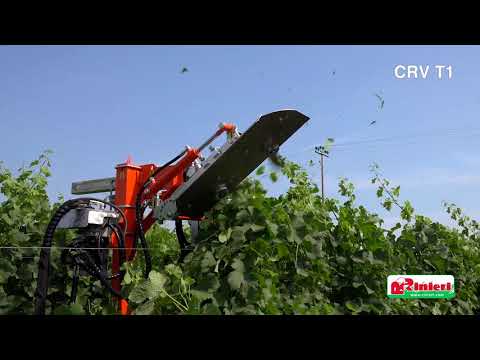

Videos
