Products Description

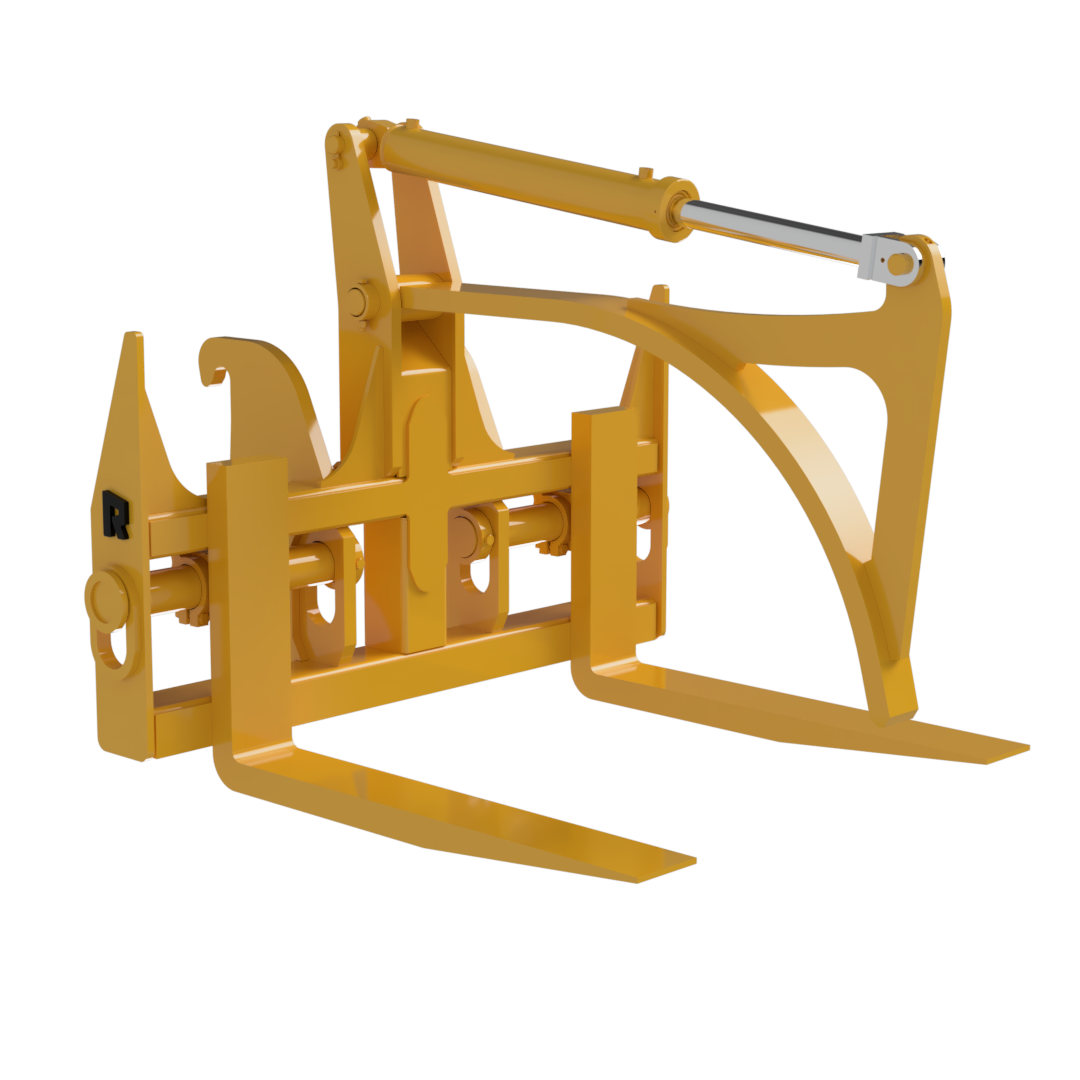

Rockland 10", 20", 30", 40" & 50" LF-1 Log Grapple with Heavy-Duty Cylinder for Loaders
DESCRIPTION

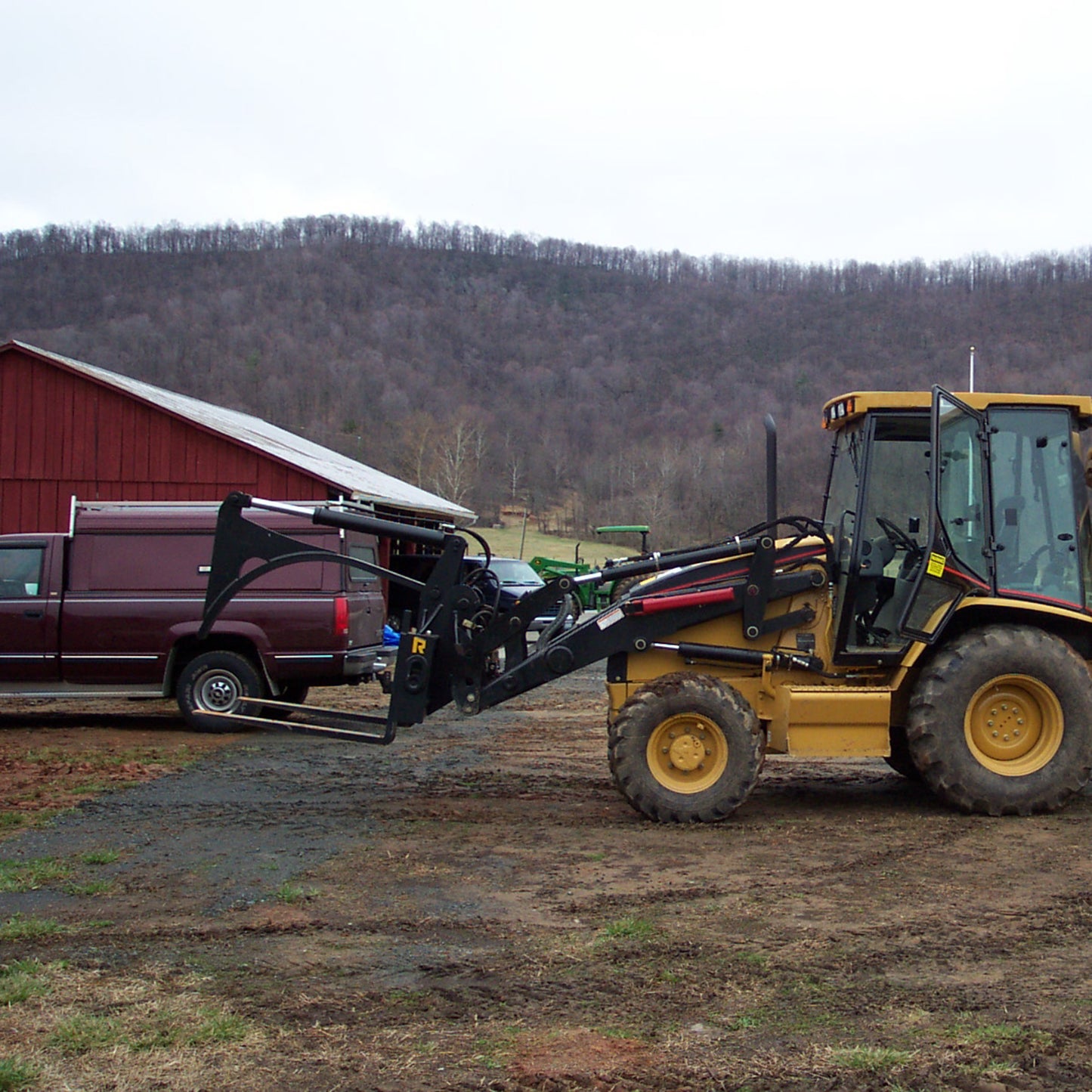

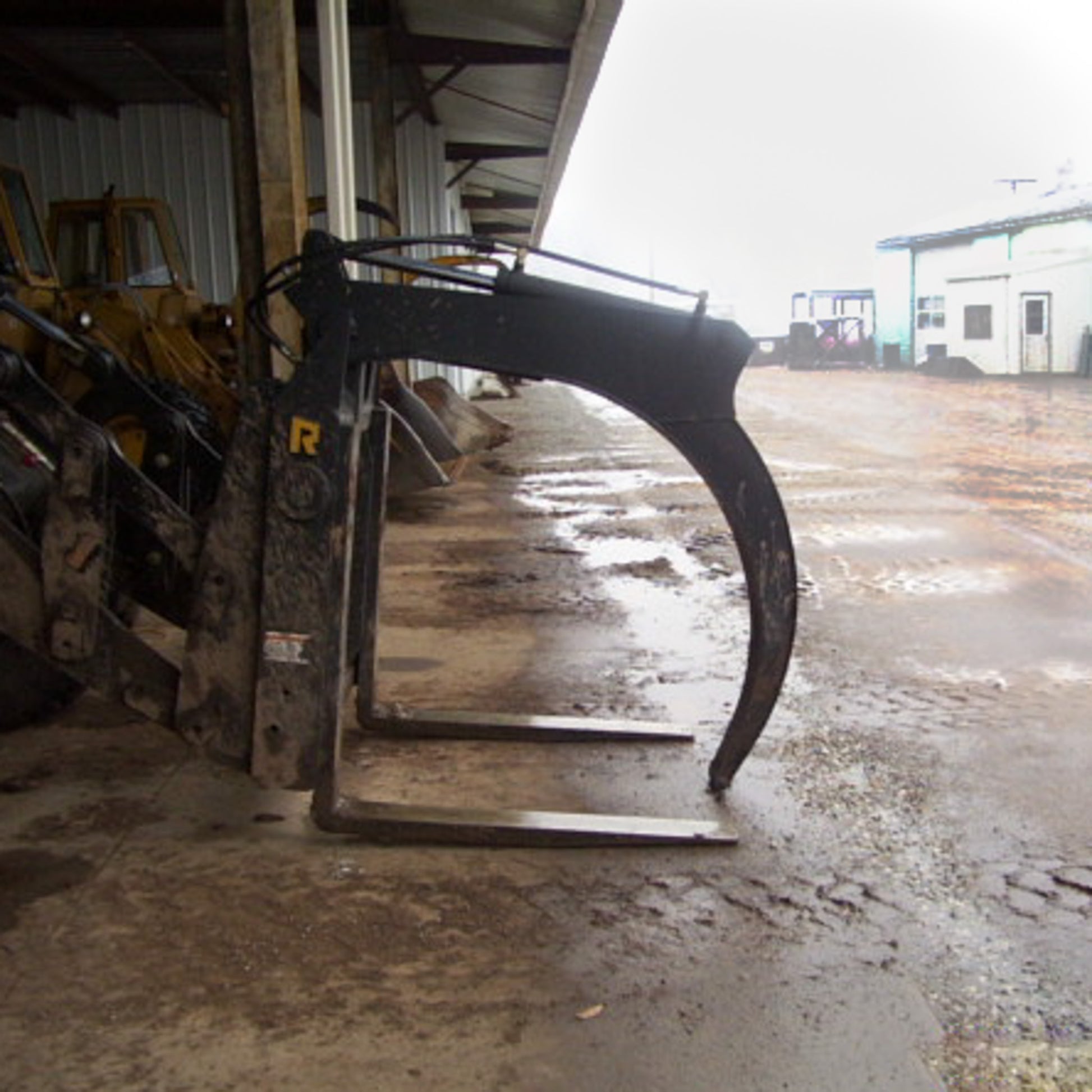

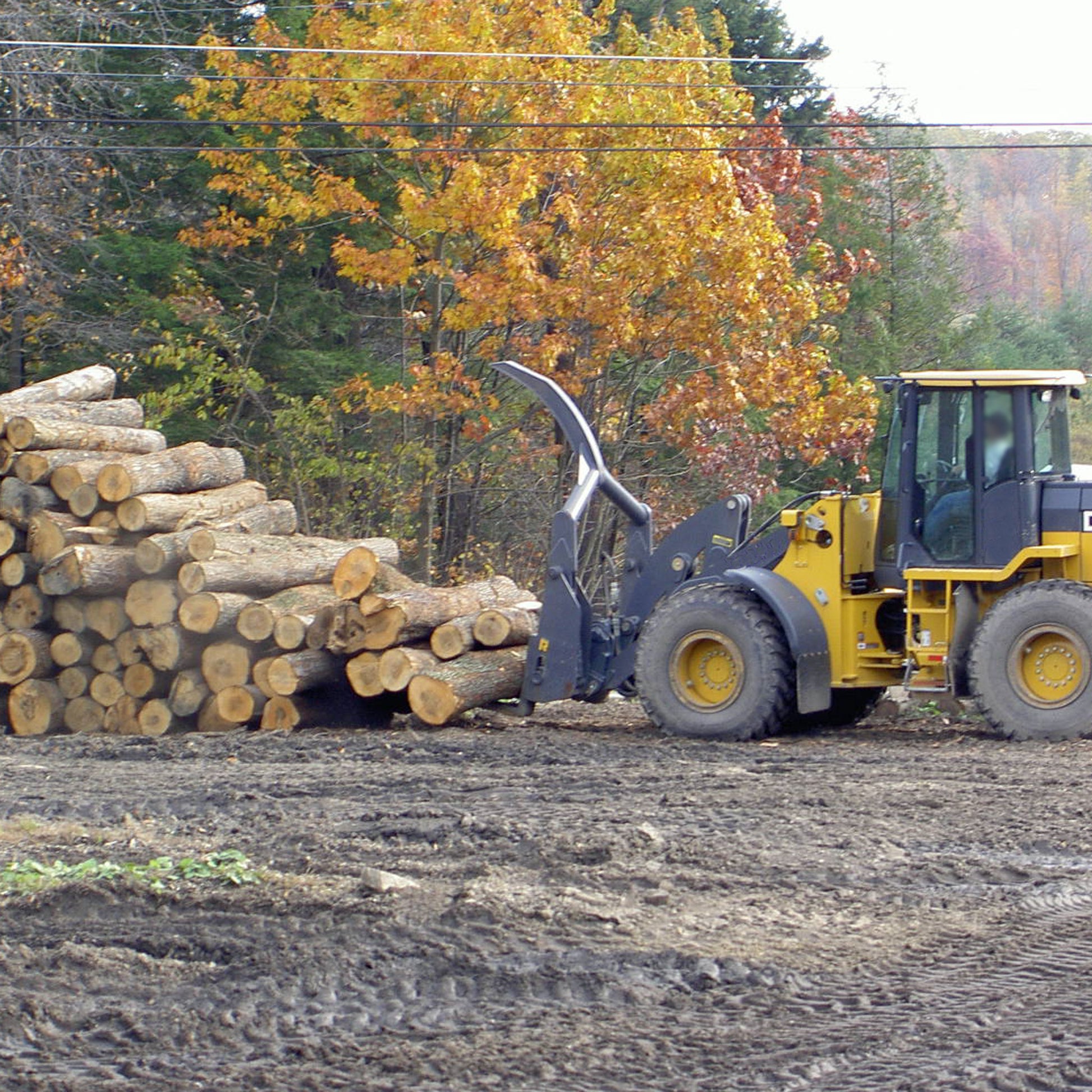

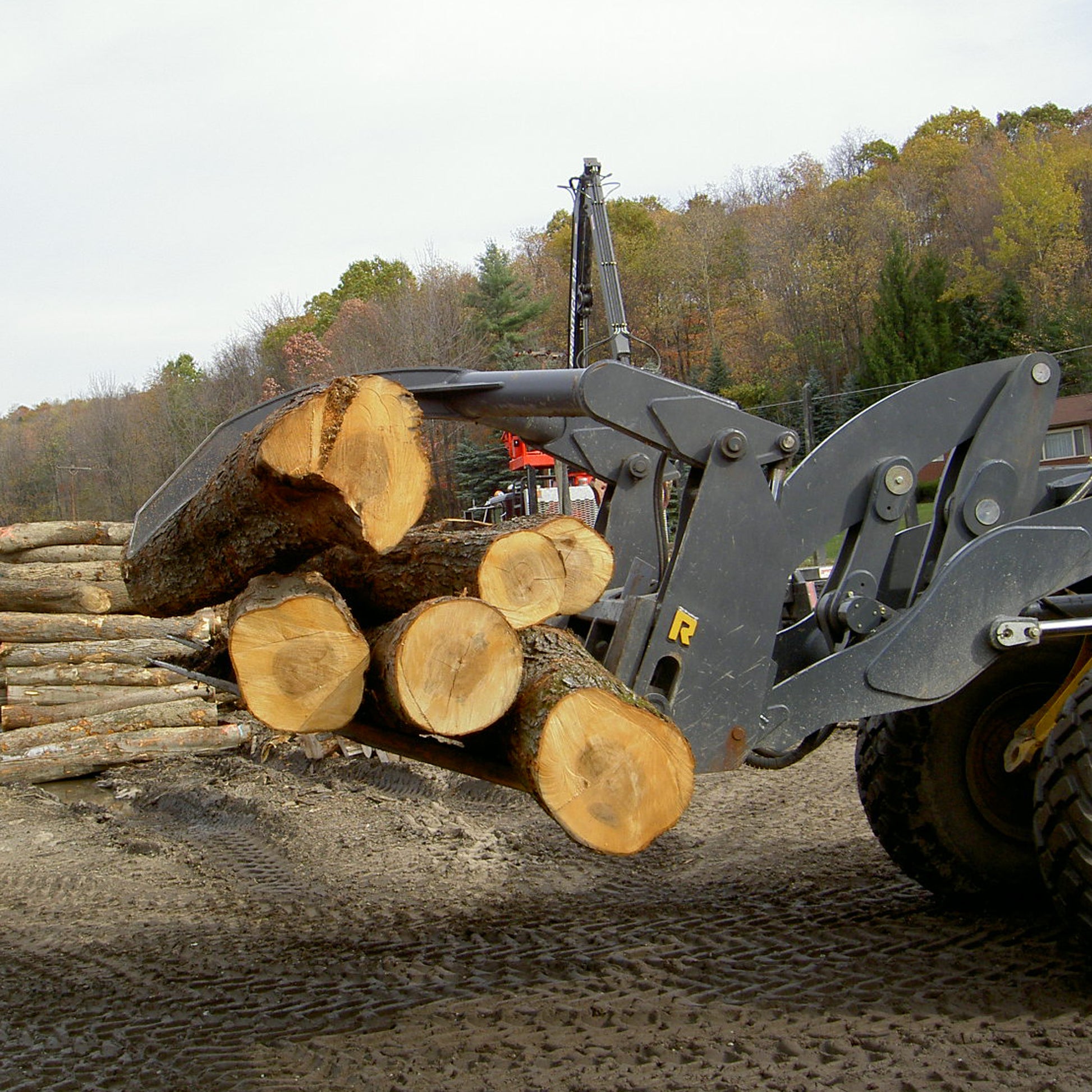

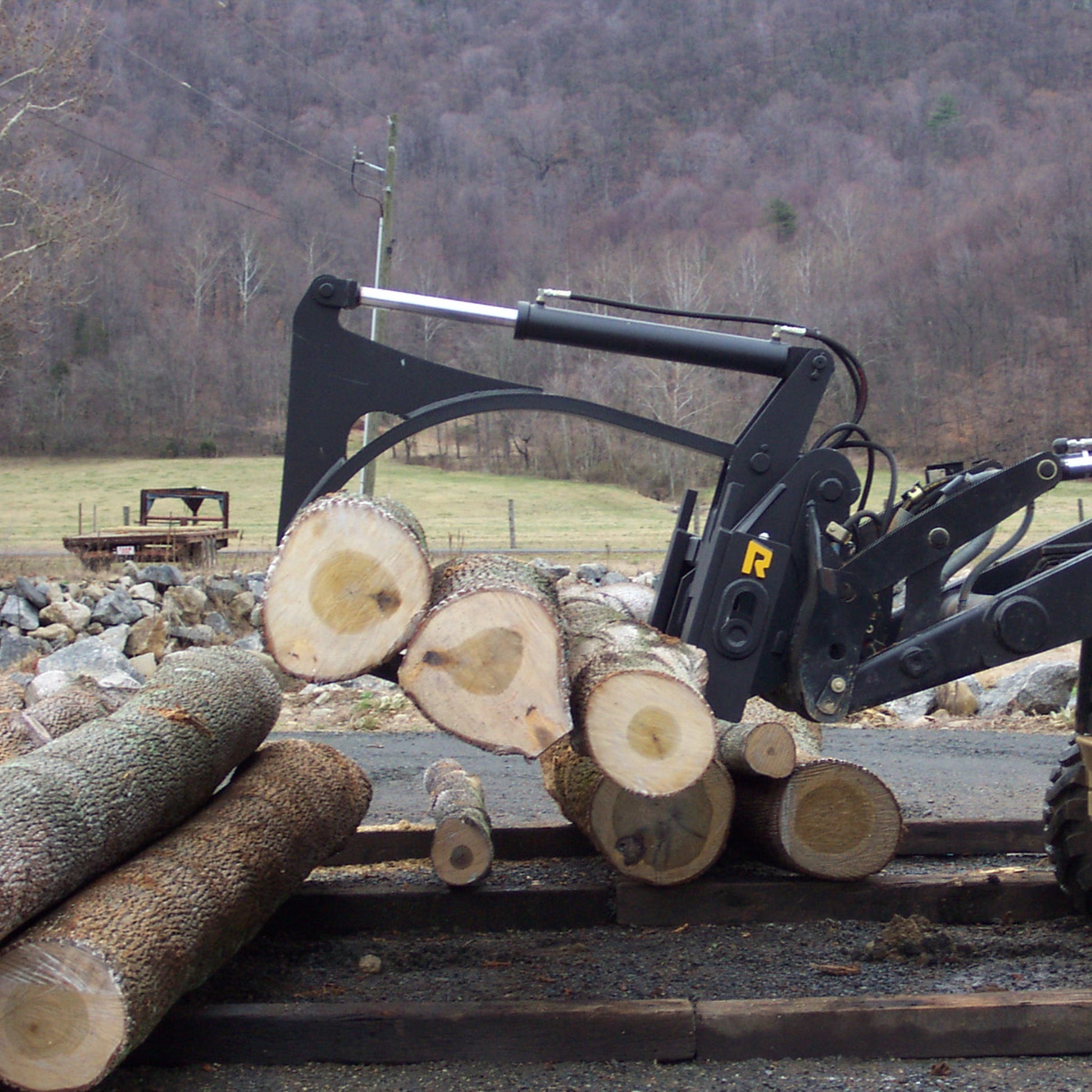

The Rockland LF-1 Log Grapple is engineered for optimal efficiency in log-handling applications. Whether you’re managing timber yards, forestry operations, or sawmills, this grapple offers unparalleled performance and customization.
Equipped with floating tines and a low-profile design, the LF-1 ensures stable handling on uneven terrain and exceptional operator visibility. Choose from multiple models, including the LF-W with a wide clamp for maximum load stability or the lightweight LF-1 for enhanced agility. Built with heavy-duty Rockland cylinders, heat-treated tines, and robust construction, this grapple is designed for demanding applications and long-term reliability.
Key Features
- Enhance flexibility and stability on uneven terrain.
- Allow for easy tine spacing adjustments based on operational needs.
- Float-lock option for fixed, non-floating tines.
- Choice of single-center clamp (LF-1) or wide dual-cylinder clamp (LF-W).
- Forged from high-strength alloy steel for extended lifespan.
- Equipped with heavy-duty cylinders, heat-treated pins, and high-pressure fittings.
- Low-profile backframe design ensures a clear line of sight to tine tips.
- Adjustable rollback angle ensures efficient handling and secure transport.
Detailed Specifications
| Attribute | Value |
|---|---|
| Tine Size | 2 x 6 x 48 (51 x 152) |
| Clamp Opening @ Tip (in.) | 88 |
| Height of Load Area (in.) | 73 |
| Clamp Closure (in.) | 12 |
| Min. Rollback @ Ground (°) | 20° |
| Max. Width Over Tines (in.) | 68 |
| Min. Width Over Tines (in.) | 36 |
| Weight (lbs.) LF/LF-1/LF-W | 1470 / 2210 / 2415 |
| Attribute | Value |
|---|---|
| Tine Size | 2.25 x 6 x 48 (57 x 152) |
| Clamp Opening @ Tip (in.) | 88 |
| Height of Load Area (in.) | 73 |
| Clamp Closure (in.) | 12.5 |
| Min. Rollback @ Ground (°) | 20° |
| Max. Width Over Tines (in.) | 67.5 |
| Min. Width Over Tines (in.) | 36 |
| Weight (lbs.) LF/LF-1/LF-W | 1545 / 2345 / 2625 |
| Attribute | Value |
|---|---|
| Tine Size | 2.75 x 7 x 48 (70 x 178) |
| Clamp Opening @ Tip (in.) | 88 |
| Height of Load Area (in.) | 73 |
| Clamp Closure (in.) | 14 |
| Min. Rollback @ Ground (°) | 20° |
| Max. Width Over Tines (in.) | 67.5 |
| Min. Width Over Tines (in.) | 36 |
| Weight (lbs.) LF/LF-1/LF-W | 2125 / 3070 / 3135 |
| Attribute | Value |
|---|---|
| Tine Size | 3 x 7 x 48 (76 x 178) |
| Clamp Opening @ Tip (in.) | 98 |
| Height of Load Area (in.) | 84 |
| Clamp Closure (in.) | 12.5 |
| Min. Rollback @ Ground (°) | 20° |
| Max. Width Over Tines (in.) | 67.5 |
| Min. Width Over Tines (in.) | 36 |
| Weight (lbs.) LF/LF-1/LF-W | 2565 / 3610 / 3790 |
| Attribute | Value |
|---|---|
| Tine Size | 3.5 x 8 x 60 (89 x 203) |
| Clamp Opening @ Tip (in.) | 100 |
| Height of Load Area (in.) | 85 |
| Clamp Closure (in.) | 12.5 |
| Min. Rollback @ Ground (°) | 20° |
| Max. Width Over Tines (in.) | 66.5 |
| Min. Width Over Tines (in.) | 36 |
| Weight (lbs.) LF/LF-1/LF-W | 3430 / 4720 / 4965 |
In Package
- Rockland LF-1 Log Grapple tailored to your machine category and operational needs.
- Adjustable Floating Tines for efficient handling on uneven terrain.
- Hydraulic Clamp (LF-1 or LF-W): Configured for your preferred application.
- Float-Lock Option (if selected): Provides fixed tines for stability.
- Instruction Manual: Covers setup, operation, and maintenance.
