Rockland 80" to 108" Width MG Millyard Grapple with Backframe for Loaders
Rockland 80" to 108" Width MG Millyard Grapple with Backframe for Loaders
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Products Description

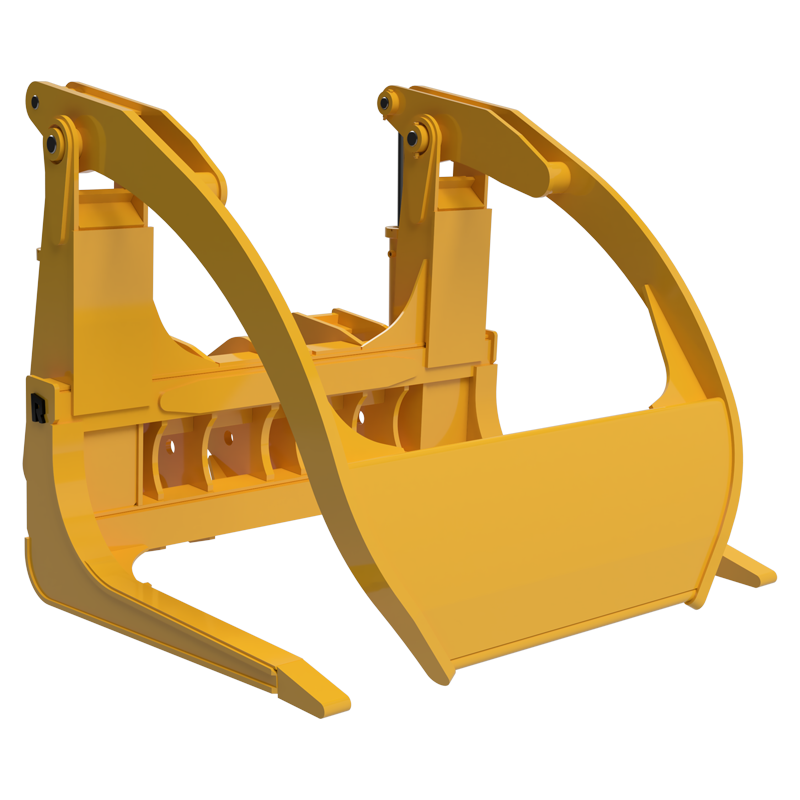

Rockland 80" to 108" Width MG Millyard Grapple with Backframe for Loaders
DESCRIPTION

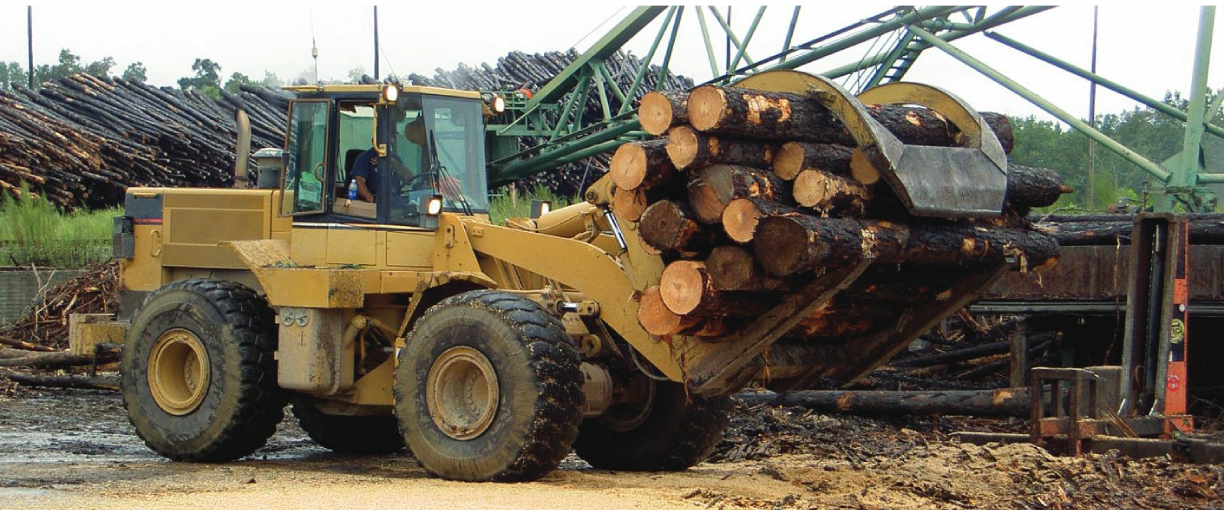

The Rockland Millyard Grapple is purpose-built to enhance efficiency in forestry and millyard applications. Its robust design is tailored to handle large-diameter, cut-to-length logs during loading and unloading processes. The low-profile backframe maximizes operator visibility, while the advanced clamp designs streamline workflow, ensuring safe and effective log handling.
The Millyard Grapple offers two versatile models:
- MLW: Features a wide clamp for managing small and large loads alike.
- ML2: Equipped with dual independent clamps for uneven or irregular loads.
Constructed with weight-saving alloy steel and heavy-duty hydraulic components, the Millyard Grapple delivers durability, precision, and long-lasting performance. Perfect for high-capacity operations, this attachment is essential for optimizing productivity in forestry and industrial settings.
Key Features
- Designed for handling large-diameter, cut-to-length logs, streamlining loading and unloading tasks.
- Low-profile backframe ensures maximum operator visibility, improving safety and precision during operation.
- MLW: Features a wide clamp for handling both small and large loads.
- ML2: Includes dual, independent clamps for managing uneven or irregular loads.
- Equipped with Rockland-built, heavy-duty hydraulic cylinders for consistent and reliable performance in demanding environments.
- Constructed with high-strength, weight-saving alloy steel for enhanced durability and reduced wear over time.
- Offers custom tine spacing, clamp designs, and other options to suit unique operational requirements.
- Unique clamp design allows for efficient handling of single logs or bulk material, improving workflow and productivity.
- Features robust box frame construction with optimized tine-to-clamp relationships for smooth sorting, storing, and loading/unloading operations.
- High-quality hydraulic components with chrome-plated, induction-hardened piston rods and premium seals for extended service life.
Detailed Specifications
Machine Category 20"
| Feature | Details |
|---|---|
| Overall Width | 80" (2032 mm) |
| Tine Width | 3" (76 mm) |
| Min. Clamp Opening | 10" (254 mm) |
| Max. Clamp Opening | 102" (2591 mm) |
| Height to Clamp Pivot | 54" (1372 mm) |
| Tine Length to Backframe | 48" (1219 mm) |
| Weight (MLW) | 2600 lbs (1179 kg) |
Machine Category 30"
| Feature | Details |
|---|---|
| Overall Width | 84" (2134 mm) |
| Tine Width | 3.5" (89 mm) |
| Min. Clamp Opening | 12" (305 mm) |
| Max. Clamp Opening | 106" (2692 mm) |
| Height to Clamp Pivot | 54" (1372 mm) |
| Tine Length to Backframe | 54" (1372 mm) |
| Weight (MLW) | 3200 lbs (1452 kg) |
Machine Category 40"
| Feature | Details |
|---|---|
| Overall Width | 84" (2134 mm) |
| Tine Width | 4.5" (114 mm) |
| Min. Clamp Opening | 12" (305 mm) |
| Max. Clamp Opening | 112" (2845 mm) |
| Height to Clamp Pivot | 60" (1524 mm) |
| Tine Length to Backframe | 54" (1372 mm) |
| Weight (MLW) | 5300 lbs (2404 kg) |
Machine Category 50"
| Feature | Details |
|---|---|
| Overall Width | 87" (2210 mm) |
| Tine Width | 5" (127 mm) |
| Min. Clamp Opening | 14" (356 mm) |
| Max. Clamp Opening | 114" (2896 mm) |
| Height to Clamp Pivot | 66" (1676 mm) |
| Tine Length to Backframe | 60" (1524 mm) |
| Weight (MLW) | 5300 lbs (2404 kg) |
In Package
- Rockland Millyard Grapple in your selected model and size.
- Heavy-duty hydraulic cylinders with chrome-plated, induction-hardened piston rods.
- Installation guide and mounting hardware for seamless setup.
- Custom options tailored to your operational requirements.
