Product Description
Rockland Clamp Bucket | Model GPC & LBC Clamp Bucket | Bucket Width 90" To 168" inches | Capacity 1-15 Cubic Yard | For Loaders
Description

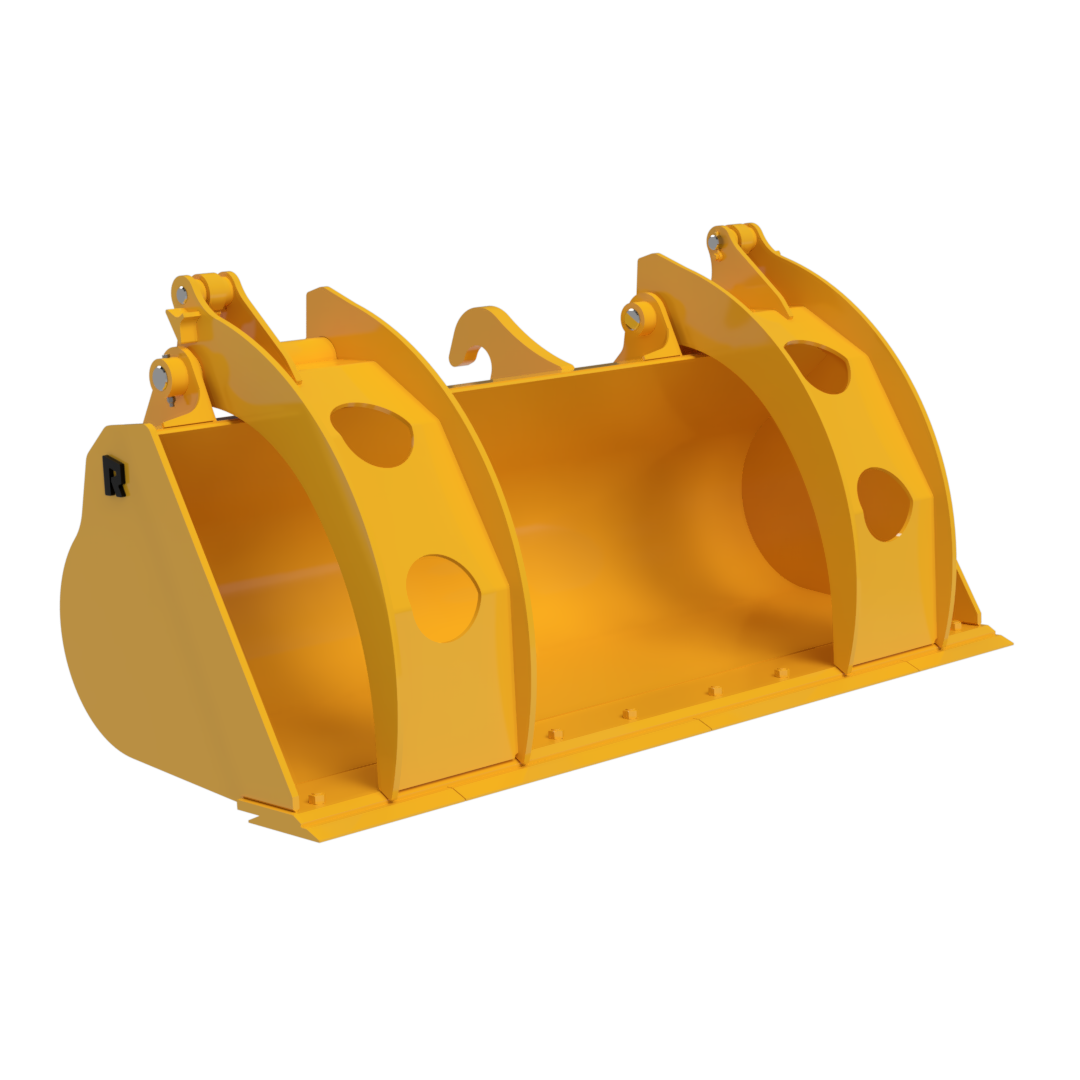

The Rockland Clamp Bucket is an adaptable and long-lasting attachment that comes in two different styles: Light Material and General Purpose. Rockland-built, cushioned cylinders deliver years of dependability, while built-in mechanical stops prevent cylinder damage. Consistently outperform conventional buckets with the Clamp Bucket’s wide dual clamps that give you a firm grip on every load. The clamps open behind the cutting edge to protect cylinders, and the bucket is equipped with reversible bolt-on cutting edges. The clamp widths are proportional to bucket widths, and linked clamps are also available. Additional options, such as rubber-cutting edges, are also available upon request.
Key Features
- Clamp Width: Proportional to bucket width, with special clamps available for unique applications.
- Material: Built from weight-saving, high-strength alloy steels.
- Cutting Edges: Standard bolt-on cutting edges, with optional rubber bolt-on edges and customizable teeth.
- Customization: Custom clamps and bucket profiles available for tailored solutions.
-
Hydraulic Cylinders: Heavy-duty, high-pressure hydraulic cylinders featuring:
- Induction hardened chrome plated rods
- Oversize pins
- Heat-treated bushings
- High-pressure hydraulic hoses
- Compatibility: Comes complete with hoses that connect to standard OEM hydraulics.
Detailed Specifications
Here is a comparison chart for GPC Clamp Buckets:
| Category | Capacity (Yd³) | Width (in) | Clamp Width (in) | Weight (lbs) |
|---|---|---|---|---|
| 5 | 1 | 90 (2286 mm) | 16 (406 mm) | 1880 (853 kg) |
| 5 | 0.76 | 96 (2438 mm) | 16 (406 mm) | 2160 (980 kg) |
| 10 | 1.25 | 96 (2438 mm) | 16 (406 mm) | 2210 (1002 kg) |
| 10 | 0.96 | 100 (2540 mm) | 18 (457 mm) | 2400 (1089 kg) |
| 20 | 1.25 | 96 (2438 mm) | 16 (406 mm) | 2775 (1259 kg) |
| 20 | 1.5 | 100 (2540 mm) | 18 (457 mm) | 3175 (1440 kg) |
| 30 | 1.15 | 106 (2692 mm) | 18 (457 mm) | 3775 (1712 kg) |
| 30 | 1.53 | 106 (2692 mm) | 18 (457 mm) | 4125 (457 kg) |
| 40 | 1.72 | 108 (2743 mm) | 18 (457 mm) | 4590 (2082 kg) |
| 40 | 1.91 | 108 (2743 mm) | 18 (457 mm) | 4760 (2159 kg) |
| 50 | 2.29 | 120 (3048 mm) | 20 (508 mm) | 6190 (2808 kg) |
| 50 | 2.68 | 126 (3200 mm) | 20 (508 mm) | 6500 (2948 kg) |
| 60 | 2.87 | 126 (3200 mm) | 20 (508 mm) | 6750 (1667 kg) |
| 60 | 3.25 | 136 (3454 mm) | 24 (610 mm) | 7100 (3221 kg) |
| 70 | 3.44 | 136 (3454 mm) | 24 (610 mm) | 8000 (3629 kg) |
| 70 | 3.82 | 136 (3454 mm) | 24 (610 mm) | 8200 (3720 kg) |
| 80 | 4.21 | 148 (3759 mm) | 24 (610 mm) | 9075 (4116 kg) |
| 80 | 4.59 | 148 (3759 mm) | 24 (610 mm) | 9540 (4327 kg) |
| 90 | 4.97 | 156 (3962 mm) | 28 (711 mm) | 10265 (4656 kg) |
| 90 | 5.35 | 156 (3962 mm) | 28 (711 mm) | 11550 (5239 kg) |
Comparison chart for LBC Clamp Buckets:
| Category | Capacity (Yd³) | Width (in) | Clamp Width (in) | Weight (lbs) |
|---|---|---|---|---|
| 5 | 2.0 | 90 (2286 mm) | 16 (406 mm) | 2300 (1043 kg) |
| 5 | 1.53 | 96 (2438 mm) | 16 (406 mm) | 2425 (1100 kg) |
| 10 | 2.25 | 96 (2438 mm) | 16 (406 mm) | 2500 (1134 kg) |
| 10 | 1.72 | 96 (2438 mm) | 16 (406 mm) | 2600 (1179 kg) |
| 20 | 2.25 | 96 (2438 mm) | 18 (457 mm) | 3900 (1769 kg) |
| 20 | 1.72 | 100 (2540 mm) | 18 (457 mm) | 4200 (1905 kg) |
| 30 | 2.5 | 106 (2692 mm) | 18 (457 mm) | 4350 (1973 kg) |
| 30 | 1.91 | 108 (2743 mm) | 18 (457 mm) | 4500 (2041 kg) |
| 40 | 3.5 | 112 (2845 mm) | 20 (508 mm) | 4700 (2132 kg) |
| 40 | 2.68 | 120 (3048 mm) | 20 (508 mm) | 5000 (2268 kg) |
| 50 | 3.75 | 126 (3200 mm) | 20 (508 mm) | 6470 (2935 kg) |
| 50 | 2.87 | 136 (3454 mm) | 24 (610 mm) | 7020 (3184 kg) |
| 60 | 4.0 | 144 (3658 mm) | 24 (610 mm) | 7600 (3447 kg) |
| 60 | 3.06 | 144 (3658 mm) | 24 (610 mm) | 8500 (3856 kg) |
| 70 | 4.25 | 158 (4013 mm) | 28 (711 mm) | 8700 (3946 kg) |
| 70 | 3.25 | 158 (4013 mm) | 28 (711 mm) | 9030 (4096 kg) |
| 80 | 4.5 | 158 (4013 mm) | 28 (711 mm) | 10000 (4536 kg) |
| 80 | 3.44 | 158 (4013 mm) | 28 (711 mm) | 10235 (4643 kg) |
| 90 | 5.0 | 168 (4267 mm) | 30 (762 mm) | 11775 (5341 kg) |
| 90 | 3.82 | 168 (4267 mm) | 30 (762 mm) | 12275 (5568 kg) |
Manual & Documents
- General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

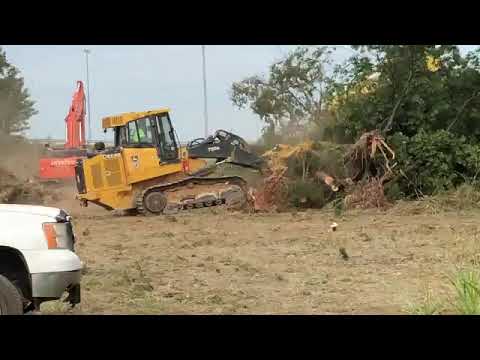

Videos
