Rockland H23 Extreme Duty Grapple | Machine Operating Weight 52k To 200k | Height 72", 75", 83", 90" & 93" inches | For Excavators

Rockland H23 Extreme Duty Grapple | Machine Operating Weight 52k To 200k | Height 72", 75", 83", 90" & 93" inches | For Excavators

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Tine Tip Serrations and Heavy-Duty Rock Strips: These are located on the face of the grapple to maximize gripping power while preventing wear.
  • Narrow Two-Tine Top Clamp and Three-Tine Bottom Clamp: This design maximizes gripping and ripping power, ensuring efficient handling of materials.
  • Independent Pivot Pins: These prevent the grapple halves from separating when removed, saving time and increasing safety during installation and removal.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Rockland H23 Extreme Duty Grapple | Machine Operating Weight 52k To 200k | Height 72", 75", 83", 90" &  93" inches | For Excavators

Description

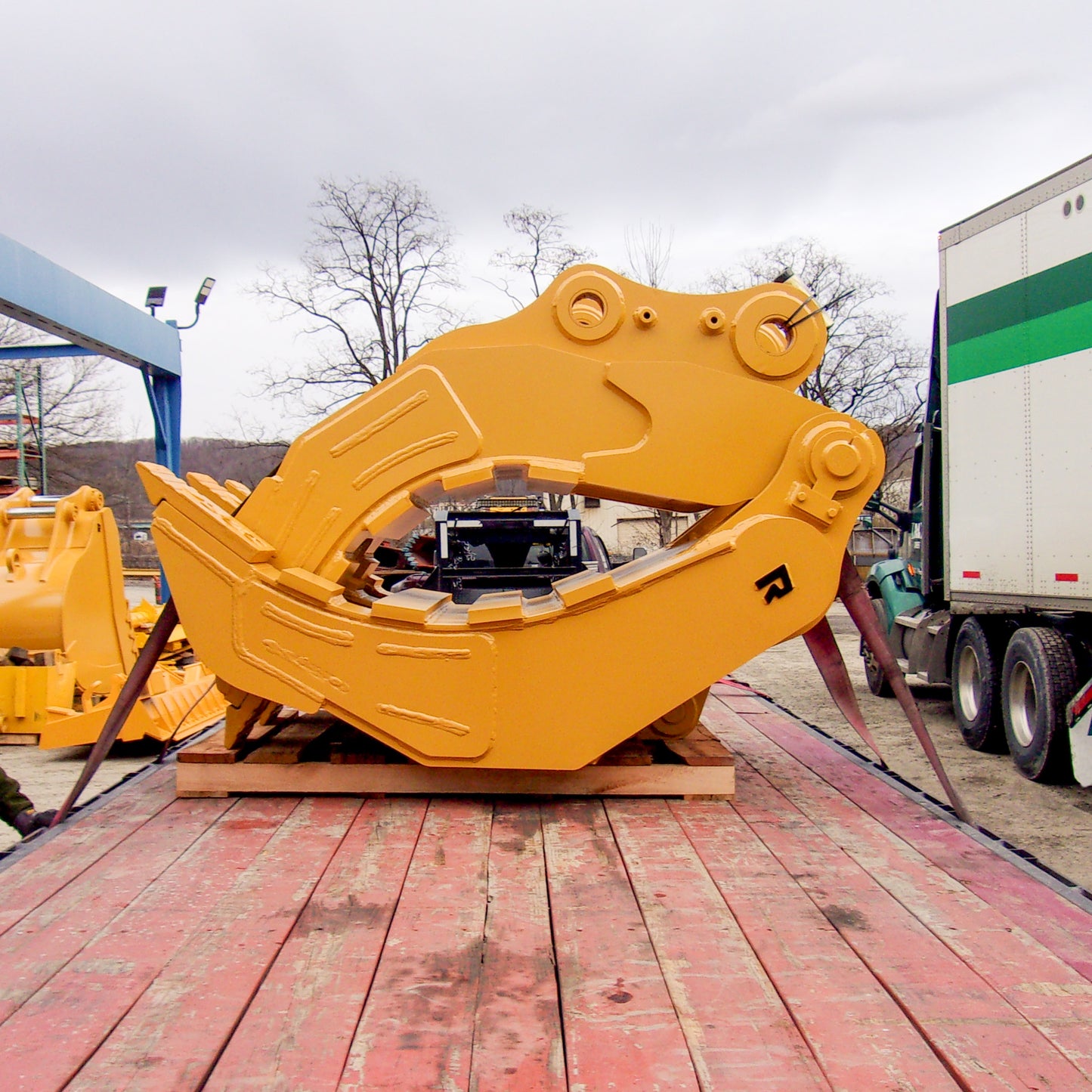

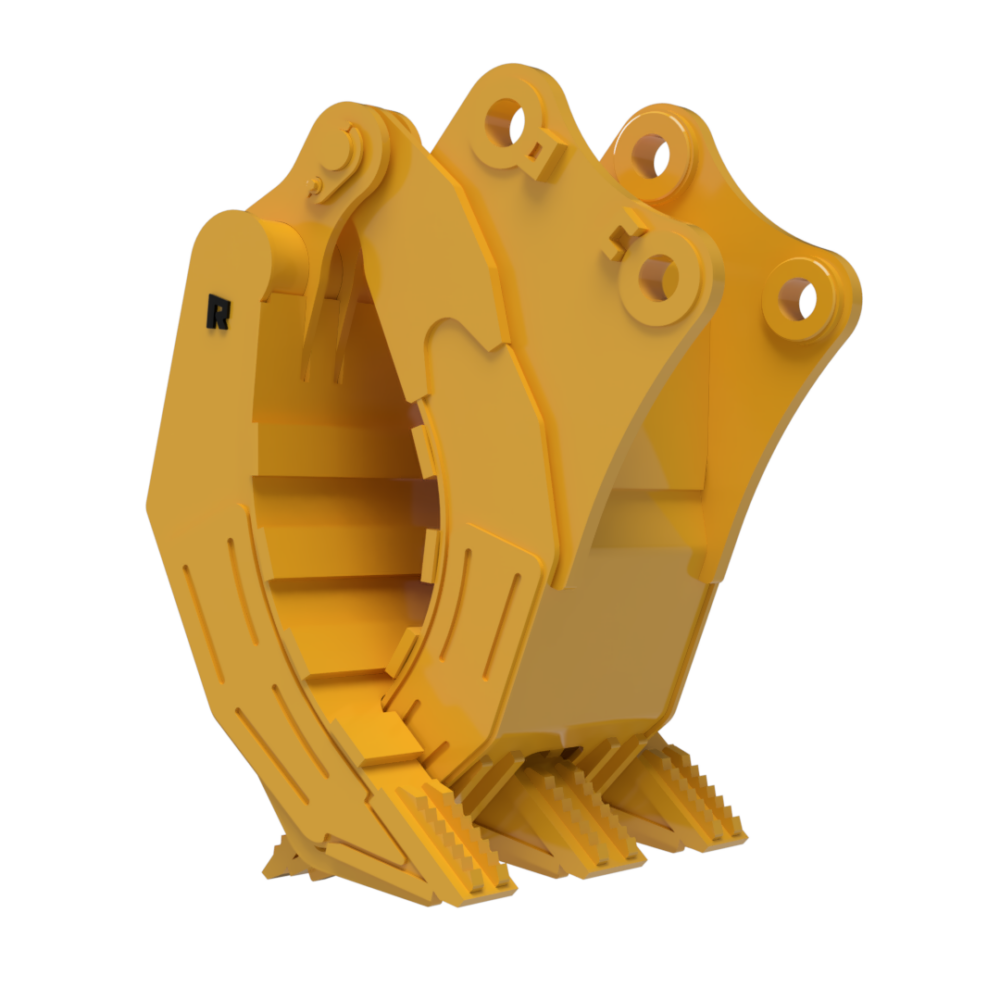

Expect ultimate strength, durability, and reliability through the roughest of working conditions with Rockland’s H23 Extreme Duty Grapple. From rocks and boulders to intense demolition work, this attachment, complete with an AR400 wear package and enhanced structural bracing, is the strongest, most rugged grapple on the market.

The narrow two-tine top and three-tine bottom clamps maximize gripping power, while the tine tip serrations and heavy-duty Rock Strips are placed on the face of the grapple to increase hold and prevent wear. Plus, with independent pivot pins eliminating grapple halves from separating during maintenance or removal, you’ll save time and improve safety at each step.

Key Features

  • Tine Tip Serrations and Heavy-Duty Rock Strips: These are located on the face of the grapple to maximize gripping power while preventing wear.
  • Narrow Two-Tine Top Clamp and Three-Tine Bottom Clamp: This design maximizes gripping and ripping power, ensuring efficient handling of materials.
  • Independent Pivot Pins: These prevent the grapple halves from separating when removed, saving time and increasing safety during installation and removal.
  • Complete AR400 Wear Package and Enhanced Structural Bracing: These elements make this grapple the strongest, most rugged option on the market, built to withstand the toughest conditions.

Detailed Specifications

MACHINE OPERATING WEIGHT (LBS) MAX OPENING (IN) MIN OPENING (IN) HEIGHT CLOSED (IN) UPPER JAW WIDTH (IN) LOWER JAW WIDTH (IN) WEIGHT (LBS)
52,001-70,000 115 11 72 45 31 4,570
70,001-90,000 118 13 75 49 33 6,605
90,001-110,000 145 15 83 53 35 9,080
110,001-160,000 155 15 90 60 39 11,865
160,001-200,000 159 16 93 61 39 13,380

Manual & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
