Product Description

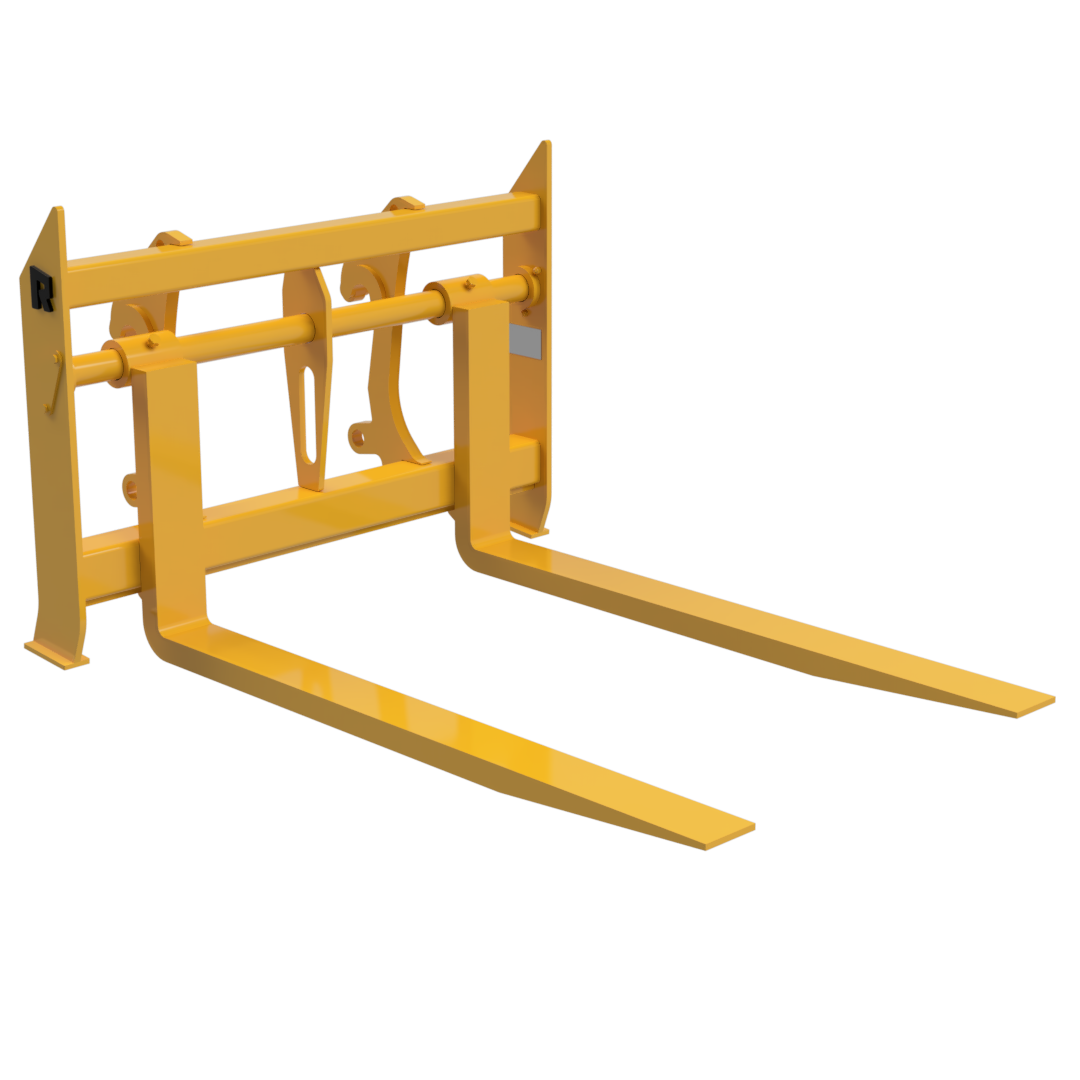

Rockland Heavy Duty Construction Fork | Sizes 2.5” to 4.5” | Loading Rate up to 122,300 lbs | Lengths 48” to 96” | For Loaders & Skid Steer
Description
Gear up for heavy-duty action with the Rockland Heavy Duty Construction Fork, purpose-built to handle anything your machine throws its way. Equipped with breakout force-rated tines, this beast is ready for demanding applications, from oil field work to heavy lifting tasks. With heavy-duty tine shafts and fully welded tine bosses, you’re guaranteed years of reliable performance. Stay in control, prevent operator errors, and enhance safety with tines that stay close to the frame. Simple and fast tine adjustments mean more convenience and higher efficiency all around.
Key Features
- Sizes: 2.5” to 4.5”
- Loading Rate: up to 122,300 lbs
- Lengths: 48” to 96”
- Perfect for demanding applications such as oil fieldwork and heavy lifting
- Breakout force rated tines ensure reliable performance under heavy loads
- Heavy-duty tine shaft and fully welded tine bosses deliver years of dependable performance
- Tines always stay close to the frame, even when dumping, preventing operator error and improving safety
- Simple and fast tine adjustment means more loading and less struggling with hard-to-move tines
- Many tine lengths and frame widths available to suit any application
Detailed Specifications
| Attribute | Category 5/10 | Category 20/30/40 | Category 50/60 | Category 70/80 | Category 90 |
|---|---|---|---|---|---|
| Straight Tip Load (Lbs.) | 0 - 16,700 | 16,700 - 27,000 | 27,000 - 42,500 | 42,500 - 64,000 | 64,000 - 79,000 |
| Tine Size (In.) | 2.5" Thick x 6" Width | 3" Thick x 7" Width | 3.5" Thick x 8" Width | 4" Thick x 8" Width | 4.5" Thick x 12" Width |
| Tine Load Rating at 24” Center (Lbs.) | 21,150 | 33,000 | 53,000 | 67,000 | 122,300 |
| Backframe Height (In.) | 45.5 | 48.5 | 55 | 56 | 62.5 |
| Tine Lengths (In.) | 48, 60, 72, 84, 96 | 60, 72, 84, 96 | 60, 72, 84, 96 | 60, 72, 84, 96 | 60, 72, 84, 96 |
| Backframe Width (In.) | 60, 72, 84, 96, 102, 106 | 60, 72, 84, 96, 102, 106 | 72, 84, 96, 102, 106 | 72, 84, 96, 102, 106 | 72, 84, 96, 102, 106 |
