Product Description

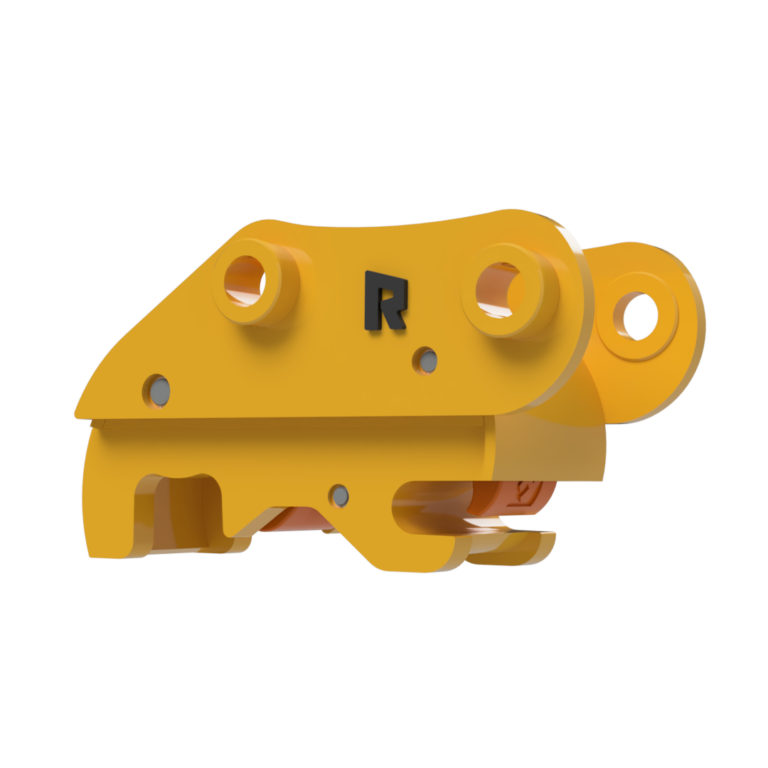

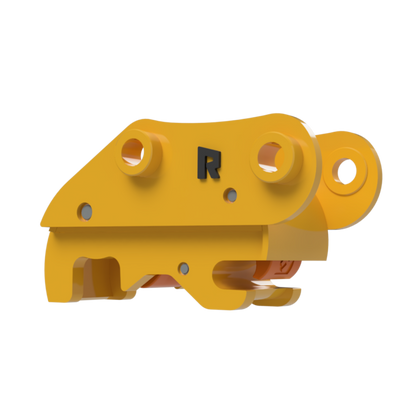

Rockland HKR Excavator Coupler | Machine Weight 15,001 to 110,000 lbs | Pick-up Pin Size 45mm to 100mm | Bottom Coupler Width 6.4" to 15.75" | For Excavators
Description
The ideal excavator coupler should be safe, strong, and simple. The Rockland HKR Excavator Coupler is exactly that and sets a new standard for excavator coupler excellence. With one of the widest pick-up ranges on the market, Rockland’s HKR Excavator Coupler is the ideal solution for quick and easy attachment changes on multiple pin diameters. Fully compliant with ISO standard 13031, it’s also the safest coupler on the market, able to release only in a safe position and retain attachments even in the event of a complete hydraulic failure. The unique front and rear hooks offer 100% pin coverage on both pins, and with only three moving parts and no regular adjustments needed, this coupler makes for incredibly simple and reliable use.
Safety comes first, and the HKR complies with BSEN 474 and is expected to comply with the forthcoming ISO 13031 global standard. The coupler can’t open until curled and moved close to the machine, a critical safety feature that increases operator confidence.
Strong and simple - that’s the rugged Rockland HKR coupler. One quick look will tell you this is one well-built coupler. Cast alloy pin hooks and the high-strength alloy plate frame withstand full excavator breakout forces year after year. Simplicity keeps the hoses between the excavator links for maximum protection. Safety features are built-in, not bolted on. Simplicity means nothing to adjust or maintain, which is a big plus. When you compare couplers, the Rockland difference is obviously the safe choice for your excavator.
Key Features
- Wide Pick-Up Range: Suitable for various pin diameters, making attachment changes quick and easy.
- ISO Standard 13031 Compliance: Ensures the highest safety standards are met.
- Safety Mechanism: Releases only in a safe position and retains attachments even during hydraulic failure.
- Unique Front and Rear Hooks: Provides 100% pin coverage on both pins.
- Minimal Moving Parts: Only three moving parts, reducing the need for regular adjustments.
- Reliability: Simple and dependable operation for various applications.
- Built-In Safety Features: Primary safety system consists of cast steel hooks powered by a single high-pressure hydraulic cylinder.
- Durability: High-strength alloy plate frame withstands full excavator breakout forces.
- Smart Valve: Prevents unsafe attachment release, ensuring complete safety.
Detailed Specifications
| Machine Weight (lbs) | Pick-up Pin Size | Bottom Coupler Width (in) | Pin Center Pick-up Range (in) | Weight (lbs) |
|---|---|---|---|---|
| 15,001 to 25,000 | 45mm or 50mm | 6-2/5 or 7-1/4 | 11 to 14 | 275 |
| 25,001 to 33,000 | 60mm or 65mm | 8-5/8 or 9-13/16 | 13-5/8 to 17-1/8 | 505 |
| 33,001 to 40,000 | 70mm or 80mm | 10-15/16 or 11-3/4 | 15-3/16 to 20-1/8 | 810 |
| 40,001 to 52,000 | 80mm | 10-15/16 or 11-3/4 | 15-3/16 to 20-1/8 | 840 |
| 52,001 to 70,000 | 80mm | 11-3/4 | 15-3/16 to 20-1/8 | 1455 |
| 70,001 to 90,000 | 90mm | 14-3/8 | 17-15/16 to 22-1/2 | 1830 |
| 90,001 to 110,000 | 90mm or 100mm | 15-3/4 | - |
