Product Description

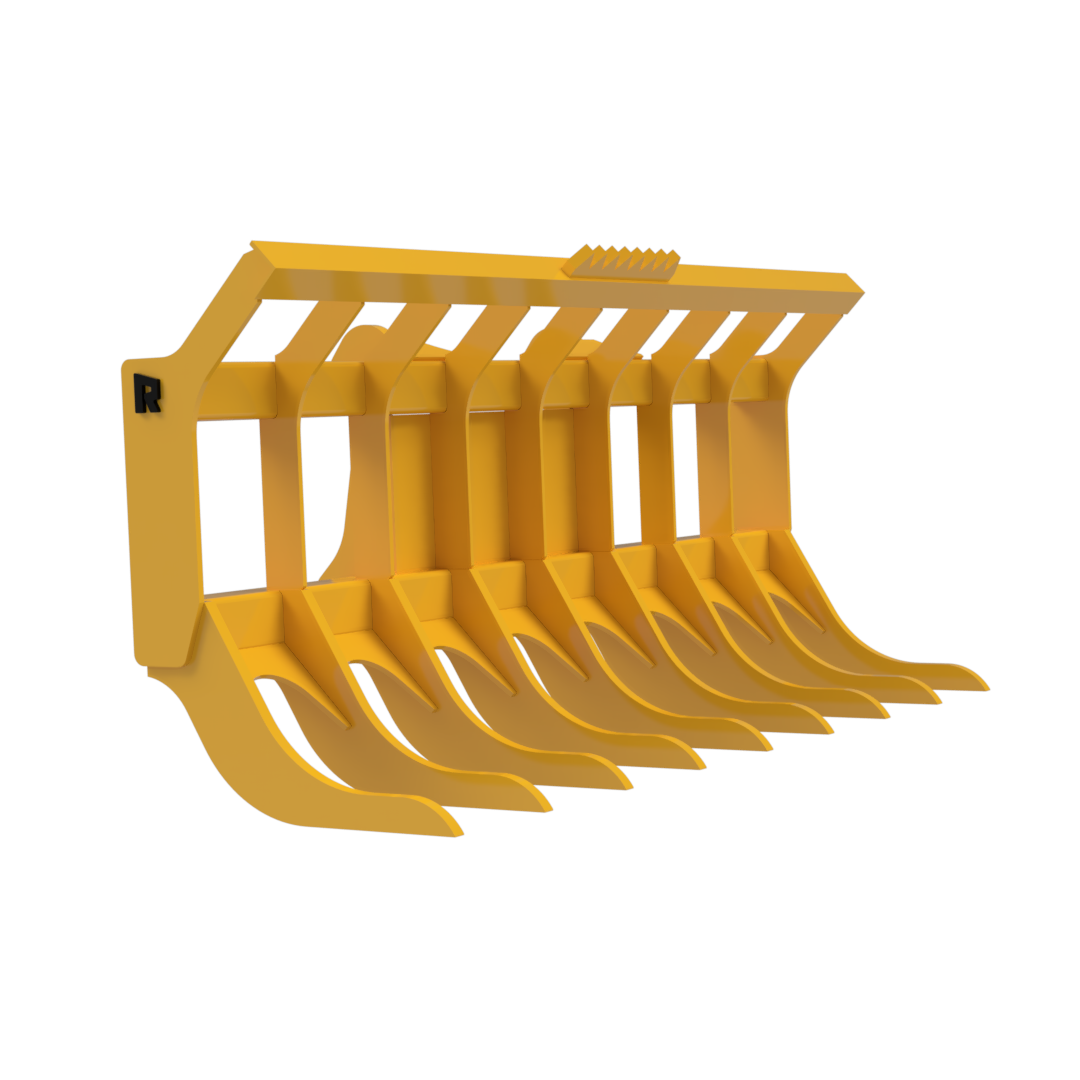

Rockland Loader Rake | Raking Width 67" To 139" inches | Weight 880 To 6,650 Lbs | For Loaders
Description
Turn your wheel loader into a land clearing powerhouse with Rockland’s Loader Rake. Built entirely of lightweight, high-strength alloy steel, this attachment digs, rolls, stacks, and loads material with ease. The rugged brush guard equipped with a center-mounted push bar allows you to trap and dig into tall trees with ease. With tough, curved teeth, watch how your machine’s carrying capacity is maximized with every pass. For an extra oomph, custom rake spacing, logos, and wear parts are available upon request.
Key Features
Efficiency and Versatility:
- Improved Leverage: The rake can be raised and tilted forward to exert leverage on tree trunks, making it easier to tip trees and expose roots.
- Multi-Purpose Use: With the same machine, you can dig and load stumps, build windrows for burning, and reduce cleanup time.
Durability and Strength:
- High-Strength Teeth: The rake's long teeth are made of certified high strength, heat-treated alloy steel, ensuring durability and long service life.
- Curved Teeth Design: The curved teeth enhance rolling and sifting action, and they extend forward enough to make loading debris fast and efficient.
Adjustability and Control:
- Infinite Adjustability: The dig and raking angle are controlled by the loader’s bucket rollback cylinders, allowing for precise control of operating angle and depth.
- Tree Push Bar: The brush guard features a tree push bar with teeth to keep trees centered when pushing them over.
Optional Features:
-
Hydraulic Clamps: Optional hydraulic clamps provide positive load control and increase load capacity, further enhancing efficiency in land clearing tasks.
Rugged Construction:
- Built to Last: The LR rake is constructed from high-strength, heat-treated alloy steel, designed to withstand the tough conditions of land clearing.
- Dependable Performance: The rake is engineered to deliver years of trouble-free performance, reflecting Rockland's commitment to design excellence and manufacturing quality.
Detailed Specifications
Wheel Loaders
| Machine Category | Raking Width (") | Number of Teeth | Tooth Clear Spacing (") | Tooth Penetration (") | Height (") | Weight (lbs.) |
|---|---|---|---|---|---|---|
| 5 | 79 (2007) | 7 | 12 (305) | 12 (305) | 52 (1321) | 1000 (454) |
| 10 | 90 (2286) | 8 | 11 (297) | 16 (406) | 56 (1422) | 1450 (658) |
| 20 | 96 (2438) | 8 | 12 (305) | 16 (406) | 57 (1448) | 2150 (976) |
| 30 | 106 (2692) | 8 | 13.5 (343) | 16 (406) | 57 (1448) | 2475 (1123) |
| 40 | 110 (2794) | 8 | 14 (356) | 16 (406) | 57 (1448) | 2675 (1213) |
| 50 | 118 (2997) | 8 | 14.5 (368) | 20 (508) | 66 (1676) | 3800 (1724) |
| 60 | 129 (3277) | 9 | 13 (330) | 20 (508) | 66 (1676) | 4975 (2259) |
| 70 | 139 (3531) | 9 | 14 (356) | 20 (508) | 71 (1803) | 6650 (3019) |
Crawler Loaders
| Machine Category | Raking Width (") | Number of Teeth | Tooth Clear Spacing (") | Tooth Penetration (") | Height (") | Weight (lbs.) |
|---|---|---|---|---|---|---|
| 5 | 67 (1702) | 6 | 12.25 (311) | 12 (305) | 52 (1321) | 880 (400) |
| 10 | 82 (2083) | 7 | 12.25 (311) | 16 (406) | 56 (1422) | 1320 (599) |
| 20 | 88 (2235) | 7 | 13 (330) | 16 (406) | 57 (1448) | 1920 (872) |
| 30 | 94 (2388) | 8 | 11.75 (298) | 16 (406) | 57 (1448) | 2210 (1003) |
| 40 | 94 (2388) | 8 | 11.75 (298) | 20 (508) | 66 (1676) | 3385 (1537) |
| 50 | 108 (2743) | 8 | 13 (330) | 20 (508) | 66 (1676) | 3915 (1777) |
| 60 | 115 (2921) | 8 | 13.5 (343) | 20 (508) | 66 (1676) | 4515 (2050) |
| 70 | 116 (2946) | 8 | 13 (330) | 20 (508) | 71 (1803) | 5930 (2692) |
