Products Description

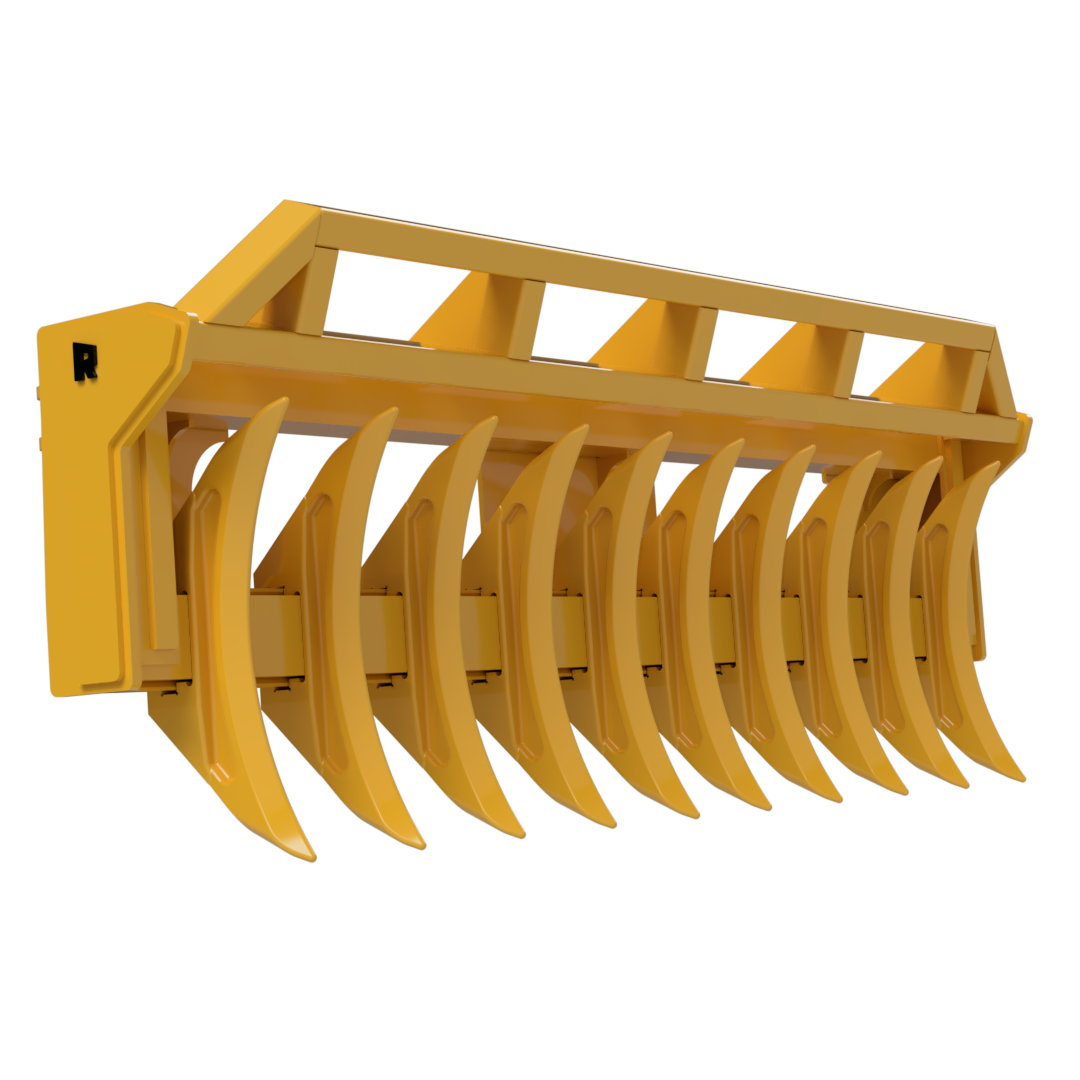

Rockland RF-3 Severe Service Rake with Heavy-Duty Teeth for Dozers
DESCRIPTION
The Rockland RF-3 Severe Service Rake is the ultimate tool for demanding jungle clearing and rock work. Backed by a lifetime guarantee, it is engineered to withstand the toughest conditions with heat-treated, stress-relieved alloy steel teeth and an indestructible alloy steel frame.
This versatile rake features reversible teeth, doubling its lifespan, and customizable options for specific project needs, such as grouping teeth for stumping. Its robust brushguard and superior durability make it the perfect choice for heavy-duty land clearing. Whether you’re tackling dense jungle, rocks, or stumps, the RF-3 is designed for consistent, reliable performance.
Key Features
- Lifetime Durability: Teeth, frame, and brackets come with a lifetime guarantee against failure.
- Double Lifespan Teeth: Reversible teeth and replaceable tips for extended service life.
- Custom Configurations: Tailor the rake with addable or removable teeth for stumping or clearing.
- Heat-Treated Alloy Steel: Built for lifetime toughness, handling even the most challenging jobs.
- Reinforced Brushguard: Square alloy steel tubing ensures dependable long-term performance.
Detailed Specifications
| Attribute | Value |
|---|---|
| Raking Width (Bulldozer) | 119" (3023 mm) |
| Raking Width (Angledozer) | 135" (3429 mm) |
| Number of Teeth | 9 |
| Tooth Clear Spacing (Bulldozer) | 12" (305 mm) |
| Tooth Clear Spacing (Angledozer) | 14" (356 mm) |
| Tooth Penetration (in.) | 18" (457 mm) |
| Height (in.) | 61" (1549 mm) |
| Weight (Bulldozer) | 3600 lbs (1633 kg) |
| Weight (Angledozer) | 3750 lbs (1701 kg) |
| Attribute | Value |
|---|---|
| Raking Width (Bulldozer) | 119" (3023 mm) |
| Raking Width (Angledozer) | 135" (3429 mm) |
| Number of Teeth | 9 |
| Tooth Clear Spacing (Bulldozer) | 12" (305 mm) |
| Tooth Clear Spacing (Angledozer) | 14" (356 mm) |
| Tooth Penetration (in.) | 18" (457 mm) |
| Height (in.) | 61" (1549 mm) |
| Weight (Bulldozer) | 4165 lbs (1889 kg) |
| Weight (Angledozer) | 4410 lbs (2000 kg) |
| Attribute | Value |
|---|---|
| Raking Width (Bulldozer) | 125" (3175 mm) |
| Raking Width (Angledozer) | 143" (3632 mm) |
| Number of Teeth | 9 |
| Tooth Clear Spacing (Bulldozer) | 12" (305 mm) |
| Tooth Clear Spacing (Angledozer) | 14" (356 mm) |
| Tooth Penetration (in.) | 20" (508 mm) |
| Height (in.) | 68" (1727 mm) |
| Weight (Bulldozer) | 6080 lbs (2758 kg) |
| Weight (Angledozer) | 5730 lbs (2599 kg) |
| Attribute | Value |
|---|---|
| Raking Width (Bulldozer) | 139" (3531 mm) |
| Raking Width (Angledozer) | 153" (3886 mm) |
| Number of Teeth | 10 |
| Tooth Clear Spacing (Bulldozer) | 11" (279 mm) |
| Tooth Clear Spacing (Angledozer) | 12" (305 mm) |
| Tooth Penetration (in.) | 20" (508 mm) |
| Height (in.) | 68" (1727 mm) |
| Weight (Bulldozer) | 7930 lbs (3597 kg) |
| Weight (Angledozer) | 8035 lbs (3645 kg) |
| Attribute | Value |
|---|---|
| Raking Width (Bulldozer) | 139" (3531 mm) |
| Raking Width (Angledozer) | 153" (3886 mm) |
| Number of Teeth | 10 |
| Tooth Clear Spacing (Bulldozer) | 11" (279 mm) |
| Tooth Clear Spacing (Angledozer) | 12" (305 mm) |
| Tooth Penetration (in.) | 20" (508 mm) |
| Height (in.) | 68" (1727 mm) |
| Weight (Bulldozer) | 8650 lbs (3924 kg) |
| Weight (Angledozer) | 8660 lbs (3928 kg) |
In Package
- Rockland RF-3 Severe Service Rake: Configured to your machine specifications.
- Installation Kit: Includes all hardware and detailed installation instructions.
- Warranty Documentation: Lifetime guarantee coverage for teeth, frame, and brackets.
- Optional Accessories: Replacement teeth and additional brackets for customization.
