Products Description

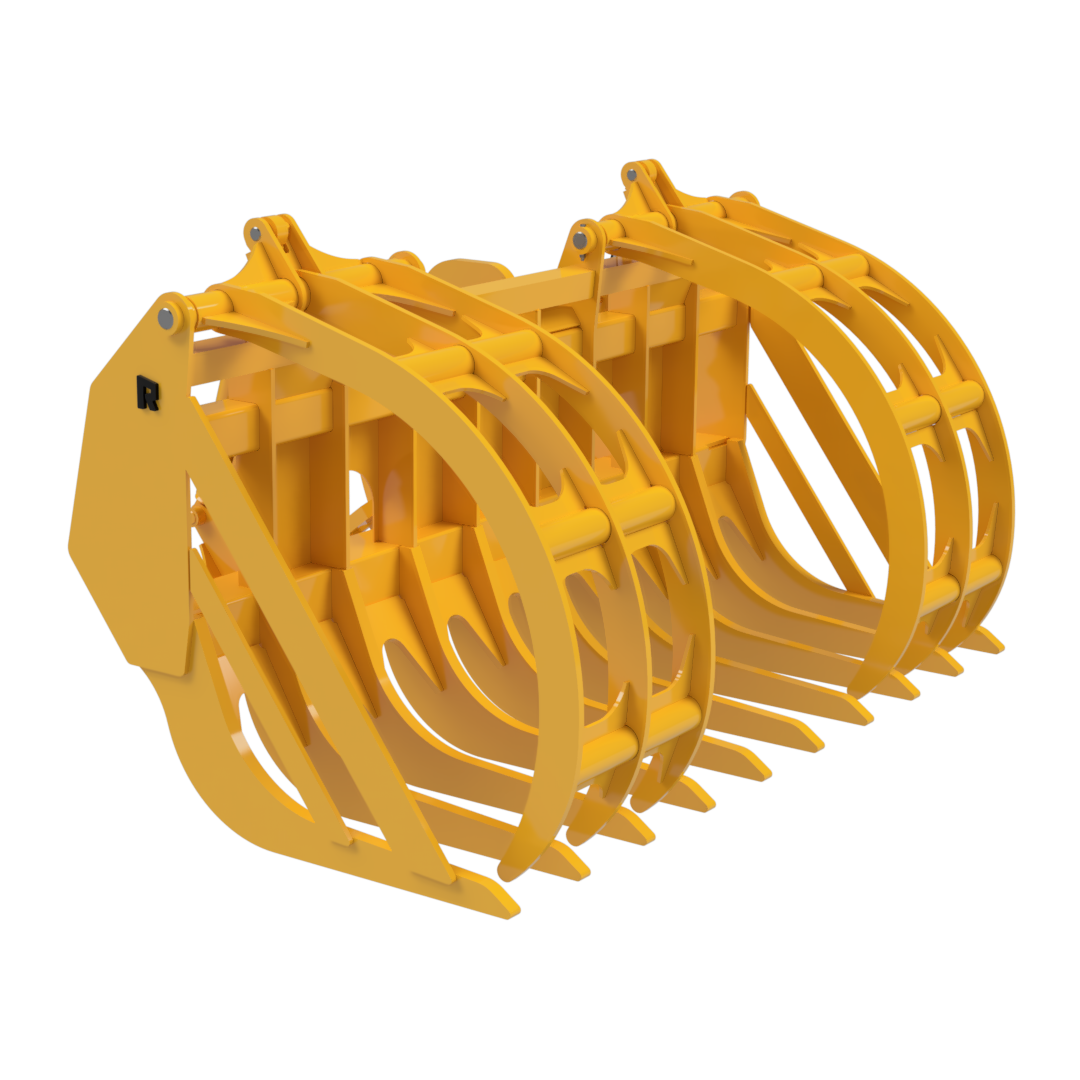

Rockland TG 81" to 142" Width Tire Grapple with Jumper Hoses for Loaders
DESCRIPTION
The Rockland Tire Grapple is the ultimate solution for handling tires and remnants, designed to withstand demanding tasks in challenging environments. Featuring powerful top clamps and heavy-duty cylinders, this grapple securely handles bulky loads, saving time and effort on every pass.
Built with high-strength alloy steel and heat-treated components, the tire grapple offers durability and long-term performance. Its efficient tine spacing prevents debris from being loaded with tires, while the open-frame design ensures excellent operator visibility. With customizable options, the Rockland Tire Grapple is the perfect tool for tire recycling, landfills, and industrial applications.
Key Features
- High-Strength Steel Construction: Designed to withstand the rigors of heavy-duty tire handling.
- Secure Top Clamps: Provides a strong grip on loads to maximize safety and efficiency.
- Efficient Tine Spacing: Prevents debris from being loaded alongside tires, enhancing productivity.
- Customizable Configurations: Adjust tine spacing and clamp profiles to meet specific requirements.
- Open Frame Design: Offers exceptional visibility for the operator during use.
- Convenient Maintenance: Equipped with grease fittings at pivot points for easy servicing.
Detailed Specifications
| Attribute | Value |
|---|---|
| Raking Width (") | 79 |
| Overall Width (") | 81 |
| Clamp Opening (") | 71 |
| Number of Teeth | 7 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 2500 |
| Attribute | Value |
|---|---|
| Raking Width (") | 90 |
| Overall Width (") | 92 |
| Clamp Opening (") | 71 |
| Number of Teeth | 8 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 3230 |
| Attribute | Value |
|---|---|
| Raking Width (") | 94 |
| Overall Width (") | 96 |
| Clamp Opening (") | 71 |
| Number of Teeth | 8 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 3560 |
| Attribute | Value |
|---|---|
| Raking Width (") | 110 |
| Overall Width (") | 112 |
| Clamp Opening (") | 92 |
| Number of Teeth | 9 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 4280 |
| Attribute | Value |
|---|---|
| Raking Width (") | 114 |
| Overall Width (") | 116 |
| Clamp Opening (") | 92 |
| Number of Teeth | 9 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 5000 |
| Attribute | Value |
|---|---|
| Raking Width (") | 130 |
| Overall Width (") | 132 |
| Clamp Opening (") | 94 |
| Number of Teeth | 10 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 6300 |
| Attribute | Value |
|---|---|
| Raking Width (") | 130 |
| Overall Width (") | 133 |
| Clamp Opening (") | 94 |
| Number of Teeth | 10 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 7300 |
| Attribute | Value |
|---|---|
| Raking Width (") | 139 |
| Overall Width (") | 142 |
| Clamp Opening (") | 94 |
| Number of Teeth | 10 |
| Tooth Clear Spacing (") | 12 |
| Weight (lbs.) | 9200 |
In Package
- Rockland Tire Grapple: Custom-built to your machine category and specifications.
- Installation Hardware: All necessary components for a seamless setup.
- Maintenance Kit: Includes grease fittings and replacement bushings for hassle-free upkeep.
- Operation Manual: Detailed guide for installation, operation, and maintenance.
