Rockland Woodchip Blade | Model LM, WC & SL U-Blade | Width 120" To 288" inches | Capacity 9.5 To 120 Cubic Yard | For Dozers

Rockland Woodchip Blade | Model LM, WC & SL U-Blade | Width 120" To 288" inches | Capacity 9.5 To 120 Cubic Yard | For Dozers

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Built for Tough Conditions: Designed to handle the hardest rock handling tasks.
  • Compatibility: Suitable for track machines over 65HP and wheeled machines over 75HP.
  • Efficient Handling: Three inch tine spacing and 3/8″ tines make it perfect for large rocks and debris sorting.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Rockland Severe Duty Rock Bucket | Bucket Width 66" To 86" inches | Weight 700 To 920 Lbs | For Skid Steer

Description

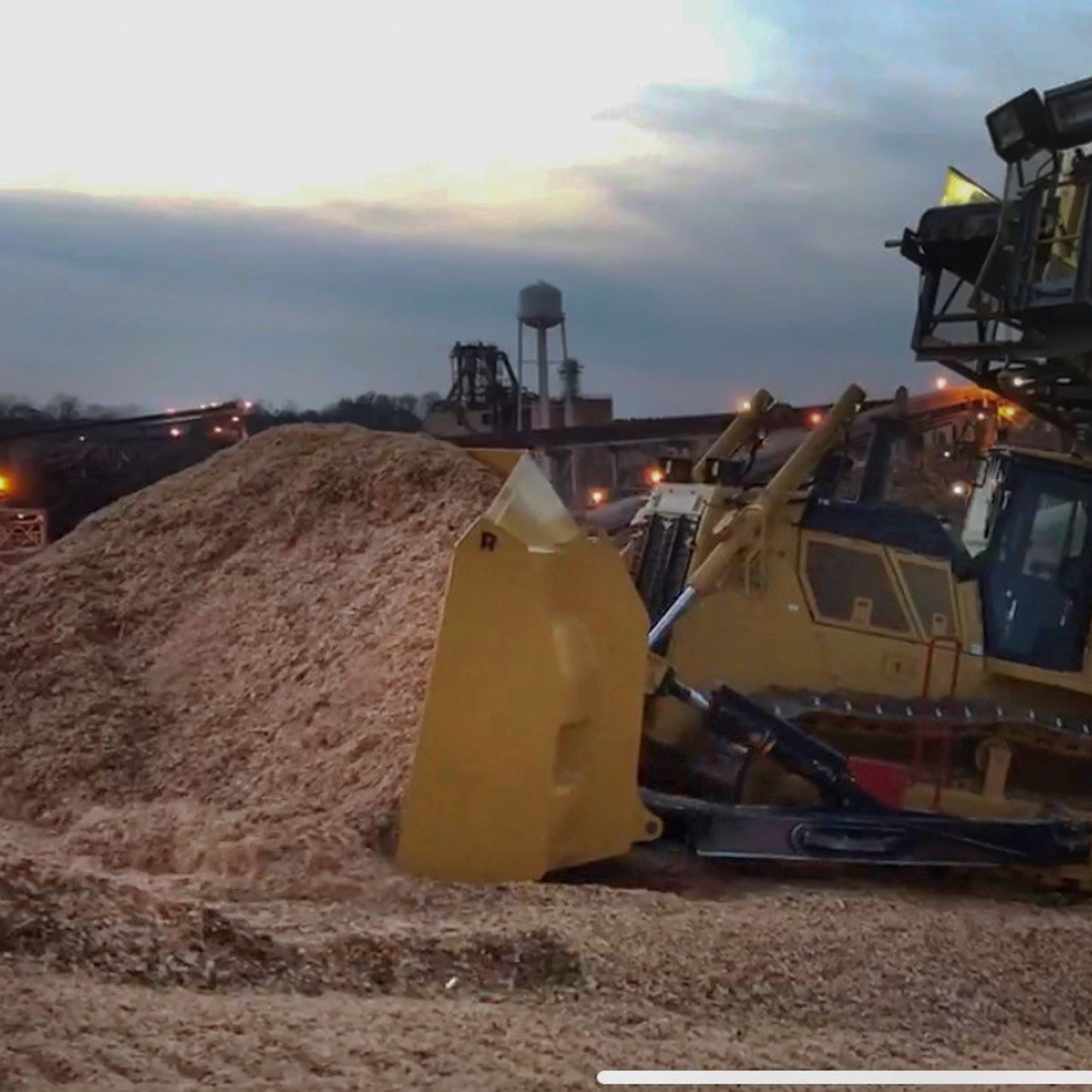

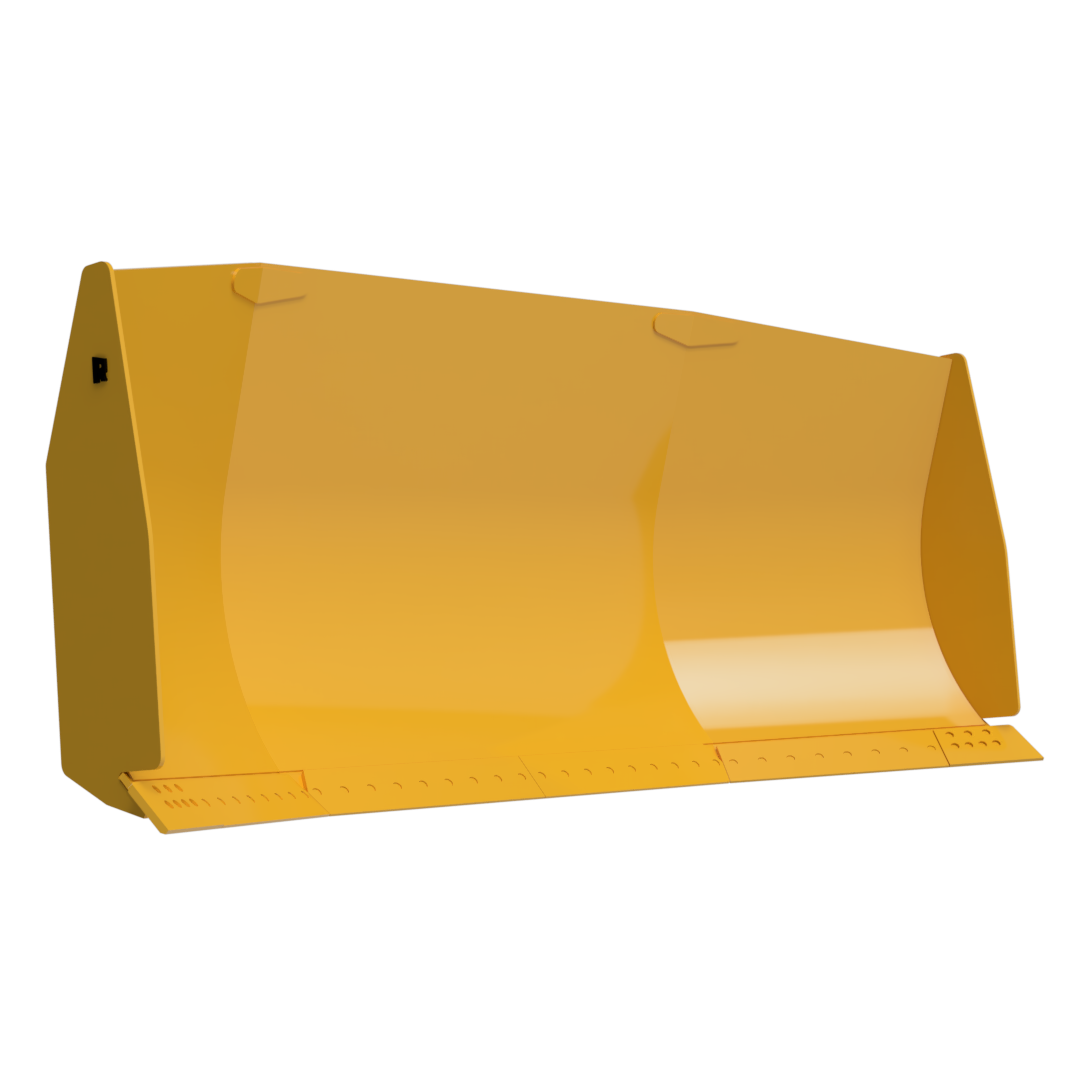

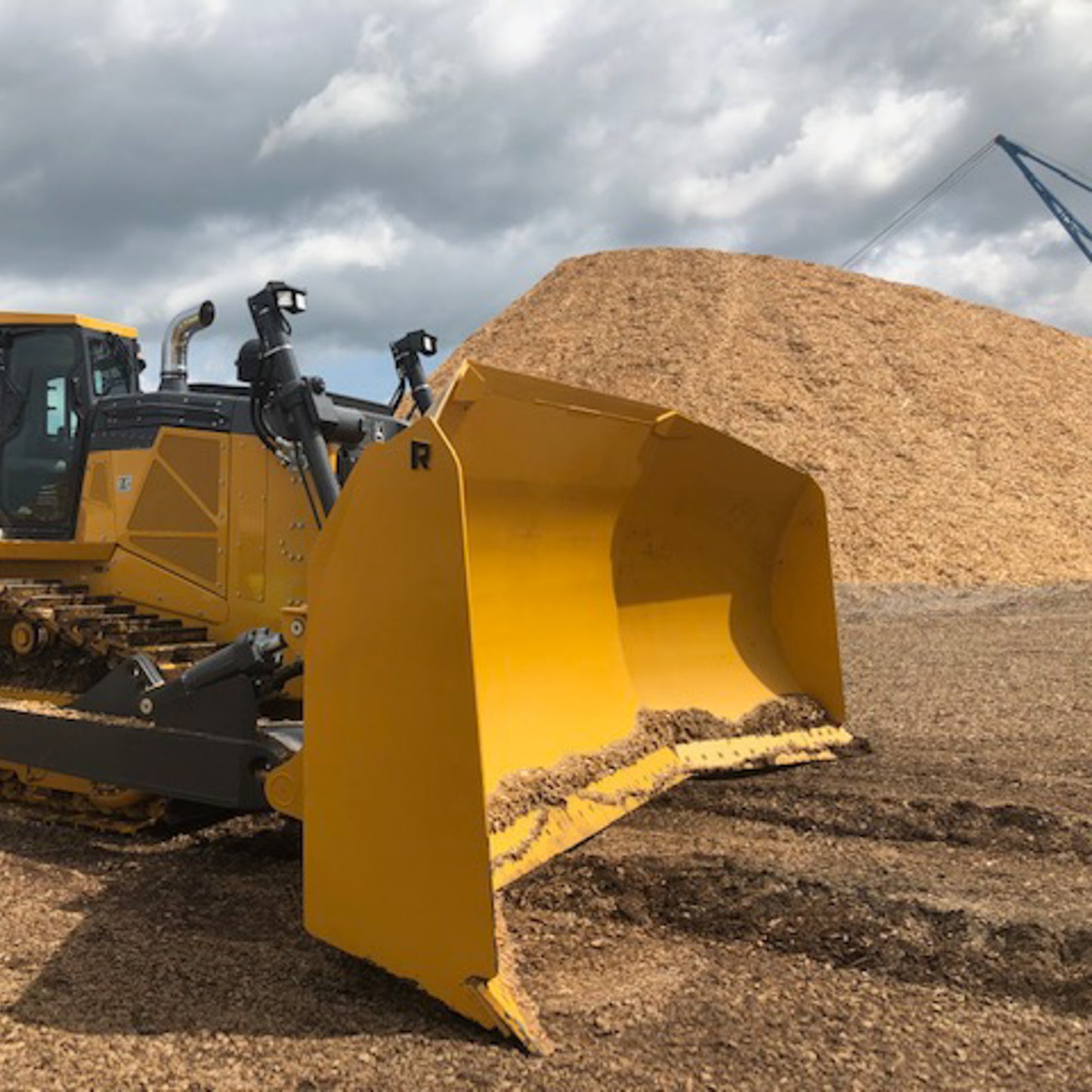

The Woodchip Blade by Rockland is a versatile and tailored tool that’s a cut above the rest. Its U-shaped design features an optimal moldboard height to width ratio, allowing you to move a massive amount of chips in a single pass, making it a time and cost-effective option for any job. The extended end plates and moldboard profile contain and deliver a live, rolling load, while the extended spill guard and correct blade profile prevent chips from spilling over the top of the blade.

The Woodchip Blade is equipped with heat-treated, reversible cutting edges for added efficiency, and can be customized with adjustable skid plates, non-stick liners, custom guards, and visibility slots, making it an easy choice to conquer woodchip hassles on any job site.

Application:

  • Demolition: Perfect for breaking down structures and clearing out debris.
  • General Construction: Useful for a variety of construction tasks, ensuring durability and efficiency.
  • Site Preparation/Land Clearing: Ideal for preparing land for new projects or clearing areas of unwanted materials.
  • Storm Cleanup: Excellent for handling debris and clean-up efforts after storms and natural disasters.

Key Features

  • U-Shaped Design:
    • Optimal Moldboard Height to Width Ratio: Facilitates moving a large amount of wood chips in a single pass.
    • Extended End Plates and Moldboard Profile: Ensures a live, rolling load.
  • Spill Control:
    • Extended Spill Guard: Prevents wood chips from spilling over the top.
    • Correct Blade Profile: Enhances load containment.
  • Efficiency Enhancements:
    • Heat-Treated, Reversible Cutting Edges: Increases longevity and performance.
    • Customizable Features: Includes adjustable skid plates, non-stick liners, custom guards, and visibility slots.

Detailed Specifications

LM COAL U-BLADE

Machine 30 40 50 60 60 70 80 80 90 90 100
Capacity (Yd³) 11.6 15 24.5 32 38 45 56 68 82 95 100
Width (") 156 186 216 216 264 264 264 264 288 288 288
Height (") 62 59 70 83 79 88 91 108 102 115 120
Wing Angle 25° 25° 25° 30° 30° 30° 30° 30° 30° 30° 30°
Cutting Edges (") 3/4x8 1x10 1x10 1x10 1x10 1-1/8x13 1-1/8x13 1-1/8x13 1-1/8x13 1-1/8x13 1-1/8x13
Weight (lbs.) 4000 5900 7400 9300 10500 13000 14900 15850 16200 19350 22800



WC WOODCHIP U-BLADE

Machine 25 30 30 40 40 50 60 70 70 80 90 90 100
Capacity (Yd³) 12 18.4 20 23 27 36 50 60 68 75 90 96 120
Width (") 144 177 168 192 192 219 240 264 264 288 288 288 288
Height (") 63 74 74 81 81 87 100 110 110 118 122 126 136
Wing Angle 25° 25° 25° 25° 25° 25° 30° 30° 30° 30° 30° 30° 30°
Cutting Edges (") 3/4x8 3/4x8 3/4x8 3/4x8 3/4x8 1x10 1x10 1x10 1x10 1-1/8x13 1-1/8x13 1-1/8x13 1-1/8x13
Weight (lbs.) 4200 4800 4900 5800 6300 7400 11000 13500 14500 16000 19200 19400 20000



SL LANDFILL U-BLADE

Machine 25 30 30 40 40 50 60 60 70 80 90
Capacity (Yd³) 9.5  11.6  16  21  24  34  34  40  45  50  56 41.31 70 53.52
Width (") 120  132  152  168  168  204  216  240  240  264  264 6706
Height (") 63  66  71  77  77  83  88  93  94  96  98 2489 110 2794
Wing Angle 25° 25° 25° 25° 25° 25° 30° 30° 30° 30° 30°
Cutting Edges (") 3/4x8  3/4x8  3/4x8  1x10  1x10  1x10  1x10  1x10  1x10  1-1/8x13  1-1/8x13 29x330
Weight (lbs.) 3100  3500  3600  5500  5800  7900  9000  10300  11000  13900  14500 6577 16500 7484
