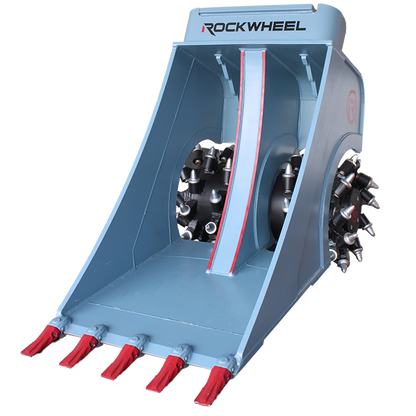

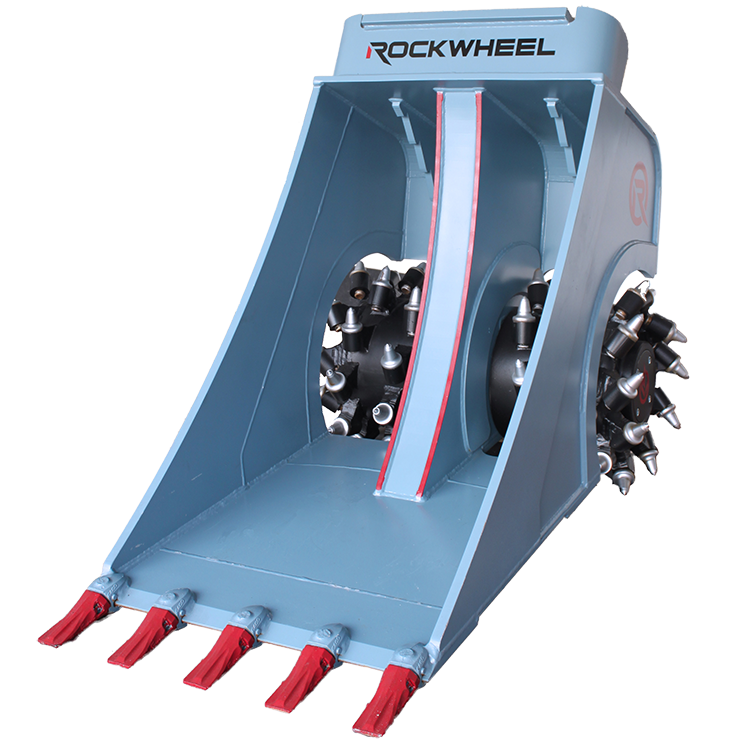

RockZone Cutter Bucket | Model CB15, CB20 & CB30 | Drum Width 33", 42" & 46" | Machine Size 13 - 35 Tons | For Excavators
RockZone Cutter Bucket | Model CB15, CB20 & CB30 | Drum Width 33", 42" & 46" | Machine Size 13 - 35 Tons | For Excavators
Regular price
$42,525.00
Regular price
Sale price
$42,525.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

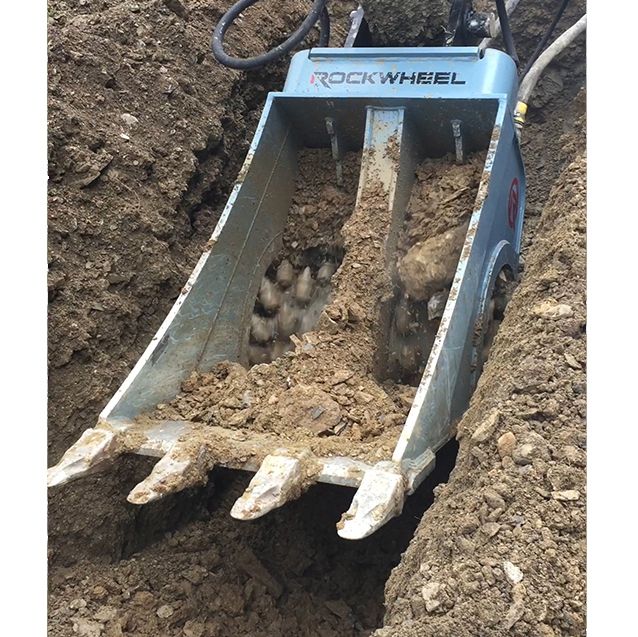

RockZone Cutter Bucket | Model CB15, CB20 & CB30 | Drum Width 33", 42" & 46" | Machine Size 13 - 35 Tons | For Excavators
DESCRIPTION
The RockZone Cutter Bucket series (CB15, CB20, CB30) offers a range of versatile and high-performance excavation attachments, designed to optimize your excavation tasks across various ground conditions. Whether you’re dealing with soft soil, frozen ground, or challenging rock formations, these cutter buckets provide precise, efficient excavation with up to 50% less volume excavation compared to traditional hammers.
Available in three models CB15 (for 13-20 ton excavators), CB20 (for 18-25 ton excavators), and CB30 (for 25-35 ton excavators) these cutter buckets excel in cutting, crushing, and material reuse, allowing for reduced hauling and disposal costs. With hydraulic flow ranges from 25-55 GPM, they are compatible with a wide range of excavators, offering unmatched productivity and versatility.

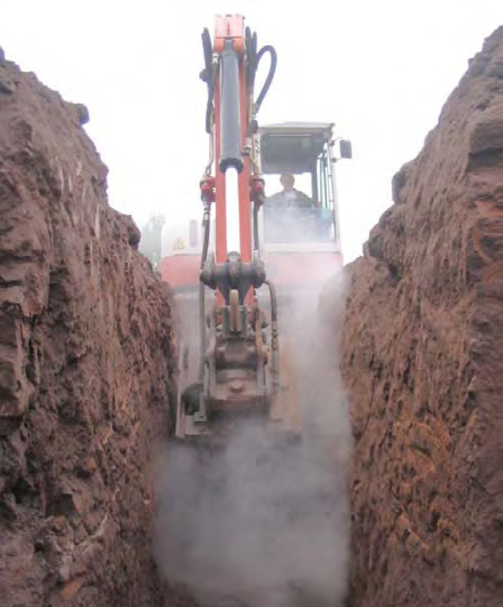

The RockZone Cutter Bucket series is ideal for a variety of applications, including trenching, road work, soil mixing, and slope leveling. With adjustable drum speeds, robust construction, and high torque capabilities, these attachments ensure optimal performance in the toughest ground conditions. Enhance your equipment’s capabilities and reduce downtime with the RockZone Cutter Bucket series your go-to solution for efficient excavation.
Key Features
- Precision Excavation: The RockZone Cutter Buckets offer accurate, clean cutting that reduces excavation volume by up to 50% compared to traditional hammering methods, saving both time and material.
- Three Model Options: The CB15, CB20, and CB30 cater to different excavator classes (13-35 tons), allowing for customized solutions based on your specific project needs.
- Optimized Hydraulic Flow: Ranges from 25 GPM to 55 GPM, ensuring compatibility with a wide array of excavators, providing smooth, continuous operation without power loss.
- Versatile Ground Cutting: Ideal for soft and hard soil, frozen ground, and variable ground conditions, the RockZone Cutter Buckets handle any terrain with ease, including challenging conditions like frozen soil and rocky formations.
- Cost-Effective Material Handling: The buckets can crush material on-site, reducing the need for costly hauling and disposal and enabling you to reuse the material at your project site.
- Adjustable Drum Speed: Drum speeds of 50-75 RPM (depending on model) ensure optimized cutting performance for various tasks, from fine trenching to heavy-duty excavation.
- Heavy-Duty Durability: Made with high-strength steel, the RockZone Cutter Buckets are built to withstand the harshest excavation environments, offering lasting performance and reliability.
- Increased Productivity: With high torque and cutting force, these buckets perform heavy-duty excavation and trenching faster, reducing project timelines and increasing overall efficiency.
- Reduced Attachment Changes: The Cutter Bucket allows you to cut and clean trenches with a single excavator, eliminating the need for frequent attachment swaps and improving job site productivity.
- Simple Installation: Easy to mount on most excavators, these buckets offer quick attachment to your existing equipment, minimizing setup time.
- Ideal for Multi-Use Applications: Perfect for road work, slope leveling, trenching, and other construction tasks, providing a versatile solution for a variety of projects.
- Enhanced Cutting Precision: With 64 picks/bit, the Cutter Bucket delivers cleaner cuts and smoother excavation, reducing the need for additional post-processing work.
- Optimized Power-to-Weight Ratio: Each model is engineered for maximum fuel efficiency and performance, balancing power and weight for better control and reduced fuel consumption.
Detailed Specifications
| Feature | CB15 (13-20 Tons) | CB20 (18-25 Tons) |
|---|---|---|
| Excavator Class | 13 – 20 Tons | 18 – 25 Tons |
| Hydraulic Input Power | 55 hp (41 kW) | 95 hp (70 kW) |
| Required Flow Rate | 25-35 GPM (94-133 l/min) | 40-55 GPM (150-208 l/min) |
| Operating Pressure (Max) | 5800 psi (400 bar) | 5800 psi (400 bar) |
| Drum Speed | 75 – 105 RPM | 50 – 75 RPM |
| Max Torque | 5,861 ft/lbs (7.9 kNm) | 13,206 ft/lbs (17.9 kNm) |
| Max Cutting Force | 7,522 lbs (33.4 kN) | 12,462 lbs (55.4 kN) |
| Drum Width | 33 in (832 mm) | 42 in (1050 mm) |
| Drum Diameter | 18 in (475 mm) | 26 in (646 mm) |
| Picks/Bits | 64 | 64 |
| Weight (w/o Bracket) | 2,555 lbs (1170 kg) | 4,050 lbs (1840 kg) |
| Cutting Depth | Varies by soil conditions | Varies by soil conditions |
| Dimensions (L x W x H) | 76 x 33 x 51 in | 84 x 42 x 51 in |

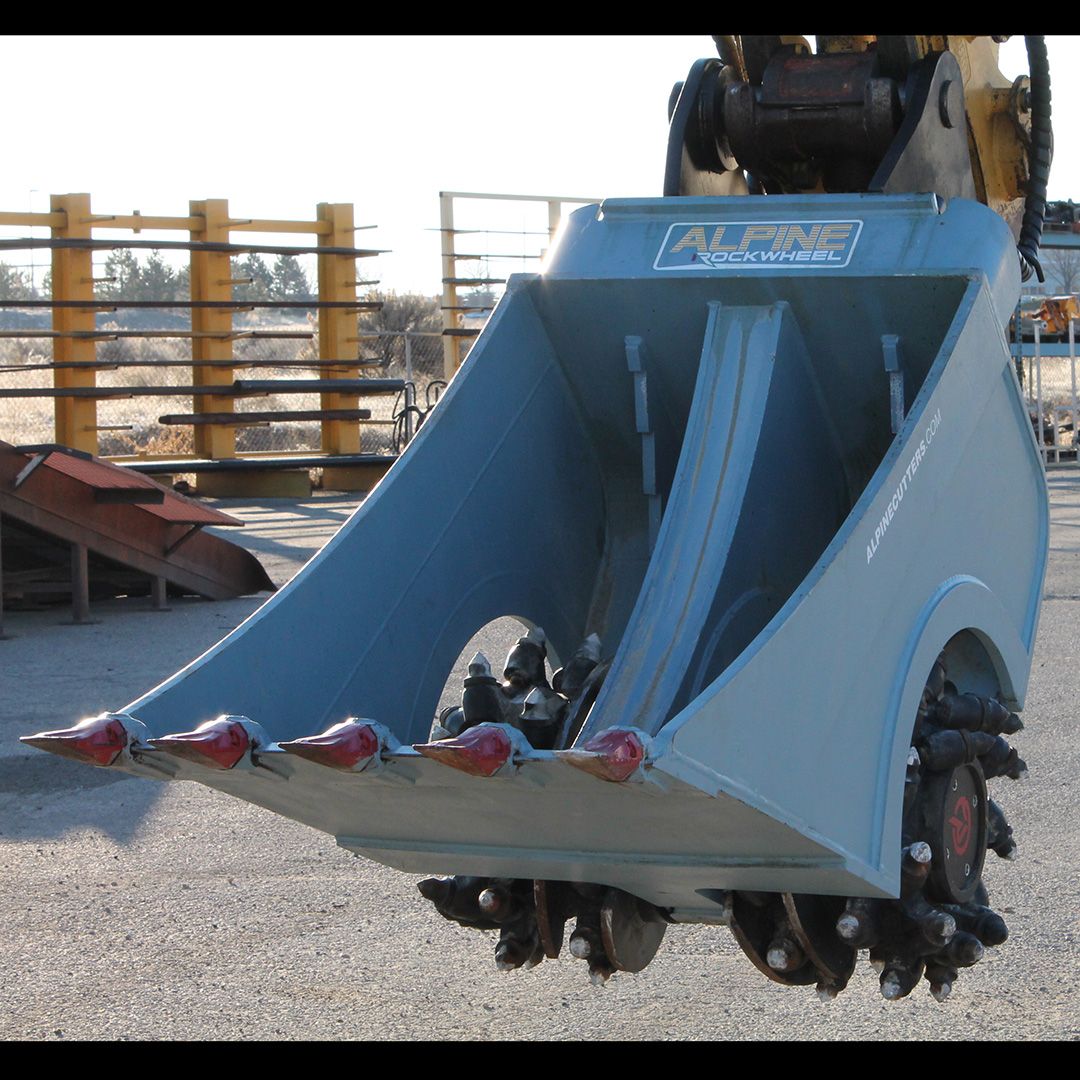

| Feature | CB30 (25-35 Tons) |
|---|---|
| Excavator Class | 25 – 35 Tons |
| Hydraulic Input Power | 150 hp (110 kW) |
| Required Flow Rate | 55-90 GPM (208-340 l/min) |
| Operating Pressure (Max) | 5800 psi (400 bar) |
| Drum Speed | 50 – 80 RPM |
| Max Torque | 17,250 ft/lbs (23.4 kNm) |
| Max Cutting Force | 15,550 lbs (69.2 kN) |
| Drum Width | 46 in (1158 mm) |
| Drum Diameter | 27 in (677 mm) |
| Picks/Bits | 60 |
| Weight (w/o Bracket) | 4,340 lbs (1970 kg) |
| Cutting Depth | Varies by soil conditions |
| Dimensions (L x W x H) | 90 x 46 x 51 in |
