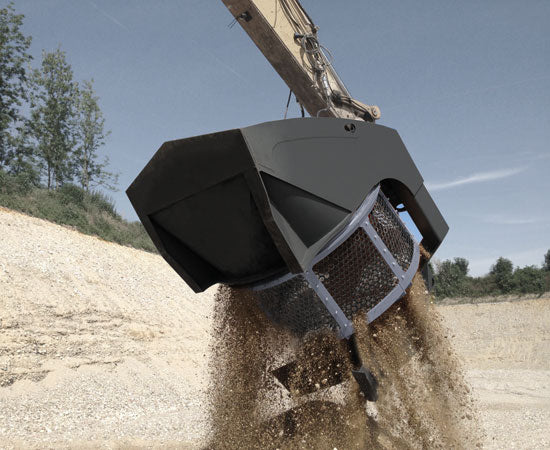

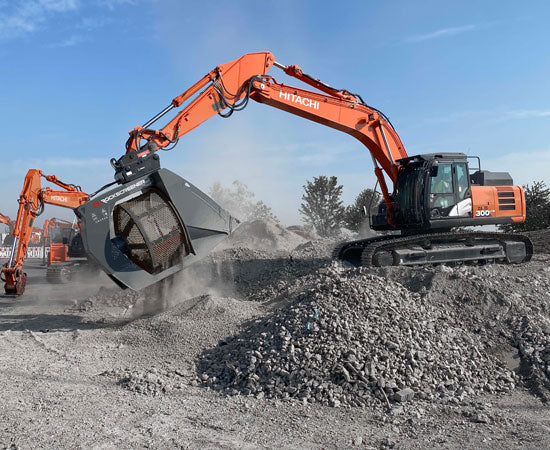

RockZone Rock Screener | RS Series | Screen Drum Diameter 31.5" - 78.75" | Machine Size 3 - 35+ Tons | For Excavators

RockZone Rock Screener | RS Series | Screen Drum Diameter 31.5" - 78.75" | Machine Size 3 - 35+ Tons | For Excavators

Regular price $20,009.00
Regular price Sale price $20,009.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Hydraulic Flow: 5–32 GPM, compatible with excavators.
  • Drum Diameter: 31.5–78.75 inches, depending on model.
  • Excavator Compatibility: Fits 3–35+ ton excavators for screening.
  • Weight: 1320–10,150 lbs, varies by model size.
  • Screening Purpose: Ideal for construction, recycling, and land clearing.
View full details

Product Description

RockZone Rock Screener | RS Series | Screen Drum Diameter 31.5" - 78.75" | Machine Size 3 - 35+ Tons | For Excavators

DESCRIPTION

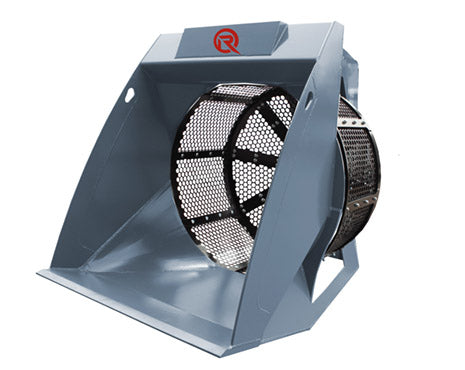

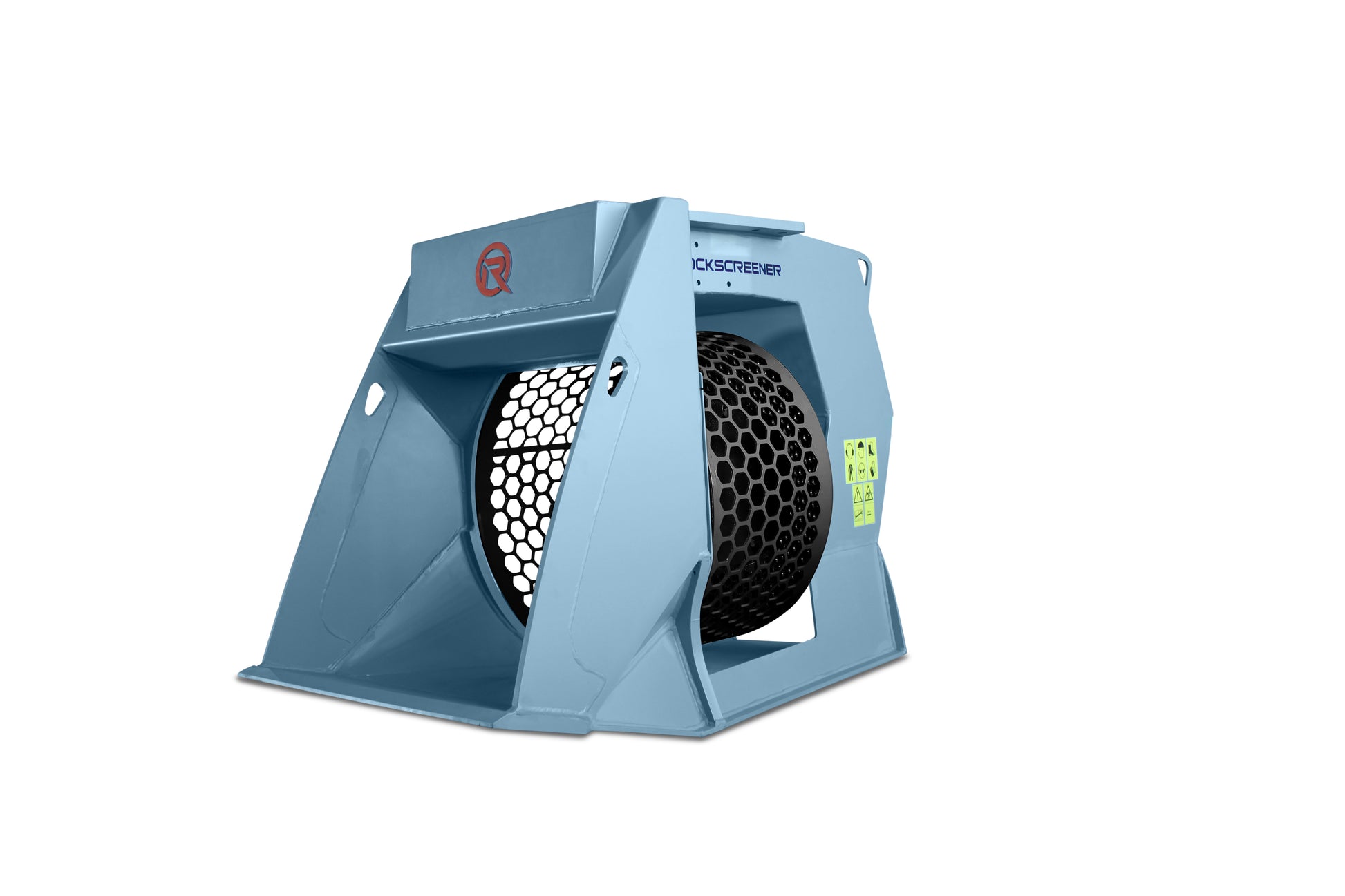

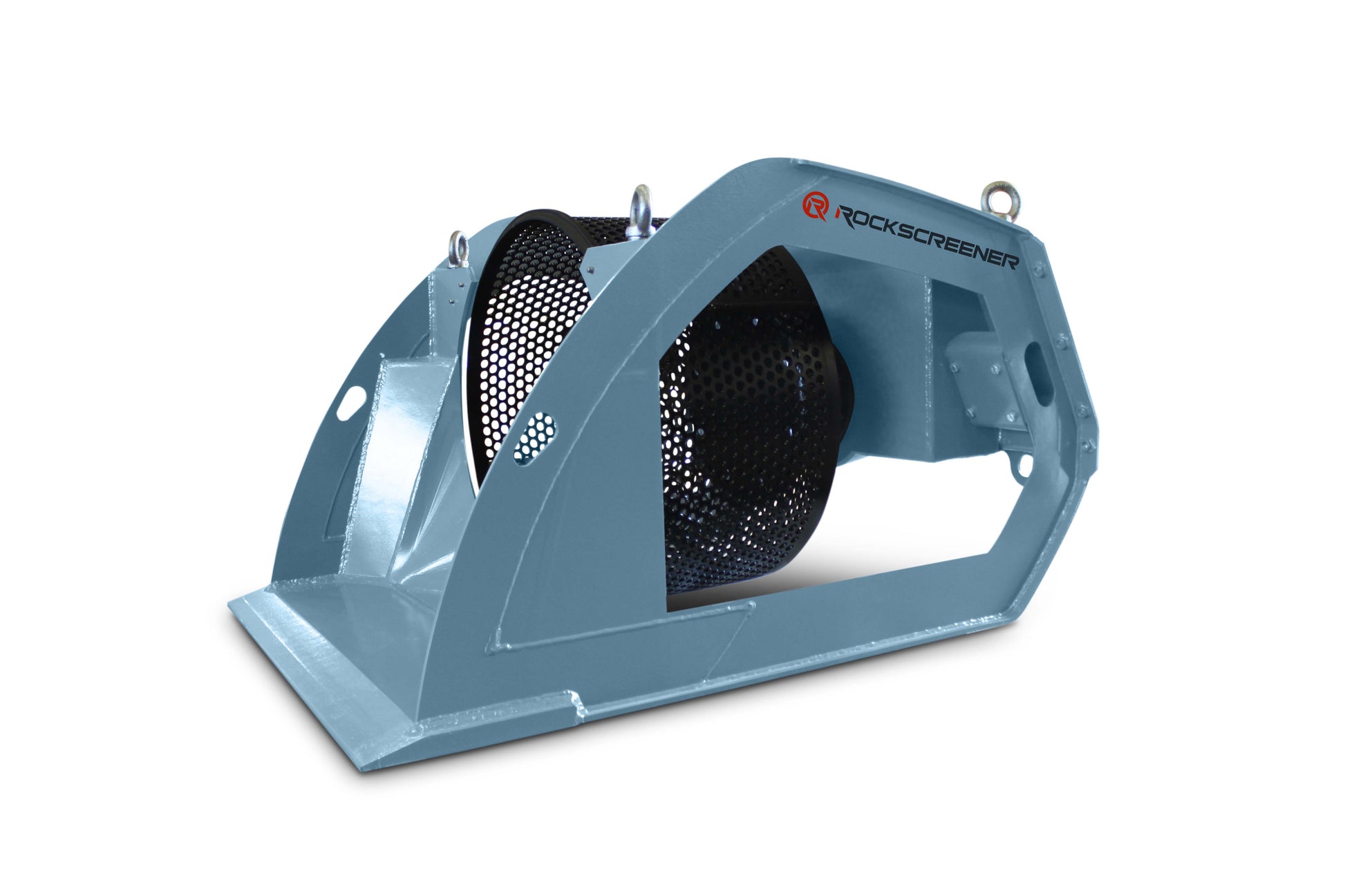

The RockZone Rockscreener Series is a powerful and versatile attachment designed to optimize material handling for a wide range of applications. Available in RSS 800, RS 800, RS 1200, RS 1600, and RS 2000 models, these screener attachments are engineered to work with excavators ranging from 3 to 35+ tons and offer hydraulic flow requirements from 5 to 32 GPM.

Featuring XXL hoppers and drum volumes, the Rockscreener processes high volumes of material quickly and efficiently, reducing operational time and enhancing productivity. The exchangeable grid system allows for customizable mesh sizes, enabling precise material separation for pre-filtering or final classification. This makes the Rockscreener ideal for handling a variety of materials including natural rock, construction debris, soil, sand, and recycled materials.

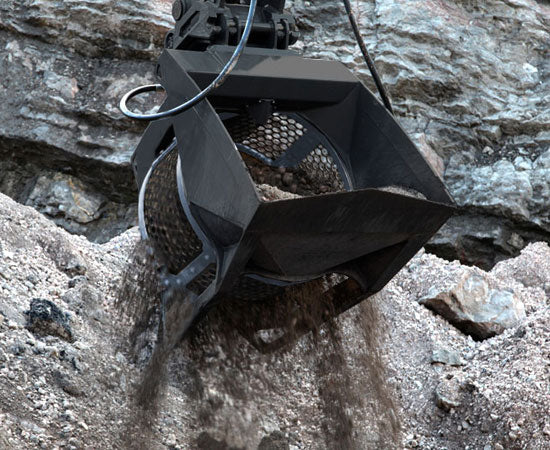

Built with a compact, durable frame, the Rockscreener guarantees long-lasting performance on even the toughest job sites. Whether you're clearing land, recycling materials, or processing construction rubble, this attachment ensures reliable, low-cost operation. The precise material separation and high throughput capacity make it the perfect solution for contractors and industries focused on maximizing efficiency, reducing waste, and improving material quality.

Key Features

  • Versatile Screening Capability Available in five models (RSS 800, RS 800, RS 1200, RS 1600, RS 2000), each designed to fit excavators from 3 to 35+ tons, allowing for broad compatibility across job sites.
  • High-Volume Material Processing XXL hoppers and drum volumes enable quick and consistent processing of large material volumes, improving throughput and reducing operational time.

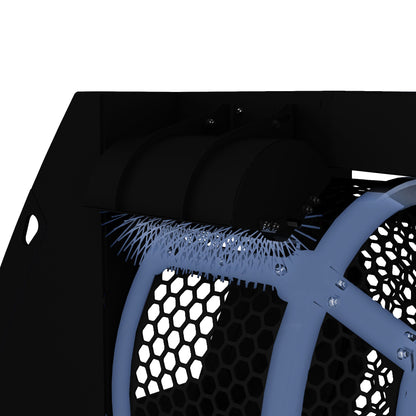

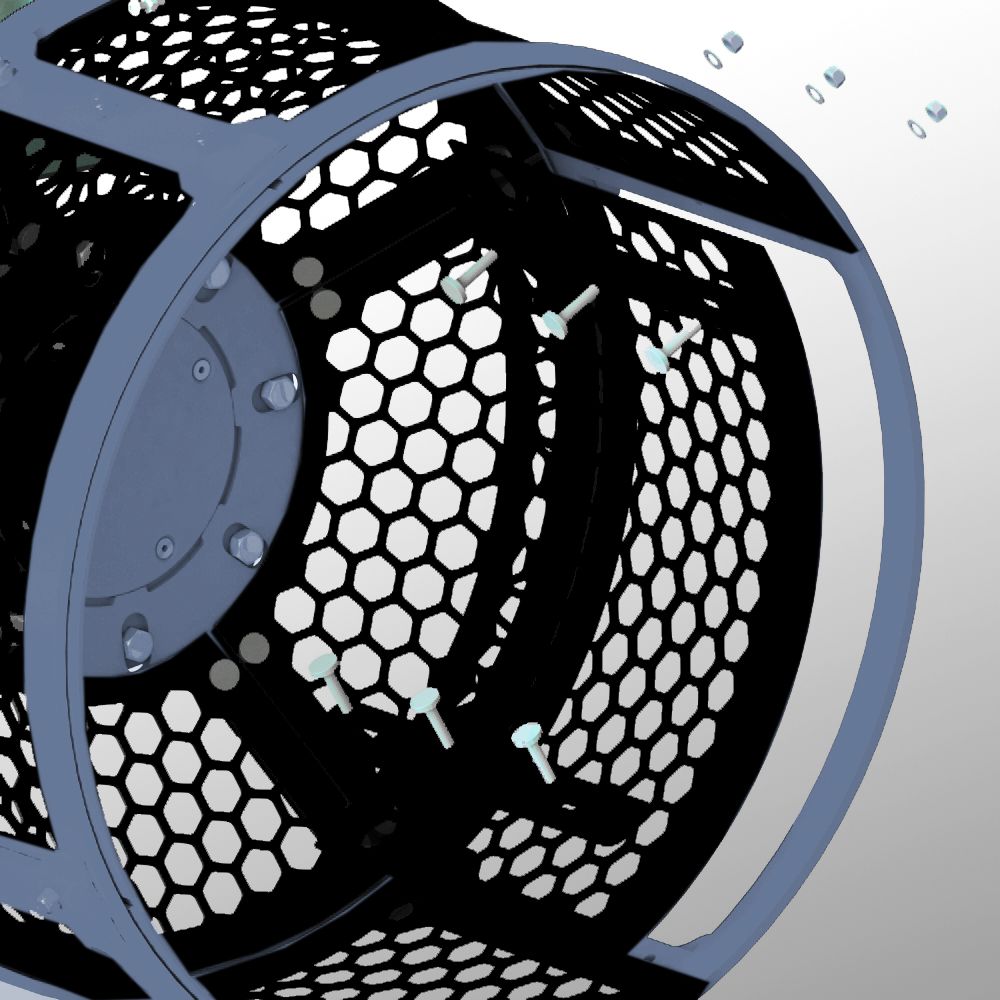

  • Precise Material Separation Exchangeable grids allow for precise material classification, ideal for both pre-filtering and final material separation, offering flexibility for various project needs.
  • Durable and Rugged Construction The compact, stable frame ensures that the Rockscreener can withstand harsh job site conditions, providing long-term durability and low maintenance even in tough environments.
  • Flexible Hydraulic Flow Options With hydraulic flow requirements ranging from 5 GPM (RSS 800) to 32 GPM (RS 2000), the Rockscreener provides flexibility for a variety of excavator models, ensuring optimal compatibility and efficiency.
  • Multiple Application Uses Ideal for use in land clearing, construction debris sorting, recycling, and soil screening, the Rockscreener is a versatile solution for numerous industries and project types.
  • Efficient Operation Built to process a wide variety of materials, including rock, rubble, soil, sand, and gravel, the Rockscreener increases productivity with low downtime and reliable hydraulic operation.
  • Easy Attachment and Setup The attachment is designed for quick mounting to excavators, minimizing downtime and allowing for rapid deployment across multiple job sites.

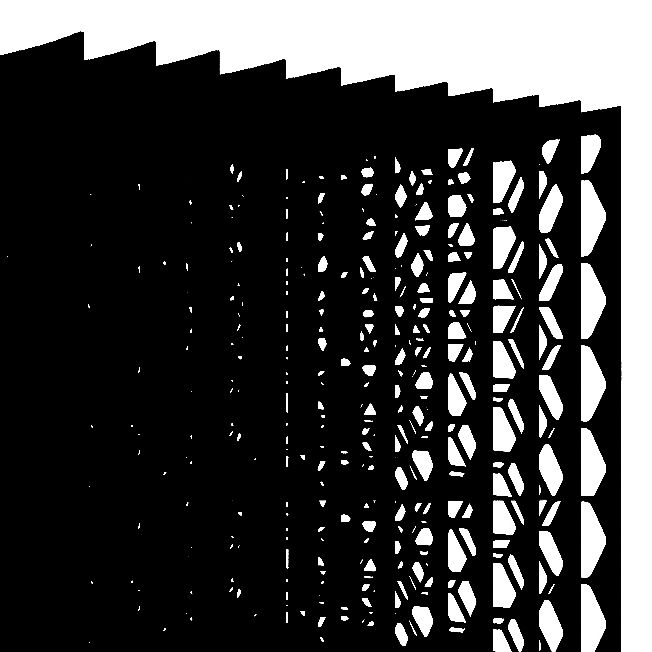

  • Adjustable Screen Sizes The interchangeable grids let operators tailor the mesh size for specific material types, optimizing screening efficiency and quality control on every load.
  • Optimized for Excavator Use Specifically designed for use with excavators, the Rockscreener maximizes the use of existing machinery, providing a cost-effective solution that delivers high performance.
  • Cost-Effective and Low Maintenance Designed for long-term use, the Rockscreener minimizes maintenance needs, lowering operational costs while maintaining high productivity levels.
  • Eco-Friendly Material Handling By enabling efficient material recycling and reducing waste, the Rockscreener helps support sustainable practices while improving material recovery on site.
  • Enhanced Productivity for Contractors With its high-capacity screen and rugged design, the Rockscreener significantly boosts productivity for contractors, reducing time spent on sorting and handling materials.
  • Rugged Performance in Tough Conditions Whether working in construction, mining, or landscaping, the Rockscreener is built to handle tough materials and environments, delivering consistent, reliable results.
  • Customizable and Versatile Designed to meet the needs of various industries, the Rockscreener adapts to a wide range of material types and project requirements, ensuring versatile, efficient material processing.

Detailed Specifications

Specification RSS 800 RS 800
Excavator Class 3-9 tons 9-14 tons
Required Hydraulic Flow 5 GPM (20 l/min) 7 GPM (26 l/min)
Operating Pressure (Max) 1885 psi (130 bar) 1885 psi (130 bar)
Screen Drum Diameter 31.5 in (800 mm) 31.5 in (800 mm)
Screen Drum Depth 19.7 in (500 mm) 19.7 in (500 mm)
Drum Volume 0.33 yd³ (0.25 m³) 0.33 yd³ (0.25 m³)
Total Load Capacity 0.79 yd³ (0.61 m³) 0.79 yd³ (0.60 m³)
Weight (w/o Bracket) 1320 lbs (600 kg) 1410 lbs (640 kg)
Material Type Rock, Rubble, Soil, Sand Rock, Rubble, Soil, Sand
Application Land Clearing, Recycling Land Clearing, Recycling
Grid Interchangeability Yes Yes
Frame Type Compact, Stable Compact, Stable
Hydraulic Compatibility Excavators (3-9 tons) Excavators (9-14 tons)
Drum Rotation Speed Adjustable for material types Adjustable for material types
Ease of Use Easy attachment and operation Easy attachment and operation



Specification RS 1200 RS 1600
Excavator Class 15-25 tons 25-35 tons
Required Hydraulic Flow 20 GPM (75 l/min) 20 GPM (75 l/min)
Operating Pressure (Max) 2465 psi (170 bar) 2465 psi (170 bar)
Screen Drum Diameter 47.5 in (1200 mm) 63 in (1600 mm)
Screen Drum Depth 29.5 in (750 mm) 43.5 in (1100 mm)
Drum Volume 1.0 yd³ (0.76 m³) 2.5 yd³ (1.9 m³)
Total Load Capacity 2.6 yd³ (2.0 m³) 6.25 yd³ (4.8 m³)
Weight (w/o Bracket) 2690 lbs (1220 kg) 5120 lbs (2315 kg)
Material Type Rock, Rubble, Soil, Gravel Rock, Rubble, Soil, Gravel
Application Construction, Recycling Construction, Mining
Grid Interchangeability Yes Yes
Frame Type Compact, Stable Compact, Stable
Hydraulic Compatibility Excavators (15-25 tons) Excavators (25-35 tons)
Drum Rotation Speed Adjustable for material types Adjustable for material types
Ease of Use Easy attachment and operation Easy attachment and operation



Specification RS 2000
Excavator Class 35+ tons
Required Hydraulic Flow 32 GPM (120 l/min)
Operating Pressure (Max) 2465 psi (170 bar)
Screen Drum Diameter 78.75 in (2000 mm)
Screen Drum Depth 43.5 in (1100 mm)
Drum Volume 4.5 yd³ (3.4 m³)
Total Load Capacity 9.75 yd³ (7.5 m³)
Weight (w/o Bracket) 10,150 lbs (4600 kg)
Material Type Rock, Rubble, Soil, Gravel
Application Construction, Mining
Grid Interchangeability Yes
Frame Type Compact, Stable
Hydraulic Compatibility Excavators (35+ tons)
Drum Rotation Speed Adjustable for material types
Ease of Use Easy attachment and operation
