Product Description

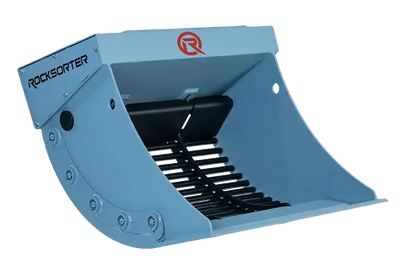

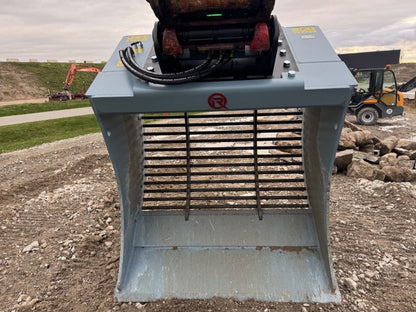

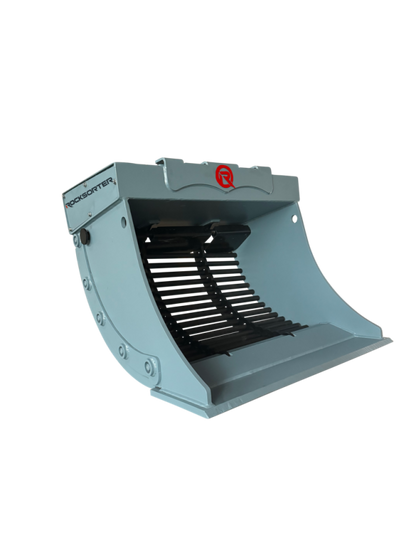

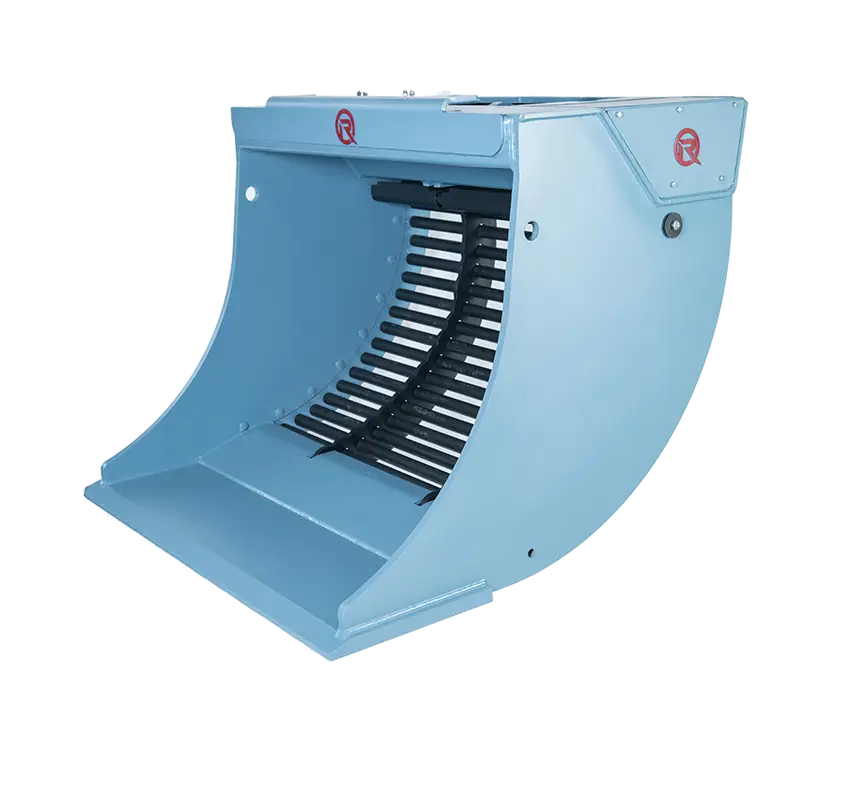

RockZone Rocksorter Sorting Bucket | Models V3 To V35 | Width 28 To 63 Inches | 2 To 40 Tons | For Excavators
DESCRIPTION

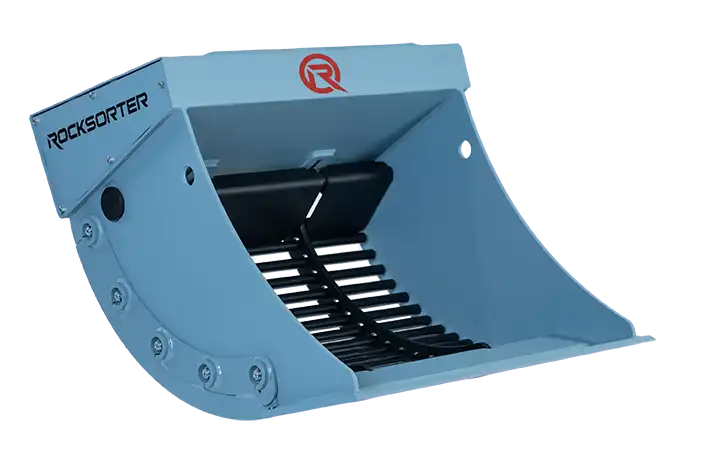

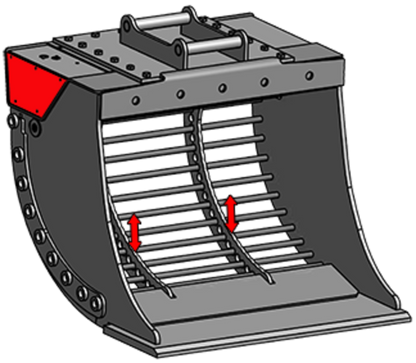

The RockZone Rocksorter Sorting Bucket is engineered for maximum efficiency and durability, providing fast, reliable material separation in the toughest construction and demolition environments. Featuring a patented eccentric motion system, the Rocksorter ensures superior screening performance for both coarse and fine materials, improving productivity and reducing labor costs.

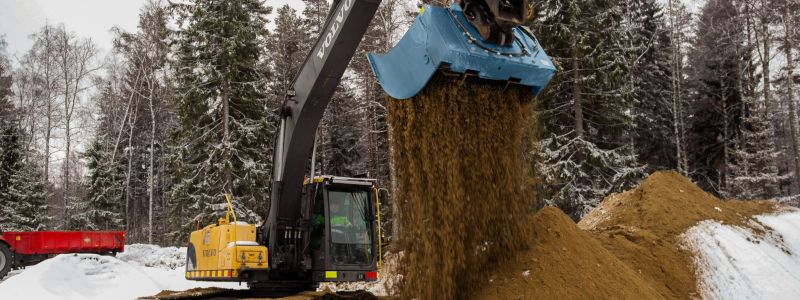

Whether you’re working on excavation, roadwork, utility installation, or demolition projects, this versatile attachment excels in sorting materials with precision. With easy-to-adjust screen sizes, it allows seamless transitions between different material types, improving workflow and site preparation times.
Designed to withstand heavy-duty usage, the Rocksorter is built with a simple yet robust structure that minimizes maintenance and downtime. Its high flow capacity and durable construction make it ideal for heavy machinery such as excavators. The Rocksorter comes in multiple models (V3 to V35), offering solutions for equipment ranging from small machines to large excavators.
Boost your productivity and reduce operational costs with the RockZone Rocksorter Sorting Bucket the ultimate material sorting solution for construction, demolition, and recycling tasks.
Key Features
- Efficient Material Separation The patented eccentric motion system quickly separates coarse and fine materials, reducing labor and improving productivity on-site.

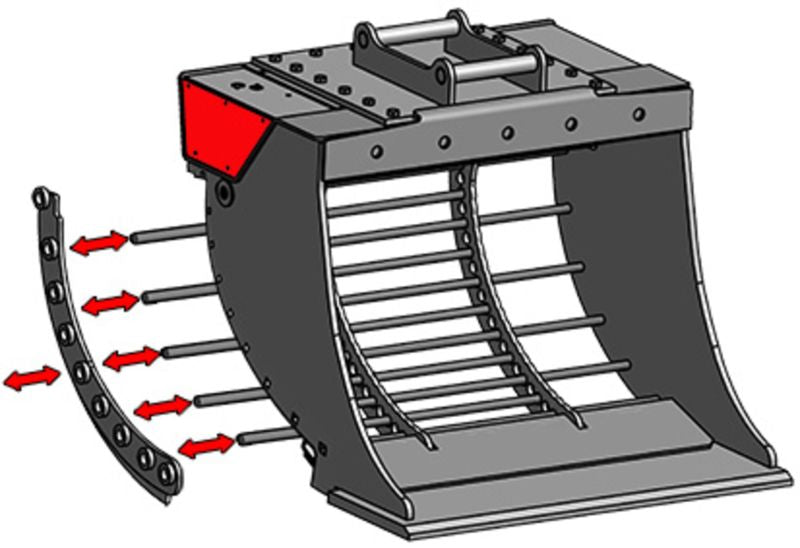

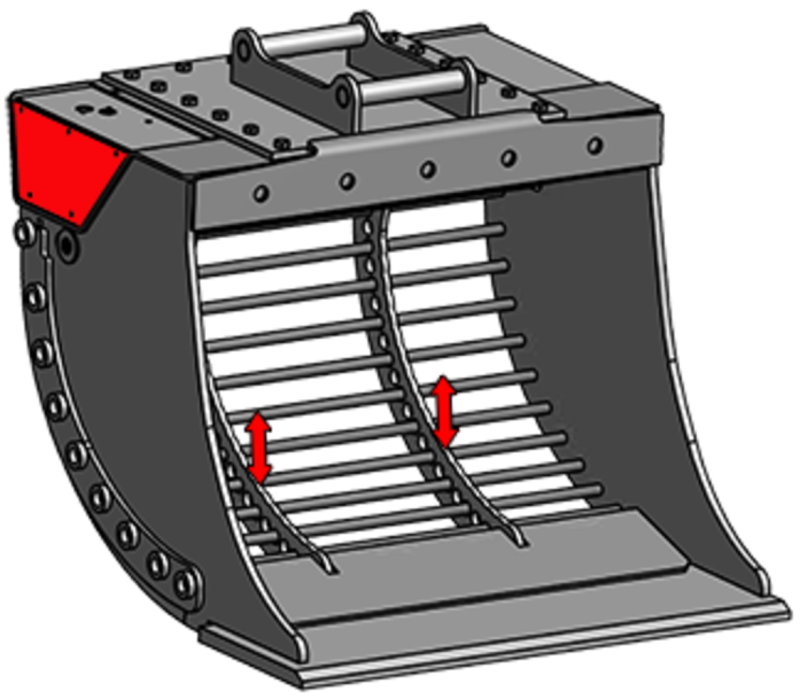

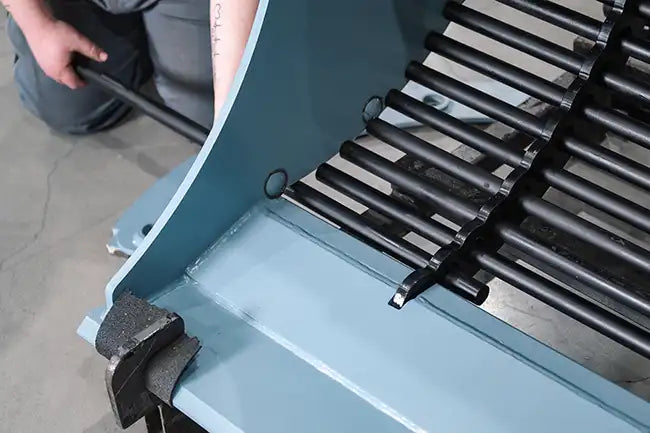

- Versatile Screen Sizes The adjustable screen design allows easy transitions between materials, optimizing workflow without the need for complex adjustments.
- Durable Construction Built to withstand tough environments, the Rocksorter features a heavy-duty design that ensures long-lasting reliability and minimal downtime.
- Multiple Model Options Choose from a wide range of models (V3 to V35), each tailored for specific excavator classes, from 2 tons to 40 tons, ensuring compatibility with your machine.
- Cost-Effective Performance Lower operating costs compared to traditional star screen buckets, with easy maintenance that minimizes service time and extends the life of the attachment.
- High Flow Capacity Designed to handle 5 to 31 GPM flow rates, ensuring optimal performance for both smaller and larger excavators, loaders, and skid steers.
- Reduced Operational Costs The Rocksorter’s simple design minimizes maintenance costs and enhances uptime, contributing to overall cost savings during operations.

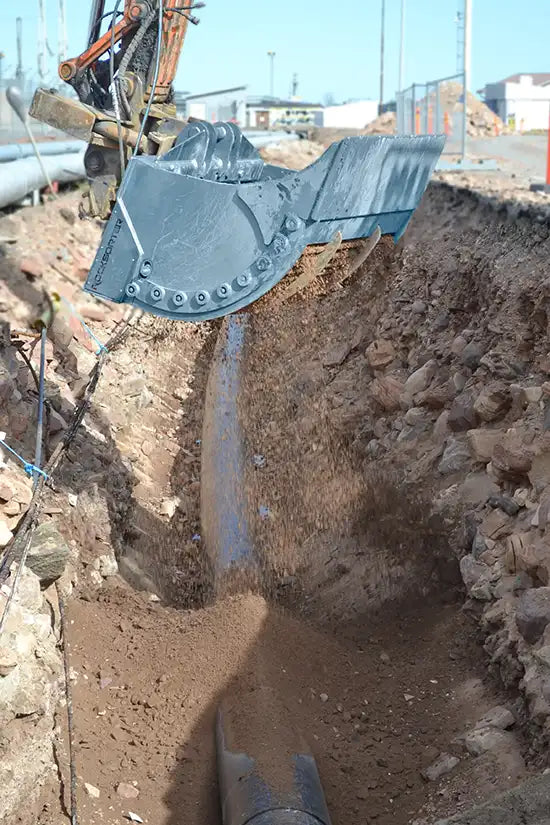

- Improved Site Prep Efficiency Perfect for site preparation tasks, such as digging trenches, laying pipes, or clearing demolition debris, with fast material sorting and separation.
- Compact and Lightweight Models Ranging from 375 lbs to 4,080 lbs, Rocksorter models are designed to provide excellent strength while maintaining a manageable weight for different equipment.

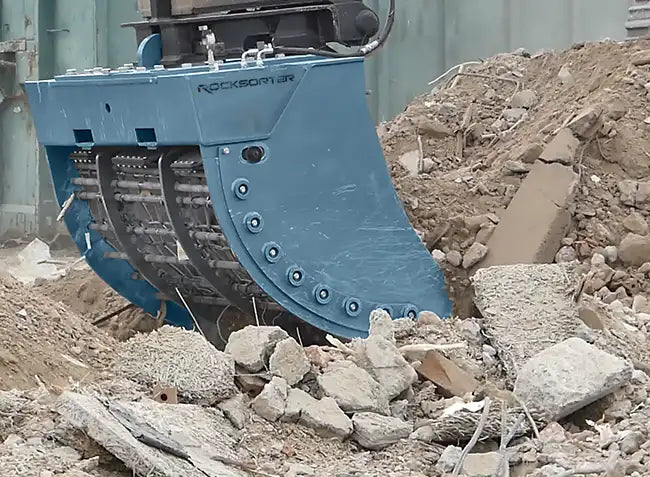

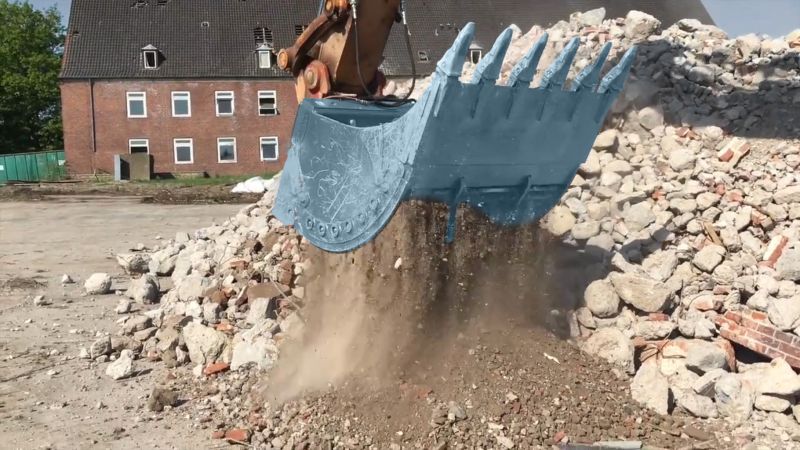

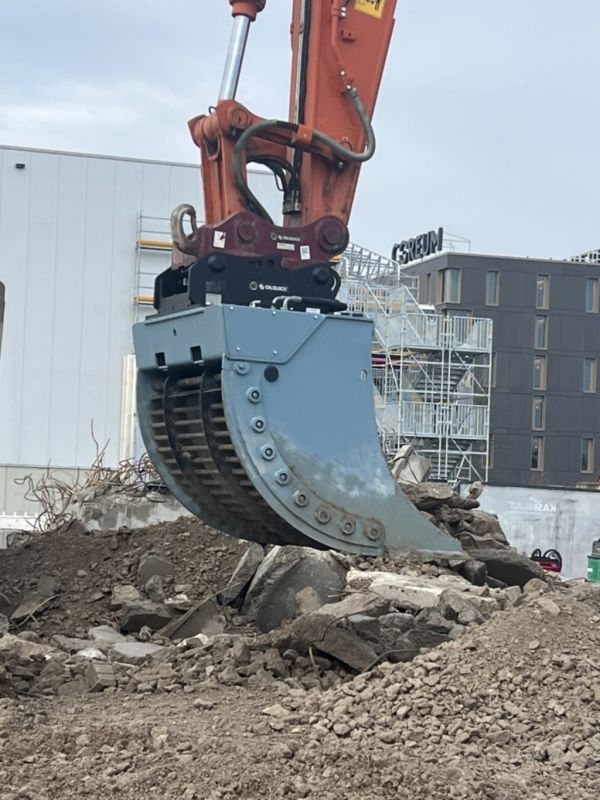

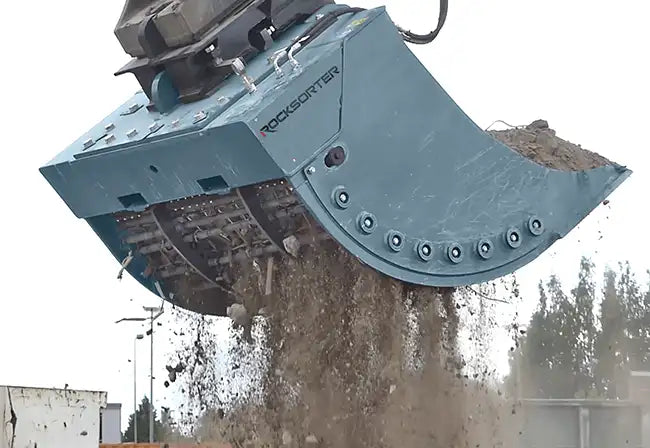

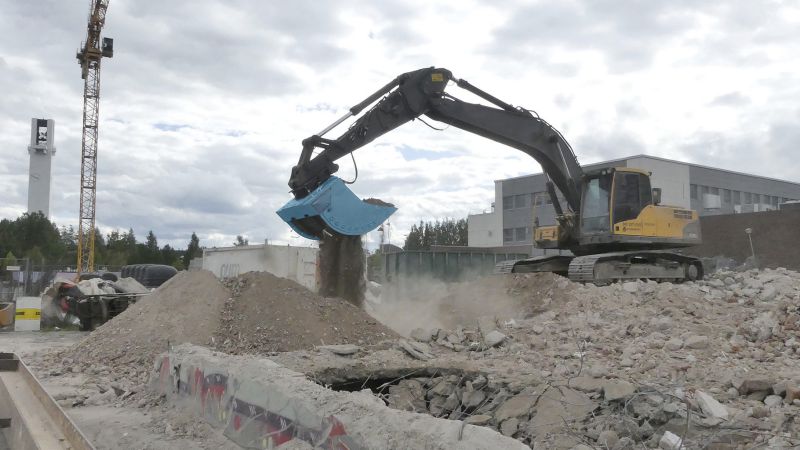

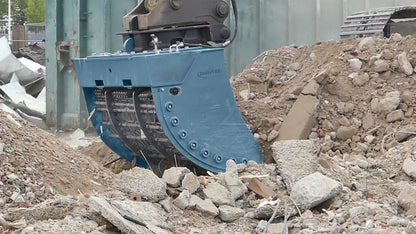

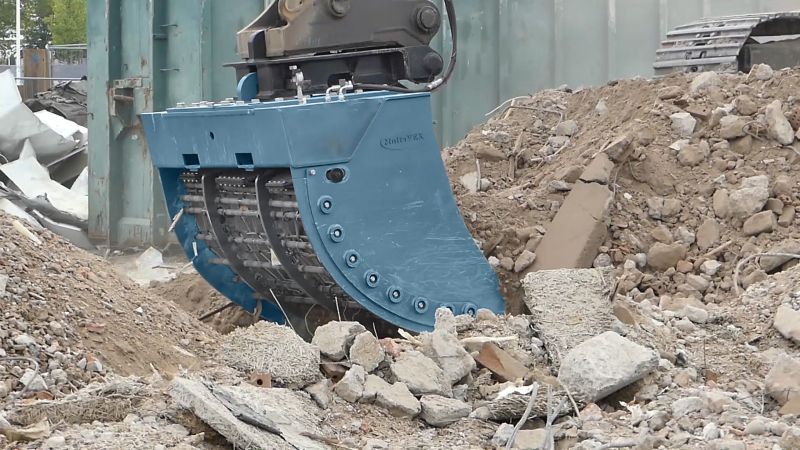

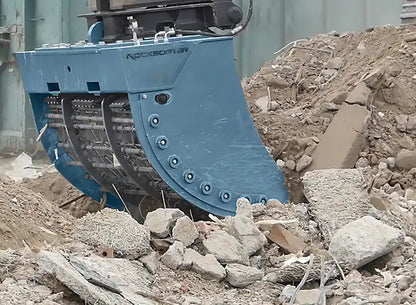

- Effective in Demolition Projects Efficiently handles debris and waste, separating fine materials from larger rubble, making it perfect for construction debris recycling.
- Easy-to-Operate The Rocksorter’s intuitive setup requires no complicated tools, allowing for quick adjustments and straightforward operation.
- Heavy-Duty Performance The Rocksorter thrives in harsh environments, from excavation to heavy construction tasks, ensuring high-performance standards across various industries.
- Enhanced Productivity The bucket’s large load volume (up to 1.83 cu. yd.) and high sorting speed greatly improve the productivity of workers, ensuring projects stay on schedule.
- Optimized for Excavators Available in various sizes, the Rocksorter is perfectly suited for excavator classes ranging from 2 tons to 40 tons, providing the ideal fit for a wide range of machines.
Detailed Specifications
| Feature | Rocksorter Model V3 | Rocksorter Model V5 |
|---|---|---|
| Excavator Class (Tons) | 2 - 4 | 3 - 6 |
| Required Flow Rate (GPM) | 5-15 (20-60 L/min) | 5-15 (20-60 L/min) |
| Operating Pressure (psi) | 4600 | 4600 |
| Weight (w/o Bracket) (lbs) | 375 (170 kg) | 595 (270 kg) |
| Load Volume (cu. yd.) | 0.1 | 0.27 |
| Width (inches) | 28 | 31.5 |
| Output Size Range (inches) | < 2 | < 2 |

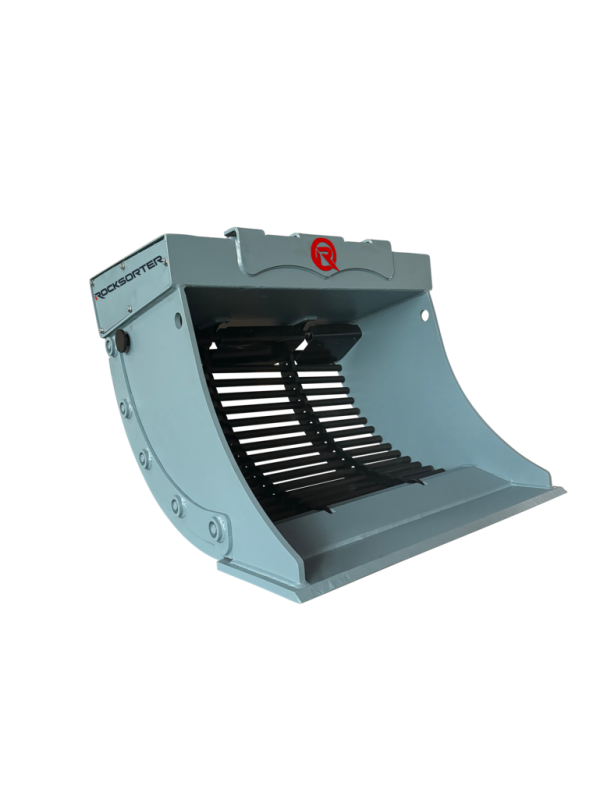

| Feature | Rocksorter Model V8 | Rocksorter Model V10 |
|---|---|---|
| Excavator Class (Tons) | 5 - 10 | 7 - 12 |
| Required Flow Rate (GPM) | 10-20 (40-80 L/min) | 10-20 (40-80 L/min) |
| Operating Pressure (psi) | 4600 | 4600 |
| Weight (w/o Bracket) (lbs) | 1080 (490 kg) | 1430 (650 kg) |
| Load Volume (cu. yd.) | 0.5 | 0.55 |
| Width (inches) | 39 | 47 |
| Output Size Range (inches) | < 2 | < 2 |
| Feature | Rocksorter Model V12 | Rocksorter Model V15 |
|---|---|---|
| Excavator Class (Tons) | 12 - 15 | 13 - 18 |
| Required Flow Rate (GPM) | 10-20 (40-80 L/min) | 10-20 (40-80 L/min) |
| Operating Pressure (psi) | 4600 | 4600 |
| Weight (w/o Bracket) (lbs) | 1895 (860 kg) | 2200 (1000 kg) |
| Load Volume (cu. yd.) | 0.81 | 0.95 |
| Width (inches) | 47 | 52 |
| Output Size Range (inches) | < 2 | < 2 |

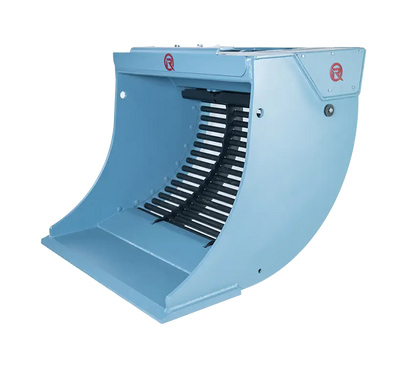

| Feature | Rocksorter Model V20 | Rocksorter Model V30 |
|---|---|---|
| Excavator Class (Tons) | 15 - 25 | 25 - 35 |
| Required Flow Rate (GPM) | 10-20 (40-80 L/min) | 20-31 (80-120 L/min) |
| Operating Pressure (psi) | 4600 | 4600 |
| Weight (w/o Bracket) (lbs) | 3175 (1440 kg) | 3880 (1760 kg) |
| Load Volume (cu. yd.) | 1.57 | 1.57 |
| Width (inches) | 59 | 59 |
| Output Size Range (inches) | < 2 | < 2 |
| Feature | Rocksorter Model V35 |
|---|---|
| Excavator Class (Tons) | 30 - 40 |
| Required Flow Rate (GPM) | 20-31 (80-120 L/min) |
| Operating Pressure (psi) | 4600 |
| Weight (w/o Bracket) (lbs) | 4080 (1850 kg) |
| Load Volume (cu. yd.) | 1.83 |
| Width (inches) | 63 |
| Output Size Range (inches) | < 2 |
