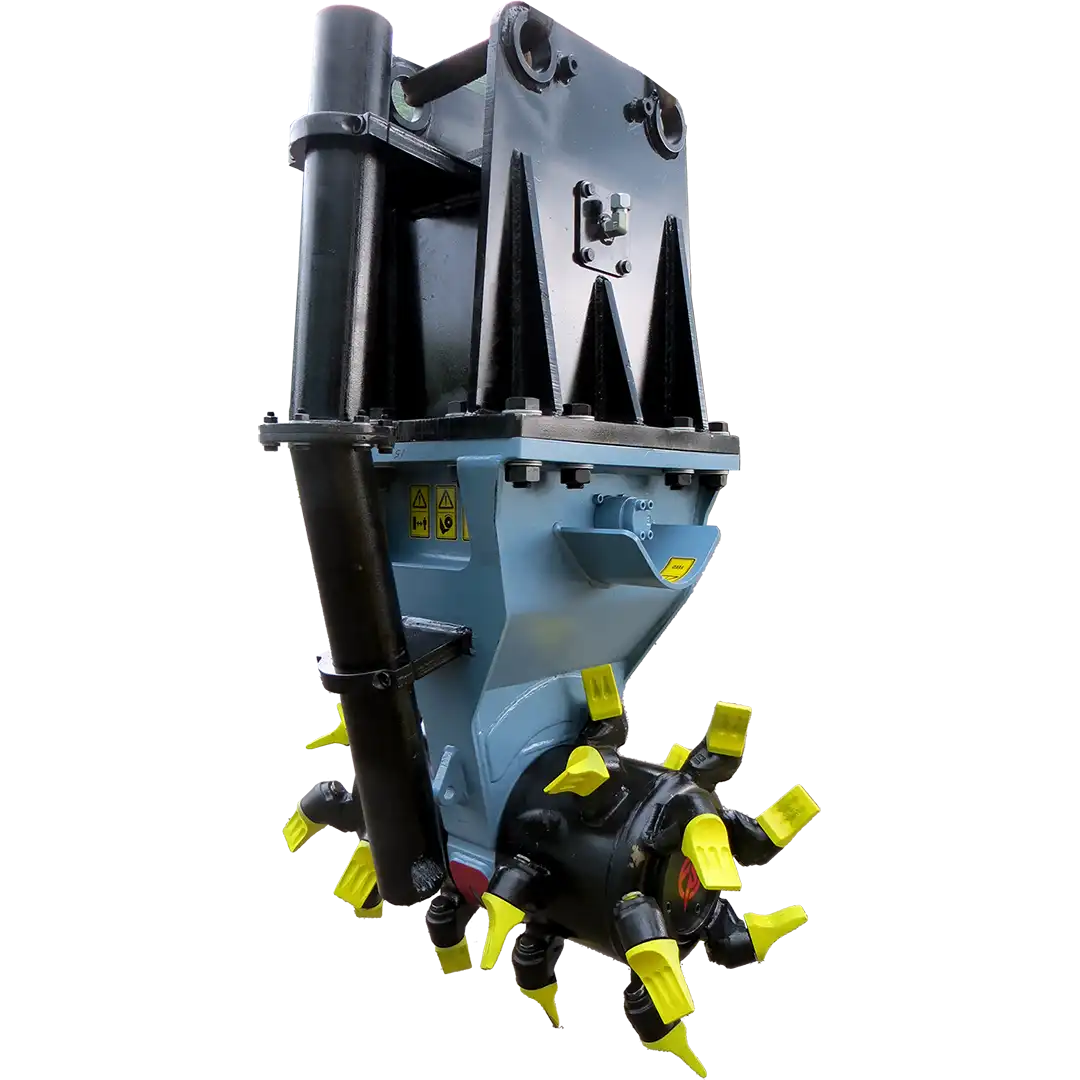

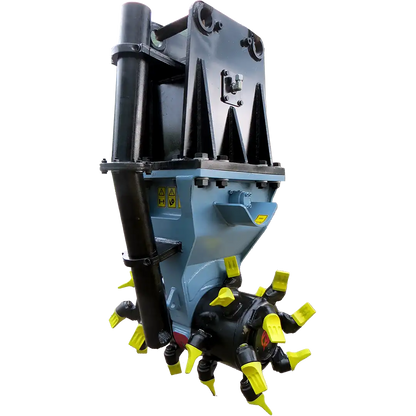

RockZone Soil & Dirt Mixer | Model MXR-D15 | Drum Width 39" | 13 To 20 Tons | For Excavator
DESCRIPTION
The RockZone MXR-D15 Soil Mixer is engineered for high-performance and durability, designed to efficiently blend soil, dirt, and other amendments on-site. Equipped with a 55-horsepower direct drive transmission, it offers reliable and consistent mixing power for excavators ranging from 13 to 20 tons. The 39-inch mixing width ensures smooth, even blending, while the adjustable drum speed (75-105 RPM) gives operators the flexibility to tailor performance to specific project needs.
This heavy-duty soil mixer is fully customizable, allowing for modifications to the paddle layout, drum width, and amendment feeder systems, making it ideal for unique projects. The MXR-D15 boasts a hydraulic input power range of 25-35 GPM, ensuring optimal flow rates for efficient operation. Built to handle demanding environments, the RockZone MXR-D15 can withstand an operating pressure of up to 5800 psi, providing superior torque and maximum reliability, even in the most challenging conditions.
Maximize your productivity and reduce project timelines with this robust, user-friendly solution designed to integrate seamlessly with your excavator. Whether for landscaping, construction, or agricultural applications, the MXR-D15 stands out as the perfect tool for fast, high-quality soil mixing.
Key Features
- 55hp Direct Drive Transmission The MXR-D15 offers reliable power, ensuring smooth and consistent operation in demanding conditions.
- For 13-20 Ton Excavators Specifically designed for excavators of this weight class, ensuring optimal performance and power transfer.
- 39" Mixing Width Ideal for blending large volumes of soil or dirt, maximizing productivity with fewer passes.
- Adjustable Drum Speed (75-105 RPM) Customizable speeds provide flexibility to meet various project requirements for blending and soil conditioning.
- Hydraulic Flow Range of 25-35 GPM Offers a wide hydraulic flow range, optimizing compatibility with a variety of excavators.
- High Torque for Tough Jobs With a max torque of 5861 ft/lbs (7.9 kNm), it ensures efficient operation in even the most challenging mixing environments.
- Max Operating Pressure of 5800 psi Built to handle high-pressure conditions, delivering durability and performance.
- Customizable Paddle Layout Tailor the paddles to meet specific soil types and project needs, ensuring better results.
- Weight of 1500 lbs (680 kg) Heavy enough to provide stability and durability, while still maintaining portability.
- Built for Harsh Environments Durable construction designed to withstand tough conditions without compromising performance.
- Versatile Feeder System Custom amendment feeder system options to introduce different additives for tailored mixing.
- High-Quality Components Designed with durable parts to ensure longevity and reduce downtime for repairs.
- Easy Installation & Integration Seamlessly integrates with compatible excavators, minimizing setup time.
- Reduced Project Time Efficiently mixes soil, reducing the overall time required to prepare and distribute materials on-site.
- Ideal for Multiple Applications Perfect for landscaping, construction, and agricultural soil preparation tasks.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | MXR-D15 |
| Excavator Class (Tons) | 13 - 20 Tons |
| Hydraulic Input Power | 55 hp (41 kW) |
| Required Flow Rate | 25 - 35 GPM (94 - 133 L/min) |
| Operating Pressure (Max) | 5800 psi (400 bar) |
| Drum Speed | 75 - 105 RPM |
| Max Torque | 5861 ft/lbs (7.9 kNm) |
| Drum Width | 39 in (980 mm) |
| Weight (Without Bracket) | 1500 lbs (680 kg) |
| Drum Diameter | 28 in (710 mm) |
| Drum Thickness | 0.5 in (12.7 mm) |
| Overall Length | 78 in (1981 mm) |
| Overall Height | 51 in (1295 mm) |
| Overall Width | 43 in (1092 mm) |
| Customization Options | Paddle layout, feeder system |
| Primary Use | Soil mixing, soil preparation |
| Construction | Heavy-duty steel frame |
