Rotadairon DS Series Detachers | Model DS- 130 & DS-180 | Working Width 51.25" & 70.75" | Horsepower 25-45HP | For Tractors

Rotadairon DS Series Detachers | Model DS- 130 & DS-180 | Working Width 51.25" & 70.75" | Horsepower 25-45HP | For Tractors

$11,788.24
$11,788.24
Sale Sold out
Customizable
Fast
24/7 Support
  • 51.25" & 70.75" Working Widths Designed for turf renovation, seedbed preparation, and efficient vegetation removal in compact and mid-sized zones
  • Required Power Range: 25–45 HP Compatible with a variety of compact and utility tractors for consistent PTO performance across both models
  • Max Working Depth: 2.25" Adjustable rear roller allows precise dethatching, residue clearing, and surface conditioning
  • 360 mm Rotor Diameter Delivers uniform turf disruption and stable material extraction across varied terrain
View full details

Product Description

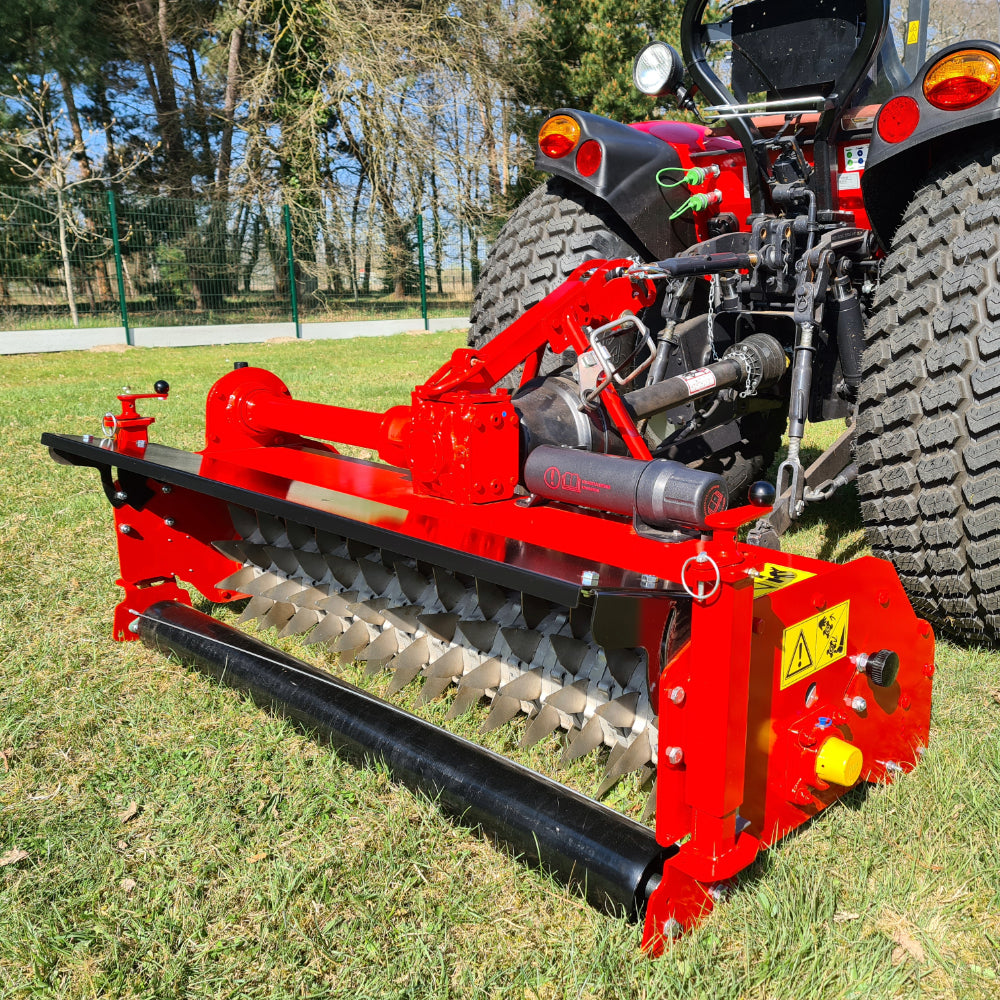

Rotadairon DS Series Detachers | Model DS- 130 & DS-180 | Working Width 51.25" & 70.75" | Horsepower 25-45HP | For Tractors

DESCRIPTION

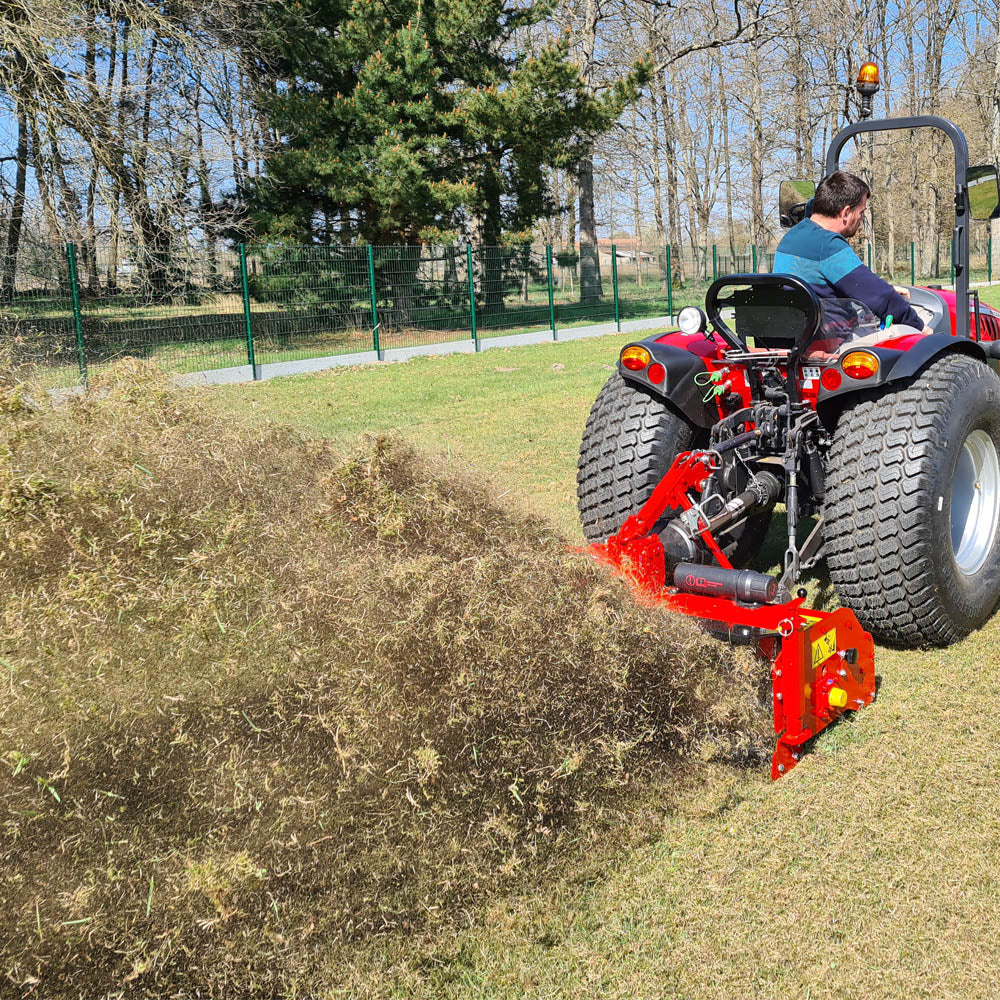

Designed for precision turf maintenance, the Rotadairon DS Series Dethatchers deliver robust performance in lawn renovation, pasture rejuvenation, and organic residue removal. With high-speed rotor action and close knife spacing, they ensure aggressive yet controlled dethatching across varied terrains. Available in two working widths, these machines cater to compact tractors and standard utility models.

Key Features

  • 51.25" & 70.75" Working Widths Designed for turf renovation, seedbed preparation, and efficient vegetation removal in compact and mid-sized zones
  • Required Power Range: 25–45 HP Compatible with a variety of compact and utility tractors for consistent PTO performance across both models
  • Max Working Depth: 2.25" Adjustable rear roller allows precise dethatching, residue clearing, and surface conditioning
  • 360 mm Rotor Diameter Delivers uniform turf disruption and stable material extraction across varied terrain

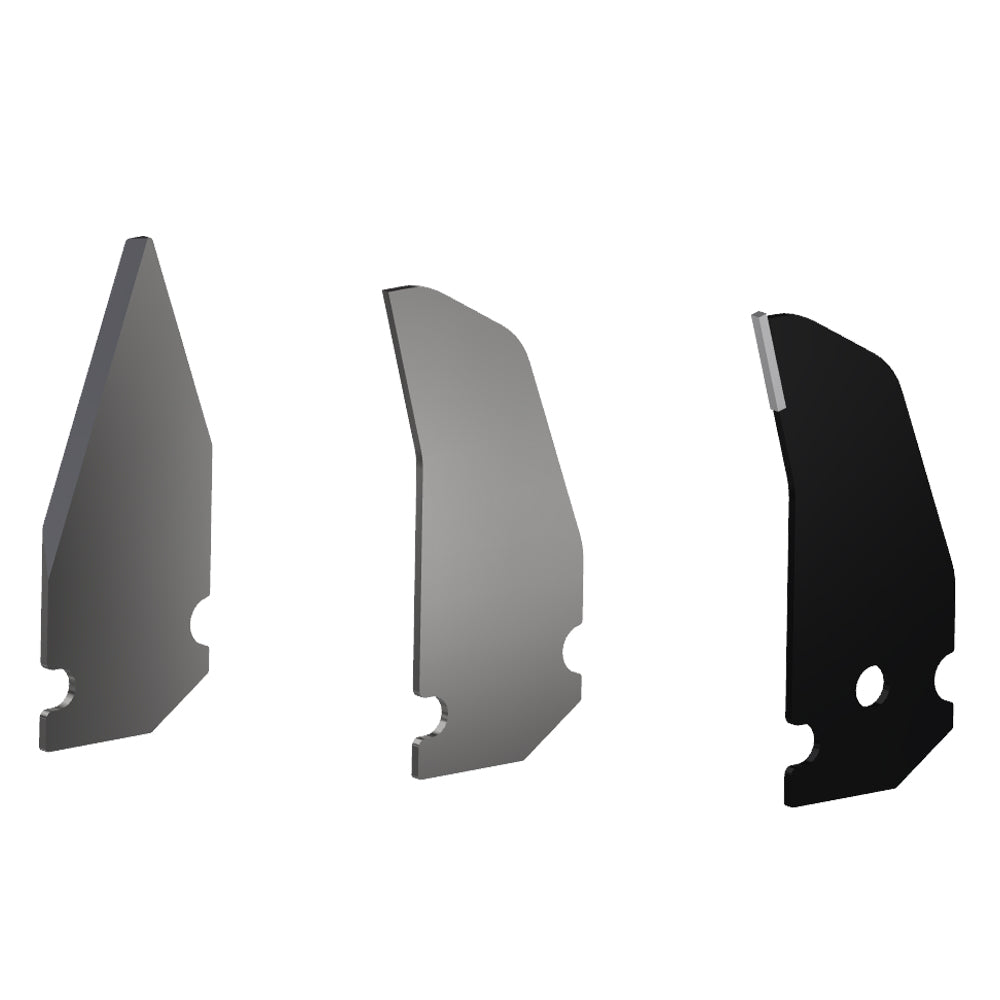

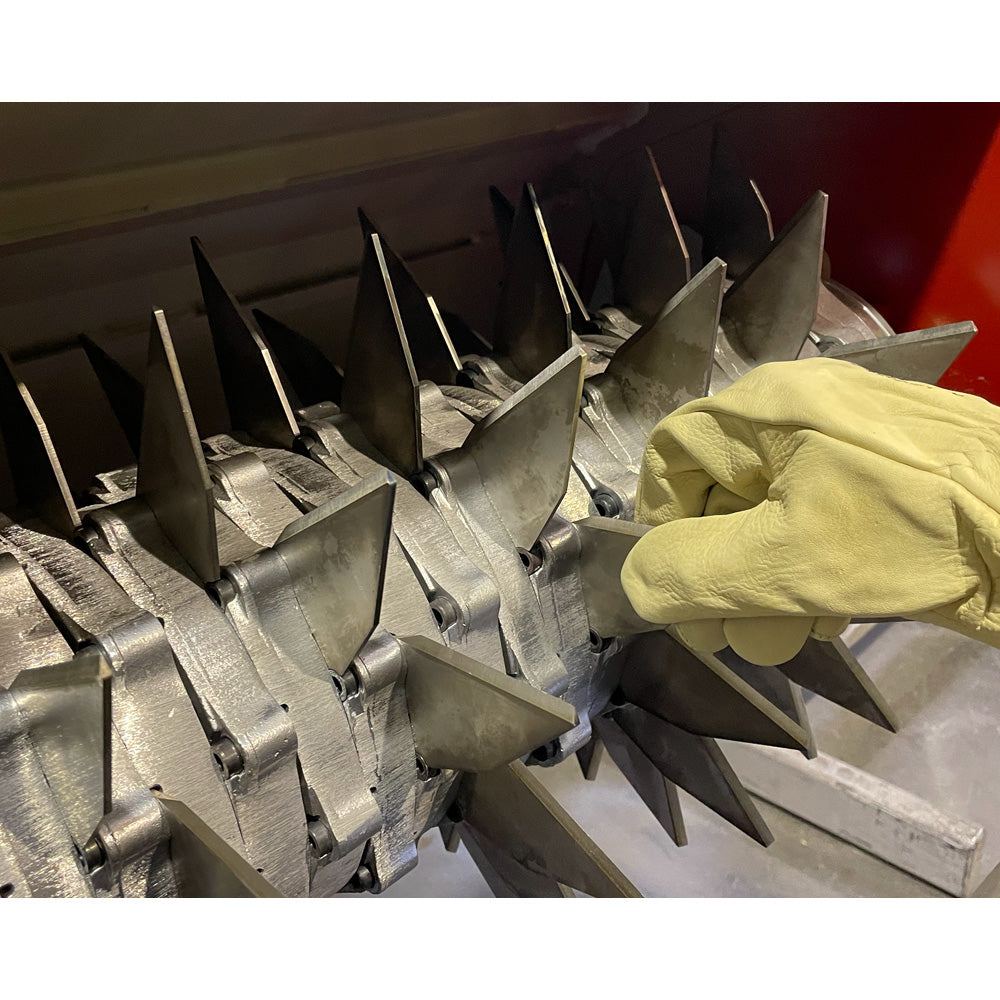

  • Knife Configuration: 159 / 222 Knives (DS 130 / DS 180) Arranged on 53 and 74 flanges respectively for optimized turf engagement and debris removal
  • Knife Spacing: 24 mm (15/16") Maintains fine-cut precision while preserving underlying turf layers
  • Operating Weight Range: 635–728 lbs Balanced for effective ground contact and transport ease
  • Transport Dimensions
    • DS 130: 61.5" × 35.25" × 33"
    • DS 180: 76.67" × 35.25" × 33" Compact sizing ensures easy trailer loading and maneuverability
  • PTO Speed: 540 RPM Standard rotational speed ensures optimal rotor function
  • 3-Point Hitch: Category I & II Universal hitch compatibility for seamless attachment to popular tractor platforms

Detailed Specifications

DS Series Dethatchers

Feature

DS 130

DS 180
Required Power 25–45 HP 30–45 HP
Working Width 1300 mm (51.25") 1800 mm (70.75")
Total Width 1560 mm (61.5") 1945 mm (76.67")
Weight 288 kg (635 lbs) 330 kg (728 lbs)
Working Depth (Max) 0–60 mm (0–2.25") 0–60 mm (0–2.25")
Distance Between Knives 24 mm (15/16") 24 mm (15/16")
Rotor Diameter 360 mm (14.25") 360 mm (14.25")
Number of Flanges 53 74
Number of Knives 159 222
3-Point Hitch Category I & II Category I & II
PTO Speed 540 RPM 540 RPM
Transport Dimensions 1560×895×840 mm
(61.5"×35.25"×33")		 1945×895×840 mm
(76.67"×35.25"×33")
