Rotadairon RDH Series Stone Buriers | Model RDH-52, RDH-60 & RDH-70 | Working Width 52", 60" & 70" | Hydraulic Flow Range 18.5–31.7 GPM | For Skid Steers
Rotadairon RDH Series Stone Buriers | Model RDH-52, RDH-60 & RDH-70 | Working Width 52", 60" & 70" | Hydraulic Flow Range 18.5–31.7 GPM | For Skid Steers
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Rotadairon RDH Series Stone Buriers | Model RDH-52, RDH-60 & RDH-70 | Working Width 52", 60" & 70" | Hydraulic Flow Range 18.5–31.7 GPM | For Skid Steers
DESCRIPTION

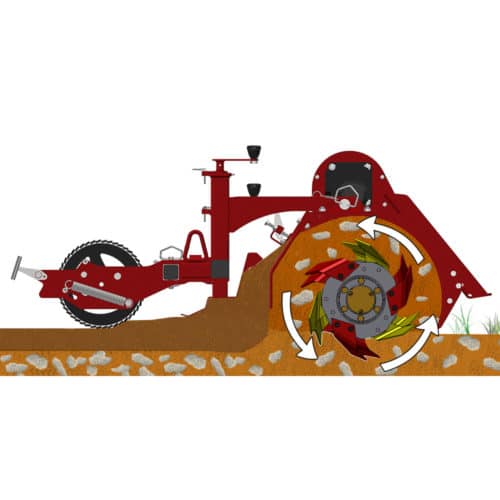

The Rotadairon® RDH Series is a robust and versatile stone burier designed for thorough soil preparation and effective stone and debris burial. Perfect for use on compact or already-prepared ground, the RDH efficiently transforms terrain by overturning the soil with its oversized rotor and patented anti-sole blades. It buries detritus, grass, and stones, creating a fine, prepared soil surface ideal for seeding or landscaping. Available in different models (RDH 52, RDH 60, RDH 70) and adaptable to Bobcat mounting, this machine suits various land care requirements.Each RDH model comes with precise depth control, adjustable rear rollers, and a durable hydraulic transmission system, ensuring consistent performance and a high-quality soil finish. Choose between mesh or iron cast rollers for a customizable finish.
Key Features
- 52", 59", and 69.75" Working Widths Ideal for burying stones, leveling terrain, and preparing soil across residential, commercial, and sports turf applications
- Hydraulic Flow Range: 18.5–31.7 GPM Compatible with standard-flow skid steers for consistent rotor performance and soil inversion
- Maximum Working Depth: Up to 6.25 Inches Adjustable rear roller enables deep soil processing for seedbed prep and debris burial

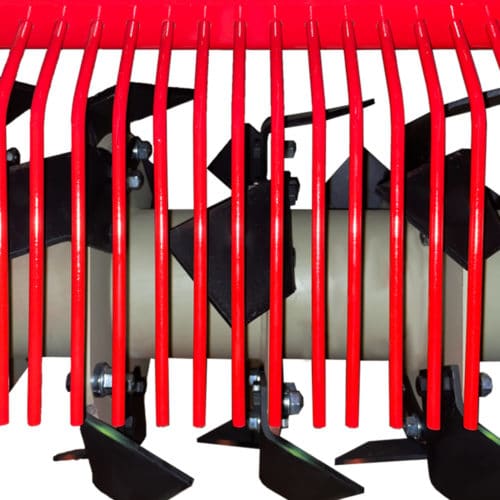

- Oversized Rotor with 28, 32, or 54 Blades Patented anti-sole blades invert and aerate soil while burying rocks, roots, and vegetation in a single pass
- Rotor Diameter: 400 mm (RDH 52 & 60), 510 mm (RDH 70) Provides aggressive soil mixing and consistent depth control across varied terrain

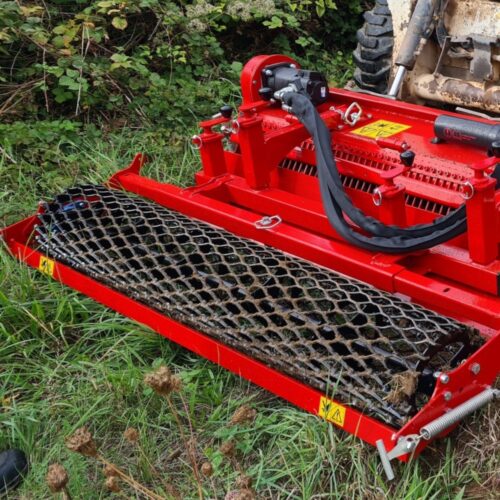

- Mesh Roller Finish Delivers a smooth, compacted surface ready for seeding or turf installation
- Mounting Options: Bobcat Plate or Adaptable Frame RDH 52 & 60 available with Bobcat-style quick attach or Adapt version for custom carrier integration
- Forward Speed Range: 0.5–0.9 mph Optimized for controlled operation and thorough soil conditioning
- Heavy-Duty Build with Oil-Bath Chain Drive Ensures long-term durability and low-maintenance operation in demanding environments
- Transport Dimensions • RDH 52: 67" × 61.75" × 27.5" • RDH 60: 75" × 61.75" × 27.5" • RDH 70: 84" × 74.75" × 33.5" — compact enough for trailer transport and jobsite maneuverability
- Operating Weight Range: 915–1720 lbs Balanced for stability and effective ground contact without overloading skid steer lift capacity
Detailed Specifications
RDH 52 vs RDH 60 — Compact & Mid-Size Comparison
| Specification | RDH 52 | RDH 60 |
|---|---|---|
| Working Width | 1340 mm (52 ¾″) | 1500 mm (59″) |
| Max Working Depth | 140 mm (5.5″) | 140 mm (5.5″) |
| Weight |
450 kg (992 lbs) Adapt: 415 kg (915 lbs) |
500 kg (1102 lbs) Adapt: 465 kg (1025 lbs) |
| Hydraulic Flow | 18.5–31.7 gpm | 18.5–31.7 gpm |
| Mounting Type | Bobcat / No plate (Adapt) | Bobcat / No plate (Adapt) |
| Roller Type | Mesh | Mesh |
| Rotor Diameter | 400 mm (15 ¾″) | 400 mm (15 ¾″) |
| Blade Count | 28 | 32 |
| Speed Range | 0.5–0.9 mph | 0.5–0.9 mph |
| Transport Dimensions |
1700 × 1570 × 700 mm (67″ × 61 ¾″ × 27 ½″) |
1905 × 1570 × 700 mm (75″ × 61 ¾″ × 27 ½″) |
RDH 60 vs RDH 70 — Mid-Size vs Heavy-Duty Comparison
| Specification | RDH 60 | RDH 70 |
|---|---|---|
| Working Width | 1500 mm (59″) | 1774 mm (69 ¾″) |
| Max Working Depth | 140 mm (5.5″) | 160 mm (6.25″) |
| Weight |
500 kg (1102 lbs) Adapt: 465 kg (1025 lbs) |
780 kg (1720 lbs) |
| Hydraulic Flow | 18.5–31.7 gpm | 18.5–31.7 gpm |
| Mounting Type | Bobcat / No plate (Adapt) | Bobcat |
| Roller Type | Mesh | Mesh |
| Rotor Diameter | 400 mm (15 ¾″) | 510 mm (20″) |
| Blade Count | 32 | 54 |
| Speed Range | 0.5–0.9 mph | 0.5–0.9 mph |
| Transport Dimensions |
1905 × 1570 × 700 mm (75″ × 61 ¾″ × 27 ½″) |
2140 × 1900 × 850 mm (84″ × 74 ¾″ × 33 ½″) |
Additional Features:
- Depth Adjustment: Controlled by rear roller, adjustable by screw jacks.
- Grid Finger Spacing: RDH 52 - 22 mm (7/8”); RDH 60/70 - 20 mm (4/5”).
- Rotor Transmission: Hydraulic motor with chain in oil bath for reliable performance.
- Carrier Safety: Security and operational control maintained by the loader.
Suggested Applications:
Perfect for landscaping, seedbed preparation, and soil decompaction on rough or compact ground. Ideal for burying detritus, grass, rocks, and large debris, transforming the ground into a clean, level surface ready for planting or seeding.
