Product Description

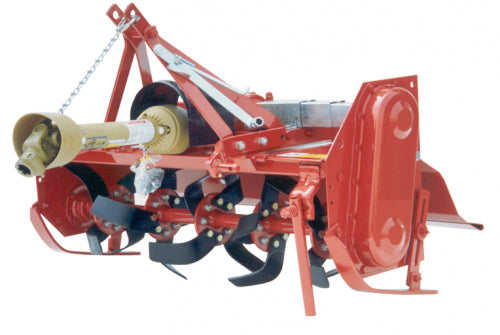

ROTOMEC USA | Rotary Tiller | Model 142-231 | 42" Widths | 20 blades | Maximum Working Depth 7 ¼ inches | 18-40 HP | For Tractor
DESCRIPTION
Tough, versatile, and built for serious work, the Rotomec USA 142-231 Series Rotary Tillers are the ultimate solution for farmers, landscape contractors, vegetable growers, nurseries, orchards, and vineyards. Designed to tackle the most demanding soil preparation tasks, these rugged tillers feature a heavy-duty gearbox, durable chain drive system in a grease bath, full-size replaceable blades, and a sturdy steel center shaft.
Available in four working widths 42", 50", 58", and 66" the Rotomec tillers cater to tractors ranging from 20 to 40 HP operating at 540 rpm. One of the standout features is the built-in manual side-shift system, allowing the operator to quickly adjust the tiller for working in center or offset positions. This flexibility enables better tilling closer to plants, fences, sidewalks, and tight spaces, while also covering one tractor wheel if needed.
Durability and performance come standard with a robust gearbox built in-house by Rotomec, adjustable depth skids, reversible sprockets offering two rotor speeds (231 or 375 rpm), and the choice of a shear bolt or optional slip clutch driveline protection.
Whether you’re preparing seedbeds, maintaining roads, or revitalizing landscapes, the Rotomec USA Rotary Tiller is engineered to deliver years of reliable performance with minimal downtime.
Key Features
- Heavy-Duty Construction: High-quality steel build with a reinforced solid steel center shaft for unmatched durability.
- Built-in Manual Side-Shift: Work either centered behind the tractor or offset closer to crops and obstacles without special tools.

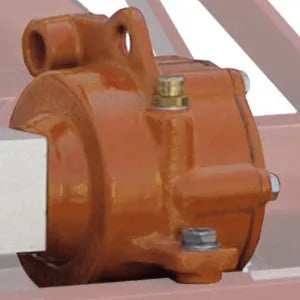

- Powerful Gearbox: Rugged gearbox manufactured by Rotomec with premium-grade gears, bearings, and seals.
- Chain Drive in Grease Bath: Oversized ASA 80 chain transmission for smooth, reliable, and maintenance-friendly operation.
- Forward or Reverse Rotation: Setup allows tilling either forward (to bury rocks) or reverse (to bring rocks to surface).

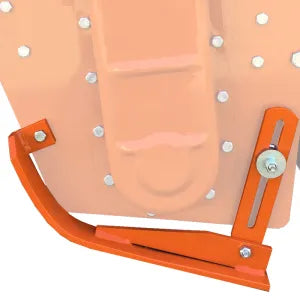

- Adjustable Depth Control: Side skids with infinite adjustments allow tilling depths up to 7 ¼ inches.
- Reversible Sprockets: Easily switch between standard (231 rpm) and high-speed (375 rpm) tilling operations.
- Telescopic Safety Guard: Enhanced operator safety with a built-in protective shield.
- Optional Equipment: Slip clutch for additional driveline protection; aerator rotor available for specific models.
- Compact, Versatile, Reliable: Ideal for farms, nurseries, vineyards, landscaping projects, and road maintenance.
Detailed Specifications
| Feature | Details |
|---|---|
| Brand | Rotomec USA |
| Series | 142-231 Rotary Tillers |
| Horsepower Range | 18-40 HP (13-30 kW) |
| PTO Speed | 540 rpm |
| Hitch Compatibility | Category 1 Three-Point Hitch |
| Working Width Available | 42 inches |
| Manual Side Shift | Standard (built-in manual lever system) |
| Rotation Options | Forward or Reverse (factory-installed option) |
| Gearbox | Heavy-duty, Rotomec-built rugged gearbox |
| Drive System | ASA 80 Chain Drive in a Grease Bath |
| Rotor Speeds | 231 rpm (standard) / 375 rpm (high speed) |
| Blade Count | 20 blades |
| # of Flanges | 5 flanges |
| Maximum Working Depth | 7 ¼ inches (18.4 cm) |
| Side Shift Range | 10 inches |
| Overall Width | 47 inches |
| Weight | 373 lbs (shipping weight 468 lbs) |
| Rotor Shaft Diameter | Solid Steel Center Shaft, 1 3/8" |
| Sprockets | Reversible for two rotor speeds (11-14 teeth) |
| Safety Features | Shear Bolt PTO shaft (Slip Clutch optional), Telescopic shielding |
| Optional Equipment | Slip clutch, Aerator Rotor |
| Construction Material | Heavy-duty Steel with wear protection chain case cover |
| Depth Control | Adjustable Depth Control Skids |
| Tailgate | Hinged, Adjustable, Heavy-Gauge Steel Tailgate |
| Support Stand | Folding Support Stand (Standard Equipment) |
| Ideal For | Farmers, Landscapers, Vegetable Growers, Vineyards, Nurseries, Orchards |
Comparison Chart: Rotomec Rotary Tillers Shear Bolt Models
| Feature | 142-231 (Shear Bolt) | 150-231 (Shear Bolt) | 158-231 (Shear Bolt) | 166-231 (Shear Bolt) |
|---|---|---|---|---|
| HP Range | 20-40 HP | 25-40 HP | 30-40 HP | 32-40 HP |
| Working Width | 42" | 50" | 58" | 66" |
| Overall Width | 47" | 55" | 63" | 72" |
| Weight (lbs) | 373 | 407 | 452 | 492 |
| Shipping Weight (lbs) | 468 | 494 | 530 | 564 |
| Side-Shift | 10" | 14" | 18" | 22" |
| # of Flanges | 5 | 6 | 7 | 8 |
| # of Blades | 20 | 24 | 28 | 32 |
| Chain Sprockets | 11-14 | 11-14 | 11-14 | 11-14 |
| Rotor RPM | 231 / 375 | 231 / 375 | 231 / 375 | 231 / 375 |
| Max Working Depth | 7 1/4" | 7 1/4" | 7 1/4" | 7 1/4" |
| Driveline | 1 3/8", ASAE Cat. 3, Shear Bolt | 1 3/8", ASAE Cat. 3, Shear Bolt | 1 3/8", ASAE Cat. 3, Shear Bolt | 1 3/8", ASAE Cat. 3, Shear Bolt |
Comparison Chart: Rotomec Rotary Tillers Slip Clutch Models
| Feature | 142-231 (Slip Clutch) | 150-231 (Slip Clutch) | 158-231 (Slip Clutch) | 166-231 (Slip Clutch) |
|---|---|---|---|---|
| HP Range | 20-40 HP | 25-40 HP | 30-40 HP | 32-40 HP |
| Working Width | 42" | 50" | 58" | 66" |
| Overall Width | 47" | 55" | 63" | 72" |
| Weight (lbs) | 383 | 427 | 471 | 540 |
| Shipping Weight (lbs) | 501 | 539 | 560 | 629 |
| Side-Shift | 10" | 14" | 18" | 22" |
| # of Flanges | 5 | 6 | 7 | 8 |
| # of Blades | 20 | 24 | 28 | 32 |
| Chain Sprockets | 11-14 | 11-14 | 11-14 | 11-14 |
| Rotor RPM | 231 / 375 | 231 / 375 | 231 / 375 | 231 / 375 |
| Max Working Depth | 7 1/4" | 7 1/4" | 7 1/4" | 7 1/4" |
| Driveline | 1 3/8", ASAE Cat. 3, Slip Clutch | 1 3/8", ASAE Cat. 3, Slip Clutch | 1 3/8", ASAE Cat. 3, Slip Clutch | 1 3/8", ASAE Cat. 3, Slip Clutch |
Manuals & Documents
Operator’s & Parts manual
