Product Description
Rinieri RSI-In and Out Mowing Wheel on Bio-Dynamic Frame | 26"-35" Wheel Width for Tractor
DESCRIPTION
The RSI – In and Out Mowing Wheel on Bio-Dynamic Frame is designed for efficient in-row mowing in vineyards and orchards. It features a spring-loaded in and out mechanism, which allows for smooth movement and adaptability while mowing near plants. The Bio-Dynamic frame comes with hydraulic side shift and manual tilting, ensuring precise control and flexibility for various field conditions. Available in both narrow and wide versions, this system can be mounted on the front or rear of the tractor, making it ideal for small vineyards (minimum row width of 180 cm) and large orchards (up to 550 cm). With built-in safety features like electro-hydraulic safety control, anti-cavitation valve, and max pressure valve, this tool holder ensures safe and efficient operation in all conditions.
Key Features
- Spring-Loaded In and Out Feature: Allows for smooth movement and flexibility during mowing.
- Hydraulic Side Shift: Ensures precise control for inter-row mowing.
- Manual Tilting: Allows for easy adjustment depending on the terrain.
- Adjustable Gauge Wheels: Adaptable for varied row sizes and terrains.
- Safety Features: Includes electro-hydraulic safety control, anti-cavitation valve, and max pressure valve.
- Narrow and Wide Versions: Available for both front and rear tractor mounting, adaptable to various row sizes.
Detailed Specification
Frame Features
| Feature | Specification |
|---|---|
| Hitch Type | 3-point hitch CAT.1-2 |
| Side Shift | Hydraulic |
| Tilting | Manual |
| Spring Load Support | For in and out feature |
| Gauge Wheels | Adjustable |
Safety Features
| Feature | Specification |
|---|---|
| Safety Control | Electro-hydraulic |
| System Protection | Anti-cavitation valve |
| Pressure Valve | Max pressure valve |
On the Tractor
| Feature | Specification |
|---|---|
| Double-Acting Distributor | N.1 |
| Single-Acting Distributor | N.1 |
| Pressure-Free Return | N.1 |
Model Specifications
RSI Narrow Rear and RSI Wide Rear (65 cm Wheel Width)
| Attribute | RSI Narrow Rear | RSI Wide Rear |
|---|---|---|
| Wheel Width (cm) | 65 | 65 |
| Min Row (cm) | 180 | 280 |
| Max Row (cm) | 320 | 500 |
| Displacement from Centre (cm) | 110-165 | 155-245 |
| Oil Demand (L/min) | 35 | 35 |
| Machine Weight (kg) | 300 | 340 |
RSI Wide Rear (90 cm Wheel Width) and RSI Narrow Front
| Attribute | RSI Wide Rear (90 cm) | RSI Narrow Front |
|---|---|---|
| Wheel Width (cm) | 90 | 65 |
| Min Row (cm) | 310 | 180 |
| Max Row (cm) | 550 | 320 |
| Displacement from Centre (cm) | 180-270 | 110-165 |
| Oil Demand (L/min) | 35 | 35 |
| Machine Weight (kg) | 370 | 310 |
RSI Wide Front
| Attribute | RSI Wide Front |
|---|---|
| Wheel Width (cm) | 65 |
| Min Row (cm) | 280 |
| Max Row (cm) | 500 |
| Displacement from Centre (cm) | 155-245 |
| Oil Demand (L/min) | 35 |
| Machine Weight (kg) | 350 |
Manual & Documents
The Product Manual
Machine Configuration Guide
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

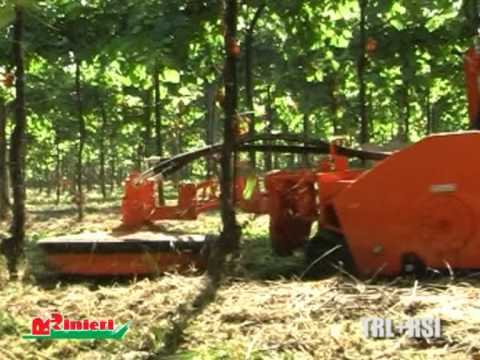

Videos
