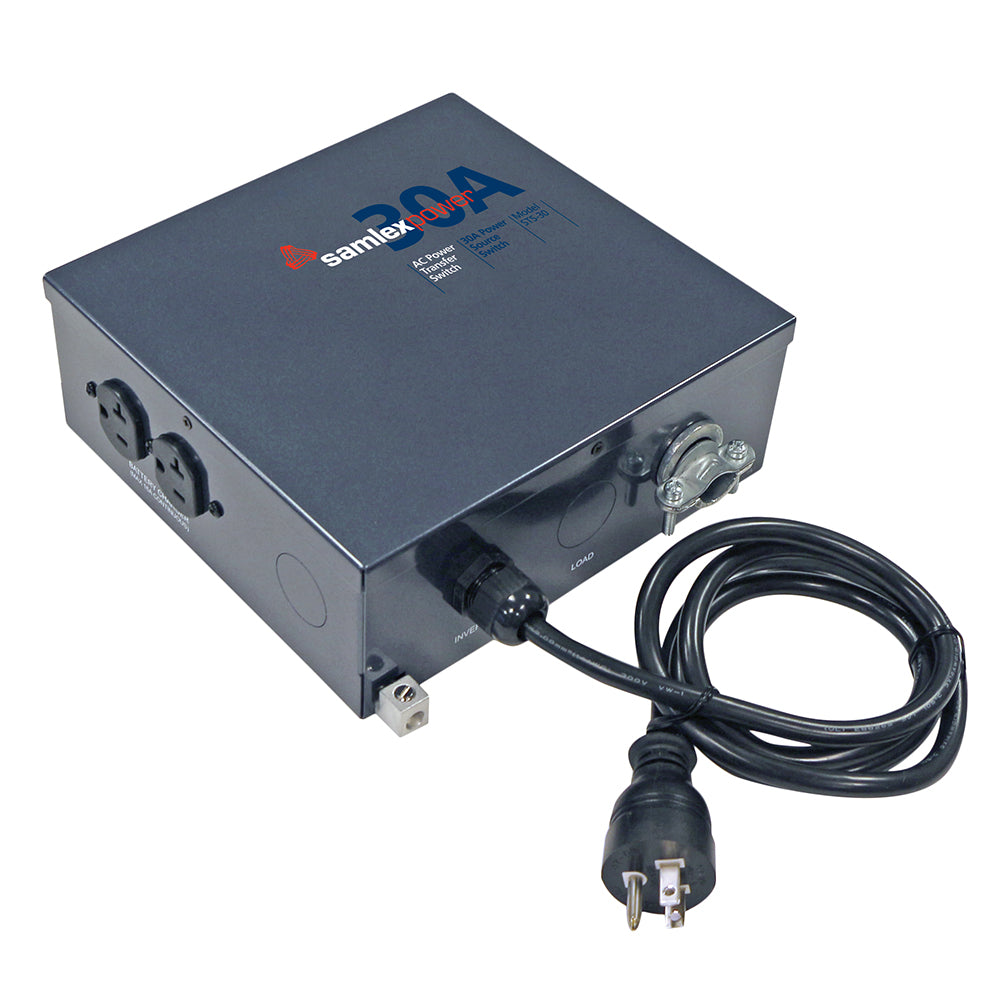

Samlex 30A Transfer Switch w/Inverter Quick Connect [STS-30]

Samlex 30A Transfer Switch w/Inverter Quick Connect [STS-30]

$321.50
$401.90 $321.50
Sale Sold out
Customizable
Fast
24/7 Support

30A Transfer Switch w/Inverter Quick Connect

Whether you’re using solar, batteries or a generator to power your AC devices on the road, chances are, you’re going to want to use shore power when it’s available. Connect a Samlex Transfer Switch to your generator, or to your inverter/battery bank and have your AC source switched automatically to shore power when you plug in.

Features:

  • Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
  • Has rated capacity of 30 Amps at 120 VAC and is suitable for 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
  • Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
  • Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
  • DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
  • Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
  • NEMA5-20R Duplex Receptacle for convenient connection of battery charger

Specifications:

  • Output: 120 VAC
  • Amps: 30 Amps
  • Weight: 4.4 (lbs)
  • Weight: 1.99 (kg)
  • Dimensions: 9 x 8.25 x 3.25 (in)
  • Dimensions: 22.9 x 21 x 8.3 (cm)
  • Warranty: 2 Year Limited

Applications:

  • Solar power systems
  • Emergency backup power
  • Mobile offices
  • Boats
  • Lighting systems
  • Recreational vehicles, camping
  • Automotive
  • Telecommunications
  • Field work/construction sites

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Owner's Manual (pdf)
Brochure (pdf)
