Scanstrut

Scanstrut SC101 Radar Pole Mount - 6 [SC101]

Scanstrut SC101 Radar Pole Mount - 6 [SC101]

Regular price $2,110.00
Regular price $0.00 Sale price $2,110.00
Sale Sold out
Customizable
Fast
24/7 Support

SC101 Radar Pole Mount - 6'

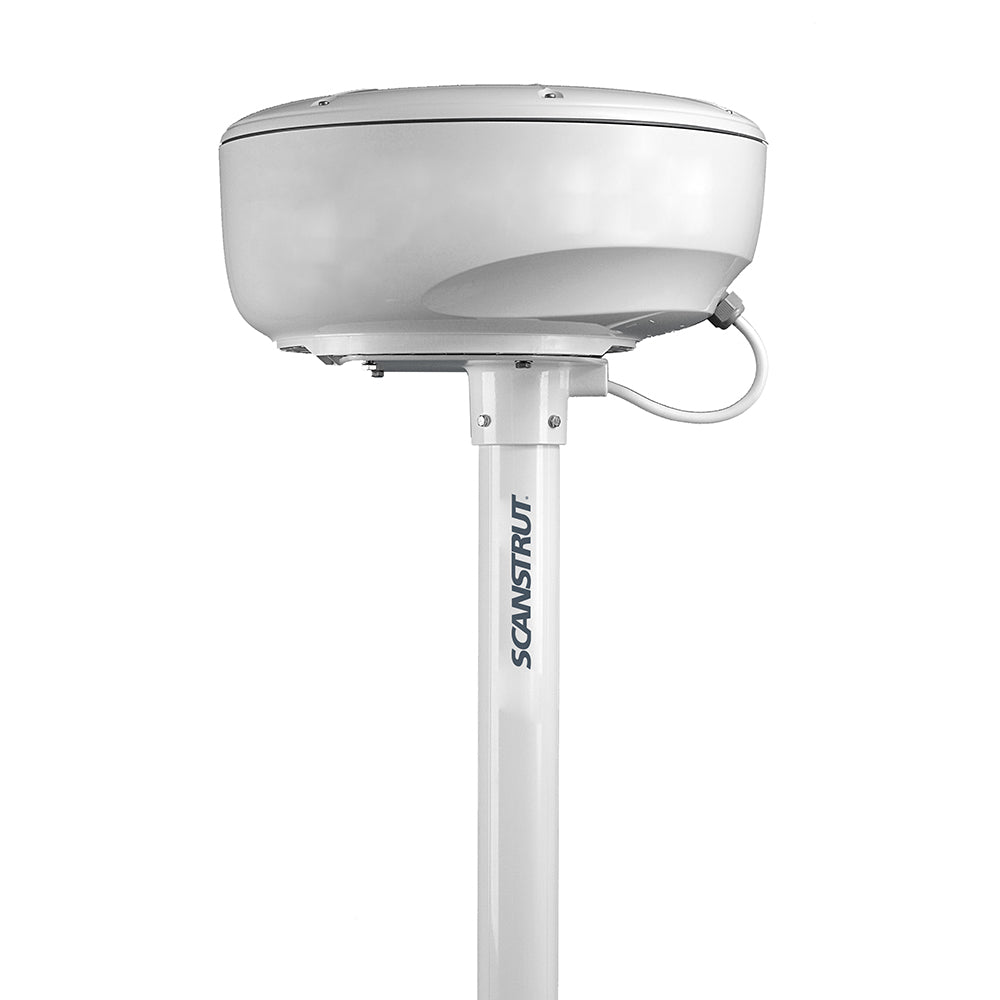

Totally universal, the Scanstrut SC101 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

  • B & G - 3G/4G, HALO20, HALO20+, HALO24 radars
  • Garmin - Fantom 18, 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 radars
  • Humminbird - HB 2124 CHIRP radar
  • Lowrance - 3G/4G radars
  • Raymarine - QUANTUM, QUANTUM 2, RD218, RD418/RD418HD, RD424/RD424HD radars
  • Simrad - 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12 radars
  • Sitex - RADARpc - 4D radar

Features:

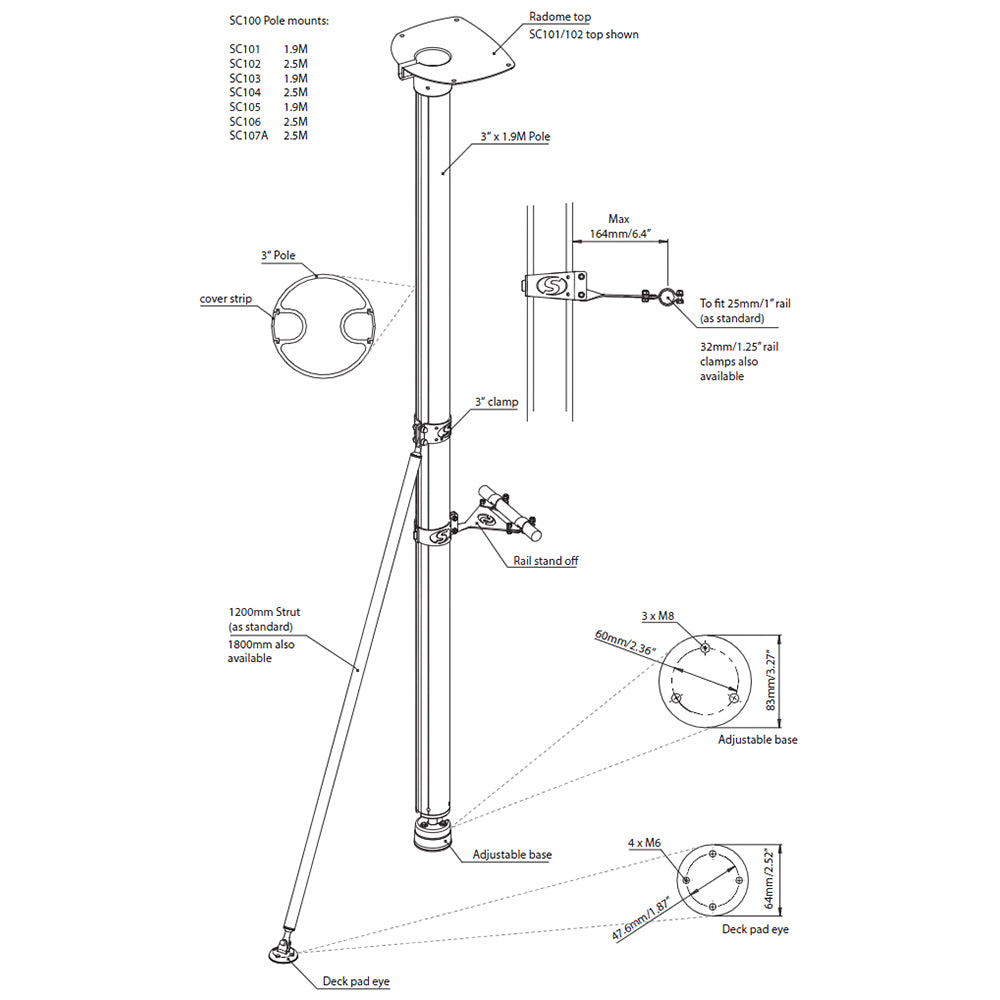

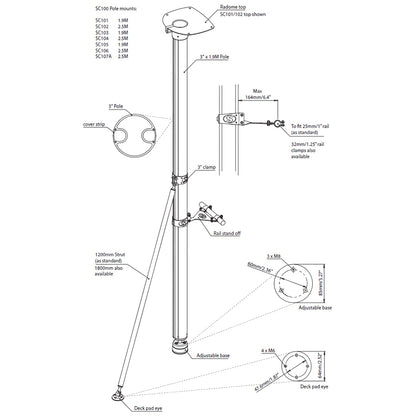

  • Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
  • Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
  • Supplied with two support modules providing maximum fore / aft and sideways bracing
  • Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

  • Radar Type - Dome
  • Material - Aluminium
  • Height - 6.4" (1.9M)
  • Mounting Type - Pole Mount

In the Box:

  • Pole mount
  • Top plate
  • Deck strut
  • Mounting hardware
  • Installation manual

*Sold as an Individual



Specifications:

  • Type: Pole Mount
  • Construction: Aluminum
  • Height: 6
  • Box Dimensions: 5"H x 14"W x 72"L WT: 26.3 lbs
  • UPC: 5060114790582

Quick Guide (pdf)
Brochure (pdf)
