Product Description
Seppi | Stone Crusher & Forestry Tiller | Model MS-CL150 (Minisoil) | Width 59" Inches | Hydraulic Flow 28 To 66 GPM | For Skid Steers
DESCRIPTION

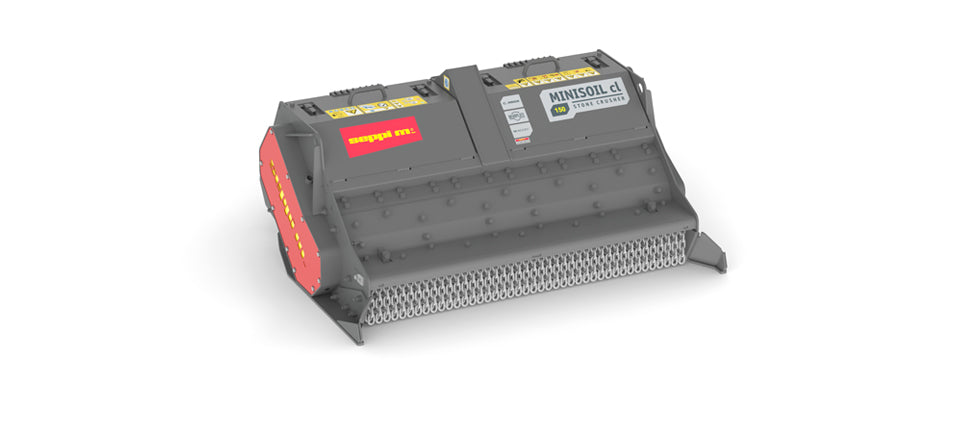

The SEPPI MINISOIL CL150 is a high-performance stone crusher, forestry mulcher, and soil tiller engineered for hydraulic skid steer loaders. Designed for demanding jobs like roadwork, land reclamation, forestry mulching, and construction site clearing, this compact yet aggressive attachment combines strength, durability, and unmatched versatility in one seamless solution.
Whether you're a landowner, contractor, farmer, or municipality, the MINISOIL CL150 empowers you to crush stones up to 6", mulch wood up to 8", and till soil up to 4" deep, all with a single pass.
Driven by dual M-BOOST variable displacement motors and fortified with tungsten carbide-reinforced hammers, the MINISOIL delivers consistent performance across a wide range of hydraulic flows from 28 to 66 GPM, at pressures up to 5,500 PSI.
Key Features
- Designed specifically for hydraulic skid steer loaders with a compatible hydraulic flow range of 28–66 GPM, ensuring seamless integration and optimal performance.
- Combines three powerful functions in one: stone crushing, forestry mulching, and soil tilling, maximizing your machine’s versatility on any job site.
- Equipped with dual M-BOOST hydraulic piston motors offering automatic variable displacement for adaptive torque and faster rotor acceleration, reducing work time.
- Patented aggressive rotor fitted with tungsten carbide-tipped hammers (SUPER DUO PROTECT), delivering exceptional durability and effective crushing of stones up to 6” in diameter.
- Mulches wood up to 8” thick, perfect for clearing dense forestry debris and invasive brush with minimal passes.
- Tills soil up to 4” deep to prepare ground for seeding or landscaping, enhancing soil health and structure.
- Heavy-duty AR400 wear-resistant steel chassis and interchangeable internal wear plates extend the machine’s lifespan and reduce maintenance costs.
- Three crushing bars combined with one adjustable anvil bar provide a three-stage crushing process for finely mulched output and consistent material size.
- Compact, low-profile design improves operator visibility and safety, allowing precise control in tight or wooded areas.
- Dual-sided CarbonChain belt drive system ensures efficient power transfer and high torque under heavy loads, maintaining consistent performance.
- Reinforced skids and front chain protection improve stability during operation and shield the machine from debris damage.
- SAE skid steer quick-attach interface guarantees fast mounting and compatibility with most standard hydraulic skid steers.
- Lightweight at 2,560 lbs (1,160 kg), making it easy to maneuver while still delivering robust crushing and mulching power.
- Operates efficiently within a hydraulic pressure range of 2,175–5,500 PSI, compatible with a wide range of skid steer models.
- Ideal for applications including road rehabilitation, construction site cleanup, forestry management, soil stabilization, and agricultural land clearing.
Detailed Specifications
| Category | Specification |
|---|---|
| Brand | SEPPI M. |
| Model Name | MINISOIL CL150 (MS-CL150) |
| Machine Type | Stone Crusher · Forestry Mulcher · Soil Tiller (3-in-1) |
| Recommended Carrier Type | Hydraulic Skid Steer Loaders (SAE Interface) |
| Hydraulic Flow Requirement | 28 – 66 GPM (105 – 250 l/min) |
| Operating Pressure Range | 2,175 – 5,500 PSI (150 – 380 bar) |
| Case Drain Pressure | Max 1.5 bar |
| Working Width | 59 in (150 cm) |
| Overall Width | 67 in (170 cm) |
| Machine Depth | 48 in (121 cm) |
| Machine Height | 30 in (77 cm) |
| Weight (Base Configuration) | 2,560 lbs (1,160 kg) |
| Rotor Type | Patented Aggressive Rotor |
| Hammer Configuration | 2 + 26 + 2 (SUPER DUO PROTECT standard) |
| Hammer Material | Tungsten Carbide Inserts with Anti-Wear Supports |
| Optional Rotor Setup | SUPER MONO PROTECT Hammers (2 + 26 + 2) |
| Stone Crushing Capacity | Up to 6 in (15 cm) diameter |
| Wood Mulching Capacity | Up to 8 in (20 cm) diameter |
| Tilling Depth | Up to 4 in (10 cm) |
| Working Speed | 0 – 2 km/h (0 – 1.24 mph) |
| Drive System | Dual-Sided CarbonChain™ Belt Drive |
| Motors | Dual M-BOOST Hydraulic Piston Motors (Variable Displacement: 60–80 cm³) |
| Motor Features | Adaptive Torque, Faster Rotor Acceleration, No Electronics Needed |
| Chassis Material | AR400 High-Tensile Wear-Resistant Steel |
| Wear Protection | Interchangeable Internal Wear Plates (AR400 Steel) |
| Crushing System | 3 Crushing Bars (Fixed) + 1 Adjustable Anvil Bar (All AR400) |
| Skids | Reinforced Support Skids with Integrated Material Feed Function |
| Protective Features | Front Chain Protection, Low Profile for Operator Visibility |
| Attachment Interface | SAE Universal Skid Steer Quick Attach |
| Optional Accessories | - Hoses with Quick Couplers- 1/2" Polycarbonate Impact-Resistant Shield- Custom Paint Colors |
| Safety Notes | Requires stone impact-protected cab. Max raise height: 20 in (50 cm) |
| Color Scheme | SEPPI Red (RAL3020) & Charcoal Gray (RAL7021) |
| Applications | Road Work · Forestry Clearing · Soil Stabilization · Land Reclamation · Agriculture & Construction |
